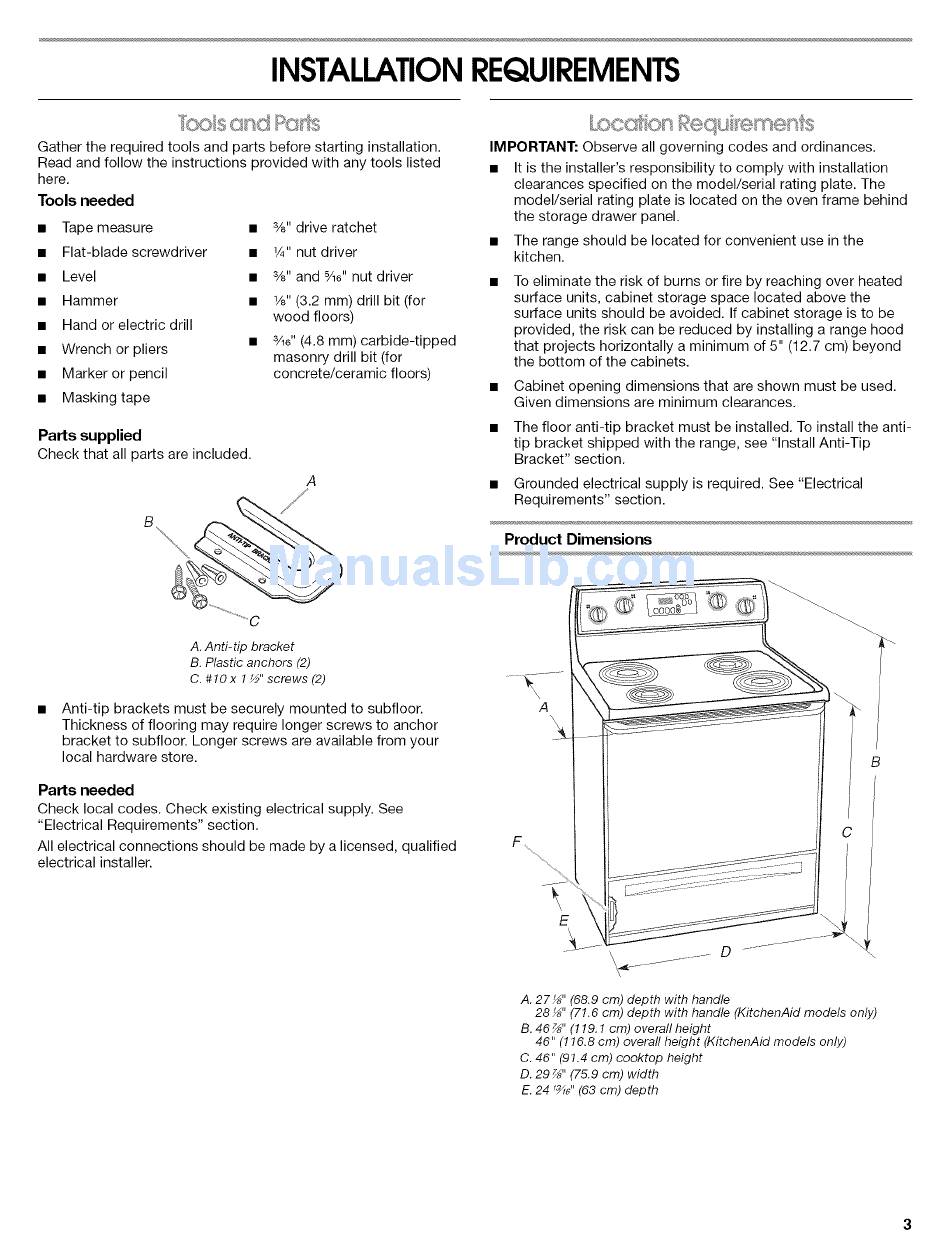

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Tools needed
•
Tape measure
•
%" drive ratchet
•
Flat-blade screwdriver
•
1A" nut driver
•
Level
•
%" and %6" nut driver
•
Hammer
•
1/8"(3.2 mm) drill bit (for
•
Hand or electric drill
wood floors)
•
Wrench or pliers
•
3/16"(4.8 mm) carbide-tipped
masonry drill bit (for
•
Marker or pencil
concrete/ceramic
floors)
•
Masking tape
Parts supplied
Check that all parts are included.
A
A. Anti-tip bracket
B. Plastic anchors (2)
C. #10 x l _" screws (2)
Anti-tip brackets must be securely mounted to subfloor.
Thickness of flooring may require longer screws to anchor
bracket to subfloor. Longer screws are available from your
local hardware store.
Parts needed
Check local codes. Check existing electrical supply. See
"Electrical Requirements"
section.
All electrical connections should be made by a licensed, qualified
electrical installer.
oc@
equ ss m®n s
IMPORTANT: Observe all governing cedes and ordinances.
•
It is the instalbr's responsibility
to comply with installation
clearances specified on the model/serial rating plate. The
model/serial
rating plate is located on the even frame behind
the storage drawer panel.
•
The range should be located for convenient use in the
kitchen.
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
•
Cabinet opening dimensions that are shown must be used.
Given dimensions
are minimum clearances.
•
The floor anti-tip bracket must be installed. To install the anti-
tip bracket shipped with the range, see "Install Anti-Tip
Bracket" section.
•
Grounded electrical supply is required. See "Electrical
Requirements"
section.
Product Dimensions
A
A. 27 _" (68.9 cm) depth with handle
28 _" (71.6 cm) depth with handle (KitchenAid models only)
B. 46 _" (119.1 cm) overafl height
46" (116.8 cm) overall height (KitchenAid models only)
C. 46" (91.4 cm) cooktop
height
D. 29_"
(75.9 cm) width
E. 24 1_6" (63 cm) depth
