SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
HSU-09RK03/R2(SDB)
HSU-12RK03/R2(SDB)
HSU-09RS03/R2(SDB)
HSU-12RS03/R2(SDB)
Please read this operation manual before using the air conditioner.
Keep this operation manual for future reference.
0010532977
Contents
PARTS AND FUNCTIONS
OPERATION
CAUTIONS
TROUBLE SHOOTING
2
3
11
12
Advertisement
Table of Contents
Related Manuals for Haier HSU-09RS03/R2(SDB)
Summary of Contents for Haier HSU-09RS03/R2(SDB)
-
Page 1: Operation Manual
SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL HSU-09RK03/R2(SDB) HSU-12RK03/R2(SDB) HSU-09RS03/R2(SDB) HSU-12RS03/R2(SDB) Please read this operation manual before using the air conditioner. Keep this operation manual for future reference. 0010532977 Contents PARTS AND FUNCTIONS OPERATION CAUTIONS TROUBLE SHOOTING... -
Page 2: Parts And Functions

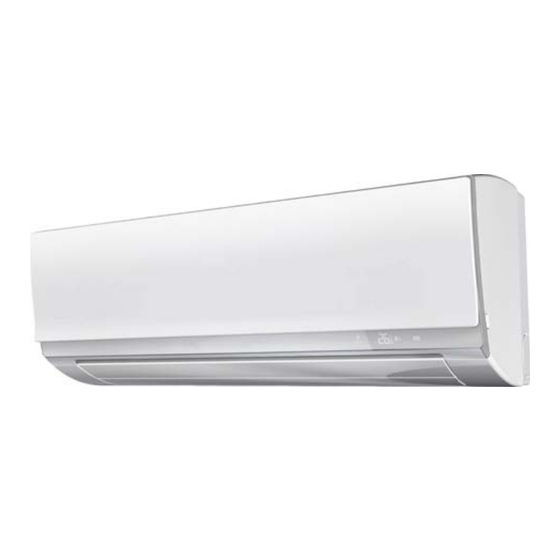

Parts and Functions Indoor Unit Inlet Inlet grille Outlet Negative Anion generator (inside) Horizontal flap Intelligent (adjust up and down air flow Don’t adjust it manually) Please be subject to the actual produce purchased, the above picture is just from your reference. -
Page 3: Clock Set
Operation Inner side of the controller operating power is 100W; when the panel display “02”, SMART the operating power is SET TEMP. ROOM TEMP. COOL 200W, and so forth) HEAT 21.LIGHT button Control the lightening and AUTO AUTO extinguishing of the indoor AUTO SPEED POWER... -
Page 4: Smart Operation
Operation SMART Operation (This function is unavailable on some models) SMART One key can give you a comfortable room! The air conditioning unit can judge the indoor temperature and humidity, and make the adjustment accordingly. SMART SMART Press ON/OFF button, unit starts. Press SMART button“... -
Page 5: Swing Operation
Operation Select TEMP.setting FAN Operation Press TEMP.setting Press TEMP button. Every time the button is pressed, temp. setting increases 0.5 Every time the button is pressed, temp. setting decreases 0.5 SMART Unit will start running to reach the temp.setting on LCD. FAN Operation Press FAN SPEED button. -
Page 6: Health Airflow Operation
2.In heating, it is better to select the 3.In cooling, it is better to select the 4.In cooling and dry, using the air conditioner for a long time under the high air humidity, a phenomenon falling drips of water occurs at the outlet grille . -
Page 7: Timer Operation
When you need rapid cooling, AUTO POWER you can use this function. SOFT For each press, displayed Air conditioner starts POWER function operation. SMART In COOL mode, fan speed automatically takes high speed of AUTO fan mode. Press POWER button again,... - Page 8 Operation Comfortable SLEEP Before going to bed,you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep. AUTO Operation Mode 1.In COOL,DRY mode 1 hours after SLEEP mode SMART starts, temp.will become 1 higher than temp.setting.
-
Page 9: Eco Operation
Operation iFP Operation The movement of people in the room can be sensed, which can improve the air adjustment efficiency. Press iFP button “ displayed on the remote controller and “ ” is displayed on the display board, unit will unrin iFP mode. - Page 10 Continue to press the test operation switch for more than 5 seconds. After you hear the your finger from the switch:the cooling operation starts with the air flow speed For smart Use of The Air Conditioner Air Filter cleaning Open the inlet grille by pulling it upward Remove the filter Push up the filter’s center tab slightly until it is...
- Page 11 Cautions Please call Sales/Service Shop for the Installation. Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. When abnormality such as burnt-small found, immediately stop the operation button and contact sales shop.
-
Page 12: Trouble Shooting
Do not obstruct or cover the ventilation conditoner.Do not put fingers inlet/outlet and swing louver. Do not allow children to play with the air conditioner case should children be allowed to sit on the outdoor unit. Specifications The refrigerating circuit is leak-proof.
