Python 502 Owner's Manual page 54

H1/6 VIOLET (+) door trigger input

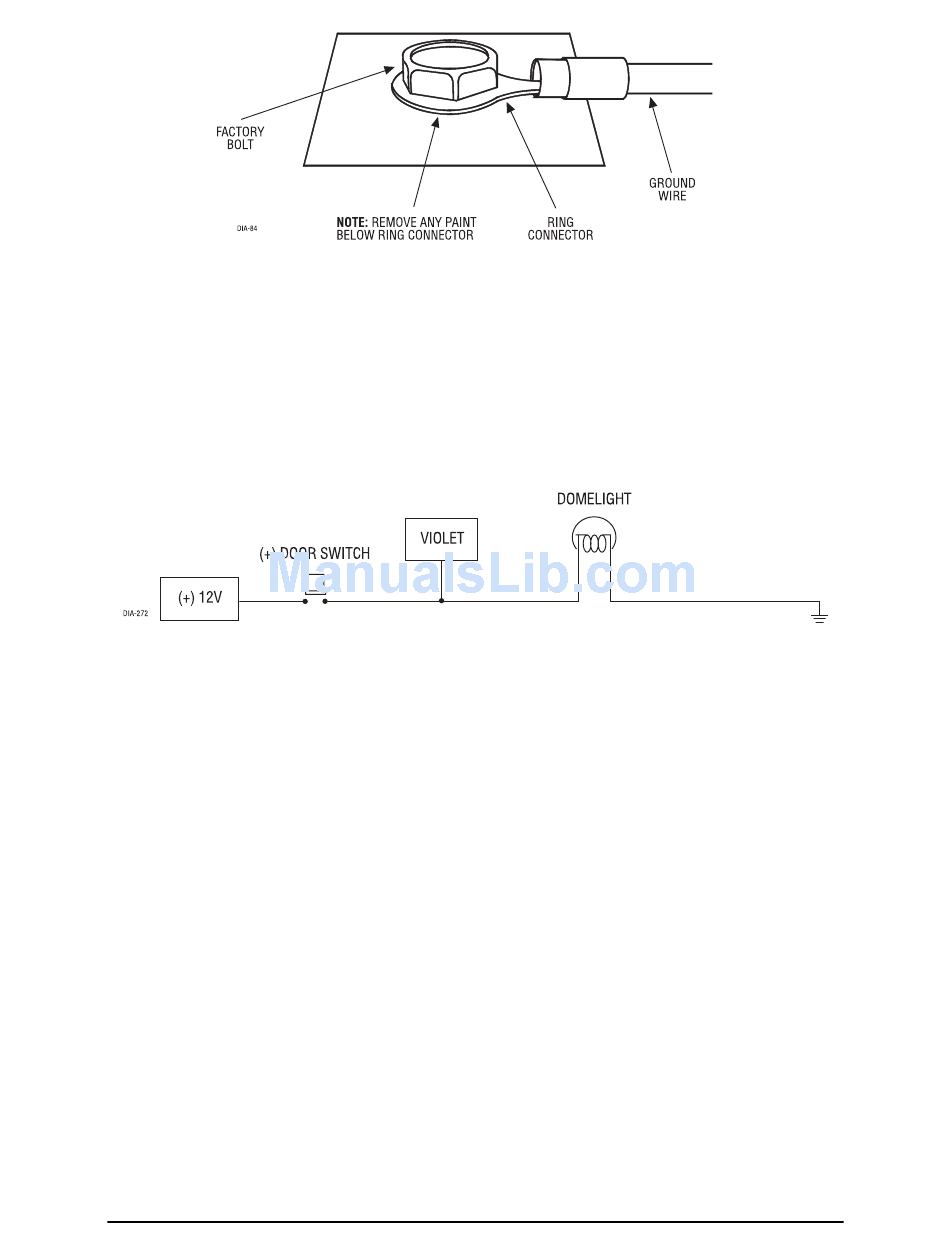

This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that
shows (+)12V when any door is opened. This wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
®
H1/7 BLUE (-) instant trigger input
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk
pins and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/7
BLUE instant trigger wire can also be used to shunt sensors during operation of auxiliary channels
or remote start. (See Bypassing Sensor Inputs section of this guide.)
