MD-R3

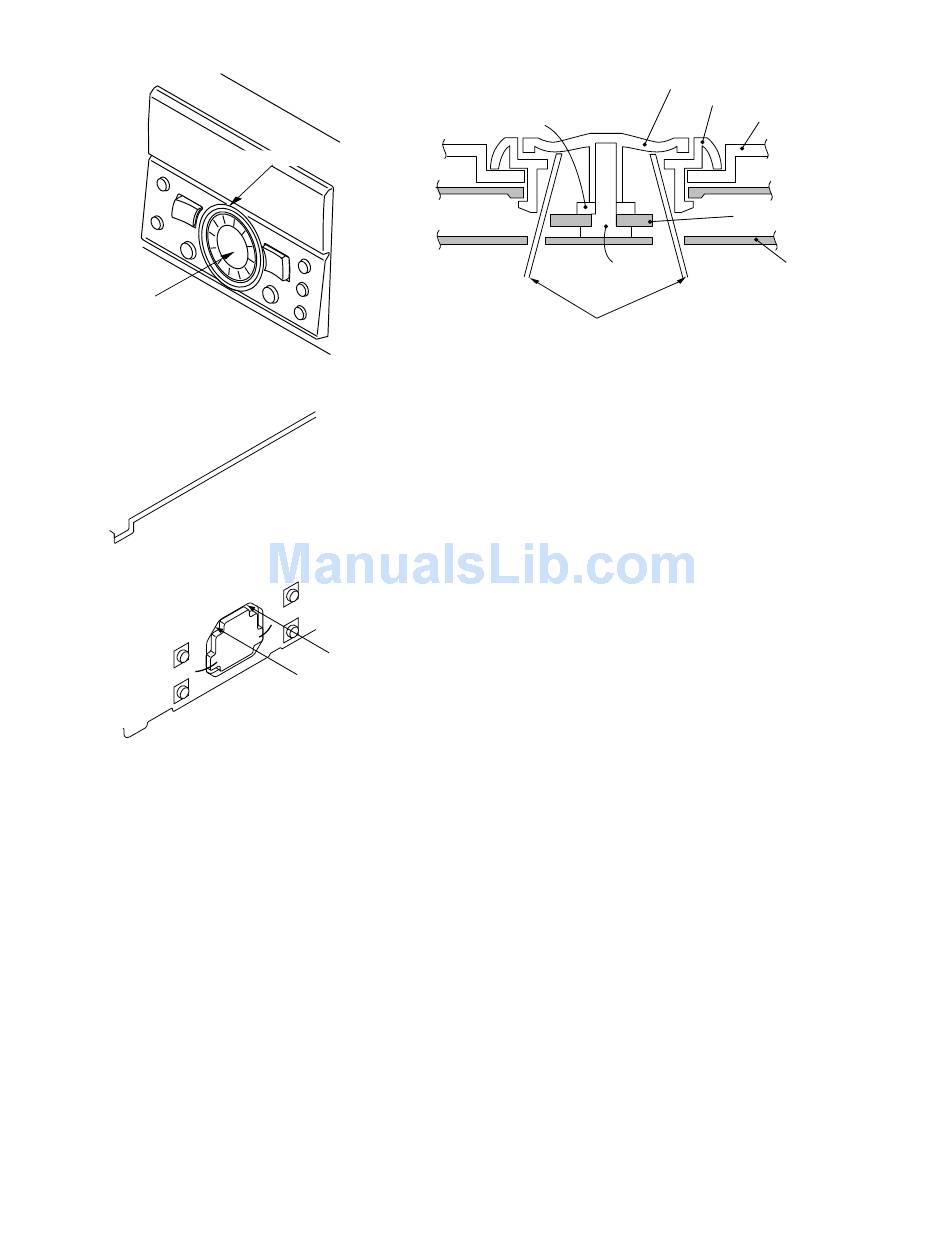

• Jog knob replacement procedure
Jog Decoration
Jog Knob
Display PWB
Figure 10-1
Remove the pawl of jog decoration with fine piece
such as tweezers, press, and remove the jog knob.
Only push out on the jog knob itself.
Figure 10-2
– 10 –
Jog Knob
NUT
VOLUME
Push directly the jog knob with pliers etc.
Jog Decoration
FL Window
Front Panel
Display PWB
