Ultra Start 25 series Owner's Manual

Advanced remote starter/alarms
Hide thumbs Also See for 25 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Covers All 25xx and 26xx Series
Advanced Remote Starter/Alarms
www.ultrastarters.com
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
It is the sole responsibility of the user to place the system in Service Mode
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
when parking in an enclosed area ex: garage, partially enclosed area
- The Hood Pin Safety Switch Must Always be Installed!
ex: carport, or when the vehicle is being serviced.
OWNER'S GUIDE
Warning!!

Advertisement

Table of Contents
loading

Related Manuals for Ultra Start 25 series

Summary of Contents for Ultra Start 25 series

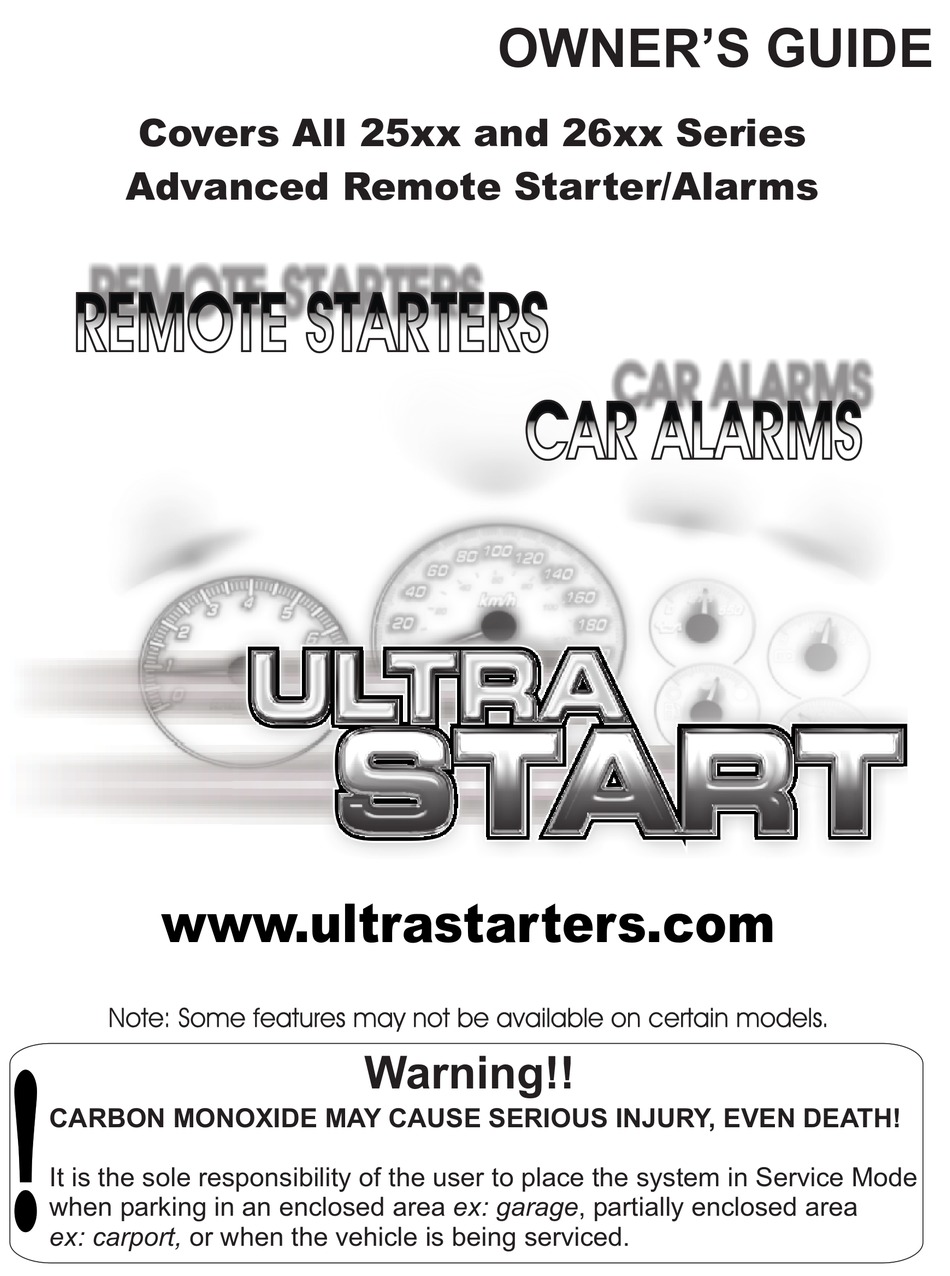

  • Page 1 OWNER’S GUIDE Covers All 25xx and 26xx Series Advanced Remote Starter/Alarms www.ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.

  • Page 2: About Ultra Start

    PAGE 2 Welcome Congratulations on your purchase of an Ultra Start remote vehicle starter. Ultra Start remote vehicle starters will provide years of comfort and convenience. To utilize and understand this system to the fullest, PLEASE READ THIS MANUAL IN DETAIL.
  • Page 3 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 3 Safety VERY IMPORTANT SAFETY NOTES! The owner/user MUST INSTALL a CARBON MONOXIDE DETECTOR in the living area near to where the vehicle is being stored or parked. It is the sole responsibility of the owner/user to keep the remote transmitters away from the reach of children and handle with care so that the system does not unintentionally start.
  • Page 4 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 4 Remote Transmitters and Antenna OE series XR series 26xx series Program Button LEDs Active RF antenna with built in LEDs and Program Button. NOTE Remote transmitter’s and antenna may not be exactly as shown.

  • Page 5: Remote Star Ter Functions

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 5 Remote Star ter Functions Remote Starting (if remote start fails to start see page 15) 1. Press and release the button. 2. The park lights will flash and the siren will chirp once to confirm. The vehicle will then remote start, the siren will chirp and the park lights will then flash four times then remain on while the vehicle is running.* NOTE: For SAFETY START (optional) press and release the...

  • Page 6: Reservation Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 6 Reservation Mode - (Manual Transmission Vehicles) Very Important! Do not set Reservation Mode if the vehicle is occupied. Manual transmission remote starters must be set into Reservation Mode before the remote starter will activate. The activation type of Reservation Mode is determined when the system is installed.

  • Page 7: Alarm Functions

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 7 Alarm Functions 1. Press and release the button. 2. The park lights will flash and the siren will chirp one time. 3. The doors will lock (optional). NOTE: The LEDs on the antenna will start flashing within five seconds. If installed, the starter disable will activate.
  • Page 8 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 8 Optional Remote Features Trunk (default button) 1. Press and hold the button. 2. The doors will unlock (optional), continue holding until the Trunk Release activates. NOTE: The trunk release output will stay active for 5 seconds as long as the button is pressed.
  • Page 9 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 9 Optional Remote Features Auxiliary 5 (25xx series) 1. Press and hold buttons simultaneously. The park lights will flash and the siren will chirp one time to confirm. (26xx series) 1. Press and hold the (left) button.

  • Page 10: Cold Start*/Timer Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 10 Cold Start*/Timer Mode Cold Start*/Timer Mode will start the vehicle at a user selectable start interval or temperature setting. The vehicle can be set to start once every 2, 3 or 4 hours in Timer Mode or -5,-15 or -25 Celsius in Temperature Mode*, for a maximum of 12 starts.
  • Page 11 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 11 PadLoc/ 2nd Car Remote Functions NOTE: Some features not available with PadLoc or 2nd car mode. Remote Starting (if remote start fails to start see page 15) 1. Press and release the buttons. 2.

  • Page 12: Remote Transmitter Learn

    “UNLOCK” the remote transmitter the button must be pressed simultaneously with the function chosen. 2nd Car function allows the operation of two Ultra Start systems (in two separate vehicles) with one remote transmitter. Example: Press and release simultaneously to remote start.

  • Page 13: Entering Service Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 13 System Service Mode (Valet Mode) System Service Mode will disable the remote starter. This will only effect the remote start portion of the system. The optional lock, unlock and trunk release features will still be operational. When the vehicle is to have any under hood or service work done, the system must be placed into Service Mode.

  • Page 14: Shock Sensor

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 14 Shock Sensor Shock Sensor Programming/Adjustment METHOD 1: Step1 - Press and hold the buttons for 3 seconds. The siren will chirp and the park lights will flash 3 times and then the park lights will stay ON. Step 2 - While the park lights are on strike the vehicle with the amount of force wanted to trigger the alarm*.

  • Page 15: Park Lights

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 15 Diagnostics If the remote starter does not activate when the button is pressed the park lights will flash a diagnostic code to indicate what shutdown input has been triggered. PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid...

  • Page 16: Limited Lifetime Warranty

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 16 Limited Lifetime Warranty The manufacturer warrants to the original purchaser of their remote starters and alarms, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a two year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the remote starter and/or alarm which the manufacturer agrees to be defective.
