Ultra Start 25XX Series Install Manual

Ultra start - applicated security technologies remote starter/ alarms install guide.

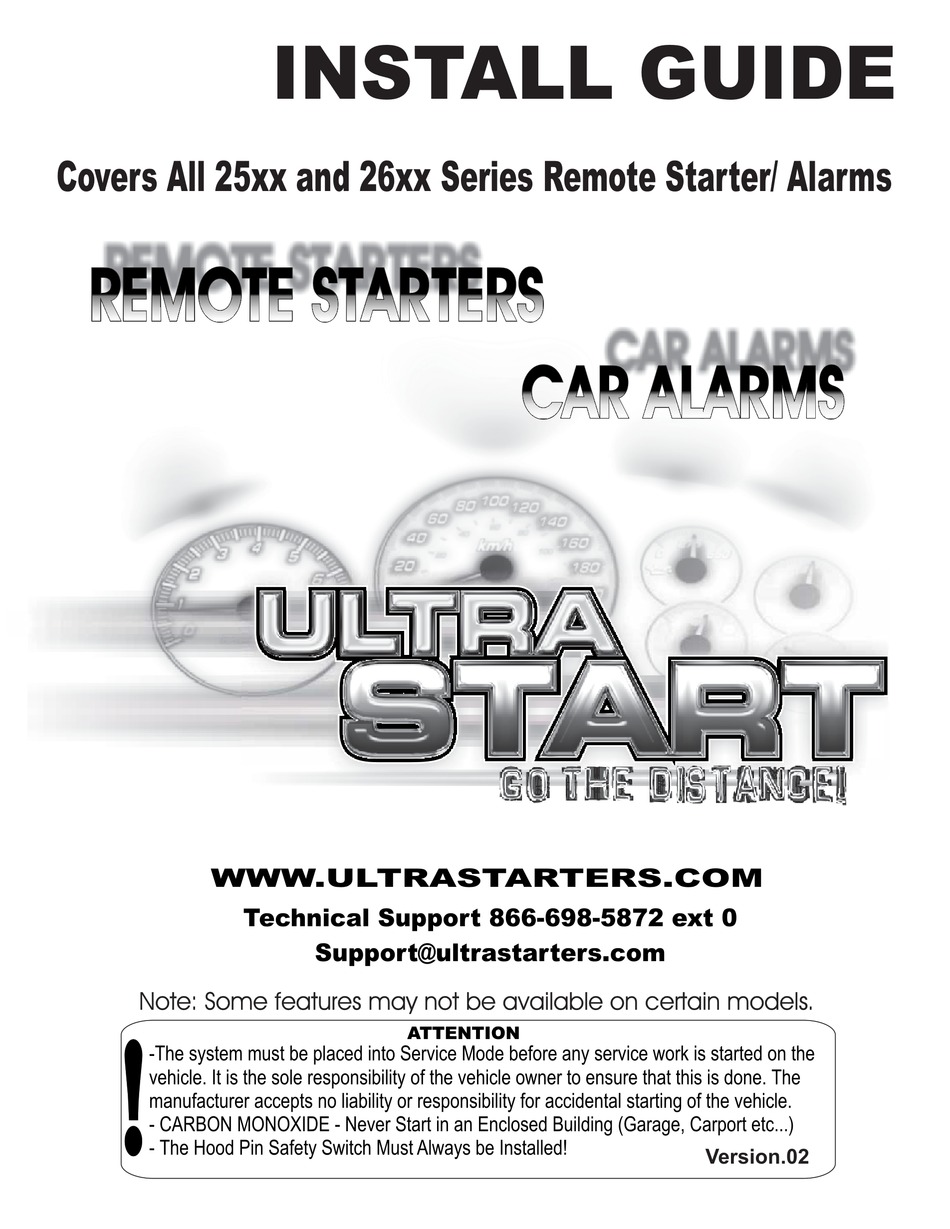

INSTALL GUIDE
Covers All 25xx and 26xx Series Remote Starter/ Alarms
REMOTE STARTERS
CAR ALARMS
ü
WWW.ULTRASTARTERS.COM
Technical Support 866-698-5872 ext 0
Support@ultrastarters.com
-The system must be placed into Service Mode before any service work is started on the
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
- CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
- The Hood Pin Safety Switch Must Always be Installed!
Version.02

Summary of Contents

  • Page 1

    INSTALL GUIDE Covers All 25xx and 26xx Series Remote Starter/ Alarms REMOTE STARTERS CAR ALARMS ü WWW.ULTRASTARTERS.COM Technical Support 866-698-5872 ext 0 Support@ultrastarters.com -The system must be placed into Service Mode before any service work is started on the vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.

  • Page 2

    Page 2 Table of Contents Pre-Installation Components Feature List Pre-Installation Installation Procedures Wiring Diagrams Wire Description 6 Pin Connector 14 Pin Connector Auxiliary Outputs Optional Connectors Jumper Positions Quick Start Installation Basic Installation Plug-in The Module Auto Tach Learn Manual Transmission Vehicles Additional Connections Clutch Bypass Important Tach Notes...

  • Page 3

    REMOTE VEHICLE STARTER/ALARM Components - Control module - Antenna with built in - Program Button and LED’s - Multi-tone Siren - 14 pin harness - 4 pin keyless entry harness - Hood pin safety switch - Installation and Owner Manuals * The 26xx comes with two 6 button remote transmitters Feature List - Auto Tach learning with Quick Learn option...

  • Page 4

    INSTALLATION MANUAL REMOTE VEHICLE STARTER/ALARM Page 4 Recommended Installation Procedures Proper Connections - Remote Starters can handle loads of up to 30 amps for extended periods of time. It is critical to insure that all high current connections are properly soldered and insulated with quality electrical tape. Failing to insure proper connections will result in warranty being VOID and can result in damage to the vehicle and remote starter module.

  • Page 5

    REMOTE VEHICLE STARTER/ALARM Wiring Diagram Starter (+) 30amp Output Heater (+) 30amp Output Main Power (+) 30amp Input Main Power (+) 30amp Input Selectable (+) 30amp Output (+) 30amp Output Ignition 1 (-)250ma Output FACTORY RE-ARM (-)250ma Output STARTER DISABLE FACTORY DISARM (-)250ma Output TRUNK RELEASE...

  • Page 6

    INSTALLATION MANUAL Page 6 Side View (-)250ma Output Door Lock (+)250ma Output 12volt Inverter Output (-)250ma Output Door Unlock (-)250ma Output Passenger Door Unlock Sensor Pre-Warn Input (-)Input (-) Input Sensor Full-Warn Input (-)250ma Output Sensor Ground Output (+)250ma Output Sensor 12V+ Power Output Note-250ma outputs are low current and are designed to activate relays...

  • Page 7

    REMOTE VEHICLE STARTER/ALARM 6 Pin Power Connector 6-pin Description 1-Yellow 30amp Starter Output 2-Green 30amp Heat/Acc Output This wire will test 0volts in the off position 12- 3-Red 30amp Power Input 4-Red 30amp Power Input 5-Blue 30amp Ignition Output 6-White 30amp Select Output 14 pin connector 14 Pin...

  • Page 8

    Page 8 Continued From Previous Page 14 Pin Connector 11-Blue/White Tach 12-Blue Glow Plug 13-White Park Lights +10amp park light output. At light harness 0volts when 14-Black/ Park Brake White 4 Pin Connector Square White/Green LED Output Black Dome Light White/Blue Siren Trunk Pin...

  • Page 9

    REMOTE VEHICLE STARTER/ALARM Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output Green 30amp Heater Output 30amp Power Input 30amp Power Input Blue 30amp Ignition Output 12volts in the ignition, start and when run White* 30amp Select Output *Note: The white wire may not be required on all vehicles.

  • Page 10

    Page 10 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output 12volts during start position only. Green 30amp Heater Output 12volts in the accessory position off during start and 12volts 30amp Power Input 30amp Power Input Blue 30amp Ignition Output 12volts in the ignition, start and when run positions.

  • Page 11

    REMOTE VEHICLE STARTER/ALARM Manual Transmission “M” Models Never install an automatic transmission remote starter into a manual transmission vehicle!!! Doing so may result in serious injury or death. Do not install remote starters in convertible vehicles! The following wires must be connected In addition to the basic remote starter installation.

  • Page 12

    Page 12 Auto Tach Learn 1) Turn the ignition key to the “ON” position. (The park lights will turn on*). 2) Start the vehicle with the key, The LEDs on the antenna will turn on if a proper tach signal is detected**, then after 30-35 seconds the park lights will flash and the siren will chirp twice to confirm Tach Learn.

  • Page 13

    REMOTE VEHICLE STARTER/ALARM Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM. Vehicles such as Toyota and Honda may idle much higher when the engine is warm compared to starting the vehicle when the engine is cold.

  • Page 14

    Page 14 Entering Program Mode 1) With the ignition in the OFF position, turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF-ON within three seconds. (Leave the key in the ON position) 2) Press and release the Program Button located on the antenna. The park lights will flash and the siren will chirp to confirm entering program mode.

  • Page 15

    REMOTE VEHICLE STARTER/ALARM Quick View Programming * See the following pages for more detailed programming instructions. Menu 1 - Press Lock 1 Ignition Lock 2 Siren Chirp 3 Lock&Unlock Options 4 Unlock/Disarm 5. Passive Locks 6. Shock Sensor 7. Passive Arming 8.

  • Page 16

    Page 16 Menu 1- User Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Lock Button Setting 1 Ignition Auto Lock 1) Ignition Lock & Unlock Enable 1 Flash/Chirp 2) Ignition Lock Only *3) Ignition Auto Lock Disable Press & Release the Program Button 1 Time (Setting 1) Confirmed with 1 LED flash. Press &...

  • Page 17

    REMOTE VEHICLE STARTER/ALARM Menu 1- User Settings Setting 5 Active/Passive Locks 1) No Auto-Lock with Passive Arm *2) Doors Auto-Lock with Passive Arm Press & Release the Program Button 5 Times (Setting 5) Confirmed with 5 LED flashes. Press & Hold the Program Button until the appropriate # of park lights/ siren chirps, then release. Press &...

  • Page 18

    INSTALLATION MANUAL Page 18 Menu 2 - Additional Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Unlock Button Setting 1 Secure Valet Mode - Length of time required to set the system into Service Mode 1) Secure Valet 1 Flash/chirp *2) Normal Valet 2 Flashes/chirps Press &...

  • Page 19

    REMOTE VEHICLE STARTER/ALARM Menu 3- Starter Settings Ignition ON-OFF-ON-OFF-ON Press & Release Program Button Press Button #3 Setting 1 Special Door Lock/Unlock Operations (Factory Alarm Rearm). 1) Type 1 1 Flash/chirp 2) Type 2 2 Flashes/chirps *3) Type 3 3 Flashes/chirps Press &...

  • Page 20

    INSTALLATION MANUAL Page 20 Setting 6 Anti-Grind/Starter Kill (Orange wire on 14-pin) 1) Active 1 Flash/chirp 2) Passive 2 Flashes/chirps *3) Anti-grind 3 Flashes/chirps Press & Release the Program Button 6 Times (Setting 6) Confirmed with 6 LED flashes. Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release. Press &...

  • Page 21

    REMOTE VEHICLE STARTER/ALARM Transmitter Programming Step 1 - Within 3 seconds turn the ignition ON-OFF-ON-OFF-ON - Leaving Key ON Step 2 - Press and hold the Program Button - The park Lights will turn ON and the siren will chirp once. If the park lights do not come on at this point, turn the ignition key off for 5 seconds, then repeat step 1.

  • Page 22

    INSTALLATION MANUAL Page 22 Negative Type Door Locks 250ma Vehicle Lock/Unlock Switch Green Blue Negative Door Locks (More Than 250ma) Fused +12V Ground Green Blue Positive Type Door Locks Fused +12V Green Blue Note: When installing relays always use a fused power source. REMOTE VEHICLE STARTER/ALARM Lock lock...

  • Page 23

    REMOTE VEHICLE STARTER/ALARM 5 Wire / Reverse Polarity Type Door Locks Green Blue Vehicle Lock/Unlock Switch Aftermarket Doorlock Actuators Vacuum Type Door Locks DIAGNOSTICS Green Blue Lock lock Note: When installing relays always use a fused power source. Lock lock Ground Fused +12V Ground...

  • Page 24

    Page 24 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example when the start button is pressed the park lights flash 3 times slowly. Looking at the chart below this would indicate that the system is in Service Mode, simply follow the instructions listed in the owners manual on exiting Service Mode and the remote starter will begin to function as normal.
