Ultra Start 22 series Install Manual

Hide thumbs Also See for 22 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

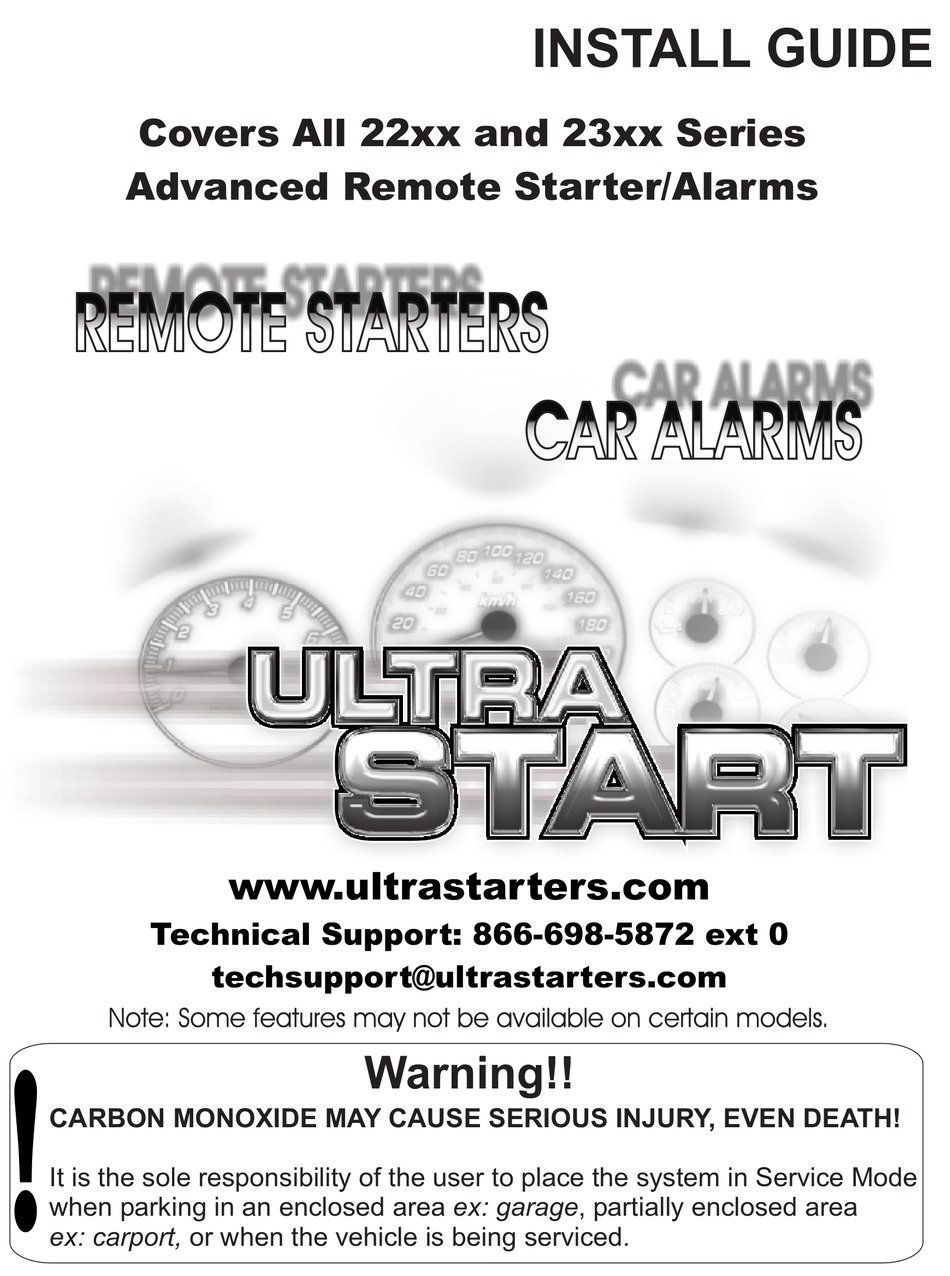

Covers All 22xx and 23xx Series
Advanced Remote Starter/Alarms
Technical Support: 866-698-5872 ext 0
techsupport@ultrastarters.com
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
It is the sole responsibility of the user to place the system in Service Mode
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
when parking in an enclosed area ex: garage, partially enclosed area
- The Hood Pin Safety Switch Must Always be Installed!
ex: carport, or when the vehicle is being serviced.
www.ultrastarters.com
Warning!!
INSTALL GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Ultra Start 22 series

Summary of Contents for Ultra Start 22 series

  • Page 1 INSTALL GUIDE Covers All 22xx and 23xx Series Advanced Remote Starter/Alarms www.ultrastarters.com Technical Support: 866-698-5872 ext 0 techsupport@ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle.

  • Page 2: Table Of Contents

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 2 Table of Contents Table of Contents Page 2 Component/Feature List Page 3 Recommend Installation Procedures Page 4-5 Wiring Diagrams Page 6-7 Wire Description Page 8-9 6 Pin Connector Auxiliary Connectors Optional Connectors Jumper Positions Quick Start Installation Page 10 Basic Installation...

  • Page 3: Component/Feature List

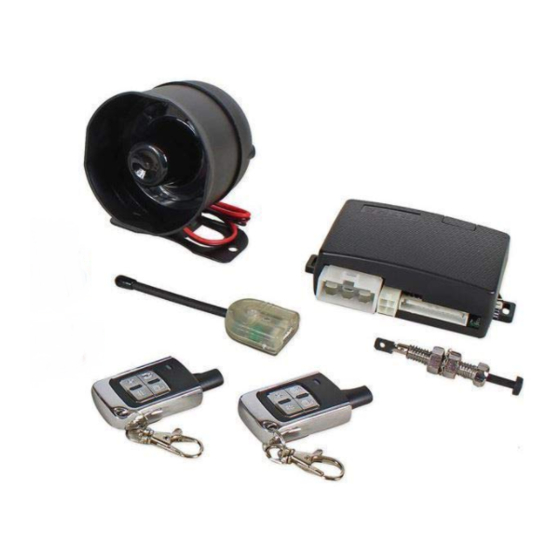

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 3 Components - Control module - 4 button remote transmitter’s - Antenna with built in - 6 pin Main harness Program Button and LEDs - 14 pin auxiliary harness - 3 pin keyless entry harness - 2 pin auxiliary harness* - Hood pin switch - 3 pin auxiliary harness*...

  • Page 4: Recommend Installation Procedures

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 4 Recommended Installation Procedures Remote car starters and alarms should be professionally installed. Review the installation and owner manuals and acquire a vehicle wiring diagram for the vehicle to be worked on. Take a few moments to walk around the vehicle looking for any damages and make note if any are found.
  • Page 5 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 5 Recommended Installation Procedures Mounting The Control Module - Never mount the module in the engine compartment. Select a location under the dash to install the main module. Be certain that the module is securely attached and does not obstruct any serviceable areas.

  • Page 6: Wiring Diagram

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 6 Wiring Diagram Starter Output (+) YELLOW Heater/Accessory Output (+) GREEN 12volt Input (+)30amp 12volt Input (+)30amp Selectable Output (+)* WHITE* Ignition Output (+) BLUE Re-arm Output (-)250ma YELLOW Trunk Release Output (-)250ma RED/WHITE Dis-arm Output (-)250ma BROWN Ground While Running Output (-)
  • Page 7 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 7 Wiring Diagram *The centre pin of the keyless entry harness is ONLY available with plug-in devices such as the VP-1, DL-3, DL-7 and Data Bus Modules. Overloading this output will damage the remote starter. Door Lock Output (-)250ma GREEN 12v Output (+)250ma...

  • Page 8: Wiring Descriptions

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 8 Wiring Descriptions MAIN CONNECTOR (6pin) Function Description 1-YELLOW Starter Output - This wire will test 0V in OFF, ACCESSORY and in the ON key positions. 12v during START ONLY. 2-GREEN Heater/Acc Output - This wire will test 0V in the OFF and START key positions.
  • Page 9 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 9 Wiring Descriptions Function Description 7-PURPLE Door Pin(+) - Input to detect 12v when door is open. 8-WHITE Park Light(+) - 10amp positive output to activate park lights. Programmable output (menu 2) 9-GREEN/ Hood Pin(-) - Input to detect ground when hood is open. WHITE MUST BE CONNECTED.

  • Page 10: Auxiliary Connectors

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 10 Step 1 - Connect All Of the Following Wires Main Connector (6pin) YELLOW Starter Output - 12volts during start position only. GREEN Heater/Acc Output - 12volts in the accessory position off during start and 14volts during run. 12volt 30amp Input - 12volts from ignition harness or battery.

  • Page 11: Clutch Bypass

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 11 Manual Transmission “M” Models Never install an automatic transmission remote starter into a manual transmission vehicle!!! Doing so may result in serious injury or death. Do not install remote starters in convertible vehicles! The following wires must be connected In addition to the basic remote starter installation.
  • Page 12 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 12 Auto Tach Learn IMPORTANT! The system must be Tach Learned before remote starting. The Auto Tach Learn is the same for the TL (tachless) series. 1) Turn the ignition key to the “ON” position. The park lights* will turn “ON” 2) Start the vehicle with the key.

  • Page 13: Important Tach Notes

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 13 Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM.

  • Page 14: Entering Program Mode

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 14 Entering Program Mode For Menu 1, For Menu 2, Ignition 3x Press and For Menu 3, For Menu 4, press the press the On/Off Release the press the press the On/Off On Program Button button button button...

  • Page 15: Quick View Programming

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 15 Quick View Programming Menu 1 - Press 1 Flash 2 Flashes 3 Flashes 1 Ignition Lock Enabled Lock Only Disabled 2 Siren Output Type 1 Type 2 All chirps 3 Lock&Unlock Options Double Unlock 3 second 3/4 second 4 Unlock/Disarm...
  • Page 16 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 16 Menu 1- User Settings Press and Hold Press and Press and Press and Release Ignition 3x the Program Button Release the Release the the Program Button On/Off to Change Option Program button for # of Times for On/Off On Button...
  • Page 17 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 17 Menu 1- User Settings ...continued Setting 6 Sensor Enable/Disable 1) Sensor Disabled 1 Flash/Chirp Impact Sensor Disabled *2) Sensor Enabled 2 Flashes/Chirps Impact Sensor Enabled Press & Release the Program Button 6 Times (Setting 6) Confirmed with 6 LED flashes. Press &...
  • Page 18 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 18 Menu 2- Additional Settings ...continued Setting 4 Button Operations 1) Trunk Release 1 Flash/Chirp Button activates Trunk Release 2) Garage Door Interface 2 Flashes/Chirps Button activates Garage Door Interface *3) Car Finder 3 Flashes/Chirps Button activates Car Finder Mode Press &...
  • Page 19 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 19 Menu 3- Starter Settings - continued Setting 2 Gas/Diesel Mode (Auxiliary Connector Pin 12, 23xx series) 1) (-) Input 1 Flash/Honk (-) Glow Plug input. Waits maximum 30 seconds. 2) Time Delay 2 Flashes/Honks Waits for approximately 15 seconds.
  • Page 20 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 20 Menu 4- Tach Settings Press and Press and Press and Release Press and Hold Ignition 3x Release the Release the the Program Button the Program Button On/Off Program # of Times for to Change Option button for On/Off On Button...

  • Page 21: Remote Transmitter

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 21 Remote Transmitter Learn STEP 1 - Within 3 seconds turn the ignition key to the “ON” position three times leaving “ON” the third time. STEP 2 - Press and hold the Program Button. The park lights will turn “ON”...

  • Page 22: Door Lock Relay Wiring Diagrams

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 22 Door Lock Relay Wiring Diagrams Negative Type Door Locks 250ma Vehicle Lock To Control Lock/Unlock Relay or Switch Actuators lock Green Blue Negative Door Locks (More Than 250ma) Fused +12V Vehicle Ground Lock/Unlock Lock lock Switch...
  • Page 23 INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 23 Door Lock Relay Wiring Diagrams 5 Wire / Reverse Polarity Type Door Locks Fused +12V Green Blue Lock Vehicle To Actuator Lock/Unlock Switch lock Aftermarket Doorlock Actuators Ground Vacuum Type Door Locks DIAGNOSTICS Ground Fused +12V Green...

  • Page 24: Diagnostics

    INSTALL MANUAL REMOTE VEHICLE STARTER PAGE 24 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example: If the button is pressed the park lights flash 3 times slowly.
