Contents
Product Specifications ............................................2
Operation ..................................................................3
Minimized Display Mode ............................................. 5
Menu Map .................................................................6
User Settings ...........................................................7
Set Clock ..................................................................... 7
Filter Service ............................................................... 8
Maint Service .............................................................. 9
Screen Timeout ......................................................... 10
F/C Settings .............................................................. 11
Sensor Calibration..................................................... 12
Backlite/Display ......................................................... 13
Usage Graph ..........................................................14
ESM Setpoints .......................................................15

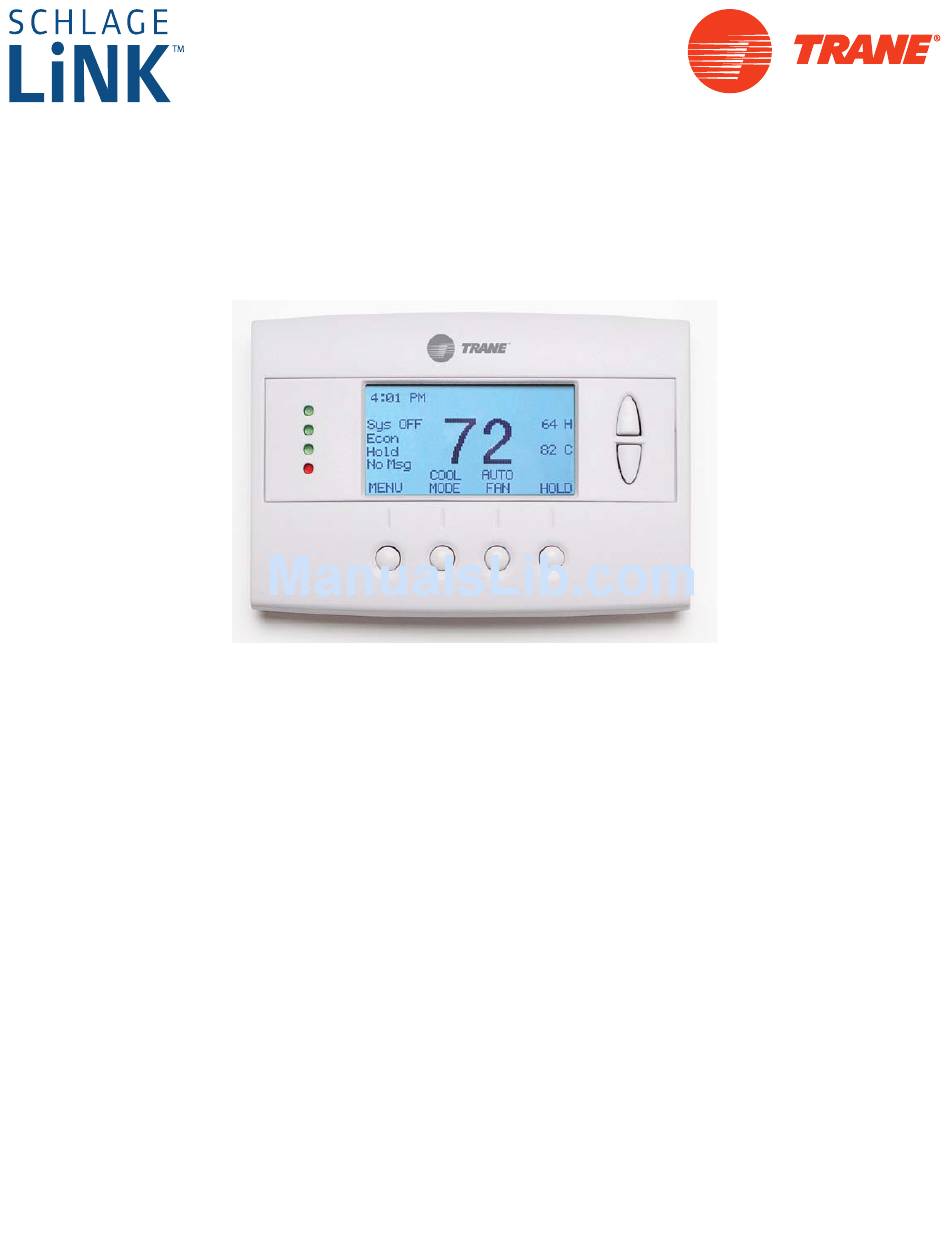

Thermostat
Model TZEMT400AB32MAA
User Guide
ZWave Install ..........................................................16
Inclusion .................................................................... 16
Exclusion ................................................................... 16
Inclusion and Exclusion ............................................ 16
Thermostat Info .....................................................17
Installer Settings ....................................................18
System Settings ........................................................ 19
Mechanical Settings .................................................. 20
Fan Cycler Settings ................................................... 20
Schedules ...............................................................21
Installation ..............................................................24
LED Reference .......................................................25
Warranty .................................................................26
Index .......................................................................27
Advertisement
Table of Contents
Related Manuals for Trane TZEMT400AB32MAA
Summary of Contents for Trane TZEMT400AB32MAA
-
Page 1: Table Of Contents
Thermostat Model TZEMT400AB32MAA User Guide Contents Product Specifications ..........2 ZWave Install ............16 Operation ..............3 Inclusion ..............16 Exclusion ..............16 Thermostat Control Screen Function Control Buttons 4 Inclusion and Exclusion ..........16 Minimized Display Mode ..........5 Thermostat Info .............17 Menu Map ..............6... -
Page 2: Product Specifications
Product Specifications Specification Description Product Model: TZEMT400AB32MAA Product: Thermostat for Heating and Cooling HVAC System control. Z-Wave™ RF communications enabled Thermostat Size: 5.7” wide x 4.0” height x 1.2” depth Display: Graphical LCD, 2.75” x 1.5”, 64x128-pixel Backlight: Yes, Blue/white, Controllable, on, off, timeout... -
Page 3: Operation
Operation The model TZEMT400AB32MAA thermostat provides typical thermostat control of a central heating and cooling HVAC system. This thermostat also features a Z-Wave™ module for remote control. Tempurature Display Clock Display 11:15 AM Sys Off Setpoint 77 H Up/Down Buttons... -
Page 4: Thermostat Control Screen Function Control Buttons
Operation Thermostat Control Screen Function Control Buttons Thermostat Control Screen Function Control Buttons 11:15 AM Sys Off 77 H 74 C Filter AUTO AUTO MENU MODE Menu Button System Fan Mode Schedule Mode Button Button Mode Button Button Description Menu Other thermostat menus can be accessed by pressing the MENU button. -
Page 5: Minimized Display Mode
Operation Minimized Display Mode Minimized Display Mode Optionally, you can set the thermostat to show only the temperature in minimized display mode. This mode can be enabled or disabled in the Users Settings screen. Î See Screen Timeout on page 10 for more information. Thermostat User Guide... -
Page 6: Menu Map
Menu Map MENU The menus are accessed by pressing the button on the main screen. (hidden) „“User Settings” „“Installer Settings” ƒ Set Clock ƒ Display Lock ƒ Filter Service ƒ System Settings ‚ Mechanical Settings ƒ Maint Service Type ... -
Page 7: User Settings
User Settings Set Clock The Set Clock screen allows you to set the thermostat’s internal clock. Î If the clock has been reset by an extended power outage, the clock display on the thermostat screen will blink. Press the MENU button to go directly to the Set Clock screen. Set Clock Time 11 : 15 AM... -
Page 8: Filter Service
User Settings Filter Service Filter Service The Filter Service screen will show the accumulated Filter Runtime hours as well as the Service Interval that will be used to trigger a Filter Message. Any type of HVAC operation that causes the HVAC system fan to run will cause the Filter Runtime value to increase. -
Page 9: Maint Service
User Settings Maint Service Maint Service The Maintenance Service screen shows the accumulated Heat and Cool Runtime hours as well as the Service Interval that will be used to trigger a Maintenance Message. Any HEAT or COOL type of HVAC operation will cause the respective Runtime values to increase. -
Page 10: Screen Timeout
User Settings Screen Timeout Screen Timeout This is the time before any screen reverts to the Minimized Screen (temperature display only), after you stop pushing buttons. Minimized Screen feature is disabled by setting this time to “0”. User Settings Set Clock Filter Service Maint Service Screen Timeout... -
Page 11: F/C Settings
User Settings F/C Settings F/C Settings The F/C Settings screen is use to select the temperature display mode. Fahrenheit (F) or Celsius (C) are the two available modes. F/C Settings F/C Mode Done Change the Temperature Mode 1. Press the MENU button. -
Page 12: Sensor Calibration
User Settings Sensor Calibration Sensor Calibration The Sensor Calibration screen is used to change the temperature calibration of the internal temperature sensor. The temperature calibration can be changed by +/- 7 degrees. When the Sensor Calibration screen is selected, the current temperature calibration is displayed. In the example screen, the calibrated temperature is 77 and the number of degrees of offset being applied is 1. -
Page 13: Backlite/Display
User Settings Backlite/Display Backlite/Display The Backlite/Display screen is used to set the backlight time-out and contrast. Backlite Timeout is the time (in seconds) from the last button press to the backlight going out. The time-out can be set between zero (0) and one hundred and twenty (120) seconds. Thirty (30) is the default setting. When set to zero (0), the backlight will remain always on. -
Page 14: Usage Graph
Usage Graph The Usage Graph shows daily heating and cooling runtime hours for a week. Heating time (Hrs) Tue Wed Thu Fri Sat Done Cool The button in the lower right corner will change depending on what is being displayed. When the heating time is displayed, the button will read Cool. -
Page 15: Esm Setpoints
ESM Setpoints Energy Saving Mode (ESM) Setpoints are the setpoints used when the Energy Saving Mode schedule is selected in the Schedule Mode screen. Energy Saving Mode Setpoings ESM - Heat ESM - Cool Done Adjust ESM Setpoints MENU 1. Press the button. -
Page 16: Zwave Install
Z-Wave™ controllers from various manufacturers may support the Z-Wave™ Thermostat General V2 Device class used by the Trane Z-Wave™ Thermostat. The following procedure will allow the thermostat to be added to a Z-Wave™ network. Î If you are using a controller that is not a Schlage bridge, consult the instructions that came with the controller to find out how to enroll a new device. -
Page 17: Thermostat Info
Thermostat Info The Thermostat Info screen displays information about the thermostat and the system the thermostat controls. This information will be helpful if you need to contact customer support. Thermostat Info TZEMT400AB32 Ver: 01.00.10 ZVER: 02.00.9 ZNID: 004 ZHID: 01.07.37.bd System Type: Standard Fan Type:... -
Page 18: Installer Settings
Installer Settings Î The Installer Settings screen is a hidden screen designed for installer use only. Do not change any settings in this screen unless you are a qualified service technician. Installer Settings Display Lock System Settings Max Heat SP Min Cool SP Done Î... -
Page 19: System Settings
Installer Settings System Settings System Settings Î Changing these settings will affect the operation of the heating/cooling system. To view and edit these settings: 1. Press the MENU button. Installer Settings 2. Press and hold the two middle buttons simultaneously until the menu is displayed. -
Page 20: Mechanical Settings
Installer Settings Mechanical Settings Mechanical Settings Î Changing these settings will affect the operation of the heating/cooling system. To view and edit these settings: 1. Press the MENU button. Installer Settings 2. Press and hold the two middle buttons simultaneously until the menu is displayed. -
Page 21: Schedules
Schedules Scheduling is usually controlled by your Z-Wave system. See the instructions that came with your Z-Wave system for more information. However, scheduling may also be controlled by the thermostat. Î The Schedules menu is hidden by default, but may be enabled in the Installer Settings. See Enable/Disable the Schedules Menu on page 21 for more information. - Page 22 Schedules Load a Preset Schedule There are two possible schedules that may be loaded: Preset Comfort and Preset Energy Star. These schedules may not be changed. When a schedule is loaded, it changes the current Heat and Cool schedule settings. You can then edit the Heat and Cool schedule, if necessary.
- Page 23 Schedules Copy a Day Schedule 1. Press the MENU button. 2. Scroll to Schedules and press the Select button. 3. Scroll to Heat and Cool and press the Select button. 4. The day of the week is displayed at the top of the screen. Press the Next button until the day you want to copy is displayed.
-
Page 24: Installation
Installation For complete installation instructions, browse to part2.schlage.com and download Trane Thermostat Installation Instructions. Thermostat User Guide... -
Page 25: Led Reference
LED Reference The LEDs on the thermostat may have several different meanings, depending on system, setup and operation. 11:15 AM LED 1 Sys Off LED 2 77 H LED 3 74 C LED 4 Filter MENU MODE On/Off Text Description LED 1 (Green) Sys Off HVAC system is OFF... -
Page 26: Warranty
Purchased Product. Trane’s maximum liability hereunder is limited to the Original Purchase Price of the Purchased Product. No action arising out of any claimed breach of this warranty by Trane may be brought by the Original Purchaser more than one (1) year after the cause of action has arisen. -
Page 27: Index
Index Symbols 2nd Stage Cool 20 Defaults H/C Delta 19 2nd Stage Heat 20 Restore 18 Heating Delta Stage 1 OFF 19 Disable Heating Delta Stage 1 ON 19 Filter Service Interval 8 Heating Delta Stage 2 OFF 19 Maintenance Service Interval 9 Heating Delta Stage 2 ON 19 Adjust Minimized Display 10... - Page 28 Operation 3 Temperature Display 3 Mode 11 Temperature Mode Preset Schedule Change 11 Load 22 thermostat control screen 3 Thermostat Control Screen Function Control Buttons 4 Thermostat Info 17 Recovery Enable 19 Type 20 Restore Defaults 18 Usage Graph 14 Schedule User Settings 7 Comfort 22...
