To use the remote features of this thermostat, a Schlage LiNK
broadband internet service and router with available port.
For professional installation service, instructions, operation guide, and installation video modules, please visit
Customer Service: (877) 288-7707
Customer Service hours of operation:
• Monday-Friday 9.00am-7:00pm EST
• Saturday 11:00am-6:00pm EST
• Sunday 11:00am-4:00pm EST
The Trane Thermostat is compatible with single and multistage forced air
systems, including:
•
Gas furnace systems
•
Oil furnace systems
•
Electric furnace systems
•
Heat pump systems
•
Air conditioning systems
The Trane Thermostat may be compatible with some other system
types, including:
•
Boiler systems
•
Geothermal systems
•
Multi-zoned systems
Call (877) 288-7707 to verify compatibility.
The Trane Thermostat is not compatible with the following system types:
•
Radiant floor systems
•
Wall heating systems
Also, the Trane Thermostat is not compatible with dual fuel systems
(gas furnace & heat pump combined) without adding a special kit. See
Note below.
•
Note about dual fuel systems: This thermostat is not compatible
with dual fuel systems (heating system with both heat pump
and gas furnace), unless the system is controlled with a dual
fuel accessory relay kit. If you are unsure whether your dual fuel
system is controlled with this accessory or if you need a dual
fuel kit, please contact a qualified heating and cooling contractor.
1
WARNING
Voltage hazard. Can cause electrical shock or equipment damage. Disconnect power to heating and cooling
equipment before beginning installation.
2
Remove the existing thermostat cover from the wall plate. Leave
wires attached.
Consult instructions that came with existing thermostat as needed.

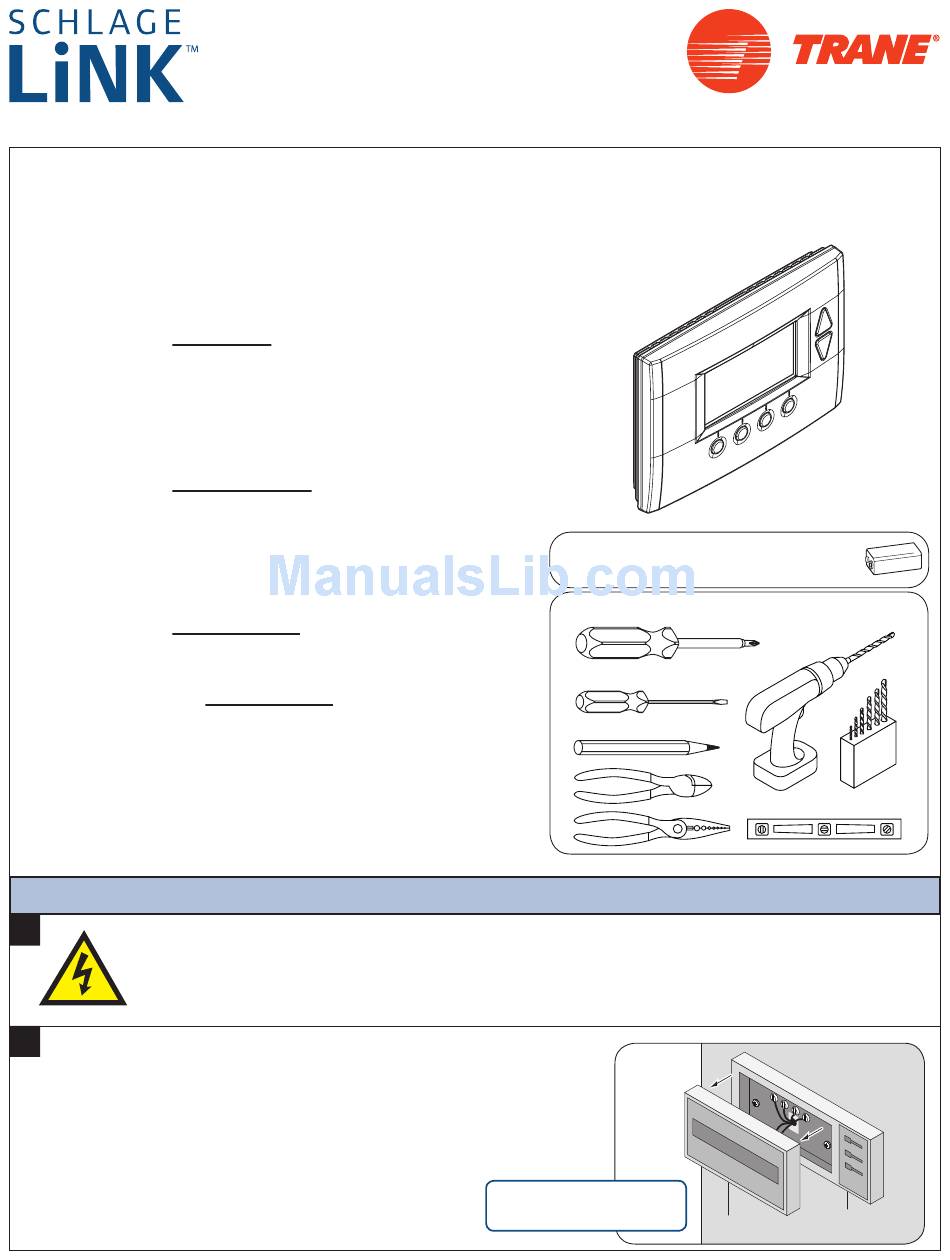

Thermostat
Model TZEMT400BB32MAA
Installation, System Setup, and
Enrollment Instructions
Physical Installation and Wiring
account is required. Schlage LiNK™ online setup requires
TM
Bridge requires one 9-Volt battery for
enrollment process. Battery not included.
#2
1/8"
The look of your existing
thermostat may vary
link.schlage.com
Tools Needed

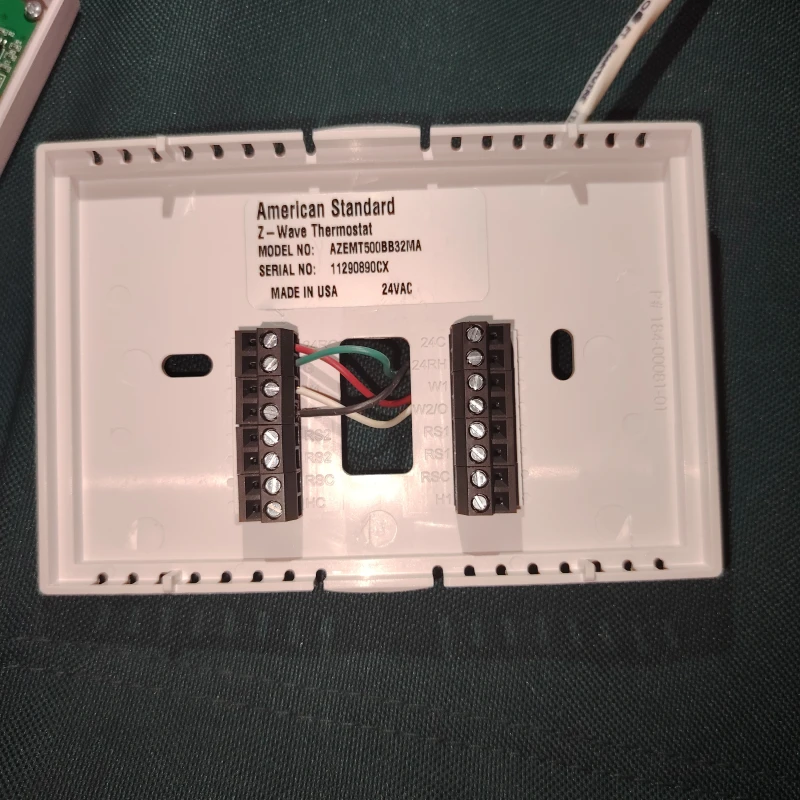

Wall plate
Thermostat cover
Advertisement
Table of Contents
Related Manuals for Trane Schlage LiNK TZEMT400BB32MAA
Summary of Contents for Trane Schlage LiNK TZEMT400BB32MAA
-
Page 1: Physical Installation And Wiring
Customer Service: (877) 288-7707 Customer Service hours of operation: • Monday-Friday 9.00am-7:00pm EST • Saturday 11:00am-6:00pm EST • Sunday 11:00am-4:00pm EST The Trane Thermostat is compatible with single and multistage forced air systems, including: • Gas furnace systems • Oil furnace systems •... - Page 2 Determine if your system has a 24 VAC common wire which is required to power the thermostat. • If your system is a heat pump, skip to step 4. a. If your existing thermostat has a terminal named C, COM, X, or B with a wire connected to it, skip to step 4. b.
-
Page 3: Important Notes
Label the wires on your existing thermostat to match terminal names. • Do not use wire colors to chose labels. The terminal name is what is important. a. Locate the wiring labels located in the box with the new thermostat. b. -
Page 4: Identifying System Type
Identify your System Type from the list below. You will need to check your wire labels to help identify the system type. START HERE IF START HERE IF You have a GAS furnace You have an ELECTRIC furnace or air handler Does NOT have Has a W2 or Y2 wire label... - Page 5 Separate the face of the new thermostat from the wall plate. Tabs Apply pressure at two tabs on top of wall plate to release it. • NOTE: It is not recommended that this Z-wave thermostat be mounted onto metal structures. Metal may affect the radio frequency (RF) communication between the thermostat and the Z-wave signal to the Schlage Bridge.
-
Page 6: Gas Or Electric
24RC 24RH W2/O/B Some wire terminals may Table 2: Heat Pump not be used (Single Stage or Multistage) Wire Labels Themostat Being Replaced Trane/American Standard (Weathertron) or York Other Brands Lennox **VR Connects to New Thermostat Terminals 24COM 24RC 24RH... - Page 7 If necessary, cut the internal jumper wire (JP1). If only one wire is connected If wires are connected to to either 24RC or 24RH both 24RC and 24RH as shown as shown Do NOT cut JP1 jumper Cut JP1 jumper 24RC 24RH 24RC...
-
Page 8: System Settings At Thermostat
System Settings at Thermostat Set Time and Date c. Scroll up or down to Set Clock (it is the first option), then press the Select button. a. Press the MENU button twice. Scroll User Settings 11:15 PM 68 H Set Clock Filter Service Maint Service 78 C... -
Page 9: Mechanical Settings
Gas Furnace - Multistage Mechanical Settings a. Press the MENU button twice. 11:15 PM b. Press and hold the two inner buttons for 3 seconds to view 76 H Installer Settings. c. Scroll down to System Settings and press the Select button. 74 C d. -
Page 10: Perform System Checkout
Perform System Checkout Test Fan Operation a. Press the FAN button. 11:15 PM b. Scroll to ON. 76 H Sys Off c. Verify that the system fan starts and moves air. 74 C d. Press the FAN button. AUTO AUTO e. - Page 11 Enroll Thermostat into existing Schlage LiNK System Prepare the Schlage Bridge for enrollment. • If you are using a controller that is not a Schlage Bridge, consult the instructions that came with the controller to find out how to enroll a new device.
- Page 12 Establish Online Control of the Thermostat. A Schlage LiNK account is required to complete the setup. If you have an active Schlage LiNK account, continue with the steps below. If you need to create a new account, go to www.schlagelink.com and click on “Just Purchased A Schlage LiNK System?” For more information about the Schlage LiNK system, visit www.link.schlage.com.
