Multitech MultiModem MT5600ZDX User Manual

Data/fax modem and voice/data/fax modem
Hide thumbs Also See for MultiModem MT5600ZDX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Model MT5600ZDX
Data/Fax Modem
Model MT5600ZDXV
Voice/Data/Fax Modem
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Multitech MultiModem MT5600ZDX

Summary of Contents for Multitech MultiModem MT5600ZDX

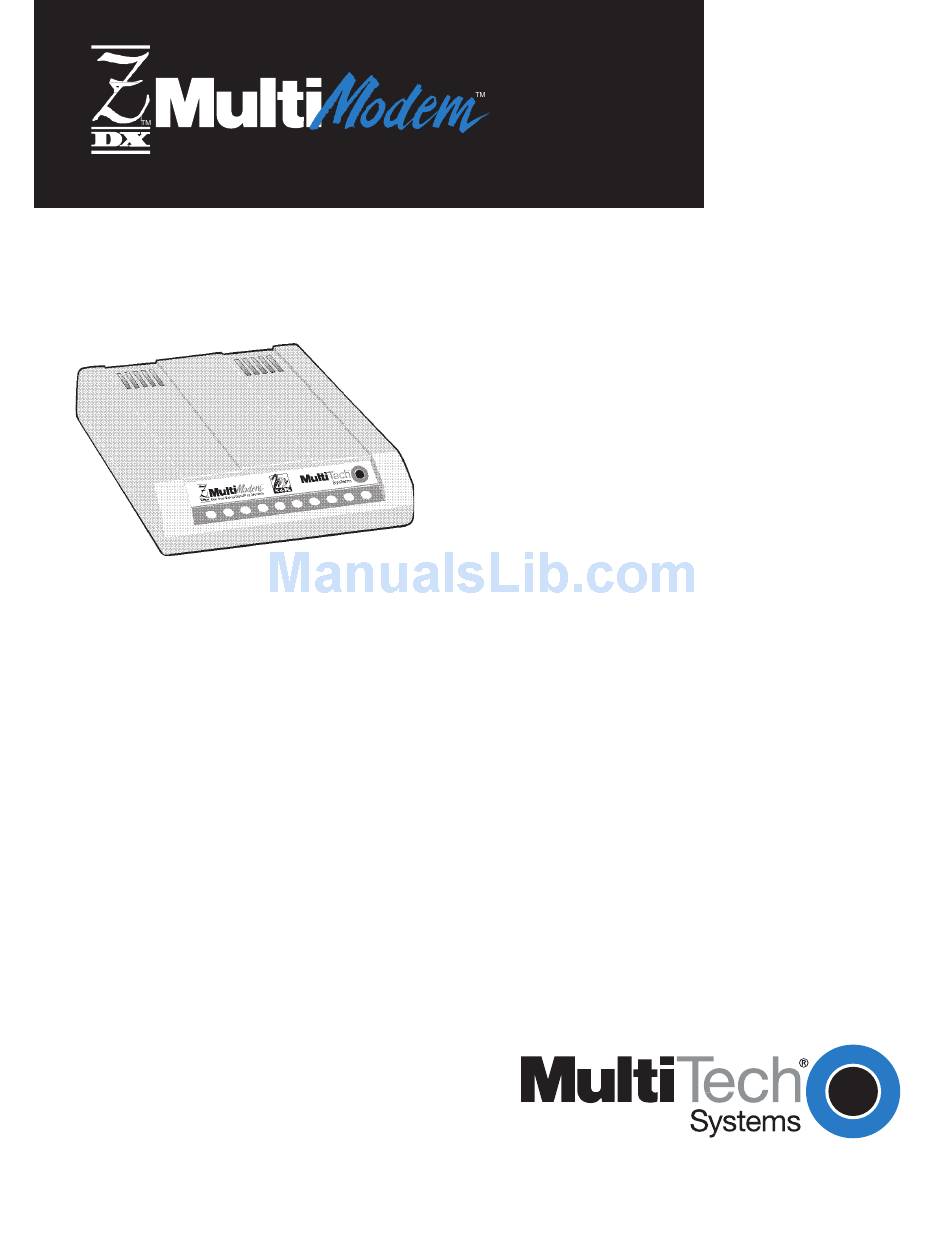

  • Page 1 Model MT5600ZDX Data/Fax Modem Model MT5600ZDXV Voice/Data/Fax Modem User Guide...
  • Page 2 User Guide Model MT5600ZDX / MT5600ZDXV PN S0000134 Revision C This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved. copyright © 1997–2001 by Multi-Tech Systems, Inc.

  • Page 3: Table Of Contents

    What You Will Need....................6 Safety Warnings ......................6 Connecting the Modem to Your System ..............7 Connections for the MT5600ZDX ................7 A Note About Power Connection, Surge Protectors, and Lightning ......8 Power-On Test ......................8 Connections for the MT5600ZDXV ................9 Installing the Modem Driver ..................
  • Page 4 International Modem Restrictions ................59 EMC, Safety, and R&TTE Directive Compliance ............59 New Zealand Telecom Warning Notice ..............59 South African Notice ....................60 Appendix B: Technical Specifications ................61 Appendix C: Loopback Tests ..................64 Local Analog Loopback Test (V.54 Loop 3) .............. 64 Remote Digital Loopback Test (V.54 Loop 2) ............

  • Page 5: Chapter 1: Introduction

    1 Introduction Chapter 1: Introduction...

  • Page 6: Product Description And Features

    1 Introduction Introduction Congratulations on your purchase of the MultiModemZDX or the MultiModemZDXV modem. You have acquired one of the finest intelligent data/fax or voice/data/fax modems available today from one of the world’s oldest modem manufacturers: Multi-Tech Systems, Inc. This manual will help you install, configure, test, and use your modem.
  • Page 7 1 Introduction • Supports automatic fallback to slower speeds in noisy line conditions, and fall forward to faster speeds as conditions improve. • Supports ITU-T V.42 LAP-M and MNP Class 3 and 4 error correction. Supports ITU-T V.42bis (4-to-1) and MNP 5 (2-to-1) data compression. •...

  • Page 8: What's In Your Modem Package

    What’s In Your Modem Package? Your modem package has several components. Make sure you have all of them before trying to operate your modem. Your package includes: An MT5600ZDX data/fax modem or an MT5600ZDXV voice/data/fax modem A DC power transformer One RJ11 phone cable...

  • Page 9: Chapter 2: Installation

    2 Installation Chapter 2: Installation...

  • Page 10: What You Will Need

    What You Will Need Before starting, make sure you have everything you will need. We supply An MT5600ZDX data/fax modem or a MT5600ZDXV voice/data/fax modem A DC power transformer One RJ11 phone cable A printed Quick Start Guide...

  • Page 11: Connecting The Modem To Your System

    2 Installation Connecting the Modem to Your System Connections for the MT5600ZDX Turn off your computer. Placing the modem in a convenient location, connect it to your computer’s serial port, to the phone line, to AC power, and to your phone.

  • Page 12: A Note About Power Connection, Surge Protectors, And Lightning

    2 Installation 3. (Optional) Connect the Modem to the Phone For voice-only calls, plug a phone into the modem’s PHONE jack. 4. Connect the Modem to the AC Power Outlet Plug the DC power transformer into an AC power outlet or power strip. Plug the DC power transformer into the POWER jack on the modem.

  • Page 13: Connections For The Mt5600Zdxv

    2 Installation Connections for the MT5600ZDXV Figure 2–2. MT5600ZDXV Connections 1. Follow All of the Connection Directions for the MT5600ZDX The add these steps: 2. Connect the Microphone For voice mail or speakerphone applications, plug an unamplified microphone into the MIC jack on the side of the modem. The microphone should have a stereo 1/8- inch mini plug.

  • Page 14: Installing The Modem Driver

    2 Installation Installing the Modem Driver If you use Windows 95/98/2000 or Windows NT 4.0, you must install the modem driver. The modem driver is used by Windows to control the modem. If you use Windows 3.1 or another operating system, skip this step and go to Chapter 3. If you are using a Linux operating system, see Appendix F.

  • Page 15: Installing Your Data Communications Software

    2 Installation Installing Your Data Communications Software Data communications software is designed to send and receive messages. Multi- Tech includes a data communications program with your modem. However, the modem will work with any data communications software. To install the data communications software provided with this modem, insert the CD into the CD- ROM drive.

  • Page 16: Dial-Up Networking

    2 Installation Dial-Up Networking Whether you use the Internet for e-mail or browsing the Web, to connect to it through your modem, you must first set up a dial-up networking program. The one in Windows 95, 98, 2000, and Windows NT 4.0 is called Dial-Up Networking. Dial-Up Networking establishes your connection to the ISP’s server, which is the shared computer that manages calls from clients (your computer) to the Internet.

  • Page 17: Installing Dial-Up Networking In Windows 2000

    2 Installation Installing Dial-Up Networking in Windows 2000 Dial-Up Networking installs automatically in Windows 2000. The following instructions describe Dial-Up Networking connection options under Windows 2000, and guide you in setting up a Dial-Up Networking connection to an Internet service provider (ISP).

  • Page 18: Installing Dial-Up Networking In Windows Nt 4.0

    2 Installation 12. When the Completing the Internet Connection Wizard appears, click Finish. For further information on Dial-Up Networking, see Windows 2000 Help. Installing Dial-Up Networking in Windows NT 4.0 To install Dial-Up Networking 1. Double-click the My Computer icon, and then double-click the Dial-Up Networking icon.

  • Page 19: Sending A Fax

    2 Installation Sending a Fax With your data communications software, you can use your modem to send and receive faxes directly from your computer. The following steps show you how to fax a document directly from a Windows application without opening the data communications program.

  • Page 20: References

    The following Web sites are good places to start: • Costmo’s Other Resources Page: http://modems.rosenet.net/or/ • Curt’s High Speed Modem Page: http://www.teleport.com/~curt/modems.html • Data Communications FAQ: http://www.best.com/~malch/comfaq.html • Multi-Tech Systems, Inc.: http://www.multitech.com/...
  • Page 21 3 Advanced Options Chapter 3: Advanced Options...

  • Page 22: Chapter 3: Advanced Options

    3 Advanced Options Introduction Like any modem, your Multi-Tech modem operates only under the control of a communications program, such as the communications program included with the modem. It also operates under other general-purpose data communication programs, such as Windows Terminal and HyperTerminal. For information on how to use the modem with the communications program of your choice, please refer to the documentation provided with the data communications program.

  • Page 23: Configuring Your Modem

    3 Advanced Options 5. Select the port the modem is connected to (normally COM1 or COM2). 6. Select your serial port speed. This can be labeled “maximum speed,” “DTE bps,” or “baud rate.” Ideally, if you use data compression, you should set your serial port baud rate to four times the modem’s maximum transmission speed or faster;...
  • Page 24 4 AT Commands, S-Registers, and Result Codes Chapter 4: AT Commands, S-Registers, and Result Codes...

  • Page 25: Chapter 4: At Commands, S-Registers, And Result Codes

    4 AT Commands, S-Registers, and Result Codes Using AT Commands to Configure Your Modem AT commands are used to control the operation of your modem. They are so called because each command must be preceded by the characters AT to get the ATtention of the modem.

  • Page 26: At Commands Reference

    4 AT Commands, S-Registers, and Result Codes AT Commands Reference Command: Attention Code Values: Description: The attention code precedes all command lines except A/ and the escape sequence. Command: NTER Values: Description: Press the E or R key to execute most commands. NTER ETURN Command:...
  • Page 27 Values: n = 0–6 Default: None Description: I0 Display the product code. Example: MT5600ZDX. Calculate the ROM checksum and display the least significant byte in decimal format. Displays OK. Display the firmware version and application codes. Display the OEM-defined identifier string in either binary or ASCII format.
  • Page 28 4 AT Commands, S-Registers, and Result Codes Command: Monitor Speaker Mode Values: n = 0, 1, 2, or 3 Default: Description: M0 Speaker is always off. Speaker is on until the carrier signal is detected. Speaker is always on when the modem is off-hook. Speaker is off when receiving carrier and during dialing, but on during answering.
  • Page 29 4 AT Commands, S-Registers, and Result Codes Command: S r = n Set Register Value Values: r = S-register number; n varies Default: None Description: Sets value of register Sr to n, where n is entered in decimal format. Command: S r? Read Register Value Values:...
  • Page 30 4 AT Commands, S-Registers, and Result Codes Sends X1 messages with BUSY; does not look for dial tone. Sends all messages, including NO DIALTONE and BUSY. Note: If the modem is in fax mode, the only message sent to indicate a connection is CONNECT without a speed indication. See also the \V command.
  • Page 31 4 AT Commands, S-Registers, and Result Codes &D1 When DTR drops while in online data mode, the modem enters command mode, issues an OK, and remains connected. &D2 When DTR drops while in online data mode, the modem hangs up. &D3 When DTR drops, the modem hangs up and resets as if an ATZ command were issued.
  • Page 32 4 AT Commands, S-Registers, and Result Codes Command: &J Telephone Jack Control Description: This command is supported for compatibiltiy only and performs no function in this modem. Command: &K n Flow Control Selection Values: n = 0, 3, 4, 5, or 6 Defaults: 3 (data modem mode) 6 (fax modem and voice modes)
  • Page 33 4 AT Commands, S-Registers, and Result Codes &Q5 Selects asynchronous operation with data buffering and error correction. Same as N3. &Q6 Selects asynchronous operation with data buffering and no error correction. Same as N0. Command: &S n Data Set Ready (DSR) Control Values: n = 0 or 1 Default:...
  • Page 34 4 AT Commands, S-Registers, and Result Codes Command: &V Display Current Configuration Values: Default: None Description: Displays the current (active) settings. Example of an active profile: B1 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D2 &G2 &J0 &K3 &Q5 &R1 &S0 &T5 &X0 &Y0 S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:003 S07:055 S08:002 S09:006 S10:014 S11:095 S12:050 S18:000 S25:005 S26:001 S36:007 S37:000 S38:020 S46:138 S48:007 S95:000...
  • Page 35 4 AT Commands, S-Registers, and Result Codes Command: &Y n Select Profile for Hard Reset Values: n = 0 or 1 Default: None Description: &Y0 Select profile 0 to be loaded on power-up. &Y1 Select profile 1 to be loaded on power-up. Note: See also the &W and Z commands.
  • Page 36 4 AT Commands, S-Registers, and Result Codes Command: Line Signal Quality Values: None Default: None Description: %Q Reports line signal quality (DAA-dependent) as a three-digit number. Returns the higher order byte of the EQM value. Based on the EQM value, retrain or fallback/fall forward may be initiated if enabled by %E1 or %E2.
  • Page 37 4 AT Commands, S-Registers, and Result Codes Data mode. The modem receives the break from the remote modem during a non-error-corrected connection: Clear data buffers and send break to the computer. Same as \K0. Send break immediately to the computer. Same as \K2.
  • Page 38 4 AT Commands, S-Registers, and Result Codes Command: +MS= Modulation Selection Values: See description. Default: See description. Description: This extended-format command selects modulation and, optionally, enables or disables automode, specifies the lowest and highest connection rates, selects µ-Law or A-Law codec type, and specifies the highest transmit rate using one to five subparameters.
  • Page 39 4 AT Commands, S-Registers, and Result Codes <mod> Modulation Possible rates (bps) V.21 V.22 1200 V.22bis 2400 or 1200 V.23 1200 V.32 9600 or 4800 V.32bis 14400, 12000, 9600, 7200, or 4800 V.34 33600, 31200, 28800, 26400, 24000, 21600,19200, 16800, 14400, 12000, 9600, 7200, 4800, or 2400 V.90 56000, 54667, 53333, 52000, 50667, 49333, 48000, 46667,...
  • Page 40 4 AT Commands, S-Registers, and Result Codes Enables V.42 LAPM to MNP10 conversion. Enables V.42 LAPM to MNP10 conversion; inhibits MNP Ex- tended Services initiation during V.42 LAPM answer mode de- tection phase. Command: -Q n MNP10 Enable Fallback to V.22 bis /V.22 Values: n = 0 or 1 Default:...
  • Page 41 4 AT Commands, S-Registers, and Result Codes Command: View Numbers in Blacklist Values: If blacklisting is in effect, %B displays the numbers for which Description: the last call attempted in the previous two hours failed. In countries that do not require blacklisting, the ERROR result code is displayed.
  • Page 42 4 AT Commands, S-Registers, and Result Codes Command: :E n MNP10 Compromise Equalizer Enable Values: n = 0 or 1 Default: Description: This command is included only for compatibility and performs no function. :E0–:E1 n/a Command: $SB n Serial Port Baud Rate Values: n = speed in bits per second Default:...

  • Page 43: S-Registers

    4 AT Commands, S-Registers, and Result Codes S-Registers Certain modem values, or parameters, are stored in memory locations called S- registers. Use the S command to read or alter the contents of S-registers (see previous section for the Sn command). Register Unit Range Default...
  • Page 44 4 AT Commands, S-Registers, and Result Codes Register Unit Range Default Description seconds 0–255 Sets the number of seconds that the modem conducts an &T test before it returns to the command mode. If the value is zero, the test must be terminated from command mode by issuing an &T0 or H command.
  • Page 45 4 AT Commands, S-Registers, and Result Codes Register Unit Range Default Description decimal 0–7 LAPM Failure Control. Specifies the fall- back action to take in the event of an LAPM negotiation failure. These fallback options are initiated immediately upon connection if S48 is set to 128.
  • Page 46 4 AT Commands, S-Registers, and Result Codes Register Unit Range Default Description modem does not time out, and continues to attempt to deliver data in the buffer until the connection is lost or the data is delivered. decimal 136, 138 Enables or disables data compression: 136 Error correction without compression.
  • Page 47 4 AT Commands, S-Registers, and Result Codes Register Unit Range Default Description decimal 0–15 The bits in this register can be set to over- ride some of the W command options. A bit set to a 1 in this register enables the corre- sponding result code regardless of the W setting.

  • Page 48: Result Codes

    4 AT Commands, S-Registers, and Result Codes Result Codes In command mode your modem can send the following responses, called result codes, to your computer. Result codes are used by communications programs and can also appear on your monitor. Terse Verbose Description Command executed CONNECT...
  • Page 49 4 AT Commands, S-Registers, and Result Codes Terse Verbose Description CONNECT 21600 Connected at 21600 bps CONNECT 24000 Connected at 24000 bps CONNECT 26400 Connected at 26400 bps CONNECT 28800 Connected at 28800 bps COMPRESSION CLASS 5 Connected with MNP Class 5 data compression COMPRESSION V.42 bis Connected with V.42 bis data compression COMPRESSION NONE Connected without data compression...
  • Page 50 4 AT Commands, S-Registers, and Result Codes Terse Verbose Description CARRIER 34667 34667 bps data carrier detected (V.90 mode) CONNECT 37333 Connected at 37333 bps (V.90 mode) CARRIER 37333 37333 bps data carrier detected (V.90 mode) CONNECT 38667 Connected at 38667 bps (V.90 mode) CARRIER 38667 38667 bps data carrier detected (V.90 mode) CONNECT 41333...

  • Page 51: Chapter 5: Troubleshooting

    5 Troubleshooting Chapter 5: Troubleshooting...

  • Page 52: None Of The Indicators Light

    5 Troubleshooting Introduction Your modem was thoroughly tested at the factory before it was shipped. If you are unable to make a successful connection, or if you experience data loss or garbled characters during your connection, check the list of troubleshooting procedures before calling Multi-Tech.

  • Page 53: The Modem Does Not Respond To Commands

    5 Troubleshooting The Modem Does Not Respond to Commands Make sure the modem is plugged in and turned on. (See “None of the Indicators Light.”) Make sure you are issuing the modem commands from the data communications program, either manually in terminal mode or automatically by configuring the software.

  • Page 54: The Modem Dials But Cannot Connect

    5 Troubleshooting To change a port address or IRQ in Windows 3.1x, double-click the Control Panel icon, then the Ports icon. Click on the port you want to change, click Settings, click Advanced, and select the new port address and/or interrupt. If you wish to use COM3 or COM4, note that COM3 shares an IRQ with COM1, as does COM4 with COM2, so you should change their IRQs to unused ones, if possible.

  • Page 55: The Modem Disconnects While Online

    5 Troubleshooting installation, plug a phone into your modem’s phone wall jack and listen for a dial tone. If you hear a dial tone, your modem might be installed behind a corporate phone system (PBX) with an internal dial tone that sounds different from the normal dial tone.

  • Page 56: The Modem Cannot Connect When Answering

    5 Troubleshooting Check for loose connections between the modem and the computer, the phone jack, and AC power. You might have had a poor connection because of line conditions or the problem might have originated on the other end of the line. Try again. If you were online with a BBS or an online service like CompuServe, it might have hung up on you because of lack of activity on your part or because you exceeded your time limit for the day.

  • Page 57: Data Is Being Lost

    5 Troubleshooting Data Is Being Lost If you are using data compression and a high speed serial port, set the serial port baud rate to four times the data rate. Your UART might not be reliable at serial port speeds over 9600 bps or 19,200 bps.

  • Page 58: Fax And Data Software Can't Run At The Same Time

    5 Troubleshooting Fax and Data Software Can’t Run at the Same Time Communication devices can be accessed by only one application at a time. Under DOS or Windows 3.1x, you can run either your fax software or your data communications program, but not both at the same time, unless you have a special communication device management application.
  • Page 59 A Regulatory Compliance Appendixes...

  • Page 60: Appendix A: Regulatory Compliance

    A Regulatory Compliance Appendix A: Regulatory Compliance Note: Each regulation may not apply to every version of the MultiModemZDX. FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 61: Fcc Part 68 Telecom

    9. This equipment should not be used on party lines or coin lines. 10. If so required, this equipment is hearing-aid compatible. Multi-Tech Systems, Inc. Manufacturer: Trade Name: MultiModem Model Number: MT5600ZDX, MT5600ZDXe, MT5600ZDXV, or MT5600ZDXVe FCC Registration No: AU7USA-24713-M5-E Ringer Equivalence No: 0.3B Modular Jack (USOC): RJ11C or RJ11W (single line) Service Center in USA: Multi-Tech Systems, Inc.

  • Page 62: Fax Branding Statement

    A Regulatory Compliance Fax Branding Statement The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains the following information: •...

  • Page 63: International Modem Restrictions

    A Regulatory Compliance International Modem Restrictions Some dialing and answering defaults and restrictions may vary for international modems. Changing settings may cause a modem to become non-compliant with national telecom requirements in specific countries. Also note that some software packages may have features or lack restrictions that may cause the modem to become non-compliant.

  • Page 64: South African Notice

    A Regulatory Compliance Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise to ‘bell tinkle’ or noise and may also cause a false answer condition. Should such problems occur, the user should not contact the Telecom Faults Service.

  • Page 65: Appendix B: Technical Specifications

    Appendix B: Technical Specifications The MultiModemZDX modem meets the following specifications: Trade Name MultiModemZDX™ Model Number MT5600ZDX, MT5600ZDXe, MT5600ZDXV, and MT5600ZDXVe K56flex or V.90 speeds when accessing a K56flex or V.90 Client-to-Server Data Rates server (actual speed depends on server capabilities and line...

  • Page 66: B Technical Specifications

    B Technical Specifications Data Modulation FSK at 300 bps PSK at 1200 bps QAM at 2400, 4800, and 9600 bps (non-trellis); QAM with trellis-coded modulation (TCM) at 9600; 12,000; 14,400; 16,800; 19,200; 21,600; 24,000; 26,400; 28,800; 31,200; 33,600; and 56,000 bps V.21 CH2 FSK at 300 bps (half duplex) Fax Modulation V.27ter DPSK at 4800 and 2400 bps...
  • Page 67 B Technical Specifications Frequency Stability ±0.01% Receiver Sensitivity -43 dBm under worst-case conditions AGC Dynamic Range 43 dB Interface RS-232C/V.24/V.28 Connectors DB25F RS-232C connector, one RJ-11 phone jack, power con- nector Cables One modular telephone cable (USA); country-specific cord for UK and International models; one 9-pin to 25-pin serial cable for UK and International models;...

  • Page 68: Appendix C: Loopback Tests

    C Loopback Tests Appendix C: Loopback Tests Introduction Each time you turn on your modem, it performs an automatic self-test to ensure proper operation. Your modem also has three diagnostic tests: local analog loopback, remote digital loopback, and local digital loopback. These ITU-T V.54 loopback tests isolate telephone circuit and transmission problems.

  • Page 69: Remote Digital Loopback Test (V.54 Loop 2)

    C Loopback Tests Test Procedure 1. Connect the modem to your computer. Using your communication program, set the desired baud rate and go into terminal mode. 2. Type AT and press E ; you should get an OK message. Type AT\N and NTER press E to disable error correction.

  • Page 70: Local Digital Loopback Test (V.54 Loop 2)

    C Loopback Tests Test Procedure 1. Arrange to have &T4 set on the remote test modem. This command enables the remote modem to respond to an &T6 request for a remote digital loopback test from the local modem. 2. Open your communications software and go into terminal mode. Type AT and press E ;...

  • Page 71: Loopback Tests

    C Loopback Tests Test Procedure 1. Open your communications software and go into terminal mode. Type AT and press E ; you should get an OK message. Type AT\N and press E NTER NTER disable error correction. Type AT+MS=9,1,9600,9600 and press Enter to set the local modem to V.32 mode at 9600 bps.

  • Page 72: Appendix D: Warranty, Service, And Technical Support

    MTS WILL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES AND UNDER NO CIRCUMSTANCES WILL ITS LIABILITY EXCEED THE PURCHASE PRICE FOR DE- FECTIVE PRODUCTS. Online Warranty Registration If you have access to the World Wide Web, you can register your Multi-Tech product online at the following URL: http://www.multitech.com/register/...

  • Page 73: Service

    Please direct questions regarding technical matters, product configuration, verification that the product is defective, etc., to our Technical Support department nearest you, listed at http://www.multitech.com/COMPANY/offices/DEFAULT.ASP. When calling the U.S., please direct questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at 763 785-3500.

  • Page 74: Replacement Parts

    800 972-2439 (USA and Canada) or 763 785-3500 (international and local). Please have modem information available. You can also contact Technical Support by e-mail at the following addresses: U.S., Canada, and Europe: support@multitech.com France: support@multitech.fr India: support@multitechindia.com...

  • Page 75: Appendix E: Upgrading The Modem

    E Upgrading the Modem Appendix E: Upgrading the Modem Introduction Your modem is controlled by semi-permanent software, called firmware, which is stored in flash memory. Firmware is nonvolatile; that is, it remains stored in memory when the modem is turned off. However, it can be changed by either the manufacturer or the user as bugs are fixed or new features are added.
  • Page 76 .HEX file, which contains the upgrade data, and a Readme file. 3. Copy the upgrade .HEX file into the Flash Wizard folder, which, in a default installation, is at C:\Program Files\MultiTech Systems\Flash Wizard\. Step 5: Clear Your Stored Parameters Before you flash your modem, you should record the parameters that are currently stored in it, so you can reprogram it after flashing.

  • Page 77: Upgrading The Modem

    E Upgrading the Modem 4. Type AT&F and press E to clear your stored parameters and reset your NTER modem to factory default. 5. Close the terminal program. Step 6: Upgrade the Modem’s Firmware Before you begin the following procedure, read the README.TXT file extracted from the upgrade archive file.

  • Page 78: Appendix F: Installing A Modem In Linux

    F Installing a Modem in a Linux PC Appendix F: Installing a Modem in Linux Introduction This appendix explains how to install a modem on a PC operating under the RedHat Linux 6.2 operating system. Other versions of RedHat and other Linux operating systems should be similar.
  • Page 79 F Installing a Modem in a Linux PC Using the modem to call the Internet Linux allows different graphic user interfaces (GUI). In the following steps, we’ll use the Gnome Desktop GUI and assume that the Internet Service Provider (ISP) you are calling assigns you the Domain Name Service (DNS) and Internet Protocol (IP) addresses.
  • Page 80 Index Index...

  • Page 81: Index

    Index M 24 Data Set Ready Control command N 24 abort timer 39 O 24 Data Terminal Ready command 26 analog loopback test 64–65 P 24 DCD Control command 26 Answer command 22 Q 24, 33 default settings 27 Asynchronous Communications Sr 24 Dial command 22 Mode command 28...
  • Page 82 Index Flash Wizard 73 removing a modem from Windows Flash Wizard upgrade utility 72 Make/Break Dial Ratio command flow control 53 Repeat command 22 Flow Control Selection command replacement parts 70 MNP 5 data compression 31, 52 required equipment 6 MNP error correction 33 front panel 15 resetting the modem 26...
  • Page 83 Index Single Line Connect Message V.54 tests 64–67 command 33 V.90 protocol 2 software, communication 18 View Delayed Numbers command solving problems 48–54 sound card 9 View Numbers in Blacklist com- sound card connection 9 mand 37 South African Notice 60 voice mail 9 speaker connection 9...
