MT5600DSVD and
MT5600DSVD2
Data/Fax/Voice Modem
Quick Start

Advertisement

Table of Contents
loading

Related Manuals for Multitech MultiModem MT5600DSDV2

Summary of Contents for Multitech MultiModem MT5600DSDV2

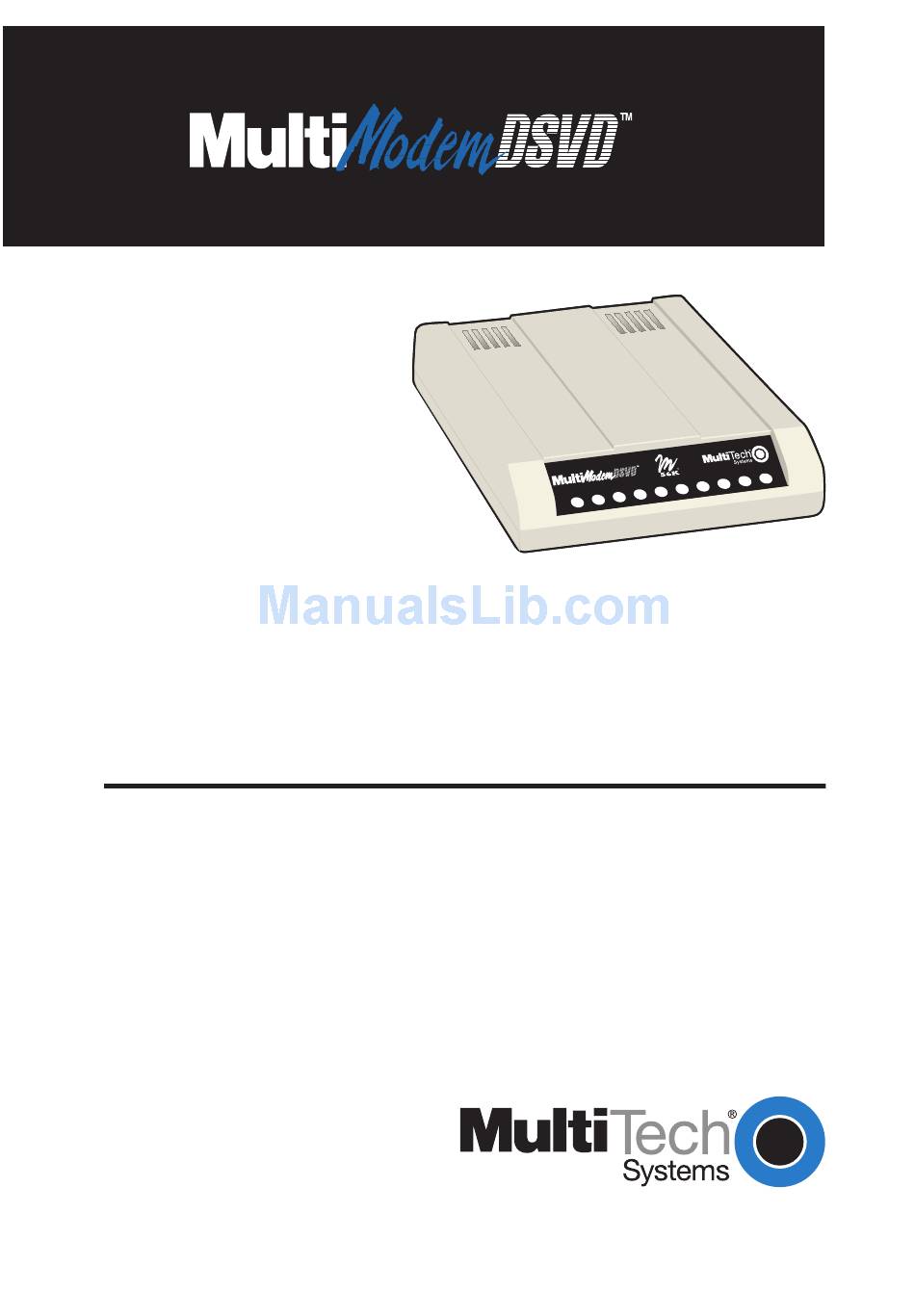

  • Page 1 MT5600DSVD and MT5600DSVD2 Data/Fax/Voice Modem Quick Start...
  • Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.

  • Page 3: What Is In Your Modem Package

    A headset (MT5600DSVD only) This Quick Start Guide A system CD containing modem drivers, the User Guide, PhoneTools (a data communications program), and Acrobat Reader. If any of these items are missing, please contact Multi-Tech Systems or your dealer/distributor. MultiModemDSVD Quick Start Guide...

  • Page 4: What You Will Need

    MultiModemDSVD Quick Start Guide What You Will Need In addition to the contents of the MultiModemDSVD package, you will need the following items: A computer with an available serial port A shielded RS-232 serial cable with a male DB-25 connector on one end and a connector to match your computer’s serial port on the other end A nearby AC power outlet A nearby telephone line jack...

  • Page 5: Step 1: Mount The Feet

    Step 1: Mount the Feet The modem comes with a strip of self-adhesive plastic feet, which you can optionally mount on the bottom of the modem. To install the feet, simply peel them from their paper strip and press them into the recesses on the bottom of the modem. Step 2: Change the Speaker Jumper To change the speaker jumper, see your User Guide.

  • Page 6: Rs232 Connection

    MultiModemDSVD Quick Start Guide RS232 Connection Plug one end of the serial cable into the RS232 connector on the modem and the other end into a serial port connector on your computer, such as COM1 or COM2. Line Connection Plug one end of the phone cable into the modem’s LINE jack and the other end into a phone line wall jack.

  • Page 7: Power-On Test

    Step 5: Install Data Communications Software Data communications software is designed to send and receive messages. Multi-Tech includes PhoneTools communications software with your modem. However, the modem will work with most data communications software. To install PhoneTools, insert the CD into the CD-ROM drive;...
  • Page 8 Patents This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289;...
