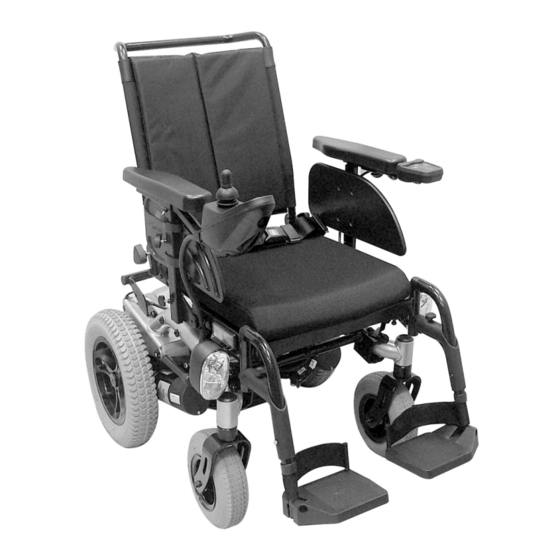

  • Page 1 Yes, you can. ® Invacare® Stream Mobility aid User manual...
  • Page 3 How can you get in touch with Invacare®? If you have any questions or need support, please contact your authorised Invacare® Dealer, who has the necessary know-how and equipment plus the special knowledge concerning your Invacare® product, and can offer you all-round satisfactory service. Should you wish to contact Invacare® directly, you can reach us in Europe at the following addresses and phone numbers.
  • Page 4 +44 (0)1656 77 62 20 Pencoed uk@invacare.com Bridgend CF35 5AQ WWW: www.invacare.co.uk United Kingdom Invacare Mecc San s.r.l. +39 0445 38 00 59 Via dei Pini, 62 Fax: +39 0445 38 00 34 I - 36016 Thiene (VI) italia@invacare.com ITALIA WWW: www.invacare.it...
  • Page 5 +46 (0)8 761 81 08 Fagerstagatan 9 sweden@invacare.com S-163 91 Spånga finland@invacare.com Sverige WWW: www.invacare.se Tillverkare: MÖLNDAL Invacare® Deutschland GmbH  : +46 (0)31 86 36 00 Kleiststraße 49 Fax: +46 (0)31 86 36 06 D-32457 Porta Westfalica ginvacare@invacare.com Deutschland LANDSKRONA ...

  • Page 6: Table Of Contents

    Table of Contents Chapter Page Introduction Important symbols in this manual ..................11 Important symbols found on the vehicle ................13 Type classification and permissible use................16 Indications..........................17 Usability............................17 Warranty ...........................18 Life expectancy........................19 Safety notes General safety notes .......................20 Safety information with regard to care and maintenance ...........23 Safety information on electromagnetic interference ............24 Safety information on driving and freewheel mode.............25 Safety information regarding changes and modifications to the mobility device....27...
  • Page 7 5.2.2 Safety information when ascending obstacles .............32 5.2.3 The correct way to overcome obstacles ...............33 Driving up and down gradients....................34 Parking and stationary......................34 Use on public roads ........................35 Pushing the wheelchair in freewheel mode Disengaging Motors ........................35 Remotes Lighting Adjusting the wheelchair to the user's seating posture Adjusting the armrests and the control panel..............38 9.1.1 Adapting the control panel to the length of the user’s arm ...........38...
  • Page 8 9.6.3 Swinging the tray away to the side ................52 10 Electrical system 10.1 Electronics protection system ....................54 10.1.1 The main fuse .......................55 10.2 Batteries ...........................56 10.2.1 Charging the batteries ....................56 10.2.1.1 General information on charging ................56 10.2.1.2 General instructions on charging................56 10.2.1.3 How to charge the batteries..................57 10.2.1.4...
  • Page 9 13.2.2 How the user is secured within the wheelchair.............78 13.3 Securing the wheelchair for transport without passengers ..........82 14 Refurbishment 15 Disposal 16 Technical specifications 17 Inspections Performed...

  • Page 10: Introduction

    The decision whether the model is suitable for the user may only be taken by medical specialists with appropriate expertise. Invacare® or their statutory representatives can accept no liability in cases in which the wheelchair has not been adapted to suit the users’ handicaps.

  • Page 11: Important Symbols In This Manual

    This manual contains copyrighted information. This manual may not be reproduced or reprinted either partly or completely without previous written consent from Invacare® or its statutory representatives. We reserve the right to make any necessary alterations on the grounds of technical improvements.
  • Page 12 RISK OF CRUSHING! This symbol warns of a risk of crushing caused by being careless with heavy components. • Always follow the instructions to avoid injury to the user or damage to the product. Wear eye protection This symbol refers to the requirement for wearing eye protection, for example when working with batteries.

  • Page 13: Important Symbols Found On The Vehicle

    Important symbols found on the vehicle This product has been supplied from an environmentally aware manufacturer. This product may contain substances that could be harmful to the environment if disposed of in places (landfills) that are not appropriate according to legislation. •...
  • Page 14 This wheelchair may be used as a vehicle seat, but only if it is equipped with a headrest that has been approved by Invacare for this purpose! • Please always make sure that the wheelchair is equipped with a headrest approved by Invacare before using it as a vehicle seat!
  • Page 15 If the power wheelchair is fitted with a table, it is imperative that it is removed and safely stowed when transporting the wheelchair in a vehicle!

  • Page 16: Type Classification And Permissible Use

    Type classification and permissible use This vehicle was designed for persons whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric vehicle. It has been classified according to EN 12184 as a class B mobility product (for indoor and outdoor areas).

  • Page 17: Indications

    You should immediately stop using your power wheelchair if its usability is restricted due to: - brake failure • You should immediately contact an authorised Invacare® dealer if the usability of your power wheelchair is restricted due to: - the lighting system failing or being defective...

  • Page 18: Warranty

    - reflectors falling off - worn thread or insufficient tyre pressure - damage to the armrests (e.g. torn armrest padding) - damage to the legrest hangers (e.g. missing or torn heel loops) - damage to the postural belt - damage to the joystick (joystick cannot be moved into the neutral position) - cables that are damaged, kinked, pinched or have come loose from the holder - the wheelchair drifting when braking - the wheelchair pulling to one side when moving...

  • Page 19: Life Expectancy

    Life expectancy We estimate a life expectancy of five years for this product, provided it is used in strict accordance with the intended use as set out in this document and all maintenance and service requirements are met. The estimated life expectancy can be exceeded if the product is carefully used and properly maintained, and provided technical and scientific advances do not result in technical limitations.

  • Page 20: Safety Notes

    Safety notes READ WELL BEFORE OPERATION! General safety notes Danger of injury if mobility device is used in any other way than the purpose described in this manual! • Only ever use the mobility device in accordance with the instructions in this User's Manual (see chapter "Type classification and permissible use"...
  • Page 21 Danger of injury if the mobility device is switched off while driving, for example by pressing the On/Off Button or disconnecting a cable, due to it coming to an abrupt, sharp stop! • If you have to brake in an emergency, simply release the joystick which will bring you to a halt. (refer to the joystick operating manual for more information).
  • Page 22 Danger of fire or breaking down due to electric devices being connected! • Do not connect any electric devices to your mobility device that are not expressly certified by Invacare® for this purpose. Have all electrical installations done by your authorised Invacare® Dealer.

  • Page 23: Safety Information With Regard To Care And Maintenance

    Safety information with regard to care and maintenance Danger of accident and loss of guarantee if maintenance is insufficient! • For reasons of safety and in order to avoid accidents which result from unnoticed wear, it is important that this electric mobility product undergoes an inspection once every year under normal operating conditions (see inspection plan contained in service instructions).

  • Page 24: Safety Information On Electromagnetic Interference

    Safety information on electromagnetic interference This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) regulations. However, electromagnetic fields, such as those generated by radio and television transmitters, and cellular phones can influence the functions of electric vehicles.

  • Page 25: Safety Information On Driving And Freewheel Mode

    Safety information on driving and freewheel mode Danger of injury if the wheelchair tips over! • Inclines and declines can only be travelled up to the maximum safe slope (see chapter "Technical specifications" from page 84). • Always return the backrest of your seat or the seat tilt to an upright position before ascending slopes.
  • Page 26 Danger of breaking down in adverse weather conditions, i.e. extreme cold, in an isolated area! • If you are a user with severely limited mobility, we advise that in the case of adverse weather conditions DO NOT attempt a journey without an accompanying attendant! Danger of injury if your foot slides off the footrest and gets caught underneath the wheelchair when it is in motion! •...

  • Page 27: Safety Information Regarding Changes And Modifications To The Mobility Device

    • Only use seating systems that have been approved by Invacare® for this power wheelchair. Electrical and electronic components which have not been approved by Invacare® for use with this mobility aid can cause fire hazards and lead to electromagnetic damage! •...

  • Page 28: Key Features

    Key features 1) Push handle 2) Locking screw for adjusting armrest height 3) Locking screw for adjusting backrest angle 4) Disengaging lever 5) Operating console for light 6) Remote 7) Legrest unlocking lever...

  • Page 29: Getting In And Out Of The Wheelchair

    Getting in and out of the wheelchair Important information for getting into and out of the wheelchair from the side! The armrest must be removed in order to get into or out of the wheelchair from the side. Remove the standard armrest in order to side transfer Removing the armrest: •...
  • Page 30 Getting into the wheelchair: • Position your wheelchair as close as possible to your seat. This might have to be done by an attendant. • Switch your wheelchair off. • Apply the manual wheel lock of your wheelchair (if existing). •...

  • Page 31: Driving

    Driving NOTE The maximum load capacity that is stated in the technical data only states that the system is designed for this mass in total. However, this does not mean that one can sit a person with this body weight in the wheelchair without restrictions. Attention must be paid to the body proportions, such as height, weight distribution, abdominal girth, leg and calf girth and seat depth.

  • Page 32: Taking Obstacles

    • The rear mirror (if installed) is adjusted so you can look behind at all times without having to bend forward or shift your seating position. Taking Obstacles 5.2.1 Maximum obstacle height You can find information about maximum obstacle heights in the chapter entitled "Technical specifications"...

  • Page 33: The Correct Way To Overcome Obstacles

    5.2.3 The correct way to overcome obstacles Ascending Right • Approach the obstacle or the kerb slowly, head-on and at a right angle. • Depending on the wheel drive type, stop in one of the following positions: - In the case of centrally driven wheelchairs: 5 - 10 cm before the obstacle. - For all other drives: approx.

  • Page 34: Driving Up And Down Gradients

    Driving up and down gradients For information concerning the maximum safe slope, please see chapter "Technical specifications" starting on page 84. WARNING: Danger of tipping over! • Only ever drive downhill at a maximum of 2/3 of the top speed. Avoid sudden changes of direction or abrupt braking when driving on slopes.

  • Page 35: Use On Public Roads

    If you wish to use your wheelchair on public roads and lighting is required by national legislation, then your wheelchair needs to be equipped with an appropriate lighting system. Please contact your Invacare ® dealer if you have any questions. Pushing the wheelchair in freewheel mode The motors of the wheelchair are equipped with automatic brakes, preventing that the wheelchair starts rolling out of control when the joystick box is switched off.
  • Page 36 NOTE: The motors may only be disengaged by an attendant, not by the user! This ensures that the motors are only disengaged if an attendant is available to secure the wheelchair and prevent unintended rolling. The lever for disengaging the motors is on the rear right side on the wheelchair chassis. Disengaging motors: •...

  • Page 37: Remotes

    Remotes Your wheelchair may be equipped with one of several different remotes. For information on the different functions and how to operate a particular remote, please see its corresponding User Manual (enclosed). Lighting Your mobility aid lighting is switched on and off using a special control unit. Displays and controls Switch control unit on / off Activate / deactivate hazard lamp unit...

  • Page 38: Adjusting The Wheelchair To The User's Seating Posture

    Adjusting the wheelchair to the user's seating posture Adjusting the armrests and the control panel 9.1.1 Adapting the control panel to the length of the user’s arm • Release wing bolt (1) . • Adjust the remote by pushing it forwards or backwards to the required location.

  • Page 39: Setting The Height Of The Armrests

    9.1.2 Setting the height of the armrests • Loosen the wing screw (1). • Set the armrest to the desired height. • Re-tighten wing screw.

  • Page 40: Adjusting The Width Of The Armrests

    9.1.3 Adjusting the width of the armrests The distance between the side sections can be adjusted by 5.5 cm on both sides (11 cm in total). Requirements: • Allen key 8 mm Where to find the adjustment screws The picture below shows the position of the screws (1) that enable adjustment of the width of the armrests.
  • Page 41 Doing the adjustment • Loosen the screw (1). • Set the armrest to the desired position. • Re-tighten the screw. • Check the firm fit of the armrest. • Repeat the procedure for the second armrest.

  • Page 42: Adjusting The Seat Angle / Seat Height

    Adjusting the seat angle / seat height 9.2.1 Manual adjustment using perforated plates There are three perforated plates underneath the seat for adjusting the seat angle and the seat height. These perforated plates in connection with the adjustable rear holding plates result in a multitude of different setting possibilities.
  • Page 43 • The picture on the right shows the position of the perforated plates (1) and the holding plate fixing screws (2) for adjusting the seat height and seat angle. The picture on the right shows the front perforated plates. The procedure is similar for the rear perforated plates.
  • Page 44 The seat height and angle can also be adjusted using the rear holding plate. • Loosen the rear fixing bolt on one side (in threaded bush 1) so that the holding plate can be swivelled upwards or downwards. • Under the front fixing bolts and take them out (depending on the position, the bolt is either in threaded bush 2 or 3).
  • Page 45 The hinged rear perforated plates have five positions. These are labelled in the illustration on the right with the letters A to E. All five positions can be used if the holding plates are in the lower position (see above). Only positions B, C, D and E are possible in the higher position!.

  • Page 46: Adjusting The Backrest

    Adjusting the backrest 9.3.1 Set backrest using perforated plate The angle of the backrest has six positions, from -10° to +30°. • Unscrew the hand screws (1) on both sides. • The backrest is adjusted by choosing a combination of one of the two drill holes in the backrest frame and one of the six drill holes in the fixing plate.

  • Page 47: Postural Belts

    Postural belts A postural belt is an option which can either be fixed to the wheelchair ex-works or can be retrofitted by your specialist dealer. If your wheelchair is fitted with a postural belt, your specialist dealer will have informed you about fitting and usage. The postural belt is used to help the wheelchair user keep an optimum sitting position.

  • Page 48: Adjusting The Postural Belt Correctly

    If the belt is only fastened with a bolted connection, ensure that the connection has not loosened or undone. You can find more information about maintenance work on belts in the service manual, which is available from Invacare®.

  • Page 49: Legrests

    Legrests 9.5.1 Standard legrests 9.5.1.1 Swivel the legrest outward and/or remove The small unlocking knob is in the legrest upper section (1). If the legrest is unlocked it can be swivelled to the inside or the outside to aid getting in, or removed completely. •...

  • Page 50: Adjusting The Length

    9.5.1.2 Adjusting the length Pre-requisites: • 1x 5 mm hexagon socket spanner • Loosen the bolt (1) with the Allen key but do not remove it completely. • Adjust the legrests to the required length. • Retighten the screw.

  • Page 51: Adjusting And Removing The Tray

    Adjusting and removing the tray CAUTION: Injury hazard or material damage if a power wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. 9.6.1 Laterally adjusting the tray •...

  • Page 52: Adjusting The Depth Of The Tray / Removing The Tray

    9.6.2 Adjusting the depth of the tray / removing the tray • Loosen the wing-screw (1). • Adjust the table to the desired depth (or remove it entirely). • Re-tighten the screw. 9.6.3 Swinging the tray away to the side The tray can be swivelled up and away to the side to allow the user to get in and out of the mobility device CAUTION! Risk of injury! When the tray is raised it does not lock in place in this position!
  • Page 53 The tray can be swivelled upwards and pushed to the side as illustrated to enable getting on and off.

  • Page 54: Electrical System

    Electrical system 10.1 Electronics protection system The vehicle drive electronics is fitted with an overload protection. If the drive is severely overloaded over a long period (e.g. during steep climbs) and, above all, at simultaneous high external temperatures, the electronic system can overheat. In this case, the vehicle performance is gradually reduced until it comes to a standstill.

  • Page 55: The Main Fuse

    NOTE A defective main fuse may be replaced only after checking the entire electric system. An Invacare® specialised dealer must perform the replacement. You can find information on the fuse type in chapter "Technical specifications" starting on page 84. The entire electric system of the wheelchair is protected by the main fuse against overloading.

  • Page 56: Batteries

    10.2 Batteries Power is supplied by two 12 V batteries. The batteries are maintenance-free and only need regular charging. In the following, you find information on how to charge, handle, transport, store, maintain, and use batteries. 10.2.1 Charging the batteries 10.2.1.1 General information on charging New batteries should always be fully charged once before their first use.

  • Page 57: How To Charge The Batteries

    10 °C. • Use only charging devices in Class 2. This class of chargers may be left unattended during charging. All charging devices which are supplied by Invacare® comply with these requirements. •...

  • Page 58: How To Disconnect The Batteries After Charging

    Risk of explosion and destruction of batteries if the wrong battery charger is used! • Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Invacare®. Risk of electric shock and damage to the battery charger if it gets wet! •...

  • Page 59: Storage And Maintenance

    10.2.2 Storage and Maintenance Follow the instructions listed below to ensure safe use and longevity of the batteries: • Always store the batteries fully charged. • Do not leave the batteries in a low state of charge for an extended length of time. Charge a discharged battery as soon as possible.
  • Page 60 The last 3 LED (two red and one orange) mean a remaining capacity of about 15 %. • Driving with blinking red LED’s means an extreme stress for the battery and should be avoided under normal circumstances. • When only one red LED is blinking, the Battery Safe feature is enabled. From this time, speed and acceleration is reduced drastically.

  • Page 61: Transporting Batteries

    • Under normal operation, once a month the battery should be discharged until all green and orange LED are off. This should be done within one day. A 16 hour charge afterwards is necessary as reconditioning. 10.2.4 Transporting batteries The batteries supplied with your electric vehicle are not hazardous goods. This classification is based on the German GGVS Hazardous Goods Road Transport Ordinances, and the IATA/DGR Hazardous Goods Rail Transport / Air Transport Ordinances.
  • Page 62 Only ever transport damaged batteries in an appropriate acid-resistant receptacle. • Wash all objects that have come into contact with acid with lots of water. Disposing of dead or damaged batteries correctly Dead or damaged batteries can be given back to your dealer or directly to Invacare®.

  • Page 63: Removing The Batteries

    10.2.5.3 Removing the batteries CAUTION: Risk of fire and burns if battery poles are bridged! • When replacing the batteries the battery poles MUST NOT come into contact with metal parts of the wheelchair causing bridging. • Be sure to replace the battery pole caps after the batteries have been replaced. Pre-requisites: •...
  • Page 64 • Pull the battery pole caps (1) upward and push back in order to reach the battery poles. • Use the open-ended spanner to loosen the battery pole clamps. • Remove the batteries to the rear.

  • Page 65: Care And Maintenance

    Maintenance encompasses different areas, such as everyday care and cleaning, inspection checks, repair tasks and refurbishment. NOTE: Have your vehicle checked once a year by an authorised Invacare® dealer in order to maintain it's driving safety and roadworthiness. 11.1...

  • Page 66: Inspection Checks

    Service Manual for this device, which can be obtained from Invacare®. That Manual, however, is intended to be used by trained and authorised service technicians, and describes tasks which are not intended to be performed by...
  • Page 67 Maintenance Jobs Seat and backrest padding: - Check for perfect condition. Side part and armrest: - Are all fastening elements installed? - Can armrests / side parts be removed and installed without too much physical effort? - Are armrests secured in their positions? Legrests: - Do legrests lock into place without any problem? (Only applies to detachable legrests)
  • Page 68 Maintenance Jobs Electronics / Electrical System: - Check all plug connections for condition and firm seat. - Have all batteries been fully charged before the daily operation? Before every trip - Are all holders, screws firmly fixed, tight and safe? - Are all electric bulbs of the lighting system (if applicable) in working Before each trip order?

  • Page 69: Repair Instructions

    "Technical specifications" on page 84, or consult the Service Manual, available from Invacare® (in this connection please see the addresses and phone numbers in section "How can you get in touch with Invacare®?" on page 3). In case you require assistance, please contact your Invacare® Dealer.

  • Page 70: Repairing A Flat Tyre At The Back (Tyre Type 3.00-8")

    12.1.1 Repairing a flat tyre at the back (tyre type 3.00-8") Injury hazard! If the wheel has been insufficiently secured during assembly, it can become loosened during driving! • When refitting the drive wheels, tighten the Torx screw that secures the wheel to the hub to a torque of 30 Nm! •...
  • Page 71 Removing the wheel • Jack the vehicle up and place a block of wood underneath it to prop it up. • Remove the countersunk screw (1) using the Torx bit. • Remove the wheel from the axle. EXPLOSION HAZARD! The wheel will explode if the air pressure is not released from the tyre before disassembling the wheel rim! •...
  • Page 72 NOTE In case the old inner tube is to be repaired and used again, and it happens to get wet during repair, then it is easier to re-fit it if you powder it lightly with talcum powder. NOTE Re-assembly is done in reverse order. Make sure that the wheel is put back on the same side it was on, and that it runs in the same direction it did before it was removed.

  • Page 73: Transport

    Transport CAUTION: Injury hazard or material damage if a power wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. CAUTION: Danger of death or serious injury to the mobility device user and potentially any other nearby occupant of the vehicle, if a mobility device is secured using a 4-point tie-down system available from a third party supplier and the unladen weight of the mobility device exceeds the maximum weight for which the tie-down system is certified!

  • Page 74: Transferring The Wheelchair To A Vehicle

    13.1 Transferring the wheelchair to a vehicle WARNING: The wheelchair is in danger of tipping over if it is transferred to a vehicle while the driver is still seated in the wheelchair! • Transfer the wheelchair without the driver whenever possible! •...

  • Page 75: Use Of The Wheelchair As A Seat In A Vehicle

    13.2 Use of the wheelchair as a seat in a vehicle Caution: There is a danger of injury if the wheelchair is not properly secured during use as a vehicle seat! • If possible, the user should always leave the wheelchair to use a vehicle seat and the safety belts provided with the vehicle.
  • Page 76 (UK for example), but may also be obtained from Invacare® as an option in other countries. This power wheelchair complies with the requirements of ISO 7176-19:2001 and may be used as a vehicle seat in connection with an anchoring system that has been checked and approved in accordance with ISO 10542.

  • Page 77: How The Wheelchair Is Anchored In A Vehicle For Use As A Vehicle Seat

    13.2.1 How the wheelchair is anchored in a vehicle for use as a vehicle seat The power wheelchair is fitted with four anchoring points, which are labelled with the symbol shown on the right. Snap hooks or belt loops can be used for fixation.

  • Page 78: How The User Is Secured Within The Wheelchair

    13.2.2 How the user is secured within the wheelchair CAUTION: There is a danger of injury if the user is not properly secured within the wheelchair! • Even if the wheelchair is fitted with a postural belt, this is no substitute for a proper safety belt which complies with ISO 10542 in the transport vehicle.
  • Page 79 This can cause the neck to be hyperextended during collisions! • A headrest must be installed! The headrest optionally supplied for this mobility device by Invacare® is perfectly suitable for use during transport. • The headrest must be adjusted to the user's ear height.
  • Page 80 Seat belts may not be held at a distance The pelvic belt should be positioned in the from the user's body using parts of the area between the user's pelvis and thighs wheelchair such as armrests or wheels. so that it is unobstructed and not too loose. The ideal angle of the pelvic belt to the horizontal is between 45°...
  • Page 81 The safety belt installed in the transporting vehicle should be applied as shown in the illustration at right. 1) Centre line of the body 2) Centre of the sternum...

  • Page 82: Securing The Wheelchair For Transport Without Passengers

    Securing the wheelchair for transport without passengers CAUTION: Injury hazard! ® • If you are unable to fasten your electric wheelchair securely in a transport vehicle, Invacare recommends that you do not transport it! • Before transporting your wheelchair, make sure the motors are engaged and that the Joystick Box is switched off.

  • Page 83: Refurbishment

    Cleaning and disinfection. Please see chapter "Care and maintenance" on page 65. • Inspection according to service plan. Please consult service instructions, available from Invacare®. • Adaptation to the user. Please see chapter "Adjusting the wheelchair to the user's seating posture"...

  • Page 84: Technical Specifications

    Technical specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories. Permissible operating and storage conditions Temperature range for operation according to ISO 7176-9: •...
  • Page 85 Drive wheel tyres Tyre type • 3.00 - 8" pneumatic Tyre pressure The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or the rim. If more than one value is listed, the lower one in the corresponding units applies. (Tolerance = -0.3 bar,1 bar = 100 kpa) Castor wheel tyres Tyre type...
  • Page 86 **** Measured without seat cushion ***** The actual kerb weight depends on the fittings your mobility aid has been supplied with. Every Invacare® mobility aid is weighed when leaving the works. Please refer to the nameplate for the kerb weight (including batteries) measured.
  • Page 87 ****** Static stability according to ISO 7176-1 = 9° (15,8 %) Dynamic stability according to ISO 7176-2 = 6° (10,5 %)

  • Page 88: Inspections Performed

    It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the Service and Repair Instructions have been properly performed. The list of the inspection jobs to be performed can be found in the Service Manual which is available through Invacare®. Delivery Inspection...
