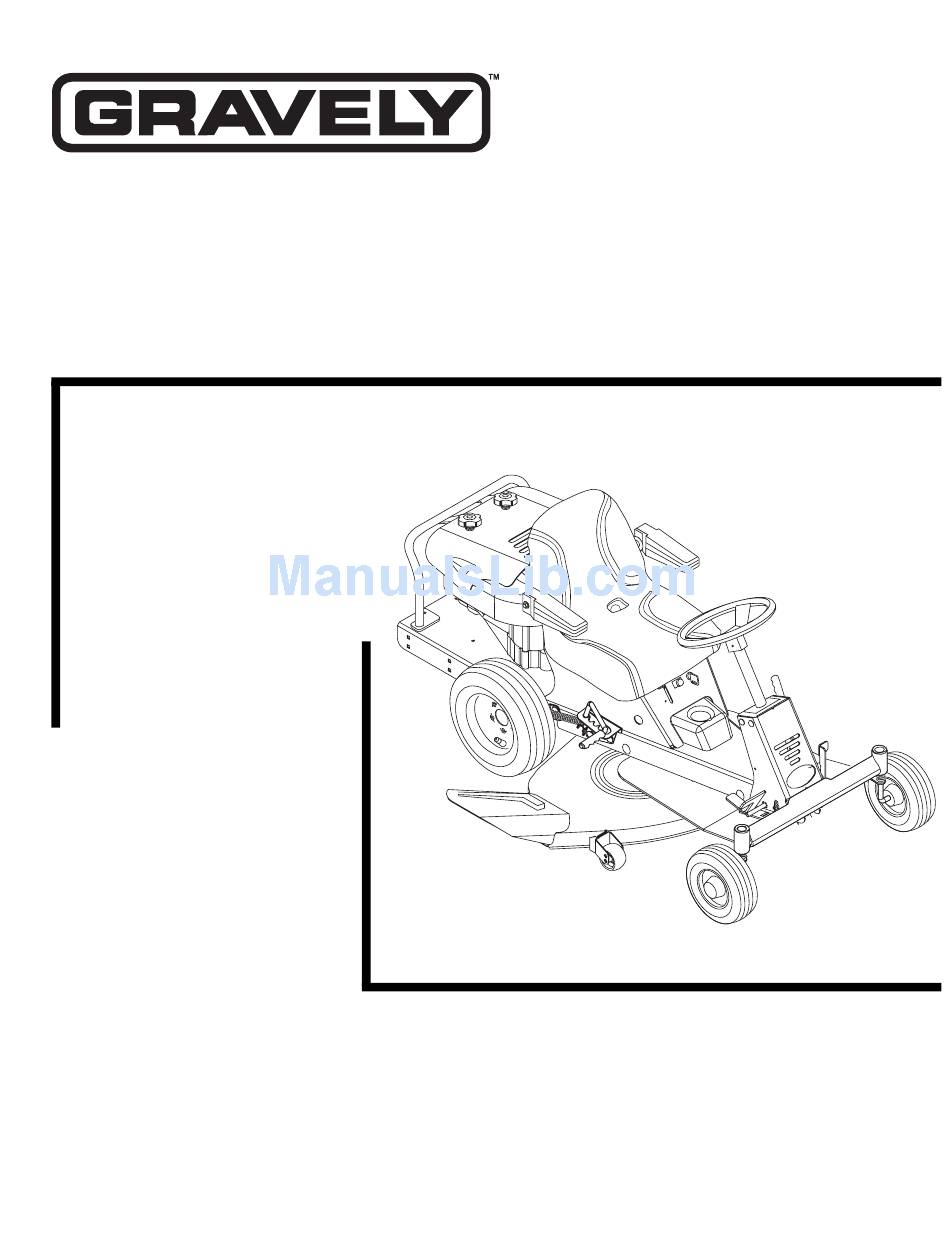

Page 1: Rear Engine Rider
Rear Engine Rider Parts Manual Models 927060 - RM1028 927062 - RM1232 927064 - RM1440 02782800C 6/04 Supercedes 02782800B, A Printed in USA... - Page 2 RODUCT The Gravely dealer must register the product at the time of purchase. Registering the product will help the company process warranty claims or contact you with the latest service information.
-
Page 3: Table Of Contents
ODELS 927060 (1028) 10 H.P. 28” Hydro Serial No. 010000 and up 927062 (1232) 12 H.P. 32” Hydro Serial No. 010000 and up 927064 (1440) 14 H.P. 40” Hydro Serial No. 010000 and up ABLE ONTENTS ECALS Decals ........4 RAME NGINE ONTROLS AND... -
Page 4: Decals
Model 927060, 062, 064 05304800A 01607000 Item Part No. Qty. Description 05306000 Decal, Trailer Hitch 05304800 Decal, Throttle 01607000 Decal, 5 Position Cut Height 05301600 Decal, Rear Engine Rider Warning 07742300 Decal, Warning 07731400 Decal, Mower Pan Danger 07757500 Decal, Parking Brake Lever 07719800 Decal, Ignition 05305700... - Page 5 Item Part No. Qty. Description 05304300 Decal, Gravely ZT 05303600 Decal, Rear Engine Rider Gravely 1232 (062) 05303200 Decal, Rear Engine Rider Gravely 1028 (060) 05304000 Decal, Rear Engine Rider Gravely 1440 (064) 05223900 Decal, Gravely 05305100 Decal, American Flag...
-
Page 6: Frame, Hood And Seat
Model 927060, 062, 064 RAME OOD AND PA0402... - Page 7 Item Part No. Qty. Description 02780151 Frame 01599200 Seat, TS2500 Michigan with Arms 01611151 Weldment, Seat Plate 02764451 Reforcement, Seat Support 02766151 Panel, Solenoid Mounting 01610953 Seat Support 02765553 Weldment, Footrest (060) 02760253 Weldment, Footrest (062, 064) 07049400 Bolt-Serrated Hex Flange Washer Head .25-20 x .75 06226700 Bolt, Round Head Square Neck .31-18 x .75 Grade 5 10 06544500 15...
-
Page 8: Engine
Model 927060, 062, 064 Item Part No. Qty. Description 52710400 Group, Engine 12HP Intek (062) 52710300 Group, Engine 10HP Intek (060) 52710500 Group, Engine 14HP Intek (064) 036233 V-Belt 4L-Section 30.219 x .547 06601800 Key, Straight .25 x 1.75 x .25 02775700 Stack, Sheave (060, 062) 02778900... -
Page 9: Brake System
Item Part No. Qty. Description 08327100 Spring, Compression .080 x .52 x 2.90 06447800 Washer, Flat Steel .33 x 2.125 x .098 02776500 Rod, Brake 07527500 Grip 06435700 Washer, Flat Steel .38 x .875 x .083 06544500 Nut, Locking Top Flange .38-16 08330300 Spring, Tension .048 x .44 x 2.12 02777300... -
Page 10: Steering And Front Wheels
Model 927060, 062, 064 TEERING AND RONT HEELS PA0242... - Page 11 Item Part No. Qty. Description 02753700 Steering Wheel 13 Inch 05803700 Pin, Roll .25 x 1.75 02749100 Steering Shaft 07503700 Plug 02753800 Tube 05804600 Pin, Roll .188 x .75 05505300 Bushing, Flange .625 x 1.156 x .375 06418100 Washer, Hardened Steel .515 x .97 x .062 01310000 Retaining Plate1 10 02705400...
-
Page 12: Rear Wheels And Hydro Drive
Model 927060, 062, 064 HEEL AND YDRO RIVE PA0391... - Page 13 Item Part No. Qty. Description 02775100 Support, Transmission 06514400 Nut, Flange .50-13 07414400 Screw-Tapping .31-18 x .75 Hex Washer Head 02761600 Weldment, Forward and Reverse Pedal 06544500 Nut, Locking Top Flange .38-16 034738 Bushing, Flange .515 x .75 x .745 x 1.00 06439200 Washer, Flat Steel .505 x 1.00 x .062 06944800...
-
Page 14: Gas Tanks
Model 927060, 062, 064 Item Part No. Qty. Description 06939100 Clamp, Hose Wire .490/.510 x .116 021134 Gas Line, Bulk 1/4" I.D. 03606500 Fitting, Tank 01538400 Fuel Cap 07049400 Bolt, Serrated Hex Flange Washer Head .25-20 x .75 02771351 Bracket, Battery 02765100 Tank, Fuel 01588600... -
Page 15: Deck Lift
Note:The quantity of item number 22 used with item numbers 26 and 27 are as follows (See Illustration and descriptions below). Model 927060 = 3 Model 927062 = 2 Model 927064 = 1 Item Part No. Qty. Description 06544400 Nut, Locking Top Flange .31-18 05980300 Bolt, 1.25 Socket Shoulder Plain 01606851... -
Page 16: Lectrical Ystems
Model 927060, 062, 064 To Star ter LECTRICAL YSTEM PA0281... - Page 17 Item Part No. Qty. Description 02460700 Key with Cap 045490 Cap, Ignition Switch 045489 Nut, Panel .625-32 01563700 Key Switch 03679000 Solenoid 039619 Insulator Battery, Sealed Maintenace Free U1-330 (See Local Battery Supplier) 05946800 Bolt, Hex .25-20 x .75 Grade 5 06437300 Washer, Flat Steel .281 x .62 x .065 10 06308400...
-
Page 18: Continuity Diagram
Model 927060, 062, 064 The diagrams below show the various states of connection for electrical components. The solid lines on switches show continuity NOTE: All switches are viewed from the rear K ey S witch (01563700) RU N PT O S witch (01545600) DISENGAGED (down position) -
Page 19: Wiring Diagram
REGUL A T OR ENGINE MAGNET O KILL WHITE / ST ARTER HEADLIGHT BLACK HEADLIGHT SWITCH BLACK LT . BLUE POSITIVE PA TH F USE FUSE BA TTER Y BLACK COIL 2 COIL 1 BROWN ST ARTER SOLENOI D BLACK IRING IAGRAM P ARKIN G... -
Page 20: 28" And 32" Decks, Belts, And Blades
28" Model 927060, 062 927060 927062 927060 927062 927060 Item Part No. Qty. Description 05974500 Bolt, Hex .38-16 x 1.00 Grade 8 with Epoxy Patch 01608551 Discharge Chute 00597000 Washer, Cupped Serrated .375 06611100 Key, Square .25 x .38 x .25 01610400 Pulley, 28"... - Page 21 28" Item Part No. Qty. Description 02763751 Weldment, Deck Link Right Hand (060) 02763851 Weldment, Deck Link Left Hand (062) 02770451 Stabilizer , 28" Deck (Right Hand Only) (060) 02764351 Link Stabilizer (060) 02764351 Link Stabilizer (062 06944800 Clip, Spring 62727400 Assembly, Spindle Housing 01590500...
-
Page 22: 40" Deck, Belts, Blades And Idlers
40” D Model 927064 “See Deck Lift” ELTS LADES AND “See Deck Lift” DLERS “See Deck Lift” PA0373... - Page 23 40” D Item Part No. Qty. Description 02769200 Weldment, Idler 06544500 16 Nut, Locking Top Flange .38-16 02781200 Cover, 40" Deck Sheave 03615400 Sheave, Left Spindle 03615300 Sheave, Right Spindle 02769600 Deck, 40” 02769300 Bracket, Idler Mount 02778500 Bracket, Rear Hanger 02769700 Link, Stabilizer 40"...
- Page 24 40” D Model 927064 Item Part No. Qty. Description 44 03643100 Electric Clutch/Brake 45 07309300 Idler, Flat 3.00 x .38 46 06604200 Key, Woodruff .188 x .625 x .31 47 06534900 Nut, Locking Center .375-16 48 06227000 12 Bolt, Round Head Square Neck .38-16 x .75 Grade 5 49 06221800 Bolt, Round Head Square Neck .31-18 x 1.00 50 02768600...
- Page 25 GRAVELY A Division of Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.gravely.com...
