Related Manuals for Gravely Promaster 250Z 992018 - PM 260Z
Summary of Contents for Gravely Promaster 250Z 992018 - PM 260Z

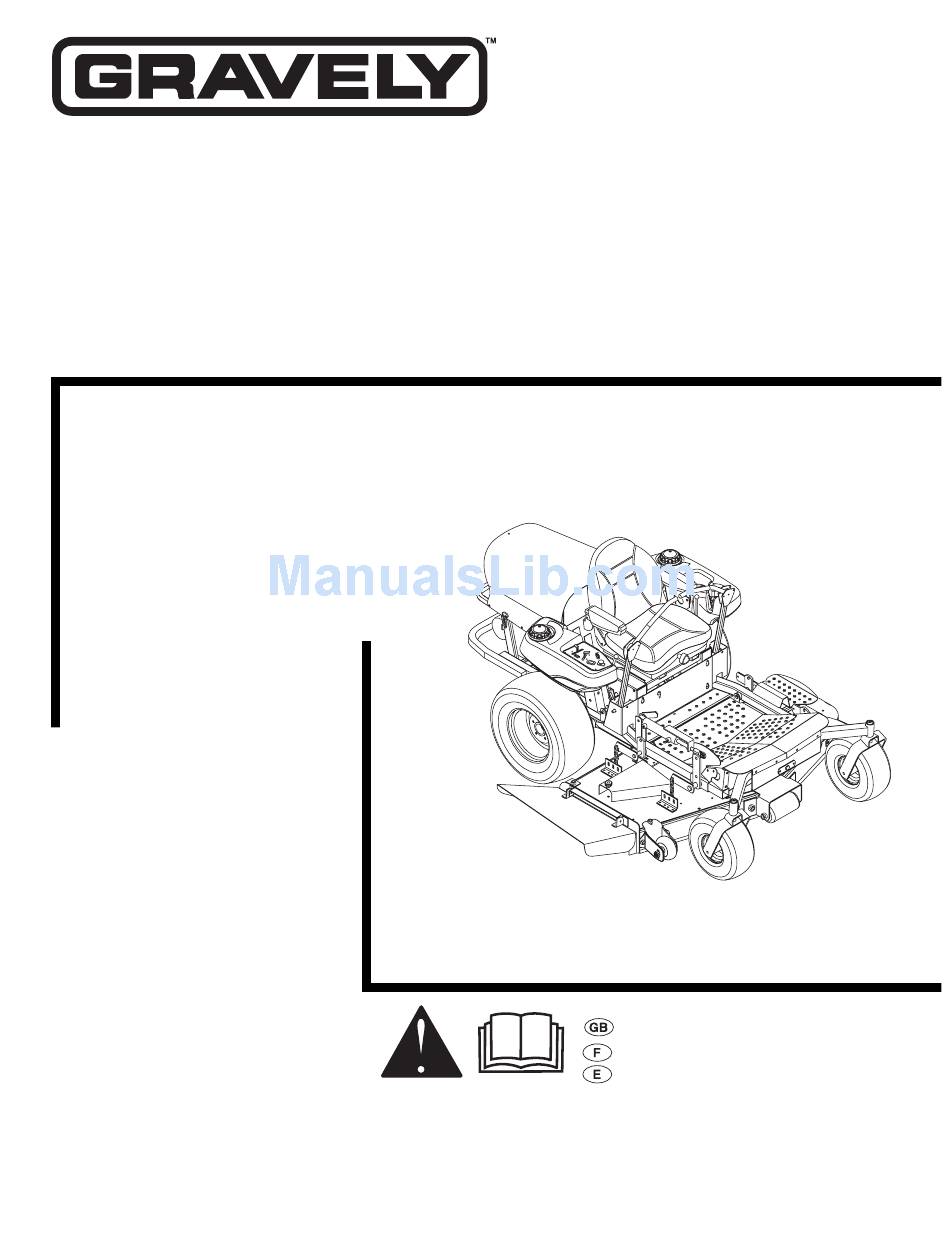

- Page 1 Promaster 250Z & 260Z Owner/Operator Manual Models 992018 - PM 260Z 992020 - PM 260Z 992021 - PM 260Z 992022 - PM 260Z 992023 - PM 250Z 992024 - PM 260Z 992027 - PM 260Z ENGLISH FRANÇAIS ESPAÑOL 08486600A 10/00 Supersedes 08486600 Printed in USA...
-
Page 2: Controls And Features
CONTROLS AND FEATURES 10 11 12 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. OF1722 Figure 1 ENGLISH 1. Mower Deck with Chute Deflector 2. - Page 3 FRANÇAIS ESPAÑOL 1. Carter de coupe avec déflecteur 1. Plataforma de corte 2. Robinet de carburant 2. Válvula de cierre de combustible 3. Frein de stationnement 3. Freno de estacionamiento 4. Batterie 4. Batería 5. Compteur horaire 5. Horómetro 6. Indicateur de pression d'huile 6.
-
Page 4: Table Of Contents
REPLACEMENT PARTS Gravely authorized replacement part may adversely affect the performance, durability, and safety of this unit When ordering publications, and may void the warranty. Gravely disclaims liability for Transfer replacement parts, or making service model & serial any claims or damages, whether regarding warranty,... -
Page 5: Safety
5. Explain recommended lubrication and maintenance. Customer Note: Your Dealer has been provided Advise customer on adjustments.Instruct customer complete setup and preparation instructions which must on controls and operation of unit. Discuss and be completed prior to you taking delivery of this unit. The emphasize the Safety Precautions. - Page 6 DANGER / PELIGRO • Avoid injury - Stay clear of rotating parts. • Risque de blessures - ne pas s’approcher des pièces en mouvement. • Evitar lesiones - Mantenerse alejado de las piezas giratorias. DANGER / PELIGRO • Avoid injury - Stay clear of rotating parts. •...
- Page 7 • Check interlock system per manual before use. UNIT SAFETY • Understand location and function of all controls. Rules of Operation • Never allow operation by untrained persons. KNOW your Unit – before starting engine. Understand: • How to operate all controls 2.
- Page 8 Thrown Objects Hazardous Slopes Disengage PTO when crossing hard surfaces and gravel Operate up and down slopes, not across slopes. drives. Be aware of mower discharge direction and do not DO NOT operate on slopes of more than 17°. Keep all point it at anyone.
- Page 9 Replacement Parts ALWAYS clean unit before extended storage. See engine Keep all parts in good working condition. Replace worn manual for proper storage. or damaged parts only with Gravely recommended service parts. Battery Attachment and Accessory Safety Battery posts, terminals and related accessories contain...
-
Page 10: Assembly
ASSEMBLY UNIT ASSEMBLY WARNING: Make all seat adjustments with unit stationary, parking brake on and engine shut off. Package Contents: Unit, Mower Deck and Literature Pack Preparation Checklist Refer to the Owner/Operator manual as required. 1. Unpack Unit - Remove shrink wrap and packaging materials. -
Page 11: Operation
OPERATION CONTROLS AND FEATURES Throttle Lever FAST See Figure 1 for Controls and Features locations. The throttle lever is used to change the speed of the engine. Moving the throttle lever to the “Fast” position increases the engine speed. Moving the lever to the “Slow”... - Page 12 Fuel Shut-Off Valve IMPORTANT: Keep a record of Hour Meter readings for recommended Lubrication and Maintenance intervals. This valve is used to control the flow of fuel leaving the fuel tanks. The valve NOTE: For accurate readings be sure Ignition Switch is must be open for the engine to operate.
- Page 13 To stop the engine: 1. Bring the steering control levers to neutral. Disengage the PTO and set the parking brake. 2. Move the throttle lever to the “Slow” position. 3. Turn the ignition key to the “Off” position. TO MOW WITH UNIT Operate the unit only when seated in the operator’s position.
-
Page 14: Maintenance
MAINTENANCE Gravely Dealers will provide any service which may be required to keep your unit operating at peak efficiency. Should engine service be required, it can be obtained from a Gravely Dealer or the engine manufacturer’s authorized service center. WARNING: MOVING PARTS can result in serious injury or death. - Page 15 3. Clean the fuel cap and the area around the fuel cap to prevent dirt from entering the fuel tank. Remove the cap from the fuel tank. 4. Fill the fuel tank. Be careful not to spill the fuel. Do not overfill, allow for fuel expansion.
- Page 16 TIRES Before each use make a visual check of tires. The correct air pressure is 12-15 psi (83-103 kN/m ) for the rear tires and 20-25 psi (138-172 kN/m ) for the front tires. LUBRICATION IMPORTANT: Wipe each fitting clean before and after lubrication.
- Page 17 HYDRAULICS AND TRANSAXLES MOWER BLADES NOTE: If mower is used under sandy soil conditions, WARNING: HYDRAULIC FLUID can result in replace blades when air lifts become eroded through at severe burns. Fluid in hydraulic system can ends (Figure 11). penetrate skin and result in serious injury or death.
- Page 18 After cleaning, apply a thin coat of grease or petroleum jelly to terminals and cable ends to retard corrosion. WARNING: ELECTRIC SHOCK may result in Reinstall battery. injury and/or damage to unit. DO NOT allow tools or other objects to come Electrolyte Level into contact with both terminals at same time.
- Page 19 8. Immediately after charging, check electrolyte level. If ADJUSTMENTS low, add distilled water to bring cell up to required Steering Control Neutral Adjustment level. If the unit has excessive creep when the control levers 9. Replace caps finger tight, wash off and dry battery. are in neutral, adjust as follows.
- Page 20 8. If major adjustment is needed, it is best to remove Adjusting the unit to Track Straight the front ball joint from the bottom of the control Check and adjust tire pressure. Increase pressure on levers and turn the stop screw in or out until neutral is side unit tracks to.
- Page 21 9. If measurements are out of range, fix by adjusting NOTE: Do not use harsh or abrasive cleaners on any chains on low side of deck. painted surface. Do not allow gasoline or oil to remain on any surface. 10. Once deck is level side to side, measure height of deck at middle of front and on both sides of rear.
-
Page 22: Maintenance Schedule
MAINTENANCE SCHEDULE Proper maintenance can prolong the life of unit. The following charts show the recommended service schedule. More frequent service may be required due to working conditions (heavy loads, high ambient temperatures, dusty conditions, or airborne debris). See the maintenance instructions in the Engine Manual for additional information. -
Page 23: Specifications
SPECIFICATIONS 992020 & 022 992018 992021 992023 992024 992027 Model Number Model PM260Z 25 HP PM260Z 25 HP PM260Z 22 HP PM250Z 20 HP PM260Z 22 HP PM260Z 25 HP Kohler Kohler Robin Briggs & Stratton Robin Kohler with 60" deck with 50"... -
Page 24: Attachments And Accessories
79200300 - 60” Side Discharge Deck-Mulch Kit 79200400 - 60” Side Discharge Deck-Discharge Cover 79200500 - 50” Side Discharge Deck-Mulch Kit 79200600 - 50” Side Discharge Deck-Discharge Cover Publication and Service Part List Order the following parts through your Gravely Dealer: Part No. Qty. Description 09251700... -
Page 25: Warranty
Product Registration covered by this warranty. • The Gravely dealer must fill out and return the warranty • Service completed by someone other than an authorized registration card to validate the warranty. - Page 26 GRAVELY A Division of Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.gravely.com...
