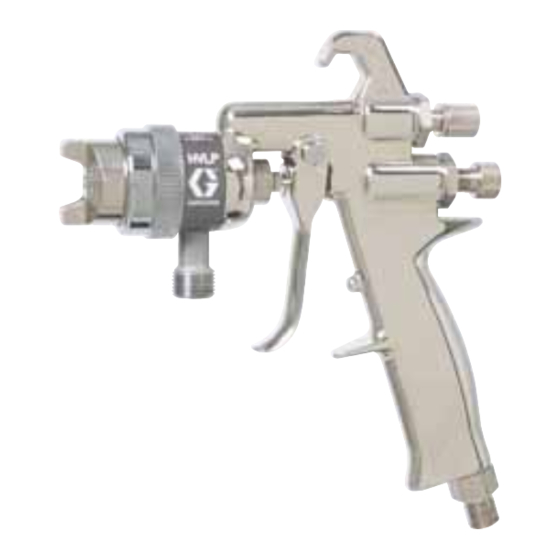

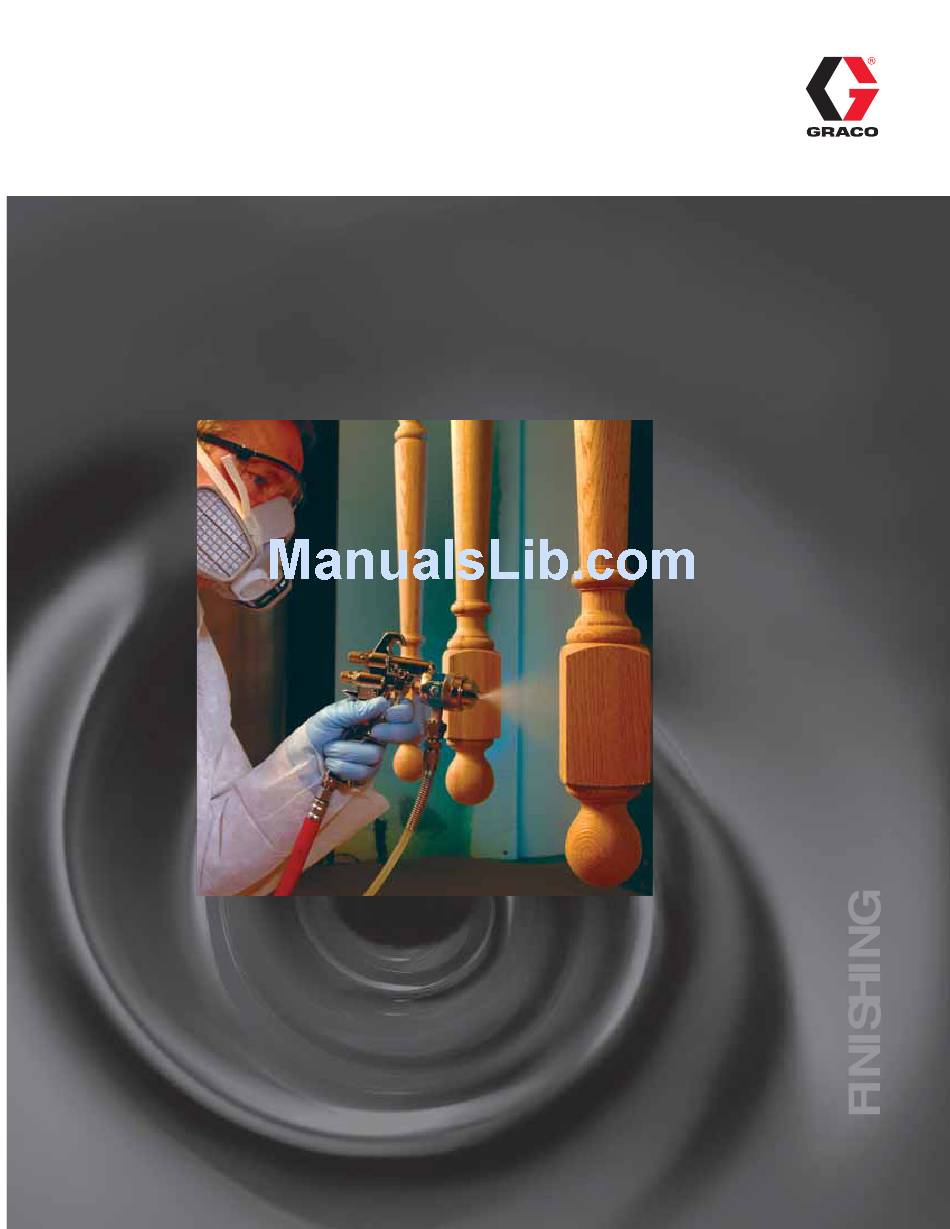

- Page 1 XT SERIES Manual Air Spray, HVLP and Compliant guns designed for excellent pattern, reduced maintenance and increased productivity P R O V E N Q U A L I T Y . L E A D I N G T E C H N O L O G Y .
- Page 2 Graco’s XT guns, you get excellent finish quality, higher productivity, less maintenance and downtime – every time you spray! The XT Series Offers: • The finest finish quality in the industry • A consistent spray pattern • Increased flow for higher productivity •...
- Page 3 XT Air Spray The Most Widely-Used Finishing Technology! • Class A or automotive finish • Easy to use, flexible and provides the finest finish quality • Offers the fastest production line speed XT HVLP Meets Strict U.S. 0Environmental Regulations! • A more controlled air spray technology •...
- Page 4 • Fan pattern and fluid flow are quick and easy to adjust • Larger fluid intake allows for up to 300 psi SPRAY PATTERNS XT SERIES TYPICAL COMPETITOR Easily remove needle Lowest number of parts in the assembly...
- Page 5 10. Gravity Feed Cup Reduces cleaning and labor costs The Best Spray Pattern in the Industry! The Delta Spray XT Series not only has the best pattern balance in the industry, but it is also the most consistent. Unlike the competition, the fluid atomized particles remain the same size from one side of the spray pattern to the other –...
- Page 6 Reduce Cleaning and Labor Costs NEW 3M Paint Preparation System Cup with Disposable Liner From Graco! Reduce your cleaning solvent usage by 70% and your cleaning labor by 80% with this new disposable cup! • A faster system for mixing and disposal •...
-
Page 7: Spray Packages
Enhance Your System Performance Quality pumps enhance any finishing system. Graco offers a variety of pumps and packages to meet the needs of your low to high volume applications, and to increase productivity. Complete Systems PRESSURE POTS PRESSURE POTS • Ideal for low to high volume, dedicated color or fine finish applications (i.e., 1-100 gallons used daily) •... -
Page 8: Spray Guns
Guns For Every Application Whatever your application, Graco has the product solution! Choose from our complete line of spray guns and take your finishing to the next level of performance! ALPHA AND ALPHA PLUS AIR-ASSIST • Excellent transfer efficiency at high production speeds •... - Page 9 Accessories 239631 Air Whip Hose Assembly Max. working pressure: 100 psi (0.7 MPa, 7 bar). Easier gun movement with increased hose flexibility. Length: 4 ft (1.2 m). ID: 5/16 in (7.9 mm) Swivel: 1/4 npsm(f), nitrile 239636 15 ft (4.6 m) Air Hose Assembly Max.
-
Page 10: How To Order
How to Order? Determine technology required (Air Spray, HVLP or Compliant) Determine type of feed (Pressure, Siphon or Gravity) Select material viscosity Select average flow rate Select optional pattern width Ordering Information AIR SPRAY GUNS Feed Material Flow Type Viscosity oz/min (l/min) Pressure light... -
Page 11: Technical Specifications
Ordering Information COMPLIANT* Feed Material Flow Type Viscosity oz/min (l/min) in (mm) Pressure light 4–10 (0.12–0.30) Pressure light-medium 8-14 (0.24-0.42) Pressure medium 12-18 (0.36-0.54) Pressure medium-heavy 16-20 (0.48-0.60) Siphon light 4–10 (0.12–0.30) Siphon light-medium 8–12 (0.24–0.36) Siphon w/cup (1 qt) light 4–10 (0.12–0.30) Siphon w/cup (1 qt) - Page 12 ABOUT GRACO P R O V E N Q U A L I T Y . L E A D I N G T E C H N O L O G Y . Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings.
