Gigabyte 6VXDC7 User Manual

Socket 370 processor motherboard

Advertisement

Quick Links

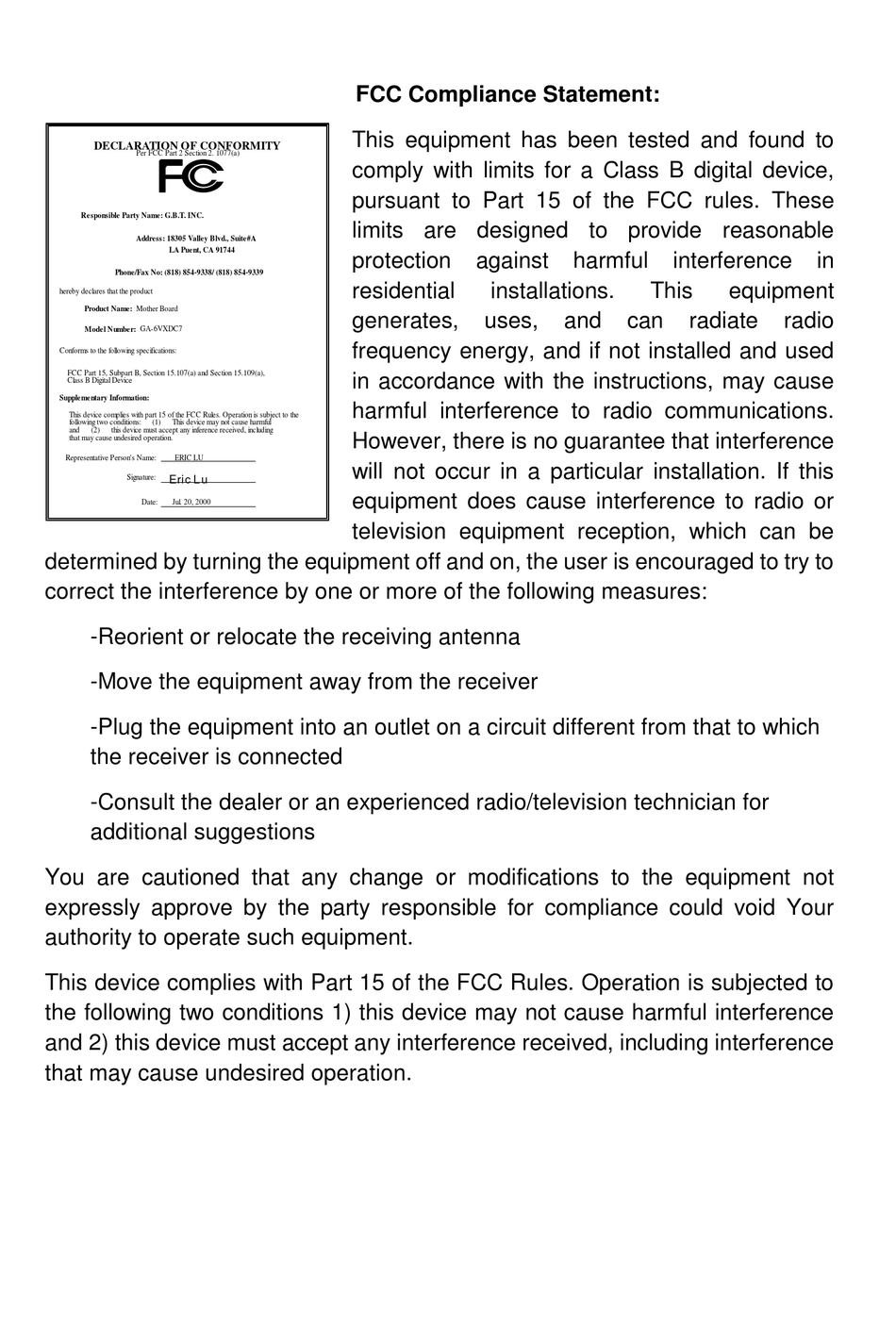

DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC.
Address: 18305 Valley Blvd., Suite#A
LA Puent, CA 91744
Phone/Fax No: (818) 854-9338/ (818) 854-9339
hereby declares that the product
Product Name:
Mother Board
Model Number:
GA-6VXDC7
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)
This device may not cause harmful
and
(2)
this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name:
ERIC LU
Eric L u
Signature:
Date:
Jul. 20, 2000
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected
-Consult the dealer or an experienced radio/television technician for
additional suggestions
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void Your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to
the following two conditions 1) this device may not cause harmful interference
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Compliance Statement:
This equipment has been tested and found to
comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable
protection
against
residential
installations.
generates,
uses,
frequency energy, and if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause interference to radio or
television equipment reception, which can be
harmful
interference
This
equipment
and
can
radiate
in
radio

Advertisement

Table of Contents
loading

Summary of Contents for Gigabyte 6VXDC7

  • Page 1 Model Number: GA-6VXDC7 frequency energy, and if not installed and used Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a), in accordance with the instructions, may cause Class B Digital Device Supplementary Information: harmful interference to radio communications.
  • Page 2: Declaration Of Conformity

    Ausschlager Weg 41, 1F, 20537 Hamburg, Germany declare that the product ( description of the apparatus, system, installation to which it refers) Mother Board GA-6VXDC7 is in conformity with (reference to the specification under which conformity is declared) in accordance with 89/336 EEC-EMC Directive...
  • Page 3 6VXDC7 Socket 370 Processor Motherboard USER'S MANUAL Socket 370 Processor Motherboard REV. 1.0 Third Edition R-10-03-010622 12ME-6VXDC7-1003...
  • Page 5 How This Manual Is Organized This manual is divided into the following sections: 1) Revision History Manual revision information 2) Item Checklist Product item list 3) Features Product information & specification 4) Hardware Setup Instructions on setting up the motherboard 5) Performance &...
  • Page 7: Table Of Contents

    Table Of Content Revision History Item Checklist Summary of Features 6VXDC7 Motherboard Layout Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Performance List P.28 Block Diagram P.29 Suspend to RAM Installation P.30 Dual BIOS Introduction (Optional) P.36 Four Speaker & SPDIF Introduction (Optional) P.43...
  • Page 8: Revision History

    6VXDC7 Motherboard Revision History Revision Revision Note Date Initial release of the 6VXDC7 motherboard user’s manual. Aug.2000 Second release of the 6VXDC7 motherboard user’s Aug.2000 manual. Third release of the 6VXDC7 motherboard user’s manual. Jun.2001 The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
  • Page 9: Item Checklist

    Item Checklist Item Checklist The 6VXDC7 motherboard Cable for IDE / floppy device Diskettes or CD (TUCD) for motherboard driver & utility 6VXDC7 user’s manual...
  • Page 10: Summary Of Features

    6VXDC7 Motherboard Summary Of Features Form Factor 30.4 cm x 24.3 cm ATX size form factor, 4 layers PCB. 2 Socket 370 processor Intel Pentium !!! 100/133MHz FSB, FC-PGA Intel Celeron 66MHz FSB, FC-PGA (Only support single CPU) cache in CPU (Depend on CPU)
  • Page 11 Summary of Features Hardware Monitor CPU1 / CPU2 Fan revolution detect CPU1 / CPU2 temperature detect System voltage detect CPU overheat shutdown detect PS/2 Connector PS/2 Keyboard interface and PS/2 Mouse interface BIOS Licensed AMI BIOS, 2M bit flash ROM Support Dual BIOS (Optional) On-Board Sound Creative CT5880 sound...
  • Page 12: 6Vxdc7 Motherboard Layout

    6VXDC7 Motherboard 6VXDC7 Motherboard Layout ATX Power PS/2 PGA 370 CPU 2 LED1 VT82C694X PGA 370 CPU 1 6VXDC7 JP11 AD1881 PCI1 BAT1 PCI2 VT82C686A PCI3 USB2 PCI4 Main PCI5 BIOS JP20 Back BIOS...
  • Page 13: Page Index For Cpu Speed Setup/Connectors/Panel And Jumper Definition

    6VXDC7 Motherboard Layout Page Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition CPU Speed Setup Connectors P.14 Game & Audio Port [Optional] P.14 COM 1 / COM 2 / LPT Port P.14 USB 1 Connector P.15 PS/2 Keyboard & PS/2 Mouse Connector P.15...
  • Page 14: Cpu Speed Setup

    6VXDC7 Motherboard CPU Speed Setup The system bus speed is selectable at 66,100,133MHz. The user can select the system bus speed (SW1) and change the DIP switch (SW2) selection to set up the CPU speed for 500MHz – 1GHz and faster processor.
  • Page 15 CPU Speed Setup Intel Processor all have locked Frequency Multiple, so you can not change the CPU Frequency Multiple. For double CPU use, the same CPU must be used in CPU socket1 and 2. (The same stepping, FSB, ratio) For single CPU use, use CPU socket1 only. Don’t use CPU socket2. Note: We don’t recommend you to set up your system speed to 112 , 124 , 142 ,152 MHz because these frequencies are not the standard specifications for CPU, Chipset and most of the peripherals.
  • Page 16 6VXDC7 Motherboard 3. Celeron 600/66MHz JP25 4. Celeron 633/66MHz JP25 5. Celeron 667/66MHz JP25 6. Celeron 700/66MHz JP25...
  • Page 17 CPU Speed Setup 7. Pentium !!! 500/100MHz FSB JP25 8. Pentium !!! 550/100MHz FSB JP25 9. Pentium !!! 600/100MHz FSB JP25 10. Pentium !!! 650/100MHz FSB JP25...
  • Page 18 6VXDC7 Motherboard 11. Pentium !!! 700/100MHz FSB JP25 12. Pentium !!! 750/100MHz FSB JP25 13. Pentium !!! 800/100MHz FSB JP25 14. Pentium !!! 850/100MHz FSB JP25...
  • Page 19 CPU Speed Setup 15. Pentium !!! 533/133MHz FSB JP25 16. Pentium !!! 600/133 MHz FSB JP25 17. Pentium !!! 667/133MHz FSB JP25 18. Pentium !!! 733/133MHz FSB JP25...
  • Page 20 6VXDC7 Motherboard 19. Pentium !!! 800/133MHz FSB JP25 20. Pentium !!! 866/133MHz FSB JP25 21. Pentium !!! 933/133MHz FSB JP25 22. Pentium !!! 1GHz/133MHz FSB JP25...
  • Page 21: Connectors

    Connectors Connectors Game & Audio Port (Optional) Game Port MIC In Line Out 1 Line In Line Out 1: Line Out or SPDIF (The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder).
  • Page 22: Usb 1 Connector

    6VXDC7 Motherboard USB 1 Connector Pin No. Definition USB V0 USB D0- USB D0+ USB V1 USB D1- 1 2 3 4 USB D1+ PS/2 Keyboard & PS/2 Mouse Connector PS/2 Mouse/ PS/2 Mouse Keyboard Pin No. Definition Data VCC(+5V)
  • Page 23: J13 : Cpu1 Fan

    Connectors J13 : CPU1 Fan Pin No. Definition Control +12V SENSE J15 : CPU2 Fan Pin No. Definition Control +12V SENSE...
  • Page 24: J16 (Power Fan)

    6VXDC7 Motherboard J16 : Power Fan Pin No. Definition Control +12V J14 : System Fan Pin No. Definition Control +12V...
  • Page 25: Atx Power

    Connectors ATX Power Pin No. Definition 3,5,7,13, 15-17 1,2,11 3.3V 4,6,19,20 +12V -12V Power Good 5V SB stand by+5V PS-ON(Soft On/Off) Floppy Port Red Line FDD1...
  • Page 26: Ide1 (Primary), Ide2 (Secondary) Port

    6VXDC7 Motherboard IDE1 (Primary), IDE2 (Secondary) Port Red Line IDE 1 IDE 2 J7 TEL : The connector is for Modem with internal voice connector (Optional) Pin No. Definition Signal-In Signal-Out...
  • Page 27: J5 (Aux_In) [Optional]

    Connectors J5 : AUX_IN (Optional) Pin No. Definition AUX-L AUX-R J8 : CD Audio Line In (Optional) Pin No. Definition CD-L CD-R...
  • Page 28: J3 (Ring Power On)

    6VXDC7 Motherboard J3 : Ring Power On (Internal Modem Card Wake Up) Pin No. Definition Signal J1 : Wake On LAN Pin No. Definition +5V SB Signal...
  • Page 29: J4 (Ir)

    Connectors J4 : IR Pin No. Definition VCC (+5V) IR Data Input IR Data Output USB 2 Connector Pin No. Definition 1,10 USB D2- USB D2+ USB D3+ USB D3-...
  • Page 30 6VXDC7 Motherboard JP5 : STR LED Connector & LED1 : DIMM LED STR LED Connector External. DIMM LED...
  • Page 31: Panel And Jumper Definition

    Panel and Jumper Definition Panel And Jumper Definition J2 : 2x11 Pins Jumper P+ P P S P K GN (Green Switch) Open: Normal Operation Close: Entering Green Mode GD (Green LED) Pin 1: LED anode(+) Pin 2: LED cathode( ) HD (IDE Hard Disk Active LED) Pin 1: LED anode(+) Pin 2: LED cathode( )
  • Page 32: Jp1 (Clear Cmos Function)

    6VXDC7 Motherboard JP1 : Clear CMOS Function Pin No. Definition 1-2 Close Normal (Default) 2-3 Close Clear CMOS JP20 : Onboard Sound Function Selection (Optional) Pin No. Definition Enabled Onboard sound 1-2 close (Default) 2-3 close Disabled Onboard sound...
  • Page 33: Jp9 (Usb Device Wake Up Selection)

    Panel and Jumper Definition JP9 : USB device Wake up Selection Pin No. Definition 1-2 close Normal (Default) Enabled USB Device 2-3 close Wake up JP11 : STR Function Enabled Pin No. Definition open STR Disabled (Default) close STR Enabled...
  • Page 34: Bat1 (Battery)

    6VXDC7 Motherboard BAT1 : Battery Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
  • Page 35: Performance List

    Performance List Performance List The following performance data list is the testing results of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users. (The different Hardware & Software configuration will result in different benchmark testing results.) ®...
  • Page 36: Block Diagram

    6VXDC7 Motherboard Block Diagram 14.318MHz 3.3V DIMM AGP 2X/4X DIMM Sockets PGA 370 PGA 370 Host Bus AGP Bus VT82C694X CKBF ISA Bus 33 MHz 9248AF-63 PCI Bus 33 MHz 24MH ISA Slot 48MH 14.318MHz VT82C686A COM Ports LPT Port...
  • Page 37: Suspend To Ram Installation

    Suspend to RAM Installation Suspend To RAM Installation A.1 Introduce STR function: Suspend-to-RAM (STR) is a Windows 98 ACPI sleep mode function. When recovering from STR (S3) sleep mode, the system is able, in just a few seconds, to retrieve the last “state” of the system before it went to sleep and recover to that state.
  • Page 38 6VXDC7 Motherboard Step 2: (If you want to use STR Function, please set jumper JP11 (Closed.) Pin No. Definition open STR Disabled (Default) close STR Enabled Step 3: Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup.
  • Page 39 Suspend to RAM Installation A.3 How to put your system into STR mode? There are two ways to accomplish this: Choose the “Stand by” item in the “Shut Down Windows” area. A. Press the “Start” button and then select “Shut Down” B.
  • Page 40 6VXDC7 Motherboard Define the system ”power on” button to initiate STR sleep mode: A. Double click “My Computer” and then “Control Panel” B. Double click the “ Power Management” item.
  • Page 41 Suspend to RAM Installation C. Select the “Advanced” tab and “Standby” mode in Power Buttons. Step 4: Restart your computer to complete setup. Now when you want to enter STR sleep mode, just momentarily press the “Power on” button.. A.4 How to recover from the STR sleep mode? There are five ways to “wake up”...
  • Page 42 6VXDC7 Motherboard A.5 Notices : In order for STR to function properly, several hardware and software requirements must be satisfied: Your ATX power supply must comply with the ATX 2.01 specification (provide more than 720 mA 5V Stand-By current). Your SDRAM must be PC-100 compliant.
  • Page 43: Dual Bios Introduction(Optional)

    Dual BIOS Introduction Dual BIOS Introduction(Optional) Introduce Dual BIOS What is Dual BIOS Technology? Dual BIOS means that there are two system BIOS (ROM) on the motherboard, one is the Main BIOS and the other is Backup BIOS. Under the normal circumstances, the system works on the Main BIOS.
  • Page 44 6VXDC7 Motherboard b. AMI Dual BIOS Flash ROM Programming Utility AMI Dual BIOS Flash ROM Programming Utility V1.01 Boot From……………………….. Main BIOS Main ROM Type………………… SST 39SF020 Backup ROM Type……………… SST 39SF020 Wide Range Protection Disable Boot From Main BIOS...
  • Page 45 Dual BIOS Introduction Boot From : Main BIOS (Default), Backup BIOS Status 1: The user can set to boot from main BIOS or Backup BIOS. Auto Recovery : Enabled(Default), Disabled When one of the Main BIOS or Backup BIOS occurs checksum failure, the working BIOS will automatically recover the BIOS of checksum failure.
  • Page 46 6VXDC7 Motherboard DualBIOS Technology FAQ GIGABYTE Technology is pleased to introduce DualBIOS technology, a hot spare for your system BIOS. This newness “Value-added” feature, in a long of innovations from GIGABYTE, is available on GA-6VXDC7 motherboard. Future GIGABYTE motherboards will also incorporate this innovation.
  • Page 47 Dual BIOS Introduction I. Q: What is DualBIOS technology? Answer: DualBIOS technology is a patented technology from Giga-Byte Technology. The concept of this technology is based on the redundancy and fault tolerance theory. DualBIOS technology simply means there are two system BIOSes (ROM) integrated onto the motherboard. One is a main BIOS, and the other is a backup BIOS.
  • Page 48 6VXDC7 Motherboard III. Q: How does DualBIOS technology work? Answer: 1. DualBIOS technology provides a wide range of protection during the boot up procedure. It protects your BIOS during system POST, ESCD update, and even all the way to PNP detection/assignment.
  • Page 49 Dual BIOS Introduction 2. During or after a BIOS upgrade, if DualBIOS detects that the main BIOS is corrupt, the backup BIOS will take over the boot-up process automatically. Moreover, it will verify the main and backup BIOS checksums when booting-up. DualBIOS technology examines the checksum of the main and backup BIOS while the system is powered on to guarantee your BIOS operates properly.
  • Page 50: Four Speaker & Spdif Introduction (Optional)

    6VXDC7 Motherboard Four Speaker & SPDIF Introduction (Optional) Four Speaker Introduction What is Four Speaker? The Creative CT5880 audio chip can support 4 speaker output, if you select “Four speaker” out, Line in will be change to another line out.
  • Page 51 Four Speaker & SPDIF Introduction c. Two speaker (Default) d. Click “Four speaker” item. Four Speaker Application The four speaker function will only support in application software that use Microsoft DirectX and Creative EAX. For example, the game titles, software DVD player and MP3 player. Those software support Microsoft DirectX, so they can support four speaker output.
  • Page 52: Spdif Introduction

    6VXDC7 Motherboard SPDIF Introduction What is SPDIF? The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder. How to use SPDIF? a. Press your mouse right button in “My Computer” and then select the “Properties” item.
  • Page 53 Four Speaker & SPDIF Introduction c. Press “Sound, video and game controllers” item and then select the “Creative Sound Blaster PCI128” item. d. Press “Settings” item and then select the “Output Mode” item.
  • Page 54 6VXDC7 Motherboard e. Click “Digital” item, Line Out will be change to SPDIF Out. f. Recommend you to select “Autosense”, it will auto detect the audio jack you plug in to Line Out is mono or stereo, and then change to SPDIF Out or Speaker out automatically.
  • Page 55: Memory Installation

    Memory Installation Memory Installation The motherboard has 4 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.
  • Page 56: Page Index For Bios Setup

    6VXDC7 Motherboard Page Index for BIOS Setup Page The Main Menu P.51 Standard CMOS Setup P.53 BIOS Features Setup P.56 Chipset Features Setup P.58 Power Management Setup P.61 PNP/ PCI Configuration P.64 Load BIOS Defaults P.66 Load Setup Defaults P.67 Integrated Peripherals P.68...
  • Page 57: Entering Setup

    BIOS Setup BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Power ON the computer and press <Del>...
  • Page 58: Getting Help

    6VXDC7 Motherboard GETTING HELP Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.
  • Page 59 BIOS Setup Chipset Features Setup This setup page includes all the items of chipset special features. Power Management Setup This setup page includes all the items of Green function features. PnP/PCI Configurations This setup page includes all the configurations of PCI & PnP ISA resources. Load BIOS Defaults Bios Defaults indicates the value of the system parameter which the system would be in the safe configuration.
  • Page 60: Standard Cmos Setup

    6VXDC7 Motherboard Standard CMOS Setup The items in Standard CMOS Features Menu (Figure 2) are divided into 9 categories. Each category includes no, one or more than one setup items. Use the arrows to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
  • Page 61 BIOS Setup Time The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer.
  • Page 62: Extended Memory

    6VXDC7 Motherboard Boot Sector Virus Protection If it is set to enable, the category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and the following error message will appear in the mean time.
  • Page 63: Bios Features Setup

    BIOS Setup BIOS Features Setup AMIBIOS SETUP – BIOS FEATURES CMOS SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved 1st Boot Device :Floppy 2nd Boot Device :IDE-0 3rd Boot Device :CDROM S.M.A.R.T for Hard Disks :Disabled BootUp Num-Lock Floppy Drive Seek :Enabled Password Check...
  • Page 64: Password Check

    6VXDC7 Motherboard Boot Up Num-Lock Keypad is number keys. (Default Value) Keypad is arrow keys. Floppy Drive Seek During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360 type is 40 tracks while 720 , 1.2 and 1.44 are all 80 tracks.
  • Page 65: Chipset Features Setup

    BIOS Setup Chipset Features Setup AMIBIOS SETUP –CHIPSET FEATURE CMOS SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved *** DRAM Timing *** Top Performance :Disabled SDRAM Timing by SPD :Disabled SDRAM CAS# Latency :Auto CPU/DRAM Frequency :Auto C2P Concurrency &...
  • Page 66 6VXDC7 Motherboard CPU/DRAM Frequency 1. System Bus Speed: 66MHz Set CPU/DRAM Frequency to Auto. (Default Value) Auto 66/66MHz Set CPU/DRAM Frequency is 66/66MHz. 66/100MHz Set CPU/DRAM Frequency is 66/100MHz. 2. System Bus Speed: 100MHz Set CPU/DRAM Frequency to Auto. (Default Value)
  • Page 67: Usb Controller

    BIOS Setup AGP Aperture Size Set AGP Aperture Size to 4MB. Set AGP Aperture Size to 8 MB. 16MB Set AGP Aperture Size to 16 MB. 32MB Set AGP Aperture Size to 32 MB. Set AGP Aperture Size to 64 MB. (Default Value) 64MB 128MB Set AGP Aperture Size to 128 MB.
  • Page 68: Power Management Setup

    6VXDC7 Motherboard Power Management Setup AMIBIOS SETUP –POWER MANAGEMENT SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved ACPI Sleep Type S1/POS PME Event Wake up :Enabled USB Wakeup From S3~S5 :Disabled RTC Alarm Power On :Disabled Video Power Down Mode...
  • Page 69 BIOS Setup Suspend Time Out (Minute.) Disabled Suspend Time Out Function. (Default Value) Disabled Enabled Suspend Time Out after 1min. Enabled Suspend Time Out after 2min. Enabled Suspend Time Out after 4min. Enabled Suspend Time Out after 8min. Enabled Suspend Time Out after 10min. Enabled Suspend Time Out after 20min.
  • Page 70 6VXDC7 Motherboard Modem Ring On/Wake On Lan Disabled Disabled Modem Ring On/Wake On Lan. Enabled Modem Ring On/Wake On Lan. (Default Value) Enabled PME Event Wake up Disabled Disabled PME Event Wake up function. Enabled PME Event Wake up function. (Default Value)
  • Page 71: Reset Configuration Data

    BIOS Setup PnP/PCI Configuration AMIBIOS SETUP –PNP/PCI CONFIGURATION SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved Plug and Play Aware O/S Reset Configuration Data VGA Boot From :AGP PCI VGA Palette Snoop :Disabled DMA Channel 0 :PnP DMA Channel 1 :PnP DMA Channel 3...
  • Page 72 6VXDC7 Motherboard DMA Channel (0,1,3,5,6,7) The resource is used by PnP device. ISA / EISA The resource is used by ISA / EISA device (PCI or ISA). IRQ (3,4,5,7, 9,10,11,14,15) PCI/PnP The resource is used by PCI/PnP device. ISA / EISA...
  • Page 73: Pnp/Pci Configuration

    BIOS Setup Load BIOS Defaults AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.22 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION Load BIOS Defaults (Y/N)? N...
  • Page 74: Load Setup Defaults

    6VXDC7 Motherboard Load Setup Defaults AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.22 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD...
  • Page 75: Integrated Peripherals

    BIOS Setup Integrated Peripherals AMIBIOS SETUP –INTEGRATED PERIPHERAL ( C ) 1999 American Megatrends, Inc. All Rights Reserved OnBoard IDE :Both OnBoard FDC :Auto OnBoard Serial Port 1 :Auto OnBoard Serial Port 2 :Auto Serial Port 2 Mode :Normal Duplex Mode :N/A OnBoard Parallel Port :Auto...
  • Page 76 6VXDC7 Motherboard OnBoard Serial Port 2 BIOS will automatically setup the port 2 address. (Default Value) Auto 3F8/COM1 Enable onboard Serial port 2 and address is 3F8. 2F8/COM2 Enable onboard Serial port 2 and address is 2F8. 3E8/COM3 Enable onboard Serial port 2 and address is 3E8.
  • Page 77 BIOS Setup Parallel Port IRQ Set Parallel Port IRQ is 7. Set Auto to parallel Port IRQ DMA Channel. (Default Value) Auto Set Parallel Port IRQ is 5.
  • Page 78: Hardware Monitor

    6VXDC7 Motherboard Hardware Monitor AMIBIOS SETUP –HARDWARE MONITOR ( C ) 1999 American Megatrends, Inc. All Rights Reserved ACPI Shut Down Temp. :Disabled Current CPU1 Temp. :36 C/96 F Current CPU2 Temp. :28 C/82 F Current System Temp. :30 C/86 F...
  • Page 79 BIOS Setup Current CPU1 Temp. ( C / F) Detect CPU1 Temperature automatically. Current CPU2 Temp. ( C / F) Detect CPU2 Temperature automatically. Current System Temp. ( C / F) Detect System Temperature automatically. Current CPU1 Fan Speed Detect CPU1 Fan speed status automatically. Current CPU2 Fan Speed Detect CPU2 Fan speed status automatically.
  • Page 80: Set Supervisor / User Password

    6VXDC7 Motherboard Set Supervisor / User Password When you select this function, the following message will appear at the center of the screen to assist you in creating a password. AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.22 ( C ) 1999 American Megatrends, Inc. All Rights Reserved...
  • Page 81: Ide Hdd Auto Detection

    BIOS Setup IDE HDD AUTO Detection AMIBIOS SETUP – STANDARD CMOS SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved Date (mm/dd/yyyy) : Tue Feb 17, 2000 Time (hh/mm/ss) : 10:36:24 TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Pri Master :Auto Pri Slave...
  • Page 82: Save & Exit Setup

    6VXDC7 Motherboard Save & Exit Setup AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.22 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP...
  • Page 83: Exit Without Saving

    BIOS Setup Exit Without Saving AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.22 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD Quit without saving (Y/N) ? N PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION...
  • Page 84: Appendix

    6VXDC7 Motherboard Appendix Appendix A : VIA Chipsets Driver Installation A.VIA 4 in 1 Service Pack Utility: Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.
  • Page 85 Appendix 8.Click “Next”. 7.Click “Next”. 10.Click “Finish” to restart computer. 9.Click “Next”. (10)
  • Page 86 6VXDC7 Motherboard Appendix B: Creative Sound Driver Installation (Optional) Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen. Audio 2.Click “OK”.
  • Page 87 Appendix 7.Click “Finish” to restart computer.
  • Page 88 6VXDC7 Motherboard Appendix C: VIA Sound Driver (Optional) A. AC’97 Audio Driver: Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.
  • Page 89 C:\utility\ AWDFlash or AMIFlash <filename of the BIOS binary file intended for flashing> Once the process is finished, reboot the system Note: Please download the newest BIOS from our website (www.gigabyte.com.tw) or contact your local dealer for the file.
  • Page 90 6VXDC7 Motherboard Appendix E: Acronyms Acro. Meaning ACPI Advanced Configuration and Power Interface POST Power-On Self Test Local Area Network Extended Capabilities Port Advanced Power Management Direct Memory Access Megahertz ESCD Extended System Configuration Data Central Processing Unit Symmetric Multi-Processing...
  • Page 91 Appendix Acro. Meaning Peripheral Component Interconnect RIMM Rambus in-line Memory Module Dual Retention Mechanism Industry Standard Architecture Memory Translator Hub CRIMM Continuity RIMM...
