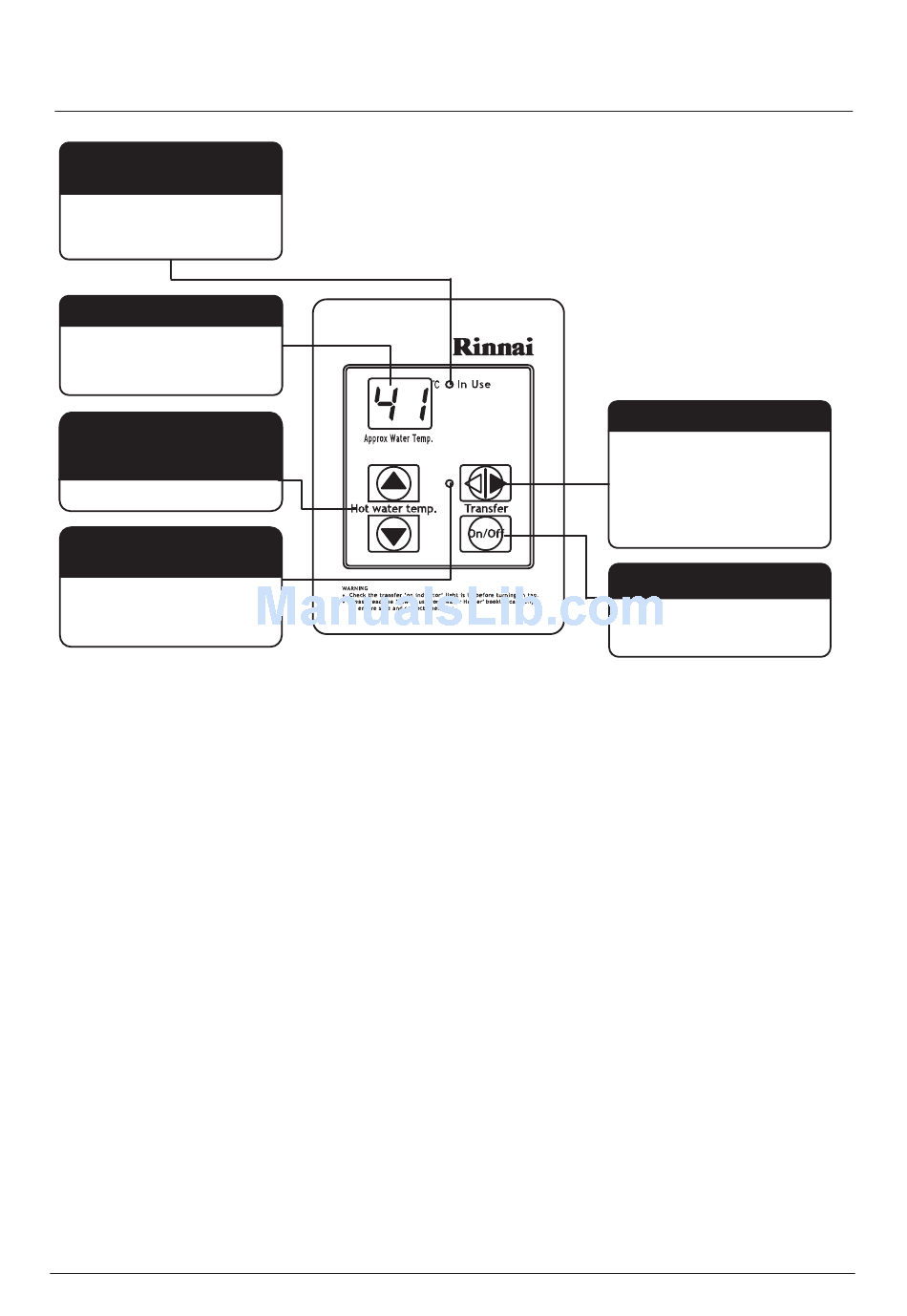

Universal Controller (Compact)

WATER HEATER
'In Use' INDICATOR
Indicates that a water
heater is in operation and
delivering hot water.
DIGITAL MONITOR
Indicates the temperautre
selected. Error message will
flash in event of fault.
HOT WATER
TEMPERATURE
CONTROL BUTTONS
Used to select water temperature.
CONTROLLER
ON INDICATOR
Indicates if this temperature
controller is in control of
water delivery temperature.
If the water controller is switched off (no digits displayed in the digital
Turning on
window) press the On/Off button once.
The On indicator will illuminate, indicating the continuous flow water heater
will be ready to supply hot water once a hot water tap is opened.
Select the desired temperature using the 'Hot water temp.' up and down
Adjusting the
buttons until the required temperature is displayed.
temperature
To operate the continuous flow water heater, open any hot water tap. This
will automatically light the burner providing hot water. The water heater 'In
Use' indicator will illuminate on the water controller.
Once the hot water is running, if the set temperature is either too hot
or cold, press the 'Hot water temp.' up or down buttons until the desired
temperature is reached.
The 'beep' sound can be muted by pressing the 'Hot water temp.' up and
Muting the
down buttons simultaneously for more than 3 seconds.
'beep' sound
Rinnai New Zealand Continuous Flow Water Heater Operation Manual
12
TRANSFER BUTTON
Used to transfer control priority
between the controllers.
The controller with
priority has command of the
hot water delivery temperature.
ON/OFF BUTTON
Used to switch the water
heater on and off.
