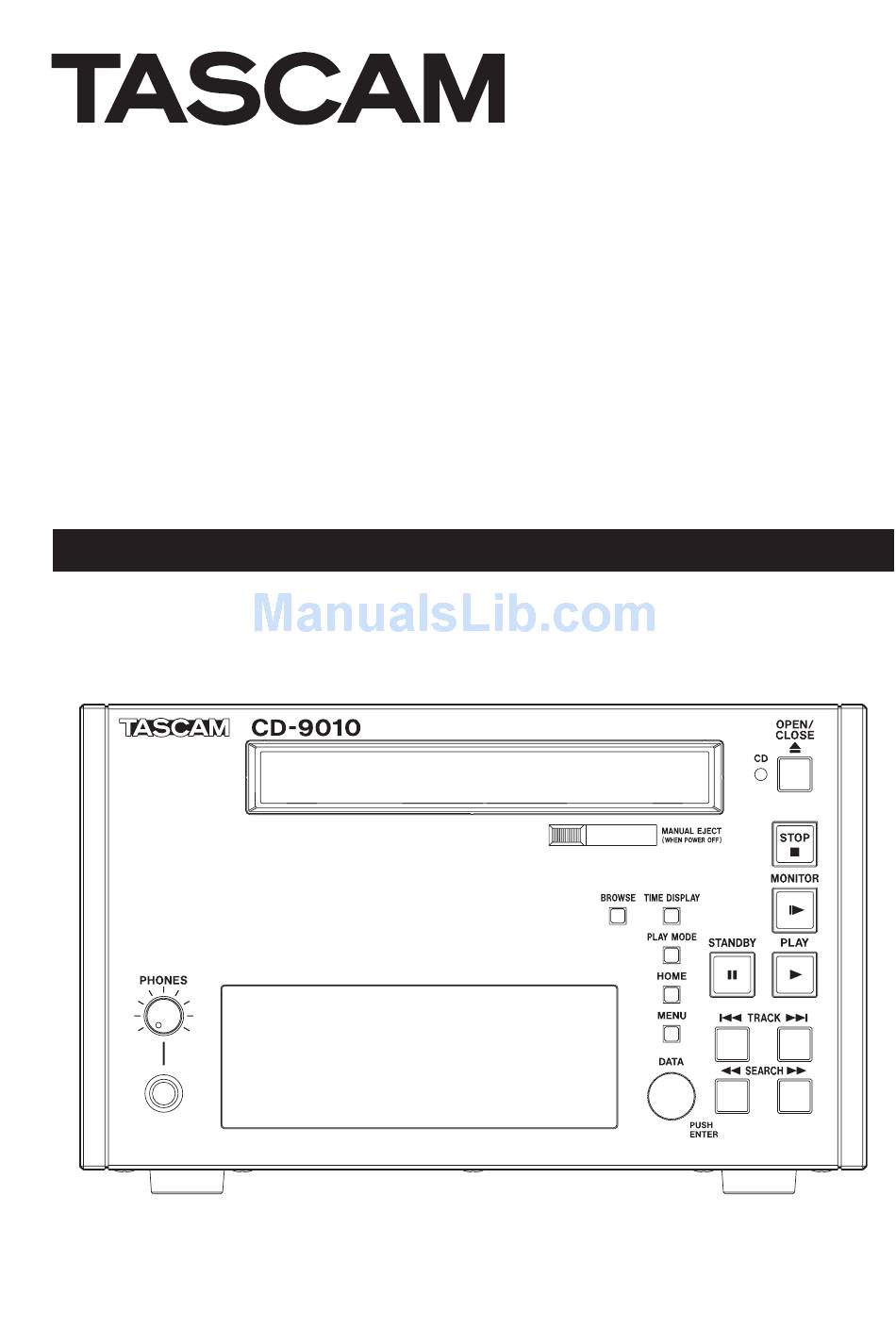

- Page 1 D01167920A CD-9010 CD Player OWNER'S MANUAL...
-
Page 2: Important Safety Information
Products with Class ! construction are equipped with a ratus. power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet 11 Only use attachments/accessories specified by the that has a protective grounding connection. manufacturer. TASCAM CD-9010... -
Page 3: Safety Precautions
(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment. TASCAM CD-9010... - Page 4 785 nm ±22 nm Standard: IEC60825-1 : 2007 This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records. Model number ______________________________ Serial number ______________________________ TASCAM CD-9010...
-
Page 5: Table Of Contents
Setting the pitch control value ......23 Audio performance ............38 PITCH/TIME FIT function ..........23 Backup memory ..............39 General .................39 5 – Program and cue playback .........24 Dimensional drawings ............39 Program playback .............24 Program menu operation ........24 Adding tracks to a program ........24 TASCAM CD-9010... -
Page 6: Introduction
Keep the packing materials for transportation in the future. Please keep this manual so that you can refer to it at any time. Please contact TASCAM if any of these items are missing or have A digital copy of this manual can also be downloaded from our been damaged during transportation. -
Page 7: Intellectual Property Rights
Intellectual property rights About discs • TASCAM is a trademark of TEAC Corporation, registered in In addition to commercially-available music CDs, this unit can the U.S. and other countries. play CD-R discs that have been recorded in audio CD (CD-DA) format, as well as CD-R discs that have WAV audio files recorded •... -
Page 8: Names And Functions Of Parts
This button only changes the display on this unit. Press this button during online or monitoring playback or To change the time display on a connected TASCAM when in playback standby to stop playback. RC-9010/RC-9010S remote control (sold separately), press This button lights when playback is stopped. - Page 9 They do not adjust the in the menu, enter playback PLAY brightness and contrast of a connected TASCAM RC-9010/ standby at the beginning of the next RC-9010S remote control (sold separately). PROGRAM track.
-
Page 10: Rear Panel
+15 dBu), but can be set to –20 dBu. This D-Sub 15-pin I/O connector is for serial control. Connect a TASCAM RC-9010/RC-9010S remote control (sold (1: GND, 2: HOT, 3: COLD) separately) here. MIX INPUTS (R/L) (balanced) These balanced analog XLR inputs are used for mix input with a nominal output level of +4 dBu. -
Page 11: Home Screen
A-B repeat playback function is ON REPEAT A-B NOTE The A-B repeat playback function will only be displayed if selected using a TASCAM RC-9010/RC-9010S remote controller (sold separately). Playback level meters PITCH indicator These show the playback level. -
Page 12: Menu Structure
P. 26 PROGRAM/CUE CUE LIST EDIT Cue point loading P. 27 CUE POINT LOAD Fader function for TASCAM RC-9010/RC-9010S or other external P. 33 FADER MODE remote (sold separately) Fader start function for TASCAM RC-9010/RC-9010S or other P. 33 FADER START MODE... -
Page 13: Menu Operation Basics
Press the MENU button to open the screen. MENU MENU button to show submenu items and return to step 1. • To change the selected setting item, turn the DATA dial. Press the HOME button to return to the Home screen. TASCAM CD-9010... -
Page 14: Preparations
LCD CONTRAST NOTE • This operation only adjusts the contrast of this unit. It does not adjust the contrast of a connected TASCAM RC-9010/ RC-9010S remote control (sold separately). • The display contrast setting is retained even when the power is OFF. -
Page 15: Adjusting Display And Indicator Brightness
These operations only adjust the brightness and contrast of which could harm your hearing or result in other trouble. the display and indicators of this unit. They do not adjust the brightness and contrast of a connected TASCAM RC-9010/ NOTE RC-9010S remote control (sold separately). -
Page 16: Setting The Panel Lock Function
Turn the DATA dial to set whether or not you can use the front panel controls to control the unit. • : The unit can be controlled using a TASCAM RC- CD+RC 9010/RC-9010S remote control (sold separately) and the unit's front panel buttons. -
Page 17: Playback
Status of outputs Output Status DIGITAL OUTPUT LINE OUTPUTS MONITOR OUTPUTS NOTE Set the SYSTEM menu MON MUTE ONLINE item to OFF to always send the signal through the MONITOR OUTPUTS. (See "Muting monitoring when online" on page 31.) TASCAM CD-9010... -
Page 18: Playing A Track Once From The Beginning
NOTE connected to the unit's PHONES jack. • When using a TASCAM RC-9010/RC-9010S remote control After checking the signal, press the STANDBY button. (sold separately), you can assign automatic cue points to •... -
Page 19: Setting The Playback Point
Turn the DATA dial to set the desired auto cue level. • Values: (6 dB steps, default –24 dB –72 dB –24 dB 10. After setting the value, press the HOME button to return to the Home Screen. TASCAM CD-9010... -
Page 20: Auto Ready Function
If the auto ready function is ON, when a track finishes playing, playback standby will occur at the beginning of the next track. on a connected TASCAM RC-9010/RC-9010S remote control (sold separately), the unit immediately enters playback standby Press the MENU button to open the screen. -
Page 21: Monitor Play Stby Function
: Pause and start playback standby at the last BACK CUE cue point. After setting the value, press the HOME button to return to the Home Screen. NOTE The ONLINE PLAY STBY setting is retained even when the power is turned OFF. TASCAM CD-9010... -
Page 22: Eom Functions
If EOM TRACK is set to 0s, when the track ends, a pulse of about 100 ms will be output. How to use the end check function When using a TASCAM RC-9010/RC-9010S remote control (sold After completing the setting, press the HOME button to separately), press the TRACK/[END CHK] button while pressing return to the Home Screen. -
Page 23: Pitch Control Playback
Even when the pitch control function is turned OFF, the pitch control value set above is stored and will be used when the pitch control function is turned ON again. • The pitch step setting is retained even when the power is turned OFF. TASCAM CD-9010... -
Page 24: Program And Cue Playback
Program–” message will appear and playback will not start. Turn the DATA dial to select the number in the program where a track will be added, and press the DATA dial to open the menu. PROGRAM Turn the DATA dial to select ADD PROGRAM TASCAM CD-9010... -
Page 25: Clearing A Program
11. Press the HOME button to return to the Home Screen. Press the DATA dial to remove the selected track. After the track is removed, the screen reopens. PROGRAM Press the HOME button to return to the Home Screen. TASCAM CD-9010... -
Page 26: Cue Point Playback
Press the HOME button to return to the Home Screen. Press the DATA dial to add the cue point. The current time of the track being played back (or in standby) will be added as a cue point to the cue list. TASCAM CD-9010... -
Page 27: Editing Cue Point Names
ON again. (The cue list will not be loaded immediately when set to LOAD.) • When set to UNLOAD, exporting the cue points will not export the recently added ones. (It will export the points added when last set to LOAD.) TASCAM CD-9010... -
Page 28: Working With Files And Folders
Track titles are shown when CD-TEXT is available. FOLDER Directory (folder) FILE 9 FILE Folder operations WAV le Data CD structure Select the desired folder on the screen, and press the BROWSE DATA dial to open the folder pop-up. BROWSE MENU TASCAM CD-9010... -
Page 29: Other Settings And Information Display
Turn the DATA dial to set the analog reference level. The controlled through the parallel remote connector, the analog reference setting value options depend on the serial remote connector, and by a TASCAM RC-9010/ setting. RC-9010S remote controller (sold separately). When DIGITAL ... -
Page 30: Master Clock And Digital Output Combinations
The sampling rate converter (SRC) function is turned ON and OFF automatically. • If the clock is interrupted when synchronized with a 48kHz external clock, the unit will switch to internal clock, the sampling rate converter (SRC) function will turn ON and output will continue at 48 kHz. TASCAM CD-9010... -
Page 31: Fail Safe Function Setting
Muting monitoring when online MONITOR button None None You can set whether or not monitoring output is automatically muted during online playback. Press the MENU button to open the screen. MENU Open the SYSTEM menu. Select MON MUTE ONLINE TASCAM CD-9010... -
Page 32: Restoring The Factory Settings
Follow these steps to make the setting. Press the MENU button to open the screen. MENU Open the menu. SYSTEM Select DIGITAL OUTPUT TYPE When you are finished checking, press the HOME button to return to the Home Screen. TASCAM CD-9010... -
Page 33: Using The Remote Connectors
RC-9010S remote control (sold separately) will be turned OFF automatically, and its FADER START button indicator will be unlit. Set whether or not the use of a fader on a TASCAM RC-9010/ In this state, if you press the FADER START button on the remote RC-9010S remote control (sold separately) is enabled. -
Page 34: Fader Stop Action Setting
Transmission speed setting When the fader start function is ON, you can set whether using You can set the transmission speed (baud rate) used with a TASCAM the fader stop function (lowering the fader to ∞) on a TASCAM RC-9010/RC-9010S remote control (sold separately) or other remote RC-9010/RC-9010S remote control (sold separately) causes control using serial protocol. -
Page 35: Using The Parallel Connector
Reserved CUE UP_TALLY – +5V* – Active low external command reception (operates when at ground 50 ms or longer) OUT: Signal for tally output display by open collector (50V maximum voltage, 100mA maximum current) *100mA maximum supplied current TASCAM CD-9010... -
Page 36: Message List
If one of the following error messages appears in a pop-up, press the DATA dial to close the message. Then try to resolve the issue. If you are still unable to correct the problem, please contact the dealer from which you purchased the unit or a TASCAM service center (see the back cover of this manual). -
Page 37: 10 - Troubleshooting
If you are still unable to resolve the problem please contact the retailer where you purchased the unit or TASCAM customer support (see the back cover). Power does not turn on Confirm that the power plug is inserted completely. -
Page 38: 11 - Specifications
Output impedance: 75 Ω *When the in the menu is set to DIGITAL OUT TYPE SYSTEM CONSUMER DIGITAL OUT (XLR) Connector: XLR-3-31 Format: AES3-2003/IEC60958-4 (AES/EBU)** Output impedance: 110 Ω **When the in the menu is set to DIGITAL OUT TYPE SYSTEM TASCAM CD-9010... -
Page 39: Backup Memory
