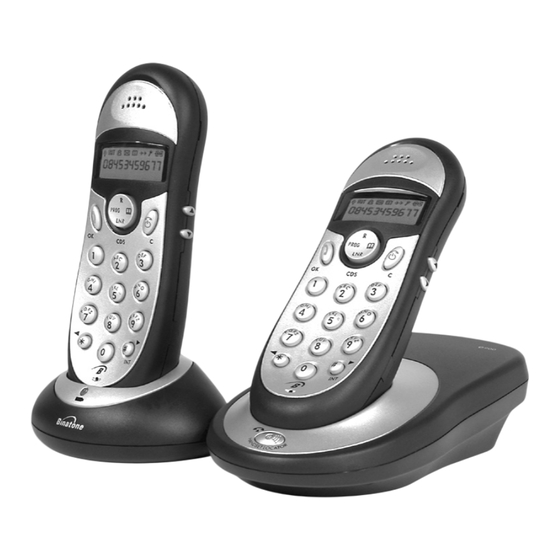

Binatone e900 System User Manual

Digital cordless telephone with caller display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BINATONE " e900 System "
User Guide - Back Page
U
SER
e900 System
Digital Cordless
Telephone with
Caller Display
Ver. 1, Oct, 04
G
UIDE
THIS EQUIPMENT IS NOT DESIGNED FOR
MAKING EMERGENCY TELEPHONE CALLS
WHEN THE POWER FAILS. ALTERNATIVE
ARRANGEMENTS SHOULD BE MADE FOR
ACCESS TO DIAL EMERGENCY SERVICES.
Before operating this set,
please read these instructions carefully.
BINATONE " e900 System "
User Guide - Front Page
1)White background and black letters
2)Material: 80lb Book Paper
3) Size: 105mm(w) x 148mm(H) A6

Advertisement

Table of Contents
loading

Related Manuals for Binatone e900 System

Summary of Contents for Binatone e900 System

  • Page 1 ACCESS TO DIAL EMERGENCY SERVICES. Before operating this set, Ver. 1, Oct, 04 please read these instructions carefully. BINATONE “ e900 System ” BINATONE “ e900 System ” User Guide - Front Page User Guide - Back Page 1)White background and black letters...
  • Page 2 If you need help … The Binatone Help Line is available from 9.00 am to 5.00 pm, Monday to Friday, on 0845 345 9677 (Local Call rate)

  • Page 3: Where To Find It

    Front cover fold-out Color profile: Generic CMYK printer profile Composite Default screen Symbols on the display Where to find it The time is shown if you’ve set the handset’s clock EARPIECE MEMORY button The handset’s Don’t hold this too close to your ear Press to store numbers in memory and number (1 if you The base unit’s number (1,...

  • Page 4: Table Of Contents

    Direct Call 25 To use the notebook 12 To clear all memories 26 To store an LNR number in memory To reset the handset 26 Continued overleaf… Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:53...
  • Page 5 Color profile: Generic CMYK printer profile Composite Default screen Contents Customising your base unit Guarantee and service General points 27 While the unit is under Guarantee Emergency numbers 27 After the Guarantee has expired 41 Ringer volume and melody 28 Call barring 28 Technical details Date and time 30...

  • Page 6: Read These Notes First

    The e900 charger pod must be used with mains adapter, supplied with the unit. Using any other adapter will result in non-compliance with EN60950, and will invalidate any approval given to this apparatus. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:53...

  • Page 7: Installation And Set-Up

    Color profile: Generic CMYK printer profile Composite Default screen Installation and set-up Choose a suitable site for the base unit See page 3 Connect the mains power lead mains power and the telephone line cord into lead the underside of the base unit telephone line cord Use the telephone line...
  • Page 8 Color profile: Generic CMYK printer profile Composite Default screen Fit a battery pack in each handset A. Plug in the C. Fit the battery B. Tuck the wires in connector compartment and lay the battery cover, sliding it into pack in the place and pressing compartment firmly to make sure...

  • Page 9: Before You Start

    Color profile: Generic CMYK printer profile Composite Default screen Before you start Electrical DO NOT let the base unit or charger pod get wet. safety Electrical equipment can cause serious injury if used while you are wet or standing in water. If the base unit (or the charger pod) ever falls into water, DO NOT retrieve it until you have unplugged the power lead from the mains and the telephone line plug...

  • Page 10: Switching On And Off

    Remember that it may take a few moments for the handset to re-establish a radio link with the base unit. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:56...

  • Page 11: Making And Answering Calls

    Color profile: Generic CMYK printer profile Composite Default screen Making and answering calls To make a call Key in the telephone number If you make a mistake, press the HANG UP/C button to clear digits one by one from the display. Press the PHONE button (You can dial the number after you press the PHONE button to get Dial tone if you prefer,...

  • Page 12: Last Number Redial (Lnr)

    Each time you dial a number, it clears the oldest one from the LNR memories; so you don’t need to clear numbers manually unless you want to. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:56...

  • Page 13: Memory Dialling

    Color profile: Generic CMYK printer profile Composite Default screen Memory dialling You can store up to 20 phone numbers in memory. Each number can have up to 24 digits. The 20 memory locations are numbered 01 to 20. To store a Key in the phone number number If you make a mistake, press the HANG UP/C...

  • Page 14: Chain Dialling

    OR press and hold the HANG UP/C button for 5 seconds to clear all 20 memories Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 15: To Use The Notebook

    Color profile: Generic CMYK printer profile Composite Default screen Memory dialling To use the You can store a number in memory while you notebook are busy on a call. Press the PROG button Press the MEMORY button Press the button to find a free memory location;...

  • Page 16: To Store An Lnr Number In Memory

    (only free locations are displayed). Press the PHONE button to store the number Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 17: Caller Display

    Color profile: Generic CMYK printer profile Composite Default screen Caller Display If you subscribe to this feature from your service provider, you can see the phone numbers of your callers on the display, before you answer. If a caller withholds their number by dialling 141, or if they are calling from a network that does not transmit the number, no number will be shown on the display when the phone rings.

  • Page 18: To Return A Call

    You can press the button to select a different free location if you wish (only free locations are displayed). Press the PHONE button to store the number Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 19: Using A Multi-Handset System

    Color profile: Generic CMYK printer profile Composite Default screen Using a multi-handset system If you have an e900 multi-handset system, you already have up to six handsets registered to your base unit. You can register additional handsets — altogether, up to six handsets per base unit.

  • Page 20: To Answer An Intercom Call

    If the user hasn’t answered after 30 seconds, the outside call will come back to you and your handset will ring. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 21: To Shuttle Between Two Calls

    Color profile: Generic CMYK printer profile Composite Default screen Using a multi-handset system To shuttle When you have both an outside call and an between two intercom call in progress, you can shuttle from calls one to the other, like this: ◗...

  • Page 22: New Call Tone

    Handsets ring for up to 30 seconds. To stop the ringing before this time: ◗ Press the HANDSET LOCATOR button again; ◗ or press any button on any handset Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...
  • Page 23 Color profile: Generic CMYK printer profile Composite Default screen Using a multi-handset system To register a The handset(s) supplied with your base unit should not new handset need to be registered; only additional ones you have to your base bought separately. unit Each handset can be registered to up to four base units, numbered 1 to 4.

  • Page 24: To De-Register A Handset

    Base units are numbered 1 to 4. If you select 0, your handset will automatically select the base unit that gives the strongest connection. Press the PHONE button to confirm Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 25: To Register To A Different Brand Of

    (for example, steps 2 to 5 on page 20). If you need to enter a PIN code for the base unit, refer to the base unit’s User Guide. If you have problems, contact the Binatone Help Line for more advice. E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 26: Customising Your Handset

    Press the PROG button then 1 5 Use the button to set: 0 for auto-answer off 1 for auto-answer on Press the PHONE button to confirm Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 27: Ringer Volume And Melody

    Color profile: Generic CMYK printer profile Composite Default screen Customising your handset Ringer volume The handset has eight ringer volume levels, including 0 and melody for off; and eight ringer melodies. With the volume set to 0, the handset will not ring for an incoming call, but the display will show call or the phone number.

  • Page 28: Direct Call

    1 for Direct Call on Press the PHONE button to confirm While Direct Call is turned on, the display shows the Direct Call number. You can answer calls as normal. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 29: To Clear All Memories

    Color profile: Generic CMYK printer profile Composite Default screen Customising your handset To clear all This is a way of clearing all stored numbers at memories once, from the memory locations and the Last Number Redial memories. If you have set a Direct Call number, it will be cleared too.

  • Page 30: Customising Your Base Unit

    Key in the first emergency number Press the PHONE button to confirm Press 2 3 2 Key in the second emergency number Press the PHONE button to confirm Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:57...

  • Page 31: Ringer Volume And Melody

    Color profile: Generic CMYK printer profile Composite Default screen Customising your base unit Ringer volume The base unit has eight ringer volume levels, including and melody 0 for off; and eight ringer melodies. With the volume set to 0, the base unit will not ring for an incoming call. To change the volume: Press the PROG button then 2 1 1 Use the...
  • Page 32 Key in the handset number (1 to 6) Press 0 then use the button to set: 0 for call barring OFF 1 for call barring ON Press the PHONE button to confirm Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:58...

  • Page 33: Date And Time

    Color profile: Generic CMYK printer profile Composite Default screen Customising your base unit To turn barring of certain types of call ON and OFF Press the PROG button then 2 2 1 Key in the handset number (1 to 6) Use the button to set: no outside calls (intercom calls only)

  • Page 34: To Clear All Caller Display Memories

    Caller Display memories empty Indirect Network codes none (see page 32) Press the PROG button then 2 0 Press the PHONE button to confirm Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:58...

  • Page 35: Indirect Network

    Color profile: Generic CMYK printer profile Composite Default screen Indirect Network You can use this feature if you make some of your calls via a different network from the one that supplies your exchange line. By using indirect access to an alternative network, you may be able to save money on long- distance and international calls.

  • Page 36: To Set Additional 'Local' Dialling Codes

    Note — for Indirect Network to work, you must dial the phone number (or select it from memory, LNR memory or Caller Display memory) before you press the PHONE button for an outside line. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:58...

  • Page 37: Troubleshooting

    Color profile: Generic CMYK printer profile Composite Default screen Troubleshooting The e900 must be serviced by trained engineers. NEVER attempt any repairs or adjustments yourself — you could make the problem worse and invalidate the Guarantee. ALWAYS check you have followed all the steps listed on pages 4 and first that: 5 to install and set up your e900 all connectors are firmly inserted in their sockets...
  • Page 38 Check that the total REN value of all equipment connected to your telephone line is no more than 4 (see page 2). Disconnect one or more telephones and see whether that helps. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:58...
  • Page 39 Color profile: Generic CMYK printer profile Composite Default screen Troubleshooting “My call was cut Move the handset closer to the base unit before you try off when I went again to make a call. out of range. Now I can’t use my handset.”...
  • Page 40 “I try to You need to replace the battery pack. To find out how recharge the to obtain a replacement, call the Binatone Spares batteries, but I Department on 0845 345 9677, between 9.00 am and still get a 5.00 pm, Monday to Friday.
  • Page 41 Color profile: Generic CMYK printer profile Composite Default screen Troubleshooting Indirect Network “The Indirect You must subscribe to an alternative network provider before you can use this feature. Network feature isn’t working.” If you have more than one registered handset, you need to turn the feature on for each one individually, as well as setting the network access code on the base unit.
  • Page 42 Contact the service provider (the BT engineers on 151, or your cable company). If you still cannot identify the cause of the problem, contact the Binatone Help Line on 0845 345 9677. Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp...

  • Page 43: Cleaning And Care

    Radio: TBR 6 EMC: EN 301489 Safety: EN 60950, EN 41003 Other: I-CTR 37 Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without notice. E:\Binatone2003\e3300\e3300_07.vp...

  • Page 44: Guarantee And Service

    Composite Default screen Guarantee and service The Binatone e900 is guaranteed for 12 months from the date of purchase shown on your sales receipt. The Guarantee does not cover damage by misuse or negligence, or by excessive voltages — for example, faults on the telephone line, or lightning.

  • Page 45: Technical Details

    Color profile: Generic CMYK printer profile Composite Default screen Technical details Standard Digital Enhanced Cordless Telecommunications (DECT) Frequency range 1.88 to 1.9 GHz (bandwidth = 20 MHz) Channel bandwidth 1.728 MHz Operating range up to 300 m outdoors; up to 50 m indoors Operating time standby: 80 hours approx.
  • Page 46 11 deleting numbers, 11, 26 date and time setting, 30 notebook, 12 de-registering handsets, 21 storing and dialling Direct Call, 25 numbers, 10 multi-handset use, 16–22 Binatone Help Line: 0845 345 9677 (Local Call rate) E:\Binatone2003\e3300\e3300_07.vp 11 March 2003 10:11:59...
  • Page 47 Color profile: Generic CMYK printer profile Composite Default screen Index New Call tone, 19 three-way conference, 18 notebook, 12 time setting, 30 transferring calls, 17 ‘Out of range’ warning, 6 troubleshooting, 34–39 paging handsets, 19 pause, 38, 42 PBX compatibility, 42 problems, 34–39 radio signals, 3, 7 recall type, 42...
