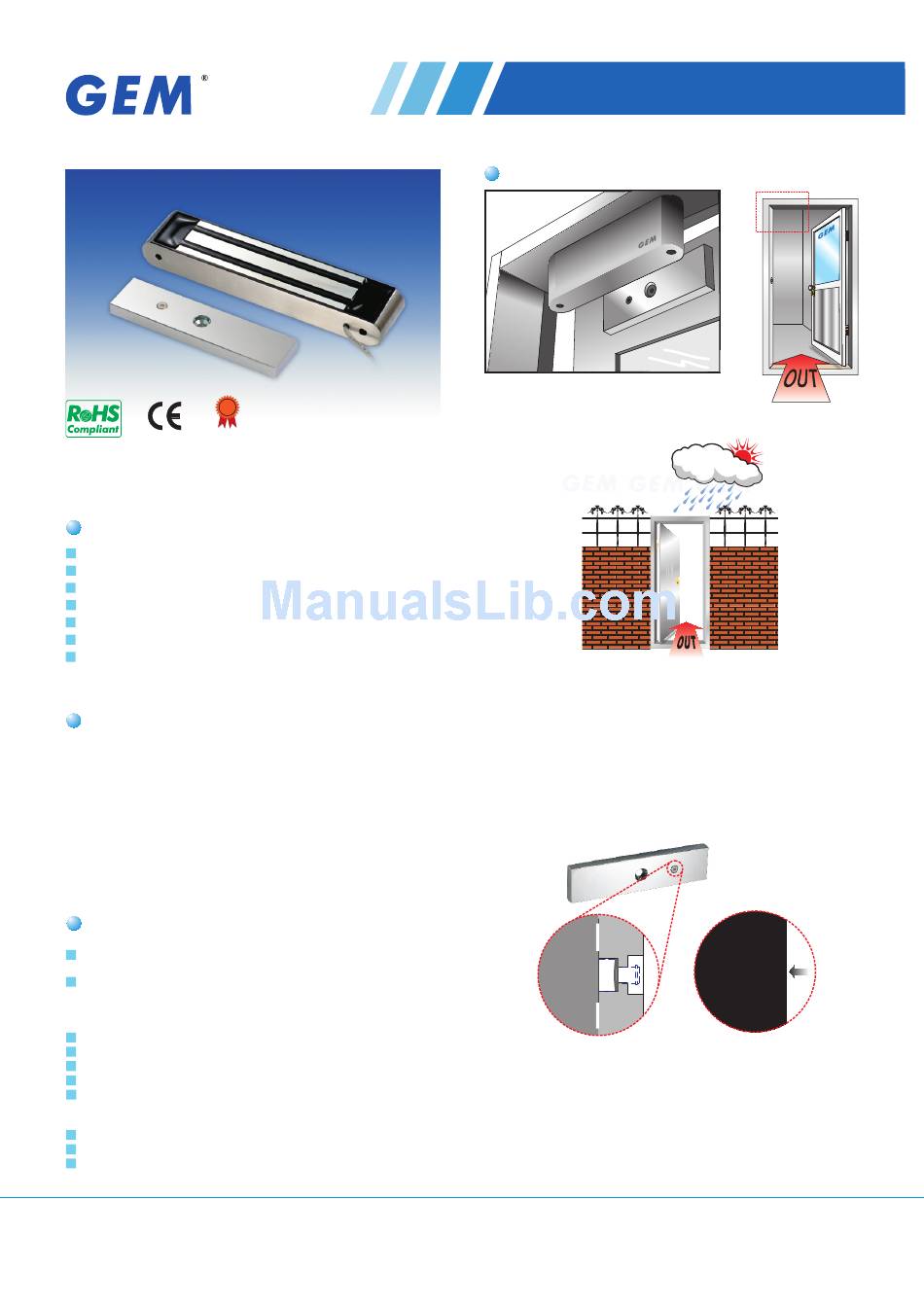

Gianni Industries EM-750 Specification

Waterproof Test:
Reference to IEC 60529 Edition 2.1: 2001-02-IPX7
Features
High reliability
Stainless steel housing
Oval-angle magnet
Waterproof rating IPX 7
Dual voltage 12 or 24 VDC (selectable)
MOV provides spike and surge protection
Holding force up to 800 lbs
Statement
EM-750 is designed for surface mount on out-
swing doors. It achieves waterproof rating IPX 7
and is suitable for outdoor applications. The oval-
angle magnet is unprecedented on market and
aesthetically appealing. EM-750
magnetic bond sensor indicating locked and
unlocked status.
Specification
Operating Voltage: Single Voltage: 12 or 24VDC
Dual Voltage: 12/24VDC
Current Draw:
Single Voltage: 340mA/12VDC, 250mA/24VDC
Dual Voltage: 500mA/12VDC, 250mA/24VDC
(at temperature 20ºC)
Bond sensor output (EM-750R):SPDT rated 0.5A/20VDC.
Operating Temperature: -10~55°C (14~131°F)
Humidity: 0~95% non-condensing.
Holding Force: Up to 800 lbs (363 Kg)
Dimensions:
Magnet:(L) 230, (W) 46, (D) 30 mm
Armature Plate:(L) 185, (W) 45, (D) 14 mm
Special Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 3.0 Kg
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-750 Ver. H Published on 2011.08.26
This series of Waterproof Magnetic Lock is
potting compound. Also, GEM Waterproof Series Magnetic
Locks have been proved to withstand water with the test
procedures of IPX7, IPX8 by a trusted third party. Therefore
users need not worry that the lock will rust or spark, if the lock
is in outdoor applications and installed in confined space
where inflammable gases are stored.
R comes with
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
GIANNI INDUSTRIES , INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
EM-750 Midi Magnetic Lock
Waterproof
Regular Installation
Magnet
Armature
(Power On)
Anti-residual statement
protected by epoxy
Magnet
Armature
(Power Off)
