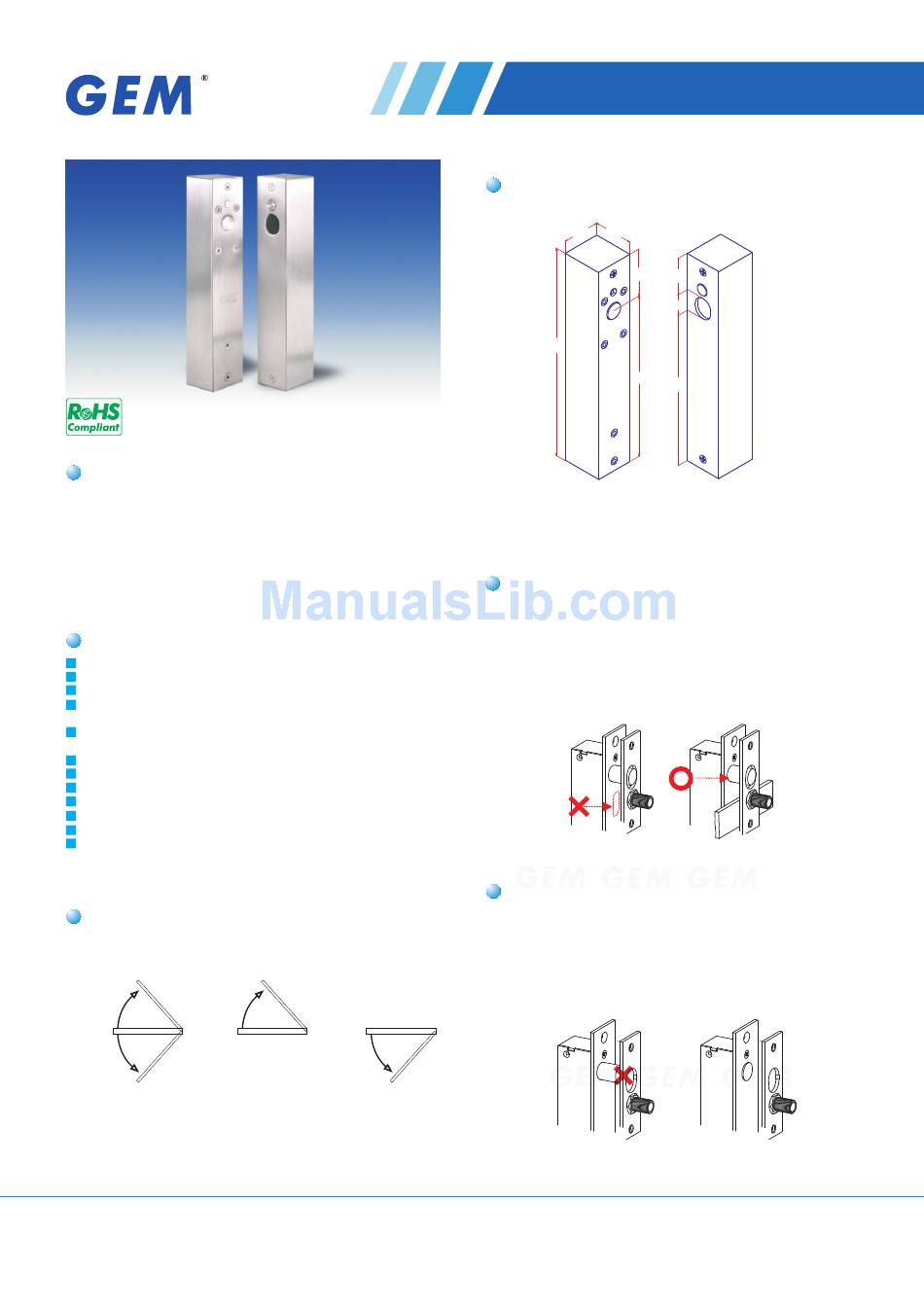

Gianni Industries EB-400 Specification

Statement
The EB400 electric dropbolt is designed for
surface mount application and this lock's housing
is made of stainless steel. Other functions are the
same as EB220.
Specification
Fail-Safe Version (Power to Lock)
Operating Voltage: 12 VDC
Voltage Tolerance: ±10%
Current Draw:Pull in: 0.9A, Holding: 0.3A/12VDC
(at 20°C)
Magnetic bolt status output (SPDT rated 3A/30VDC)
indicates bolt locked or unlocked status.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Tested over 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds
Full stainless steel housing
Net Weight:1.4 Kg
Double Action Doors
EB400 Electric dropbolt is specially designed for use on
double swinging doors. They can also be installed on both
outswing and inswing doors.
Doubleswing
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EB-400 Ver. G Published on 2011.06.22
Outswing
Inswing
EB400 Surface Mount
Stainless Housing Electric Dropbolt
Dimensions
4 2
3 9
4 9
0
2 2
1
1 7
Vandal Resistant Circuitry
The vandal resistant circuitry means the door position
sensor can't be fooled into projecting the electric dropbolt
unless the door is actually closed. The reed sensor
automatically disconnects after the bolt is projected to
enhance security of the lock.
Auto-detective circuitry
The unique intelligent logic circuit in GEM's electric
dropbolts keeps the bolt retracted until the door is properly
closed. This feature ensures the bolt will not extend if the door
is improperly aligned.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
3 8
2 2
0
1 6
Unit: mm
