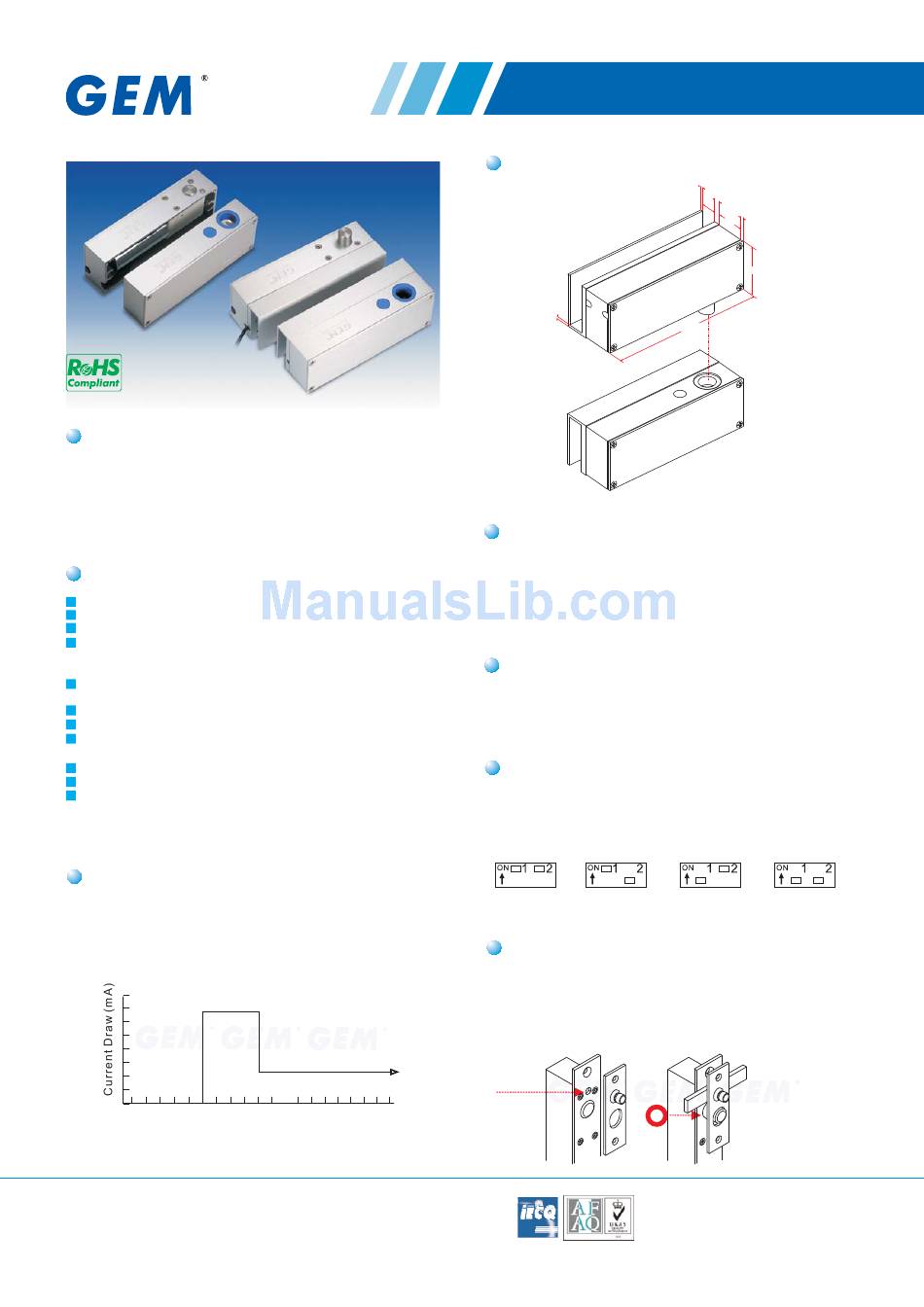

Gianni Industries EB-300 Specifications

EB-300
Statement
The EB-300 electric dropbolt is designed for
surface mount application and the EB-300VGL is
designed for frameless glass door and glass wall
applications.

Specifications

Fail-Safe Version (Power to Lock)
Power Input: 12 V DC
Voltage Tolerance: ±10%
Current Draw:
Pull in: 0.9A, Holding: 0.3A@12V DC
( C
at temperature 20
Door Position status output (Reed rated 0.25A@30VDC)
indicates door opened or closed status.
Operating Temperature: -10~+45
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):
<current temperature +20
Tested to 500000 cycles.
Auto-relocking Time Delay : 0, 3 ,6 ,9seconds
Weight (Approx.):
EB-300: 1.1 Kg
EB-300VGL: 1.7 Kg
Clamp Design
When the bolt is extended to keep the door locked, it draws
only 0.3A in a holding mode down from 0.9A while the bolt is
retracted. This design both protects the power supply and
extends the life of the electric dropbolt.
Pull in
Time (seconds)
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
Copyright 2008 Gianni industries, inc. All rights reserved.
DM-CA-EB-300 Ver. E Published on 2008.10.20
EB-300VGL
C
C
Holding
EB-300
Surface Mount Electric Dropbolt
Dimension
2
Solid bolt for superior strength
Greater security is provided by the 13.5mm diameter (
bolt throw) solid stainless steel bolt with hardened magnet
core, which has resistant to metal cutting saws. The bolt also
rotates freely, making attempts to tamper or cut extremely
difficult.
Long life solenoids
Special designed solenoid for strength and long life
operating lifetime with guaranteed 500,000 operations.
Lock Delay Settings
The door locking delay is the time between the door being
closed and the bolt engaging . This can be set to up to 9
seconds at 3 second intervals by adjusting the jumpers.
Auto Relocking Timer Setting
0 seconds 3 seconds
Smart Circuitry
The vandal resistant circuitry means the door close sensor
can't be fooled into projecting the electric dropbolt unless the
door is actually closed. The reed sensor automatically
disconnects after the bolt is projected to enhance security of
the lock.
Sensor
The products are manufactured under an ISO
9 0 0 1
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
3
6
1 4
2
3 2
5 6
6
1 6
Unit: mm
16mm
6 seconds 9 seconds
Vandal resistant
circuit design
& Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y
