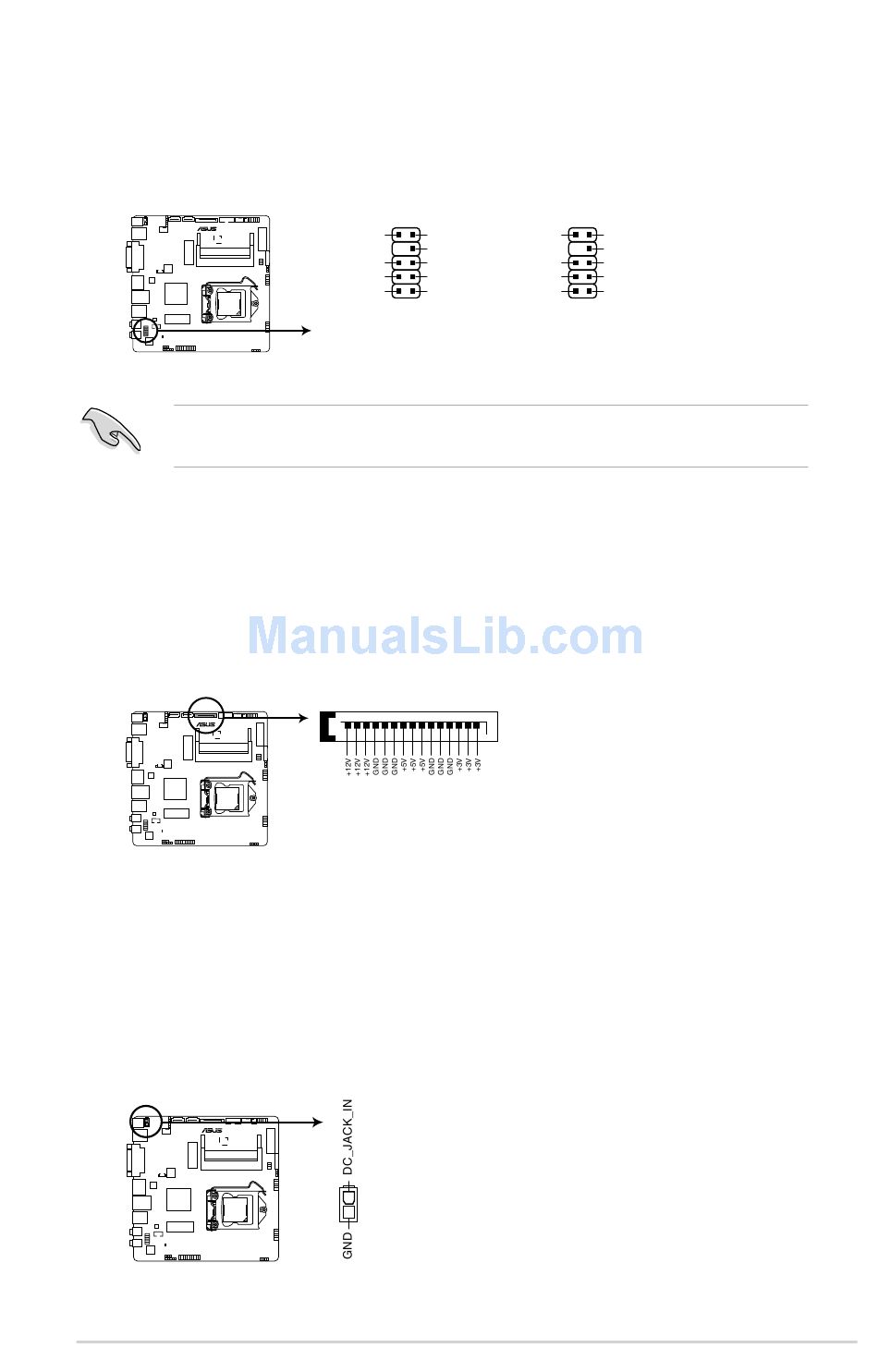

5. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel HD audio I/O module. Connect one
end of the front panel audio I/O module cable to this connector.
H81T
H81T Front panel audio connector
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
6. SATA power connector (15-pin SATA_PWRCON)
This connector is for the SATA power cable. The power cable plug is designed to fit this
connector in only one orientation. Find the proper orientation and push down firmly until
the connector completely fit. To provide power to your SATA device, connect the SATA
power cable to this connector.
H81T
H81T SATA HDD power source
7. ATX power connector (2-pin ATX19V1)
This connector is for an ATX power supply. The plug from the power supply is designed
to fit this connector in only one orientation. Find the proper orientation and push down
firmly until the connector completely fits.
H81T
H81T DC power source
ASUS H81T
PORT2 L
SENSE2_RETUR
SENSE_SEND
PORT2 R
SENSE1_RETUR
PORT1 R
NC
PORT1 L
AGND
PIN 1
HD-audio-compliant
pin definition
SATA_PWRCON
ATX19V1
PIN 1
AAFP
NC Line out_L
NC
NC Line out_R
NC MICPWR
AGND
MIC2
PIN 1
Legacy AC'97
compliant definition
PIN 1
