4
BIIS OPERATION

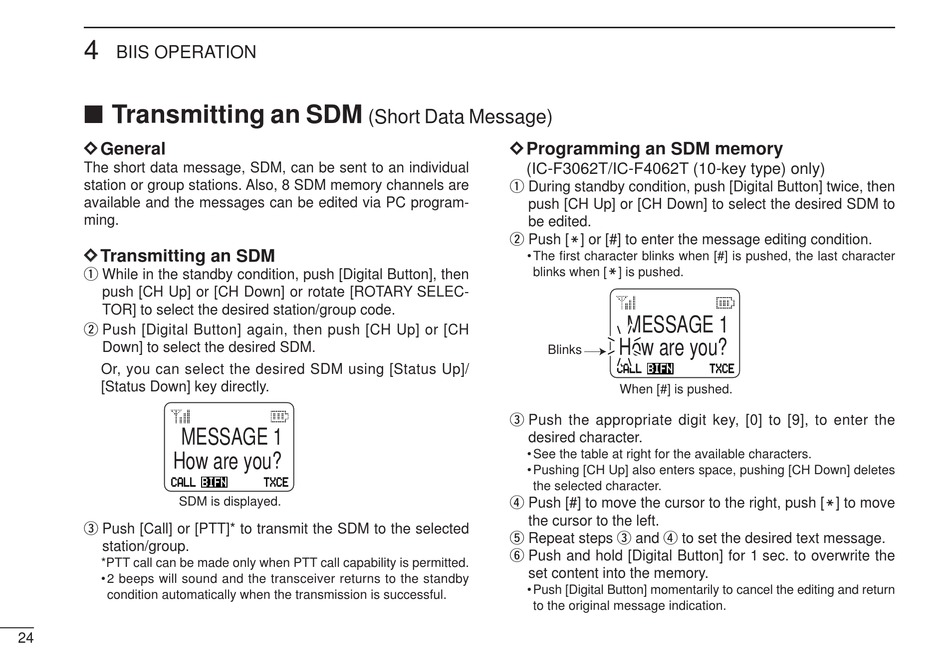

■ Transmitting an SDM
D D General
The short data message, SDM, can be sent to an individual
station or group stations. Also, 8 SDM memory channels are
available and the messages can be edited via PC program-
ming.
D D Transmitting an SDM
q While in the standby condition, push [Digital Button], then
push [CH Up] or [CH Down] or rotate [ROTARY SELEC-
TOR] to select the desired station/group code.
w Push [Digital Button] again, then push [CH Up] or [CH
Down] to select the desired SDM.
Or, you can select the desired SDM using [Status Up]/
[Status Down] key directly.
MESSAGE 1
How are you?
CALL CALL
SDM is displayed.
e Push [Call] or [PTT]* to transmit the SDM to the selected
station/group.
*PTT call can be made only when PTT call capability is permitted.
• 2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.
24
(Short Data Message)
BIFN BIFN TXC TXCE TXCE
D D Programming an SDM memory
(IC-F3062T/IC-F4062T (10-key type) only)
q During standby condition, push [Digital Button] twice, then
push [CH Up] or [CH Down] to select the desired SDM to
be edited.
w Push [M] or [#] to enter the message editing condition.
• The first character blinks when [#] is pushed, the last character
M
blinks when [ ] is pushed.
MESSAGE 1
How are you?
Blinks
CALL CALL BIFN BIFN TXC
When [#] is pushed.
e Push the appropriate digit key, [0] to [9], to enter the
desired character.
• See the table at right for the available characters.
• Pushing [CH Up] also enters space, pushing [CH Down] deletes
the selected character.
r Push [#] to move the cursor to the right, push [M] to move
the cursor to the left.
t Repeat steps e and r to set the desired text message.
y Push and hold [Digital Button] for 1 sec. to overwrite the
set content into the memory.
• Push [Digital Button] momentarily to cancel the editing and return
to the original message indication.
TXCE TXCE
