BASIC OPERATION

I Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(P. 30)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad* can be used for password input.
*IC-F70DT/T or IC-F80DT/T only
• The keys as below can be used for password input:
The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
[VOL]
[MONI]
[P0]/[P1]/
[P2]/[P3]
e When the "PASSWORD" indication does not clear after
inputting 6 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
12
KEY
MONI
0 1 2 3
NUMBER
5 6 7 8

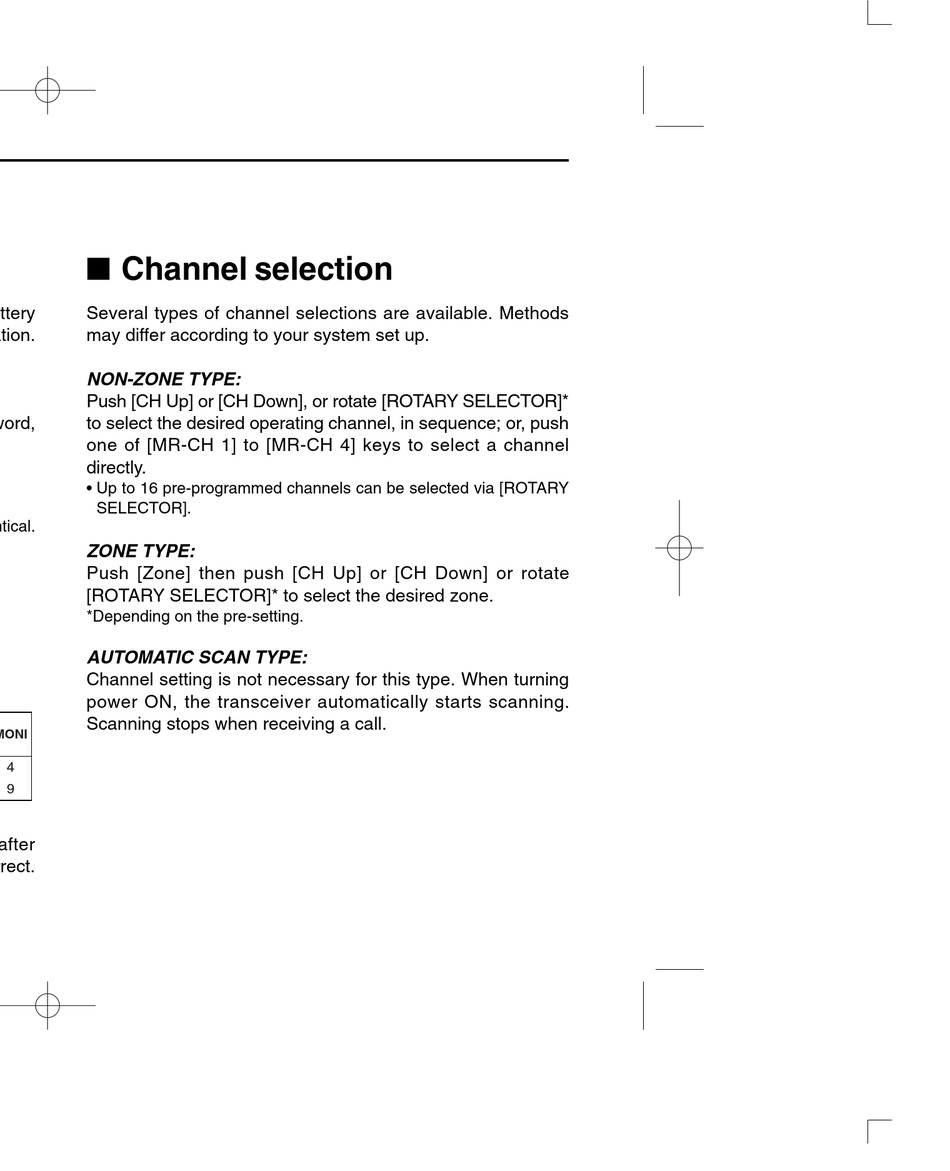

I Channel selection

Several types of channel selections are available. Methods
may differ according to your system set up.
NON-ZONE TYPE:
Push [CH Up] or [CH Down], or rotate [ROTARY SELECTOR]*
to select the desired operating channel, in sequence; or, push
one of [MR-CH 1] to [MR-CH 4] keys to select a channel
directly.
• Up to 16 pre-programmed channels can be selected via [ROTARY
SELECTOR].
ZONE TYPE:
Push [Zone] then push [CH Up] or [CH Down] or rotate
[ROTARY SELECTOR]* to select the desired zone.
*Depending on the pre-setting.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.
4
9
