5

BATTERY CHARGING

ï Rapid charging with the BC-121N+AD-110
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-110 charger adapters
• An AC adapter (BC-124) or the DC power cable (OPC-656)
q Insert the battery pack
with/without the transceiver
into the charger.
• The charge indicator lights
green.
w Charge the battery pack
approx. 2.5 hours, depend-
ing on the remaining power
condition.
AC adapter
(Purchased
separately)
32
TRANSCEIVER
BP-235
AD-110 charger
adapters are
installed in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)

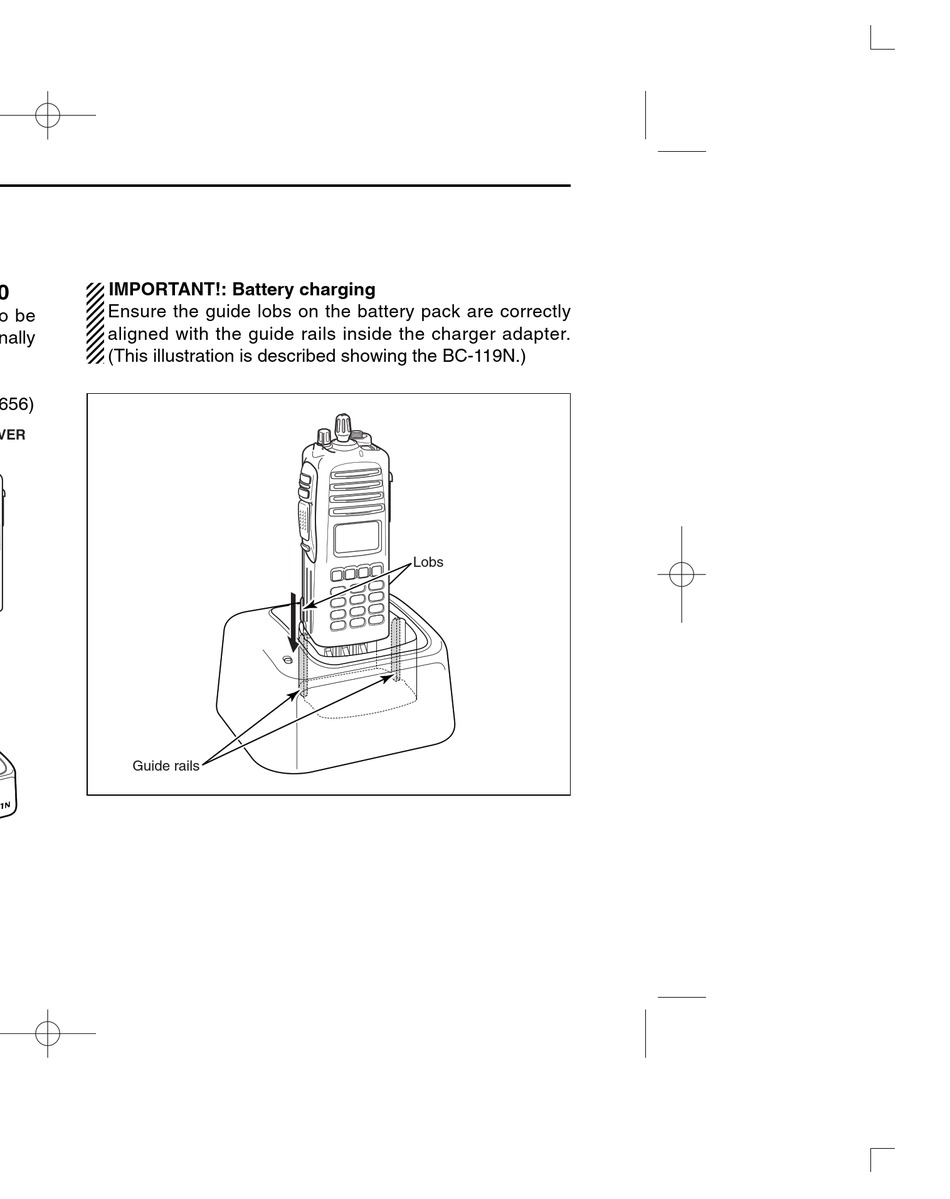

IMPORTANT!: Battery charging
Ensure the guide lobs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described showing the BC-119N.)
Guide rails
Lobs
