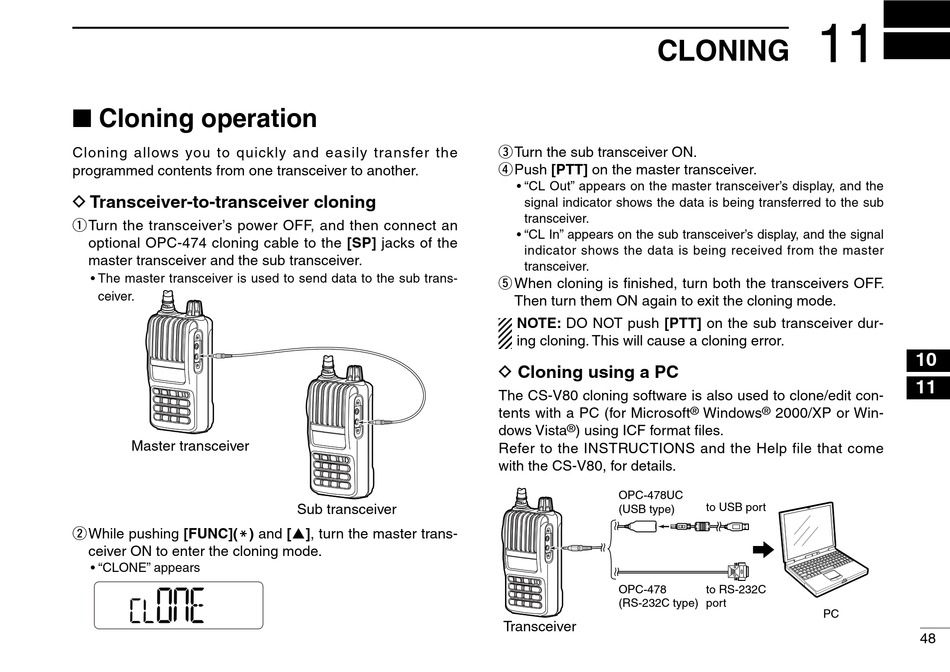

■ Cloning operation

Cloning allows you to quickly and easily transfer the
programmed contents from one transceiver to another.
D Transceiver-to-transceiver cloning
q Turn the transceiver's power OFF, and then connect an
optional OPC-474 cloning cable to the [SP] jacks of the
master transceiver and the sub transceiver.
• The master transceiver is used to send data to the sub trans-
ceiver.
Master transceiver
w While pushing [FUNC](M) and [], turn the master trans-
ceiver ON to enter the cloning mode.
• "CLONE" appears
Sub transceiver

CLONING

e Turn the sub transceiver ON.
r Push [PTT] on the master transceiver.
• "CL Out" appears on the master transceiver's display, and the
signal indicator shows the data is being transferred to the sub
transceiver.
• "CL In" appears on the sub transceiver's display, and the signal
indicator shows the data is being received from the master
transceiver.
t When cloning is finished, turn both the transceivers OFF.
Then turn them ON again to exit the cloning mode.
NOTE: DO NOT push [PTT] on the sub transceiver dur-
ing cloning. This will cause a cloning error.
D Cloning using a PC
The CS-V80 cloning software is also used to clone/edit con-
tents with a PC (for Microsoft
®
dows Vista ) using ICF format files.
Refer to the INSTRUCTIONS and the Help file that come
with the CS-V80, for details.
OPC-478UC
(USB type)
OPC-478
(RS-232C type)
Transceiver
11
® Windows ® 2000/XP or Win-
to USB port
to RS-232C
port
PC
