u BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
i LOCK INDICATOR
(p. 8)
Appears while the lock function is activated.
o SUB CHANNEL READOUT
• Indicates channel 16 during priority scan.
• Indicates channel 16 during dualwatch or tri-watch.
(p. 14)
!0 DUPLEX INDICATOR
Appears when a duplex channel is selected.
!1 SCRAMBLER INDICATOR
Appears when the optional voice scrambler is activated.
(p. 10; Not available for some countries, due to local regulations)
!2 DUALWATCH/TRI-WATCH INDICATORS
• "DUAL" blinks during dualwatch.
• "TRI" blinks during tri-watch.
Charging No
Middle
required battery
(p. 13)
(p. 14)

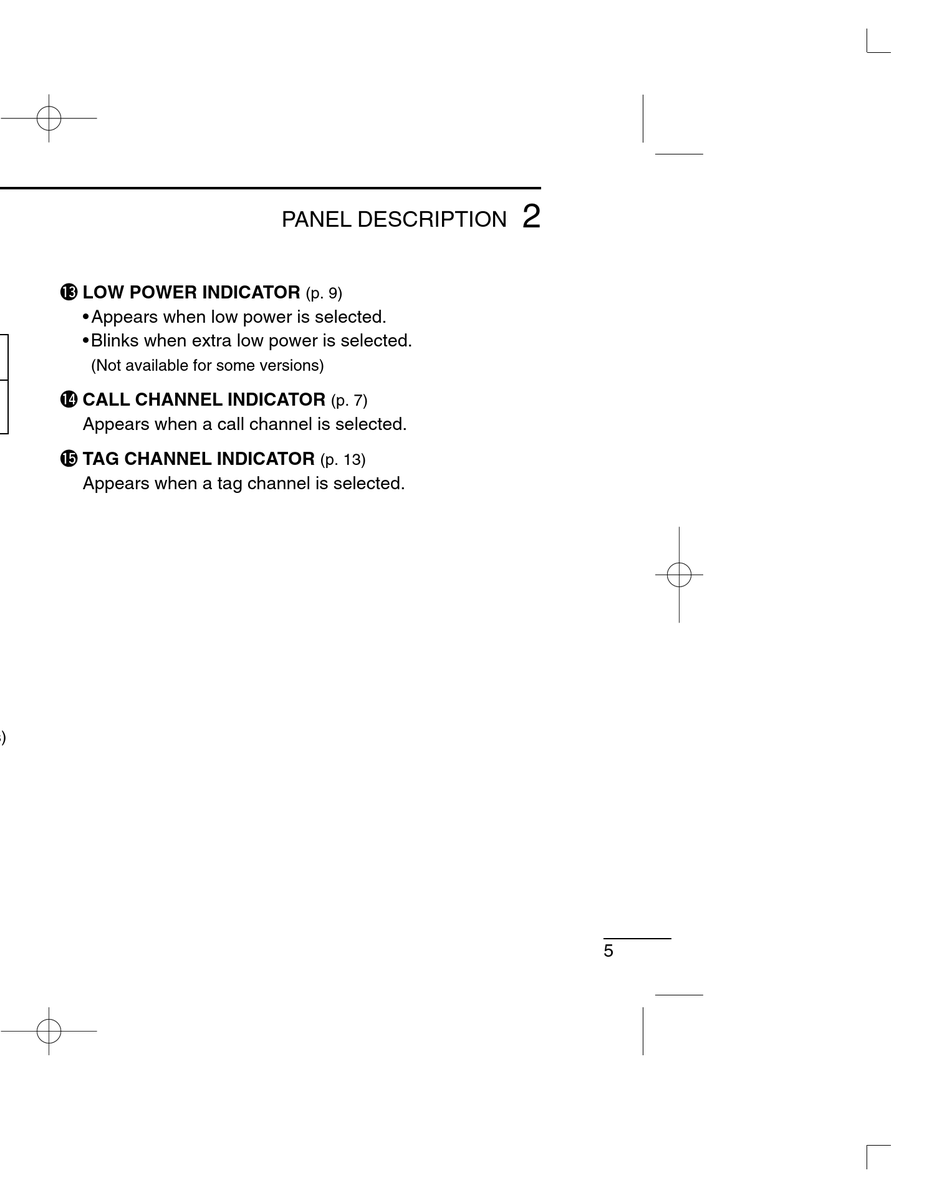

PANEL DESCRIPTION
!3 LOW POWER INDICATOR
• Appears when low power is selected.
• Blinks when extra low power is selected.
(Not available for some versions)
!4 CALL CHANNEL INDICATOR
Appears when a call channel is selected.
!5 TAG CHANNEL INDICATOR
Appears when a tag channel is selected.
2
(p. 9)
(p. 7)
(p. 13)
5
