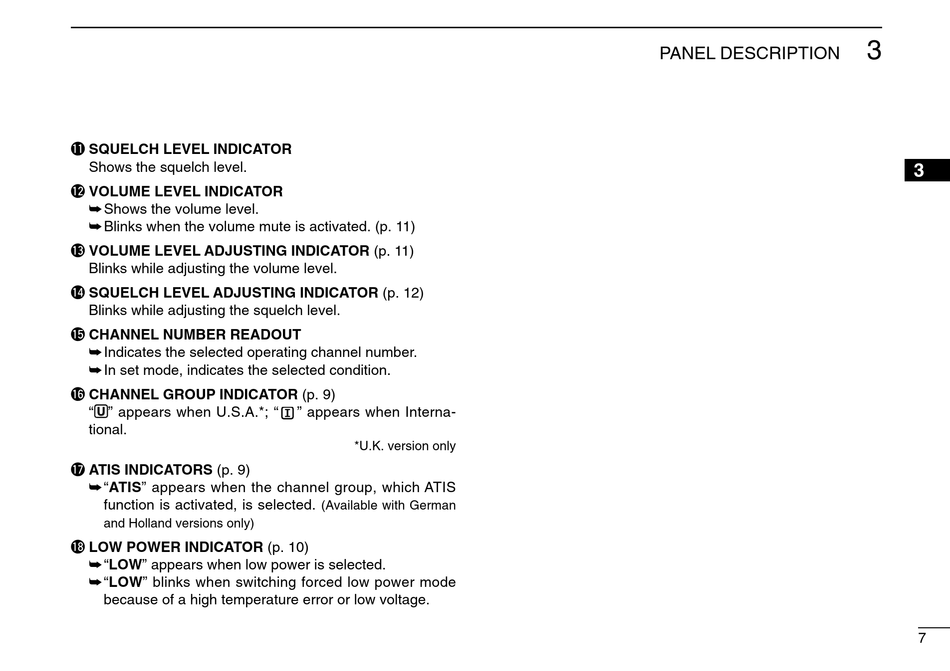

!1 SQUELCH LEVEL INDICATOR
Shows the squelch level.
!2 VOLUME LEVEL INDICATOR
➥ Shows the volume level.
➥ Blinks when the volume mute is activated. (p. 11)
!3 VOLUME LEVEL ADJUSTING INDICATOR (p. 11)
Blinks while adjusting the volume level.
!4 SQUELCH LEVEL ADJUSTING INDICATOR (p. 12)
Blinks while adjusting the squelch level.
!5 CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
➥ In set mode, indicates the selected condition.
!6 CHANNEL GROUP INDICATOR (p. 9)
"U U " appears when U.S.A.*; "
tional.
!7 ATIS INDICATORS (p. 9)
➥ "ATIS" appears when the channel group, which ATIS
function is activated, is selected.
and Holland versions only)
!8 LOW POWER INDICATOR (p. 10)
➥ "LOW" appears when low power is selected.
➥ "LOW" blinks when switching forced low power mode
because of a high temperature error or low voltage.
" appears when Interna-
*U.K. version only
(Available with German
PANEL DESCRIPTION
3
3
7
