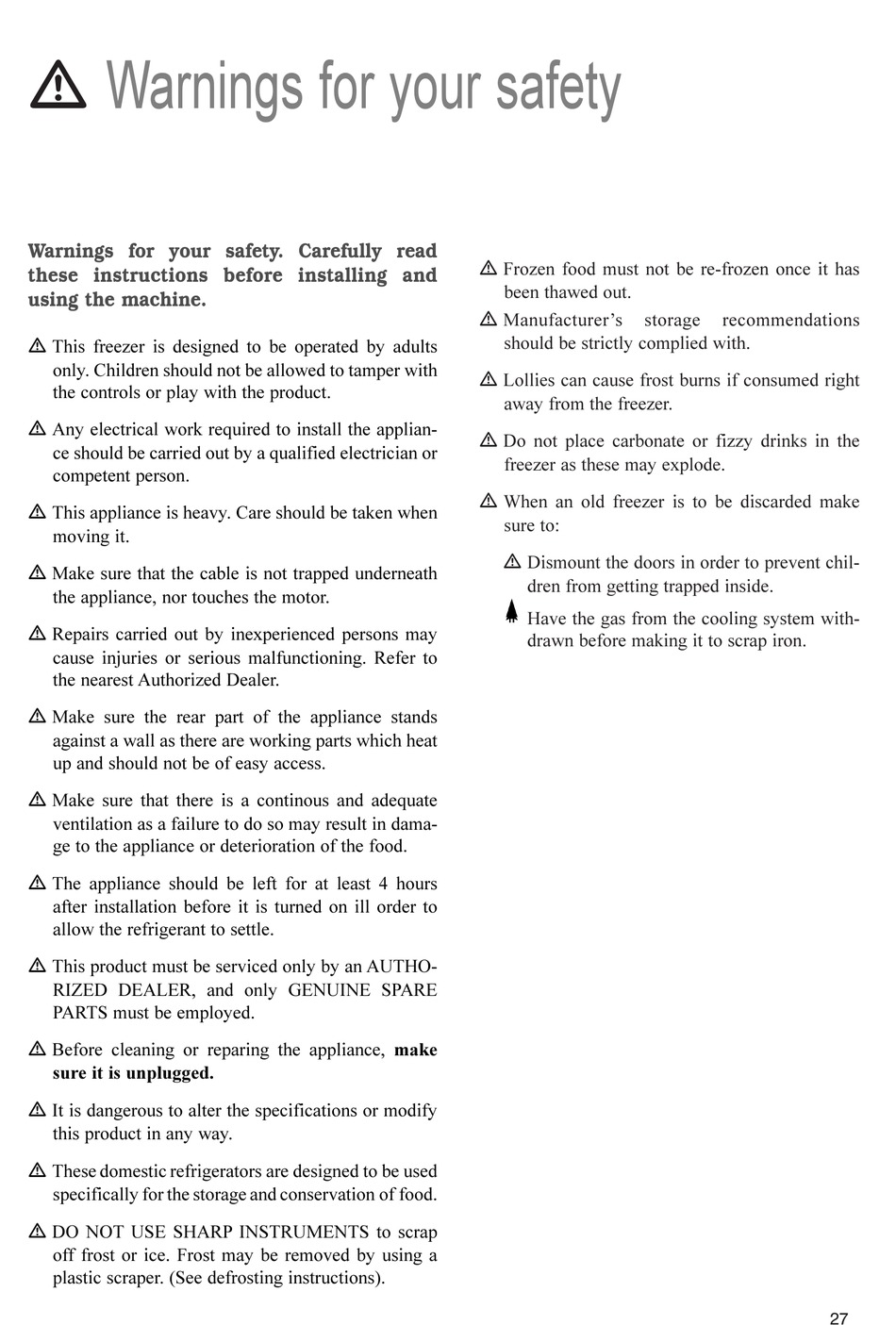

Warnings for your safety
Warnings for your safety. Carefully read
these instructions before installing and
using the machine.
m This freezer is designed to be operated by adults
only. Children should not be allowed to tamper with
the controls or play with the product.
m Any electrical work required to install the applian-
ce should be carried out by a qualified electrician or
competent person.
m This appliance is heavy. Care should be taken when
moving it.
m Make sure that the cable is not trapped underneath
the appliance, nor touches the motor.
m Repairs carried out by inexperienced persons may
cause injuries or serious malfunctioning. Refer to
the nearest Authorized Dealer.
m Make sure the rear part of the appliance stands
against a wall as there are working parts which heat
up and should not be of easy access.
m Make sure that there is a continous and adequate
ventilation as a failure to do so may result in dama-
ge to the appliance or deterioration of the food.
m The appliance should be left for at least 4 hours
after installation before it is turned on ill order to
allow the refrigerant to settle.
m This product must be serviced only by an AUTHO-
RIZED DEALER, and only GENUINE SPARE
PARTS must be employed.
m Before cleaning or reparing the appliance, make
sure it is unplugged.
m It is dangerous to alter the specifications or modify
this product in any way.
m These domestic refrigerators are designed to be used
specifically for the storage and conservation of food.
m DO NOT USE SHARP INSTRUMENTS to scrap
off frost or ice. Frost may be removed by using a
plastic scraper. (See defrosting instructions).
m Frozen food must not be re-frozen once it has
been thawed out.
m Manufacturer's
storage
should be strictly complied with.
m Lollies can cause frost burns if consumed right
away from the freezer.
m Do not place carbonate or fizzy drinks in the
freezer as these may explode.
m When an old freezer is to be discarded make
sure to:
m Dismount the doors in order to prevent chil-
dren from getting trapped inside.
Have the gas from the cooling system with-
drawn before making it to scrap iron.
recommendations
27

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux ERD7764

  • Page 1 Warnings for your safety Warnings for your safety. Carefully read m Frozen food must not be re-frozen once it has these instructions before installing and been thawed out. using the machine. m Manufacturer’s storage recommendations should be strictly complied with. m This freezer is designed to be operated by adults only.
  • Page 2 Índex Warnings for your safety pag. 27 Installation pag. 29 Changing the opening directions of the doors and Panelling pag. 30 Regulation and Control pag. 31 How to use your Refrigerator-Freezer pag. 32 Maintenance of your Refrigerator-Freezer pag. 34 Something not working pag.
  • Page 3: Installation

    Installation Positioning • Place the refrigerator away from direct sunlight and heat sources. • Maintain recommended ventilation - see Fig. 1. • Make sure the refrigerator is accurately levelled tur- ning the adjustable feet in order to avoid vibrations and noises. •...
  • Page 4 Changing the opening direction of doors and Panelling If you wish to change the opening side of the doors proceed as follows: 1... Remove the handles of the doors, if they are side fixing by screws. 2... Take off the plinth pressed on to. 3...
  • Page 5: Regulation And Control

    Regulation and Control Temperature regulation: «A» Fig. 4. Allows temperature according to room temperature and usage. • Lowest setting, minimum cold: • Highest setting, maximum cold: • Interior light: (H) Fig. 4 Fig. 4 Comes on when opening the door of the refrigerating compartment and shuts off when you close the door.
  • Page 6: How To Use Your Refrigerator-Freezer

    How to use your Refrigerator-Freezer Freezer Compartment Refrigerator Compartment: This freezer, is marked , and is suitable This compartment is for storing drinks and for freezing fresh foodstuffs and keeping food for fresh food products. long periods. The temperature inside is very evenly distribu- ted.
  • Page 7: Defrosting Of The Freezer

    Maintenance of your Refrigerator-Freezer Prior to undertaking any maintenance ope- ration, be sure to unplug the appliance. Defrosting of the freezer The inner walls of the freezer become gradually cove- red with a layer of frost keeping in mind not to open the door frequently and keeping the food wrapped up in closed bags.
  • Page 8: Maintenance Of Your Refrigerator-Freezer

    Maintenance of your Refrigerator-Freezer Defrosting of the refrigerator Frost is automatically eliminated in the refrigerator. Clean regularly the water drain opening «G». Cleaning • Do not use alcohol or any cleanig product containing alcohol because it can damage the cabinet. •...
  • Page 9: Something Not Working

    Something not working Some functioning problems may be due to causes which can easily be solved before calling the Network Service. Follow theses instructions: P P r r o o b b l l e e m m C C a a u u s s e e S S o o l l u u t t i i o o n n A) LAMP AND INDICATORS 1.
  • Page 10: Something Not Working

    Something not working P P r r o o b b l l e e m m C C a a u u s s e e S S o o l l u u t t i i o o n n º...
  • Page 11: Normal Noises When Functioning

    Normal noises when functioning 1. Temperature Regulator. May cause cracking sounds when the system connects or disconnects. 2. Refrigerating system. The injected cooling gas may produce a burbling sound while running through the tubes. 3. Compressor. May cause zumbing noises and/or slight bumping. 4.
  • Page 12: Guarantee, Service And Spare Parts

    Guarantee, Service and Spare Parts Together with the appliance you should receive an ins- truction booklet like this together with: : Safey • A guarantee card «Certificado de Garantia», with Read the safety and warning texts at the begining the conditions of the guarantee printed on the back. of the user instructions.
  • Page 13: Tecnical Features

    Tecnical Features DIMENSIONS WITH DIMENSIONS WITH DOORS CLOSED DOORS OPEN This appliance complies with the following CEE Directives: – 73/23 CEE of 19/02/73 (low voltage directive) and subsequent modifications. – 89/336 CEE del 03/05/89 (electromagnetic compatibility directive) and subsequent modifica- tions.
