2-14
(13).

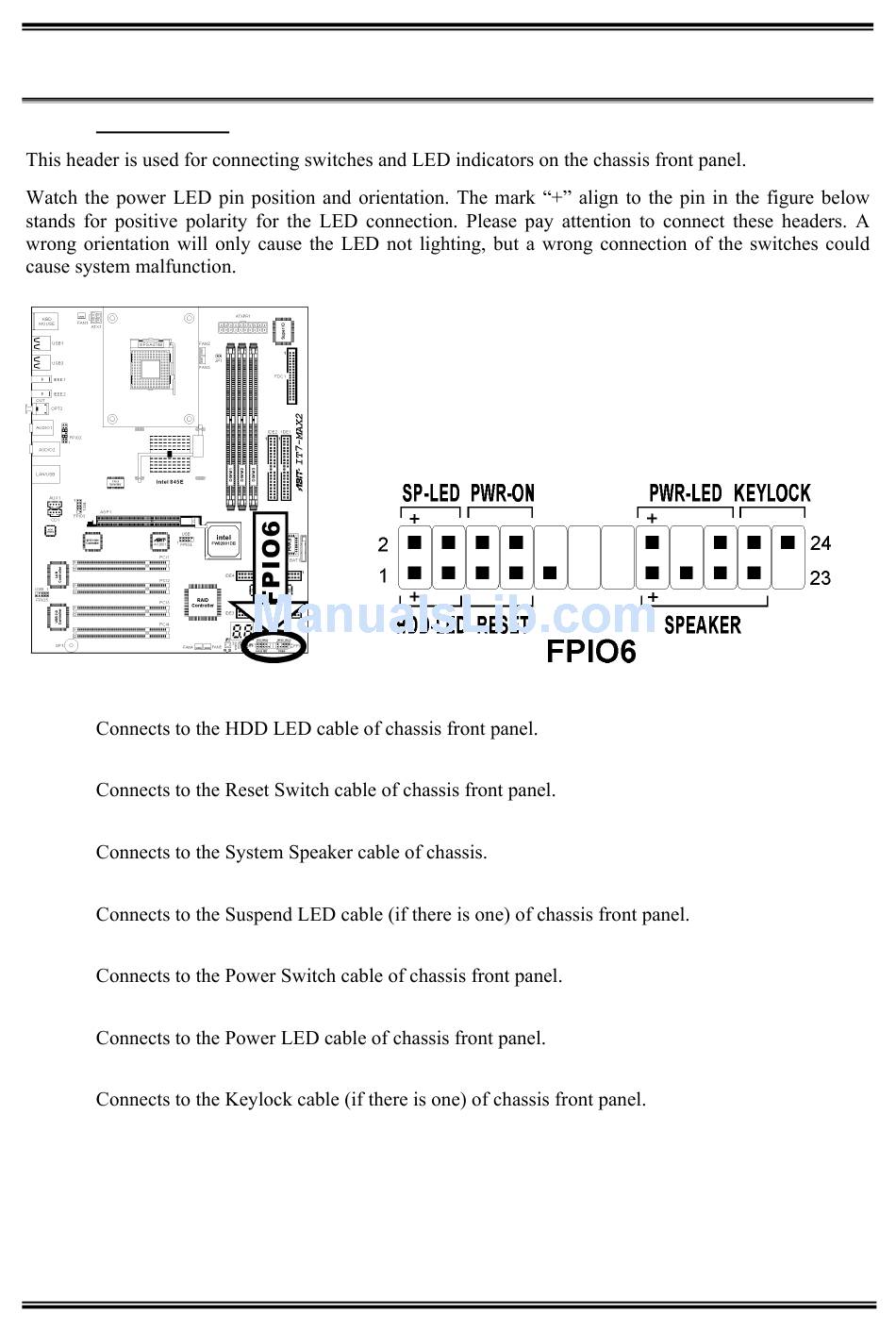

FPIO6 Headers
•
Pin 1-3: HDD-LED
•
Pin 5-7: RESET
•
Pin 15-21: SPEAKER
•
Pin 2-4: SP-LED
•
Pin 6-8: PWR-ON
•
Pin 16-20: PWR-LED
•
Pin 22-24: KEYLOCK
IT7-MAX2
Chapter 2
