  • Page 1 I-G31 Motherboard Intel Socket 775 Installation Guide...
  • Page 2 For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Best Management Practices for Perchlorate Materials: “Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/.” I-G31...
  • Page 3 ○: 表 示 该 有 毒 有 害 物 质 在 该 部 件 所 有 均 质 材 料 中 的 含 量 均 在 SJ/T11363-2006 标准规定的限量要求以下。 ×: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 This information is applicable for People's Republic of China only. I-G31...

  • Page 4: Table Of Contents

    1.7.2 Serial ATA Connectors ........9 1.7.3 Additional USB 2.0 Port Headers .......10 1.7.4 Internal Audio Connectors ........10 1.7.5 Front Panel Audio Connection Header ....11 1.8 PCI and PCI Express X16, X1 Slots......12 1.9 Connecting Rear Panel I/O Devices......12 I-G31...

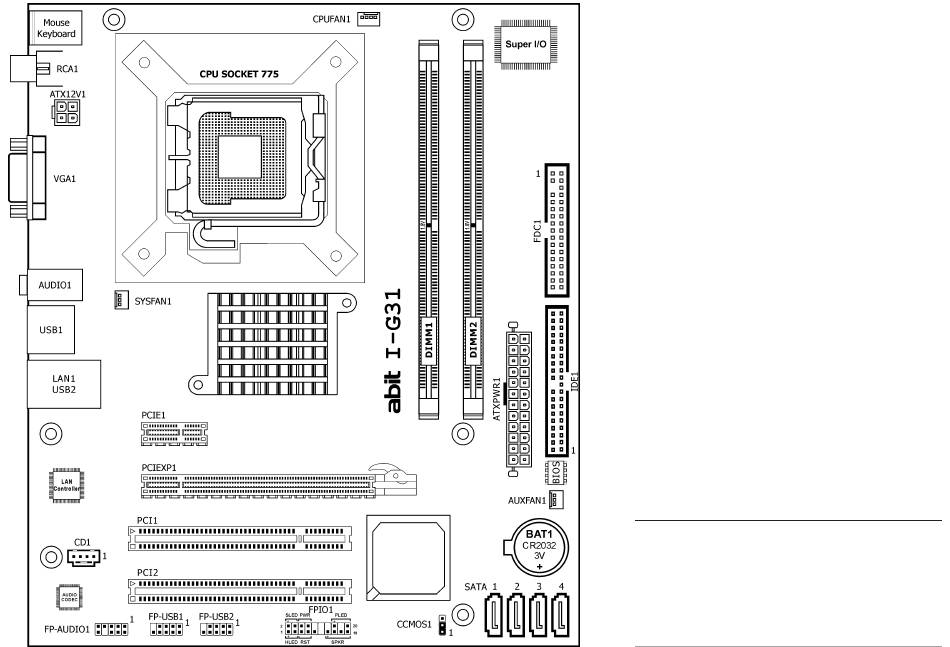

  • Page 5: Hardware Setup

    • Onboard HD 5.1 Channel Audio CODEC • Micro ATX form factor (244mm x 210mm) Serial ATA • 4x SATA 3.0Gb/s Expansion Slots Specifications and information contained herein are subject to ※ • 1x PCI-E X16 slot change without notice. I-G31...

  • Page 6: Choosing A Computer Chassis

    If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned I-G31...

  • Page 7: Checking Jumper Settings

    Nevertheless, this backup battery exhausts after some five This header uses a jumper cap to clear the CMOS memory and have it years. Once the error message like “CMOS BATTERY HAS FAILED” reconfigured to the default values stored in BIOS. I-G31...

  • Page 8: Connecting Chassis Components

    Renew only with the same or equivalent type recommended by the ※ ATX 12V 4-Pin Power Connector: battery manufacturer. This connector supplies power to CPU. The system will not start without Dispose of used batteries according to the battery manufacturer’s ※ connecting power to this one. instructions. I-G31...

  • Page 9: Front Panel Switches And Indicators Headers

    Connects to the System Speaker cable of chassis. • SLED (Pin 2, 4): Connects to the Suspend LED cable (if there is one) of chassis front panel. • PWR (Pin 6, 8): Connects to the Power Switch cable of chassis front panel. I-G31...

  • Page 10: Installing Hardware

    CPU is seated well into the lever hook, pull it the socket. The away from the retention alignment key must be tab. Rotate the lever to located in the notch of fully open position. package. I-G31...
  • Page 11 CPU FAN connector. A higher fan speed will be helpful for better airflow and ※ heat-dissipation. Nevertheless, stay alert to not touch any heatsink since a high temperature generated by the working system is still possible. I-G31...

  • Page 12: Ddr2 Memory Slots

    DIMM module. Static electricity can damage the electronic components of the ※ computer or optional boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a grounded metal object briefly. I-G31...

  • Page 13: Connecting Peripheral Devices

    IDE The motherboard in this photo is served for DEMO only, and may not ※ port and the hard-drive connector. be the same type or model as the one described in this manual. I-G31...

  • Page 14: Additional Usb 2.0 Port Headers

    I/O panel or the front-mounted USB ports or add-on card. of your chassis. Pin Assignment Pin Assignment Data0 - Data1 - Data0 + Data1 + Ground Ground Make sure the connecting cable bears the same pin assignment. ※ I-G31...

  • Page 15: Front Panel Audio Connection Header

    “Integrated Peripherals” “OnChip PCI Device” “FP-Audio”. motherboard. Pin Assignment Pin Assignment (HD AUDIO) (AC’97 AUDIO) MIC2 L MIC In AGND MIC2 R MIC Power AVCC FRO-R Line Out (R) MIC2_JD F_IO_SEN FRO-L Line Out (L) LINE2_JD I-G31...

  • Page 16: Pci And Pci Express X16, X1 Slots

    Line-Out: Connects to the front left and front right channel. Mic-In: Connects to the plug from external microphone. • USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard, hub, digital camera, joystick etc. • LAN1: Connects to Local Area Network. I-G31...

  • Page 17: Bios Setup

    BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. Do not change the BIOS parameters unless you fully understand its ※ function. I-G31...

  • Page 18: Driver & Utility

    [Manual]: Click this button to enter the user’s manual menu. • [Utility]: Click this button to enter the utilities installation menu. • [abit Utility]: Click to enter the installation menu of utilities exclusively developed by ABIT. • [Browse CD]: Click this button to browse the contents of this “Driver &...

  • Page 19: Appendix

    RoHS • 內建 Gigabit 乙太網路控制器 • 100%無鉛製程符合 RoHS 規範 音效 其他 • 內建 5.1 聲道 HD 音效 • Micro ATX 主機板規格（244mm x 210mm） Serial ATA • 4 個 SATA 3.0Gb/s 擴充插槽 • 1 個 PCI-E X16 插槽 ※ 本手冊的規格與資訊若有變動，恕不另行通知。 I-G31...

  • Page 20: 规格（简体中文

    • 1 个 RJ-45 网络接头 音效 RoHS • 支持 5.1 声道 HD 音效 • 100%无铅制程符合 RoHS 规范 串行 ATA 其它 • 4 个 SATA 3.0Gb/s • Micro ATX 主机板规格（244mm x 210mm） 扩充插槽 • 1 个 PCI-E X16 插槽 ※ 本手册的规格与信息若有变动，恕不另行通知。 I-G31...

  • Page 21: Troubleshooting (How To Get Technical Support?)

    Step 3. The same procedure as Step 2, but while discharging the CMOS data, pull out Example: Intel 650 3.4GHz (OC FSB=220MHz) the ATX power connectors from motherboard and remove the button battery during CMOS discharge. I-G31...

  • Page 22: Technical Support Form

    Is the motherboard dead? Do I need to return it to where I bought from or go through an RMA process? Problem description: After you have gone through the troubleshooting procedures, yet the problem still exists, or you find an evident damage on the motherboard, please contact our RMA center. (http://www2.abit.com.tw/page/en/contact/index.php?pFUN_KEY=18000&pTITLE_IMG) I-G31...

  • Page 23: Contact Information

    Taiwan Head Office Germany and Benelux (Belgium, Turkey Netherlands, Luxembourg), France, Italy, Universal ABIT Co., Ltd. Universal ABIT Turkey (Rep. office) Spain, Portugal, Greece, Denmark, 6F, No. 323, Yang Guang St., Neihu, Tel: 90 532 211 6860 Norway, Sweden, Finland, Switzerland Taipei, 114, Taiwan Universal ABIT NL B.V.
  • Page 24 I-G31 P/N: 4310-0001-15 Rev. 1.00...
