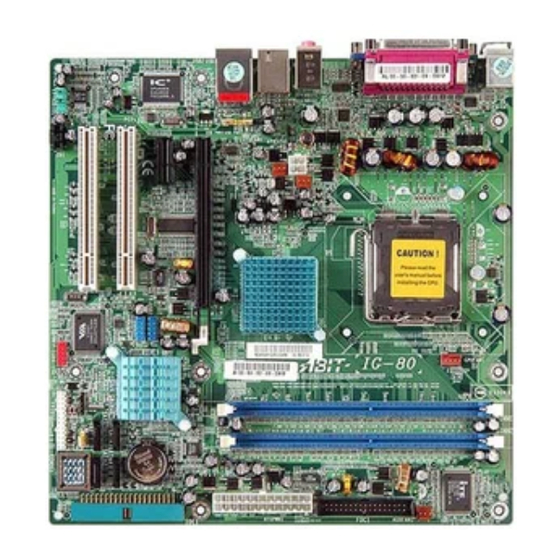

Intel pentium 4 system board socket 775
Hide thumbs
Table of Contents

Advertisement

Quick Links

IG-80 Series
Intel Pentium 4 System Board
Socket 775
User's Manual
4200-0427-02
Rev. 1.01

Advertisement

Table of Contents
loading

Related Manuals for Abit IG-80 Series

Summary of Contents for Abit IG-80 Series

  • Page 1 IG-80 Series Intel Pentium 4 System Board Socket 775 User’s Manual 4200-0427-02 Rev. 1.01...
  • Page 2 No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. IG-80 Series...

  • Page 3: Table Of Contents

    Introduction ... 1-1 1-1. Features & Specifications ...1-1 1-2. Layout Diagram ...1-3 Chapter 2. Hardware Setup... 2-1 2-1. Install The Motherboard...2-1 2-2. Install CPU, Heatsink and Fan Assembly...2-2 2-3. Install System Memory ...2-4 2-4. Connectors, Headers and Switches ...2-5 (1).
  • Page 4 3-12. Save & Exit Setup ...3-23 3-13. Exit Without Saving...3-23 Chapter 4. Driver Installation ... 4-1 4-1. Setup Items...4-2 Appendix A. How to Get Technical Support ... A-1 IG-80 Series...

  • Page 5: Chapter 1. Introduction

    8. IEEE 1394 (IG-80) • Supports 2 ports IEEE 1394 at 100/200/400 Mb/s transfer rate 9. Gigabit LAN • Onboard Gigabit PCI LAN controller 10. ABIT Engineered • ABIT SoftMenu 11. Internal I/O Connectors • 1x PCI-Express x16 slot •...
  • Page 6 • 2x USB 2.0 headers • 1x IEEE 1394 header (IG-80) • 1x FP-Audio header • 1x CD-IN header 12. Back Panel I/O • 1x PS/2 Keyboard, 1x PS/2 mouse • 1x Serial port connector, 1x Parallel port connector • 1x VGA connector •...

  • Page 7: Layout Diagram

    Introduction 1-2. Layout Diagram User’s Manual...
  • Page 8 IG-80 Series IG-80 Series Chapter 1 Chapter 1...

  • Page 9: Chapter 2. Hardware Setup

    ATTENTION: To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with. User’s Manual...

  • Page 10: Install Cpu, Heatsink And Fan Assembly

    2-2. Install CPU, Heatsink and Fan Assembly In order to protect the contact pins, please pay attention to these notices: 1. A maximum 20 cycles of CPU installation is recommended. 2. Never touch the contact pins with fingers or any object. 3.
  • Page 11 9. Place the heatsink and fan assembly onto the socket. Align the four fasteners toward the four mounting holes on the motherboard. For detailed information on how to install your heatsink and fan assembly, please refer to the instruction manual came packed with the heatsink and fan assembly you bought.

  • Page 12: Install System Memory

    2-3. Install System Memory This system board provides two 184-pin DDR DIMM slots for DDR 400/333 memory modules with memory expansion size up to 2GB. Bank Bank 0, 1 (DIMM1) Bank 2, 3 (DIMM2) Total System Memory NOTE: Usually there is no hardware or BIOS setup require after adding or removing memory modules, but you will have to clear the CMOS memory first if any memory module related problem occurs.

  • Page 13: Connectors, Headers And Switches

    WARNING: Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything.

  • Page 14: Fan Power Connectors

    (2). FAN Power Connectors These connectors each provide power to the cooling fans installed in your system. • CPUFAN1: CPU Fan Power Connector • NBFAN1: Chipset Fan Power Connector • SYSFAN1: System Fan Power Connector • AUXFAN1, AUXFAN2: Auxiliary Fan Power Connector WARNING: These fan connectors are not jumpers.

  • Page 15: Cmos Memory Clearing Header

    Hardware Setup (3). CMOS Memory Clearing Header This header uses a jumper cap to clear the CMOS memory. • Pin 1-2 shorted (default): Normal operation. • Pin 2-3 shorted: Clear CMOS memory. WARNING: Turn the power off first (including the +5V standby power) before clearing the CMOS memory.

  • Page 16: Wake-Up Header

    (4). Wake-up Header These headers use a jumper cap to enable/disable the wake-up function. • USB-PWR1: Pin 1-2 shorted (default): Disable wake-up function support at USB1 port. Pin 2-3 shorted: Enable wake-up function support at USB1 port. • USB-PWR2: Pin 1-2 shorted (default): Disable wake-up function support at USB2 port. Pin 2-3 shorted: Enable wake-up function support at USB2 port IG-80 Series Chapter 2...

  • Page 17: Front Panel Audio Connection Header

    Hardware Setup (5). Front Panel Audio Connection Header This header provides the connection to audio connector at front panel. • To use the audio connector at front panel, remove all the jumpers on this header, and then connect to front panel by the extension cable provided with the chassis. •...

  • Page 18: Front Panel Switches & Indicators Headers

    2-10 (6). Front Panel Switches & Indicators Headers This header is used for connecting switches and LED indicators on the chassis front panel. Watch the power LED pin position and orientation. The mark “+” align to the pin in the figure below stands for positive polarity for the LED connection.

  • Page 19: Additional Ieee1394 Port Headers (Ig-80)

    Hardware Setup (7). Additional IEEE1394 Port Headers (IG-80) These headers each provide one additional IEEE1394 port connection through an extension cable and bracket. Pin Assignment TPA0 + Ground TPB0 + +12V Pin Assignment TPA0 - Ground TPB0 - +12V Ground User’s Manual 2-11...

  • Page 20: Additional Usb Port Headers

    2-12 (8). Additional USB Port Headers These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for USB 2.0 specifications. IG-80 Series Pin Assignment Data0 - Data0 + Ground Chapter 2 Pin Assignment Data1 - Data1 + Ground...

  • Page 21: System Management Bus Headers

    Hardware Setup 2-13 (9). System Management Bus Headers This header is reserved for system management bus (SM bus). The SM bus is a specific implementation of an I C bus. I C is a multi-master bus, which means that multiple chips can be connected to the same bus and each one can act as a master by initiating a data transfer.

  • Page 22: Floppy And Ide Disk Drive Connectors

    2-14 Chapter 2 (11). Floppy and IDE Disk Drive Connectors The FDC1 connector connects up to two floppy drives with a 34-wire, 2-connector floppy cable. Connect the single end at the longer length of ribbon cable to the FDC1 on the board, the two connectors on the other end to the floppy disk drives connector.

  • Page 23: Serial Ata Connectors

    Hardware Setup 2-15 (12). Serial ATA Connectors These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable. For more information on how to configure the function mode for SATA, please refer to the item “On-Chip Serial ATA”...

  • Page 24: Pci Express X16 Slot

    2-16 Chapter 2 (13). PCI Express x16 Slot This slot is used to attach the next generation of graphics architecture. (14). PCI Express x1 Slot This slot is used to attach the next generation of I/O architecture. IG-80 Series...

  • Page 25: Back Panel Connectors

    Hardware Setup (15). Back Panel Connectors • Mouse: Connects to PS/2 mouse. • Keyboard: Connects to PS/2 keyboard. • LPT1: Connects to printer or other devices that support this communication protocol. • COM1: Connects to external modem, mouse or other devices that support this communication protocol.
  • Page 26 2-18 2-18 IG-80 Series IG-80 Series Chapter 2 Chapter 2...

  • Page 27: Chapter 3. Bios Setup

    BIOS Setup Chapter 3. BIOS Setup This motherboard provides a programmable EEPROM that you can update the BIOS utility. The BIOS (Basic Input/Output System) is a program that deals with the basic level of communication between processor and peripherals. Use the BIOS Setup program only when installing motherboard, reconfiguring system, or prompted to “Run Setup”.

  • Page 28: Softmenu Setup

    Chapter 3 3-1. SoftMenu Setup The SoftMenu utility is ABIT’s exclusive and ultimate solution in programming the CPU operating speed. All the parameters regarding CPU FSB speed, multiplier factor, the AGP & PCI clock, and even the CPU core voltage are all available at your fingertips.
  • Page 29 BIOS Setup Multiplier Factor: This item selects the multiplier factors for your CPU if it is not locked. Estimated new CPU Clock: This item displays the frequency sum up from the previous item [External Clock] and [Multiplier Factor]. N/B Strap CPU As: This item sets the external hardware reset strap assigned to MCH (Memory Controller Hub).

  • Page 30: Standard Cmos Features

    3-2. Standard CMOS Features This section contains the basic configuration parameters of the BIOS. These parameters include date, hour, VGA card, FDD, and HDD settings. Date (mm:dd:yy): This item sets the date you specify (usually the current date) in the format of [Month], [Date], and [Year]. Time (hh:mm:ss): This item sets the time you specify (usually the current time) in the format of [Hour], [Minute], and [Second].
  • Page 31 BIOS Setup IDE HDD Auto-Detection: This item allows you to detect the parameters of IDE drives by pressing <Enter> key. The parameters will be shown on the screen automatically. IDE Channel 1 Master/Slave, IDE Channel 2 Master/Slave, Extended IDE Drive: When set to [Auto], the BIOS will automatically check what kind of IDE drive you are using.
  • Page 32 Base Memory: This item displays the amount of base memory installed in the system. The value of the base memory is typically 640K for system with 640K or more memory size installed on the motherboard. Extended Memory: This item displays the amount of extended memory detected during system boot-up.

  • Page 33: Advanced Bios Features

    BIOS Setup 3-3. Advanced BIOS Features CPU L3 Cache: This item is used to enable the L3 cache (default setting), and appears only for certain CPU (Intel Pentium 4 processor with HT Technology Extreme Edition) that possesses L3 cache. Hyper-Threading Technology This item is used to enable the functionality of the processor with Hyper-Threading Technology and will appear only when using such processor.
  • Page 34 Chapter 3 Delay Prior to Thermal: This item selects the delay time before thermal activation. Thermal Management This item selects the type of thermal monitoring. Limit CPUID MaxVal When set to [Enabled], this item limits the CPUID maximum value to 3, which is usually required for older OS like Windows NT4.0.
  • Page 35 CMOS before you can start up the system. But by doing this, you will have to reset all previously set options. MPS Version Ctrl For OS: This item specifies which version of MPS (Multi-Processor Specification) this motherboard will use. Leave this item to its default setting. OS Select For DRAM > 64MB This item allows you to access the memory that is over 64MB in OS/2.

  • Page 36: Advanced Chipset Features

    3-10 3-4. Advanced Chipset Features DRAM Timing Selectable: This item sets the optimal timings for the following four items, depending on the memory module you are using. The default setting “By SPD” configures these four items by reading the contents in the SPD (Serial Presence Detect) device.
  • Page 37 BIOS Setup PCI Express Root Port Func: Click <Enter> key to enter its submenu: PCI Express Slot 1: This option enables or disables the PCI Express port function. PCI-E Compliancy Mode: This item selects the mode for PCI Express add-on card. Back to Advanced Chipset Features Setup Menu: Init Display First: This item selects whether to initiates from “PCI Slot”, “Onboard”, or “PCIEX”...

  • Page 38: Integrated Peripherals

    3-12 Chapter 3 3-5. Integrated Peripherals OnChip IDE Device: Click <Enter> key to enter its submenu: IDE Bus Master: This option enables or disables the IDE bus mastering capability under the DOS environment. On-Chip IDE-1 Controller: This item selects whether to enable or disable the IDE-1 controller. On-Chip Serial ATA: This item determines the function for on-chip Serial ATA.
  • Page 39 BIOS Setup Mode Channel Channel 1 Master 1 Slave IDE1 IDE1 Enhanced Master Slave IDE1 IDE1 Combined Master Slave SATA Only SATA1 SATA3 NOTE: The option [Enhanced Mode] does not support the Windows 98/ME operation system. Parallel ATA Mode: This item determines the function mode for “IDE1”connector. [IDE1]: “IDE1”...

  • Page 40: Superio Device

    3-14 OnChip PCI Device: Click <Enter> key to enter its submenu: OnChip USB Controller: This option enables or disables the USB controller. USB 2.0 Controller: This option enables or disables the USB 2.0 controller. USB Keyboard Support Via: This item allows you to select [BIOS] for using USB keyboard in DOS environment, or [OS] in OS environment.
  • Page 41 BIOS Setup Onboard FDD Controller: This option enables or disables the onboard FDC controller. Onboard Serial Port: This item determines which I/O addresses the onboard Serial Port controller will access. [Auto]: The system automatically select an I/O address for the onboard Serial Port. [3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3]: Allows you to manually select an I/O address for the onboard Serial Port.

  • Page 42: Onboard Pci Device

    3-16 Chapter 3 Onboard PCI Device: Click <Enter> key to enter its submenu: IEEE 1394 Controller: (IG-80) This option enables or disables the IEEE 1394 controller. Network Controller: This option enables or disables the LAN controller. Invoke Boot Agent: This item allows you to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly.

  • Page 43: Power Management Setup

    BIOS Setup 3-17 3-6. Power Management Setup ACPI Suspend Type: This item selects the type of Suspend mode. [S1(PowerOn-Suspend)]: Enables the Power On Suspend function. [S3(Suspend-To-RAM)]: Enables the Suspend to RAM function. Resume by USB From S3: When set to [Enabled], this item allows you to use a USB device to wake up a system that is in the S3 (STR - Suspend To RAM) state.
  • Page 44 3-18 WakeUp by Onboard LAN: When set to [Enabled], you can remotely wake up a PC in Soft-Off condition via a LAN card that support the wake up function. WakeUp by Alarm: When set to [Enabled], you can set the date and time you would like the Soft-Off PC to power-on in the “Date (of Month) Alarm”...
  • Page 45 BIOS Setup 3-19 Hot Key Power ON: This item powers on the system by pressing <Ctrl> key plus one of each function key (<F1> ~ <F12>) simultaneously. Restore On AC Power Loss: This item selects the system action after an AC power failure. [Power Off]: When power returns after an AC power failure, the system’s power remains off.

  • Page 46: Pnp/Pci Configurations

    3-20 Chapter 3 3-7. PnP/PCI Configurations Resources Controlled By: This item configures all of the boot and Plug-and-Play compatible devices. [Auto]: The system will automatically detect the settings. [Manual]: Choose the specific IRQ resources in the “IRQ Resources” menu. IRQ Resources: Click <Enter>...
  • Page 47 BIOS Setup [Enabled]: Automatically assign an IRQ for the VGA card installed. [Disabled]: The IRQ that was previously occupied by the VGA card will be available for new device. Allocate IRQ To USB: This item assigns an IRQ for the USB device connected. [Enabled]: Automatically assign an IRQ for the USB device connected.

  • Page 48: Pc Health Status

    “Hardware Doctor” utility. This utility is included in the “Driver & Utility CD” that came packed with this motherboard. IG-80 Series...

  • Page 49: Load Fail-Safe Defaults

    BIOS Setup 3-23 All Voltages, Fans Speed and Thermal Monitoring: These unchangeable items list the current status of the CPU and environment temperatures, fan speeds, and system power voltage. NOTE: The hardware monitoring features for temperatures, fans and voltages will occupy the I/O address from 294H to 297H.
  • Page 50 3-24 3-24 IG-80 Series IG-80 Series Chapter 3 Chapter 3...

  • Page 51: Chapter 4. Driver Installation

    All the necessary drivers are included within the Drivers & Utilities CD that came packed with the motherboard. The display shown in the following figure should appear after inserting the Drivers & Utilities CD into your CD-ROM drive, if not, enter...

  • Page 52: Setup Items

    • Utility Click to enter the sub-screen for installing software like Acrobat Reader, DirectX, and LoFormat utility. • ABIT Utility Click to enter the sub-screen to install utilities like Flash Menu (BIOS Update Utility) and Hardware Doctor. • Browse CD Browse the contents of this CD-ROM.

  • Page 53: Appendix A. How To Get Technical Support

    Also please make sure you have the latest drivers from your peripheral cards makers! 3. Check the ABIT Technical Terms Guide and FAQ on our Website. We are trying to expand and make the FAQs more helpful and information rich. Let us know if you have any suggestions.
  • Page 54 They should have reasonable return or refund policies. How they serve you is also a good reference for your next purchase. 6. Contacting ABIT. If you feel that you need to contact ABIT directly you can send email to the ABIT technical support department. First, please contact the support team for the branch office closest to you.
  • Page 55 ABIT Computer (U.K.) Corporation Ltd. Unit 3, 24-26 Boulton Road, Stevenage, Herts SG1 4QX, UK Tel: 44-1438-228888 Fax: 44-1438-226333 E-mail: sales@abitcomputer.co.uk AMOR Computer B.V. (ABIT's European Office) Jan van Riebeeckweg 15, 5928LG, Venlo, The Netherlands Tel: 31-77-3204428 Fax: 31-77-3204420 Sales: sales@abit.nl Web Site: http://www.abit.nl...
  • Page 56 8. Reporting Compatibility Problems to ABIT. Because of tremendous number of email messages we receive every day, we are forced to give greater weight to certain types of messages than to others. For this reason, any compatibility problem that is reported to us, giving detailed system configuration information and error symptoms will receive the highest priority.
