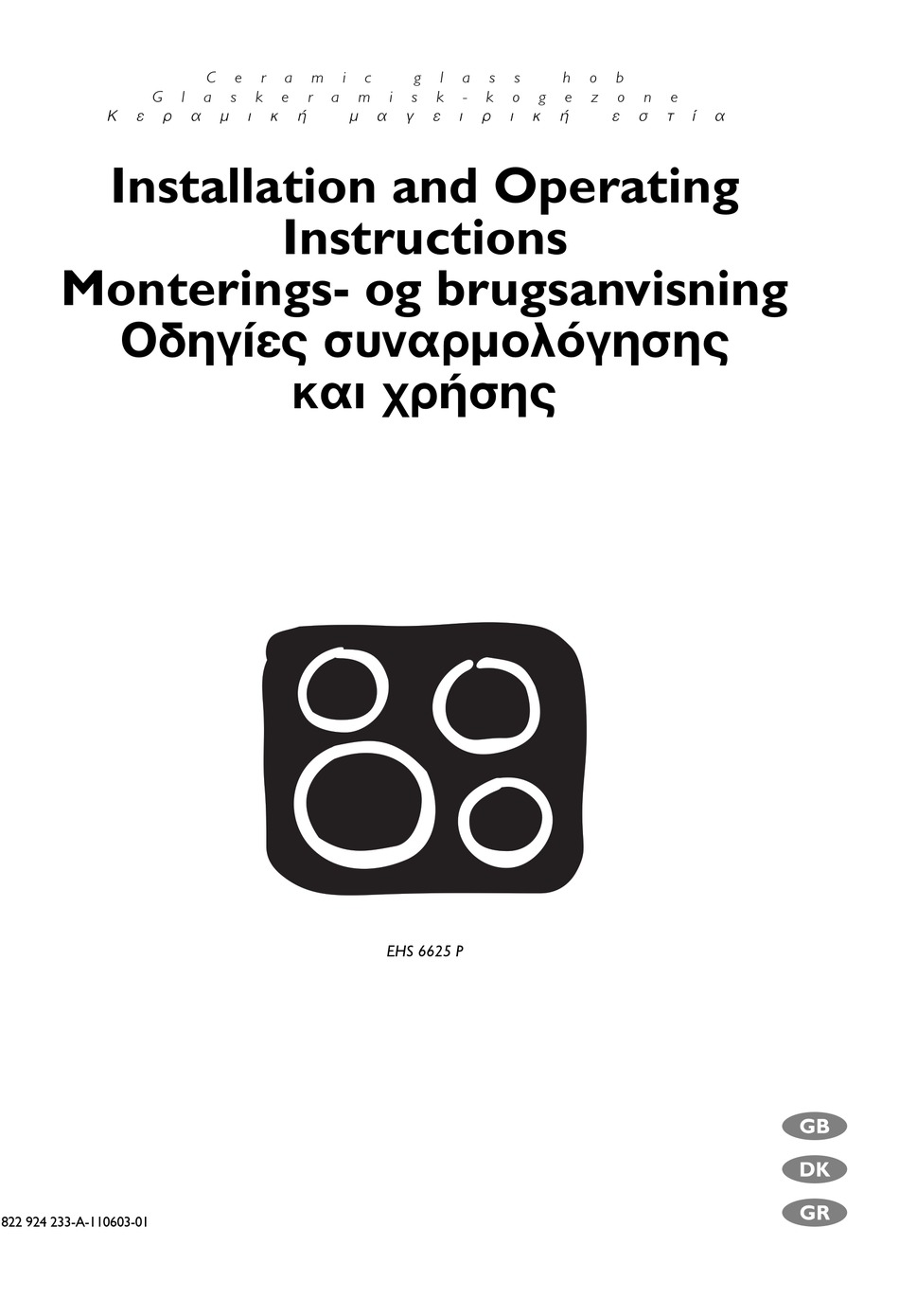

- Page 1 Ê å ñ á ì é ê Þ ì á ã å é ñ é ê Þ å ó ô ß á Installation and Operating Instructions Monterings- og brugsanvisning Ïäçãßåò óõíáñìïëüãçóçò êáé ÷ñÞóçò EHS 6625 P 822 924 233-A-110603-01...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety infor- mation” on the first few pages. Please retain these operating instructions for later reference. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions... -
Page 3: Table Of Contents
Contents Operating Instructions ............. Safety . -
Page 4: Operating Instructions
Operating Instructions Safety The safety aspects of this appliance comply with ac- Safety When Cleaning cepted technical standards and the German Appli- • For safety reasons do not clean the appliance with ance Safety Law. However, as manufacturers we a steam jet or high pressure cleaner. also believe it is our responsibility to familiarise you with the following safety instructions. -
Page 5: Disposal
Disposal Disposing of the packaging material All materials used can be fully recycled. Plastics are marked as follows: • >PE< for polyethylene, as used for the outer wrap- ping and the bags inside. • >PS< for polystyrene foam, e.g., as used for the padding materials. -
Page 6: The Key Features Of Your Appliance
The Key Features of Your Appliance • Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and 4 rapid response cooking zones. The particularly powerful radiant heater elements significantly shorten the amount of time taken for the zones to heat up. •... -
Page 7: Description Of The Appliance
Description of the Appliance Cooking zones and control panel Single ring cooking zone Single ring cooking zone 1200W 1800W Single ring cooking zone Control panel Single ring cooking zone 2300W 1200W „Timer“ with control display Lock Cooking zone selection with displays for Heat setting Mains button heat setting/residual heat... -
Page 8: Digital Displays
Digital Displays The four display fields that are assigned to the four cooking zones display: – _, after being switched on and when the safety function causes an automatic cut-out, – 0 when a cooking zone is selected, – 1 to 9, depending on the selected heat setting, –... -
Page 9: Before Using For The First Time
Before Using for the First Time Initial Cleaning Wipe the ceramic glass surface with a damp cloth. Important: Do not use any caustic, abrasive cleaners! The surface could be damaged. Operating the Hob When a cooking zone is switched on, it may hum briefly. -
Page 10: Cooking Zone Selection
Cooking Zone Selection To select the required cooking zone touch the corre- sponding sensor field for approx. one second. A zero with a decimal point will light up in the appro- priate cooking zone display window 0. The decimal point indicates that settings may only be made for this cooking zone. -
Page 11: Switching Off A Cooking Zone
Switching off a Cooking Zone 1. Select the required cooking zone with the cooking zone sensor fields. 2. Touch sensor fields + and - simultaneously to switch off or turn sensor field - back to zero. A cooking zone may only be switched off when the decimal point is on in the cooking zone display. -
Page 12: Cooking With The Automatic Warm Up Function
Cooking with the Automat- ic Warm up Function All four of the hob's cooking zones can be controlled in nine stages and have an automatic warm up func- tion: – 1, lowest heat setting – 9, highest heat setting – a, automatic warm up function When you select the required heat setting using the + sensor field, the cooking zone will work for a spe- cific time on full power and then switch automatically... -
Page 13: Cooking Without The Automatic Warm Up Function
Cooking without the Auto- matic Warm up Function If you wish to use the cooking zone without automat- ic warm up, select the required heat setting with the - sensor field. 1. Switch on the appliance and select the desired cooking zone using the cooking zone selection buttons. -
Page 14: Timer
Timer A cooking duration can be set with the integrated timer for all cooking zones. When the end of the cooking duration is reached, the cooking zone switches itself off automatically. 1. Using the cooking zone sensor field, select the re- quired cooking zone and set the required heat set- ting. - Page 15 Displaying the remaining cooking time If you select a cooking zone which is in timer mode, the cooking time still remaining appears in the timer display window. Using the timer to measure short periods of time (“Minute Minder”). Important! None of the cooking zones should be set with the Timer! 1.
-
Page 16: Uses, Tables And Tips
Uses, Tables and Tips Pans The better the pan, the better the results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base. -
Page 17: Advice On Cooking With And Without Automatic Warm Up
Advice on Cooking with and without Automatic Warm up The automatic warm up function is suita- ble for: • dishes that start off cold, are heated up at high power and do not need to be continually watched when cooking on the selected heat setting, •... -
Page 18: Typical Heat Settings
Typical Heat Settings The information given in the following tables is for guidance. The heat setting required for cooking de- pends on the quality of the pans and on the type and quantity of food. Switch Automatic Warm Cooking Examples of Usage Setting Up Time (Min.) -
Page 19: Cleaning And Care
Cleaning and Care Important: Cleaning agents must not come into contact with the hot ceramic glass sur- face! All cleaning agents must be removed with plenty of clean water after cleaning be- cause they can have a caustic effect when the rings are next heated! Do not use any aggressive cleaners such as grill or oven sprays, coarse scourers or abra-... -
Page 20: Problem Dirt
Problem Dirt 1. Remove burnt-on sugar, melted plastic, aluminium foil or other meltable materials with a glass scraper immediately and while still hot. Important: There is a risk of burning yourself when the glass scraper is used on a hot cook- ing zone! 2. -
Page 21: What To Do If
What to do if … Rectifying faults … a cooking zone cannot be switched off? It is possible that faults have been caused by a minor Check whether error, which you can correct yourself with the help of – the touch fields are partially covered by a damp the following instructions. -
Page 22: Installation Instructions
Installation Instructions Regulations, Standards, Important! The new appliance may only be in- stalled and connected by qualified person- Directives nel. Please observe this instruction, otherwise the This appliance meets the following standards: warranty will not cover any damage that may •... -
Page 23: Safety Instructions For The Installer
Safety Instructions for the Installer • A device must be provided in the electrical installa- tion which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be re- moved from the holder), earth leakage trips and contactors. -
Page 24: Electrical Connection
Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. The appli- ance also works perfectly on older networks with AC220V~. -
Page 25: Service
Service In the “What to do if …” section a number of mal- functions are listed that you can rectify yourself Look there first if a fault occurs. Is it a technical fault? If so, please contact your customer service centre. (You will find addresses and telephone numbers in the section “Customer Service Centres”.) Always prepare in advance for the discussion. -
