Fujitsu fi-6670 Getting Started Manual
Image scanner
Hide thumbs
Also See for fi-6670:
- Operator's manual (194 pages) ,
- Getting started manual (26 pages) ,
- Brochure (2 pages)
Table of Contents
Advertisement
Quick Links
fi-
fi-
fi-
fi-
6670/
6670/
Getting Started
Getting Started

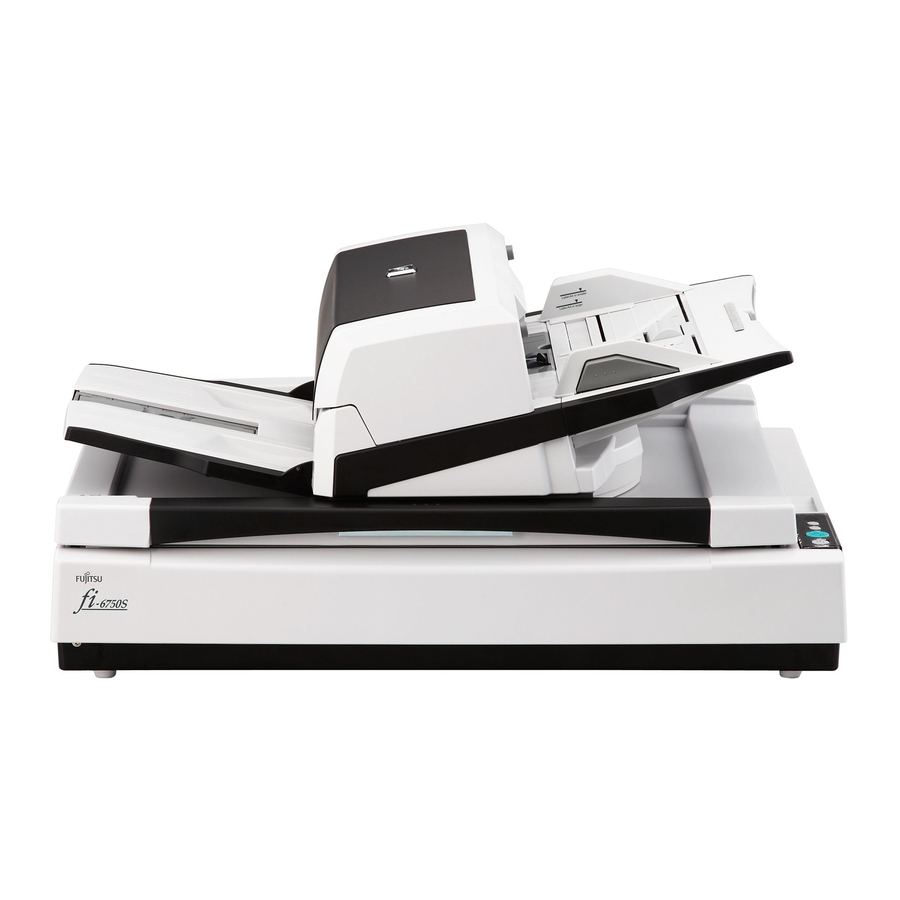

Thank you for purchasing a fi-6670 / fi-6770 / fi-6750S Color Scanner series. This Getting Started is the
startup guide that summarizes the preparatory actions needed before use. Be sure to thoroughly read this
manual before you start using the scanner.
Read the Operator's Guide (PDF) included in the Setup DVD-ROM for information about the scanner's
operation procedures, daily care, consumables replacement, and troubleshooting.
Microsoft, Windows, Windows Server, Windows Vista, Excel, and SharePoint are either registered trade-
marks or trademarks of Microsoft Corporation in the United States and/or other countries.
Word is a product of Microsoft Corporation in the United States.
ISIS is a registered trademark or trademark of EMC Corporation in the United States.
ABBYY™ FineReader™ Engine © ABBYY. OCR by ABBYY
ABBYY and FineReader are trademarks of ABBYY.
ScanSnap, ScanSnap Manager, and PaperStream are registered trademarks of PFU LIMITED in Japan.
Other company names and product names are the registered trademarks or trademarks of the respective
companies.
Conventions
Symbols Used In This Manual
For notational conventions, the following symbols are used in
this manual.
This symbol alerts operators to particularly impor-
tant information. Be sure to read this information.
This symbol alerts operators to helpful advice
regarding operation.
Naming Conventions in This Manual
■ Scanners
The scanners are indicated as follows:
Model
fi-6670
fi-6770/fi-6750S
The explanation in this manual bases on the following
models:
•ADF type: fi-6670
•Flatbed type: fi-6770
fi-
fi-
6770/
6750S
6770/
6750S
Indication
ADF type
Scanner
Flatbed type
Image Scanner
Image Scanner
■ Operating Systems and Software Products
The OSs and products in this manual are indicated as
follows:
Product
®
Windows
2000 Professional
(Service Pack 4 or later)
®
Windows
XP Home Edition
(Service Pack 3 or later)
®
Windows
XP Professional
(Service Pack 3 or later)
®
Windows
XP Professional x64
Edition (Service Pack 2 or later)
®
Windows Server
2003, Standard
Edition
®
Windows Server
2003, Standard
x64 Edition
®
Windows Server
2003 R2, Standard
Edition (Service Pack 2 or later)
®
Windows Server
2003 R2, Standard
x64 Edition (Service Pack 2 or later)
1
P3PC-2242-05EN
July, 2013
© PFU LIMITED 2008-2013
Indication
Windows
Windows
2000
1
*
Windows
XP
Windows
Server
2003
Advertisement
Table of Contents
Related Manuals for Fujitsu fi-6670
Summary of Contents for Fujitsu fi-6670
-
Page 1: Getting Started
Getting Started Getting Started Thank you for purchasing a fi-6670 / fi-6770 / fi-6750S Color Scanner series. This Getting Started is the startup guide that summarizes the preparatory actions needed before use. Be sure to thoroughly read this manual before you start using the scanner. -
Page 2: Safety Information
Safety Information Product Indication ® Windows Windows Windows Vista Home Basic The attached "Safety Precautions" manual describes impor- Vista (32/64-bit) (Service Pack 1 or later) tant details for users to use this product safely and correctly. ® Windows Vista Home Premium Read the Safety Precautions thoroughly before you start using (32/64-bit) (Service Pack 1 or later) this product. - Page 3 Make sure the scanner package contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
-
Page 4: Installing The Scanner
Installing the Scanner The following describes how to install the scanner. Place the scanner at its installation site. The outer dimensions and the spaces required for installing the respective scanner types are as follows: (Unit: mm/inches) ADF type Flatbed type 640 (25.1) 390 (15.3) 300 (11.8) - Page 5 3) Gently close the Document Cover. 4) Change the position of the ADF. • Be careful not to pinch your fingers when moving the ADF. AUTION • Never rotate the ADF by more than 180 degree. Doing so may damage the ADF. The ADF can be set to any of the following three positions: After repositioning the ADF, be sure that the ADF is firmly locked to the new position.
-
Page 6: Connecting The Cables
The following describes how to connect the cables between the scanner and your computer. The type of the connector for the cable depends on the scanner model you use. Confirm the scanner model and use the correct cable. ADF type fi-6670 USB or SCSI connection SCSI ID SCSI cable... -
Page 7: Power Outlet
On the scanner side, use a 50-pin high-density type SCSI cable. • SCSI card: Find the recommended SCSI card information on the Fujitsu website (FAQ): http://www.fujitsu.com/global/support/computing/peripheral/scanners/scsi/ • In a SCSI daisy chain formation, connect the scanner so that it is the terminated device. -
Page 8: Installing The Software
■PaperStream IP (ISIS) Driver Conforms to the ISIS standard. Used when you operate the scanner using ISIS-compliant applications. ■2D Barcode for PaperStream [fi-6670/fi-6770] This option can recognize two dimensional codes. Can be used with the PaperStream IP (TWAIN) driver, the PaperStream IP (ISIS) driver, or Paper- Stream Capture. -
Page 9: Installing The Bundled Software
■Other Software (Legacy) Software that were bundled with older versions of scanners are also included. • TWAIN Driver Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN-compliant appli- cations. • ISIS Driver Conforms to the ISIS standard. Used when you operate the scanner using ISIS-compliant applications. •... - Page 10 Insert the Setup DVD-ROM into the DVD drive. The [fi Series Setup] screen appears. If the [fi Series Setup] screen does not appear, double-click "Setup.exe" in the Setup DVD-ROM via Windows Explorer or [Computer]. Click the scanner model. Click the [Installation (Recommended)] button. Follow the instructions on the screen to proceed with the installation.
-
Page 11: Test-Scanning Documents
Test-Scanning Documents Using ScandAll PRO, you can test-scan documents to check if they are scanned with the ADF correctly. For how to scan documents with the flatbed, refer to “Chapter 4 Various Documents” in the Operator’s Guide. For details about scanning documents by using PaperStream Capture and the PaperStream IP driver, refer to the help of each software. - Page 12 3) Pull out the Stacker to the length of the document, and then raise the Stopper. Launch ScandAll PRO. Select the [start] menu [All Programs] [Fujitsu ScandAll PRO] [ScandAll PRO]. Select the [Tool] menu [Preferences]. The [Setup] dialog box appears.
- Page 13 Clear the [Save to file] checkbox. Click the [Scanner Setting] button. The scanner driver’s setting dialog box appears. Configure scanner settings such as the resolution and paper size. ■ TWAIN scanner driver Configure scan settings, and then click the [OK] button. ■...
