Fujitsu FI-6750S User Manual

Image scanner
Hide thumbs Also See for FI-6750S:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual , User Manual
fi-6670
A
/fi-6770
(
)

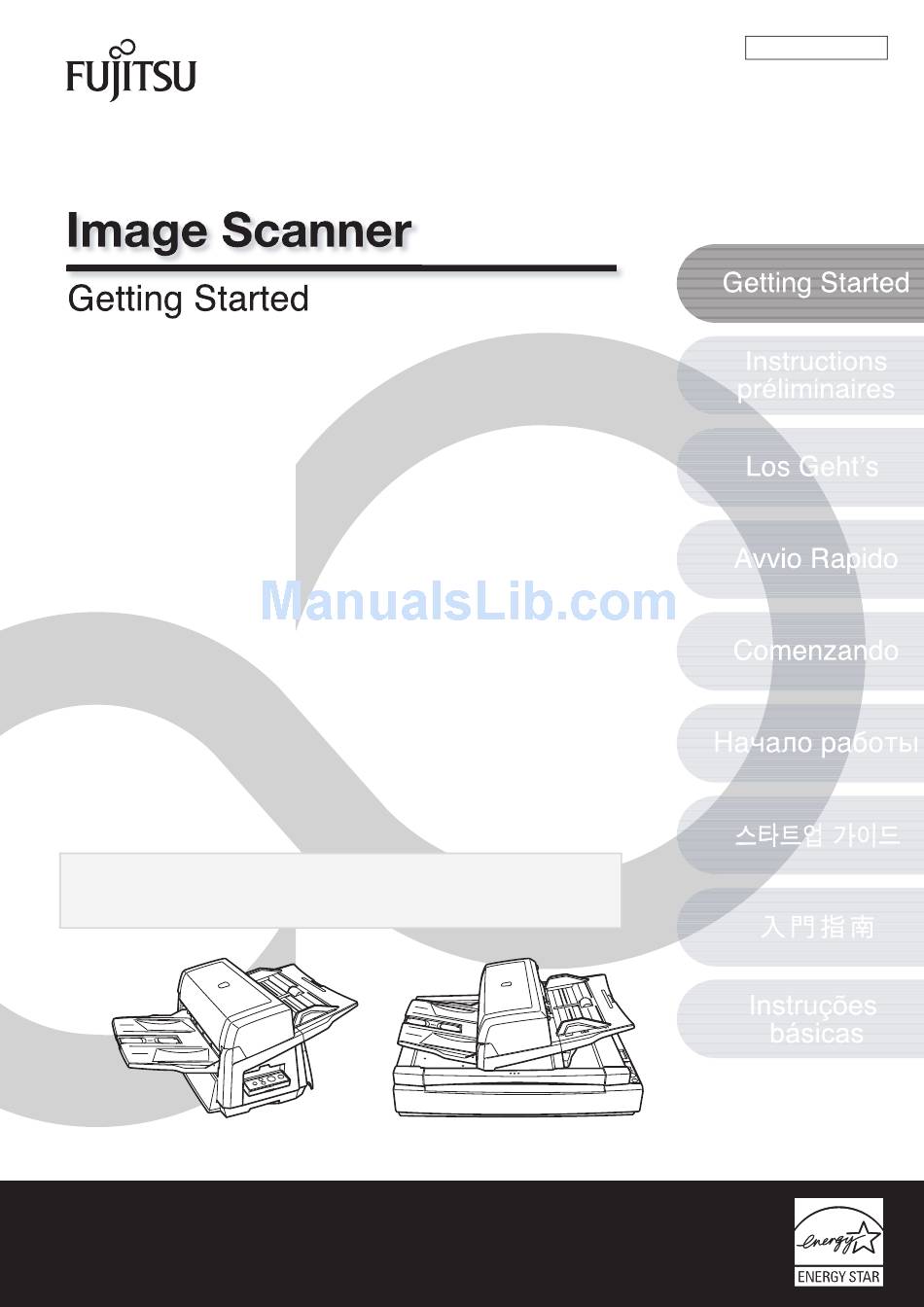

Thank you for purchasing a fi-6670(A) / fi-6770(A) / fi-6750S Color Scanner
series. This Getting Started is the startup guide that summarizes the preparatory
actions needed before use. Be sure to thoroughly read this manual before you
start using the scanner.
Contents
Introduction....................................................................2
Regulatory Information .................................................2
Conventions...................................................................3
Precautions ....................................................................4
Safety Information .........................................................5
1 Preparation.....................................................................8
2 Installing the Scanner .................................................12
3 Connecting the Cables................................................14
4 Installing the Scanner Software .................................16
5 Test-Scanning Documents .........................................22
Read the Operator's Guide (PDF) included in the SETUP DVD-ROM for
information about the scanner's operation procedures, daily care, consumables
replacement, and troubleshooting.
A
/fi-6750S
(
)
P3PC-2242-01EN

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu FI-6750S

Summary of Contents for Fujitsu FI-6750S

  • Page 1: Table Of Contents

    /fi-6770 Thank you for purchasing a fi-6670(A) / fi-6770(A) / fi-6750S Color Scanner series. This Getting Started is the startup guide that summarizes the preparatory actions needed before use. Be sure to thoroughly read this manual before you start using the scanner.

  • Page 2: Introduction

    Introduction Thank you for purchasing our fi-6670(A)/fi-6770(A)/fi-6750S series Color Image Scanner. Scanner Models This manual covers the following five scanner models, each featur- ing as: Model Description fi-6670 Equipped with an automatic document fi-6670A feeder (ADF) for automatic document feeding and duplex scanning.

  • Page 3: Conventions

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Bescheimigung des Herstellers/ Importeurs Für den fi-6670(A)/fi-6770(A)/fi-6750S wird folgendes bescheinigt: • In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört • Maschinenlärminformationsverordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger, gemäß...

  • Page 4: Precautions

    The screen examples used in this manual are of FUJITSU TWAIN 32 scanner driver, FUJITSU ISIS scanner driver, ScandAll PRO and QuickScan Pro (which are image capturing software), and Adobe Acrobat.

  • Page 5: Safety Information

    If the scanner is damaged for any reason, immedi- ately disconnect the power plug from the Power outlet. Then, contact the store where you bought the scanner or an authorized FUJITSU scanner service provider. Do not put liquids inside the scanner.
  • Page 6 Unplug the scanner when a trouble occurs. Immediately unplug the scanner when a trouble occurs. Never cut the ground connection until the scanner is unplugged from the Power outlet. Do not disassemble the scanner. Do not take apart or modify the scanner. The inside of the scanner contains high-voltage compo- nents.
  • Page 7 Safety Information Disconnect the power plug from the Power outlet when the scanner is not in use for a long period of time. When the scanner is not going to be used for a long period of time, be sure to disconnect the power plug from the Power outlet.

  • Page 8: Preparation

    Make sure the scanner package contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
  • Page 9 ■ fi-6770/fi-6770A/fi-6750S (Flatbed type) ADF (automatic document feeder) Stacker Stacker Extension Stopper Transport Lock ADF Lock Screw Lock Screw Storage Hole Document Bed ADF Open Button Ventilation Port Power Connector Main Power Switch 1 Preparation Chute Roller Cover ADF Paper Chute...

  • Page 10: Functions Of Operator Panel

    For information on how to configure settings for scanning using the [Scan/Stop] or [Send to] button, refer to the help topics the FUJITSU TWAIN 32 scanner driver contained in the SETUP DVD-ROM, or the section “Using the Scanner Buttons to Start A Scan Quickly” in the Operator’s Guide.

  • Page 11: Indications On The Function Number Display

    “E”, “F”, “C”, “H”, “A”, or “L” and an “error number” are displayed alternately. When the error number is displayed, turn the Main Power Switch OFF and then ON again. If the error persists after this, contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider.

  • Page 12: Installing The Scanner

    Installing the Scanner The following describes how to install the scanner. Place the scanner at its installation site. The outer dimensions and the spaces required for installing the respective scanner types are as follows: ADF type 432 (17.0) (27.0) Unlock the Transport Lock (Flatbed type only). Using a coin or similar, rotate the Transport Lock counterclockwise by 90 degree to unlock it.
  • Page 13 3) Gently close the Document Cover. 4) Change the position of the ADF. • Be careful not to pinch your fingers when moving the ADF. AUTION • Never rotate the ADF by more than 180 degree. Doing so may damage the ADF. The ADF can be set to any of the following three positions: After repositioning the ADF, be sure that the ADF is firmly locked to the new position.

  • Page 14: Connecting The Cables

    USB or SCSI connection (when Kofax VRS is used) SCSI cable USB cable fi-6770 fi-6770A fi-6750S SCSI ID USB cable SCSI cable USB or SCSI connection USB or SCSI connection USB or SCSI connection (when Kofax VRS is used)
  • Page 15 SCSI Connector 1: 50-pin high-density type SCSI Connector 2: 68-pin high-density type • SCSI card: Find the recommended SCSI card information on the Fujitsu website (FAQ): http://www.fujitsu.com/global/support/computing/peripheral/scanners/scsi/ • In a SCSI daisy chain formation, connect the scanner so that it is the terminated device.

  • Page 16: Installing The Scanner Software

    Shows the error status and the action to take when an error occurs. Can be installed together with the scanner drivers (FUJITSU TWAIN 32/FUJITSU ISIS). Note this manual will not work if you use Kofax VRS on the fi-6670A or fi-6770A.
  • Page 17 *1: The product ID used for its installation differs from the official product name. It is shown in [ ]. The software programs and their supported OSs are as follows: Windows 2000 Professional FUJITSU TWAIN32 FUJITSU ISIS Software Operation Panel...
  • Page 18 Be sure to log on as a user with "Administrator" privileges. Insert the SETUP DVD-ROM into your DVD drive. The [FUJITSU Image Scanner Setup] screen appears. If this screen does not appear, find "Install.exe" in the DVD-ROM using "Windows Explorer" or "Computer"...
  • Page 19 Click the [INSTALL (Recommended)] button. The list of scanners appears. Select the scanner model name you will be using. Then, click the [Next] button. Install the software, following the on-screen instructions. INSTALL (Custom) This menu lets you select and install the required software programs one by one. The procedure for custom-installing the required software is as follows: If an old version of the software is installed already, uninstall it first.
  • Page 20 Insert the SETUP DVD-ROM into your DVD drive. The [FUJITSU Image Scanner Setup] screen appears. If this screen does not appear, find "Install.exe" in the DVD-ROM using "Windows Explorer" or "Computer" and execute it directly. Click the [INSTALL (Custom)] button.
  • Page 21 The "Adobe Acrobat 8.1.0 Standard - Setup" dialog box appears. Click the [Next] button. Install Adobe Acrobat, following the on-screen instructions. For information about how to operate Adobe Acrobat, refer to the Help topics in Adobe Acrobat. 4 Installing the Scanner Software ® ® Acrobat Installer for Fujitsu...

  • Page 22: Test-Scanning Documents

    Test-Scanning Documents Using ScandAll PRO, you can test-scan documents to check if they are scanned with the ADF correctly. For how to scan documents with the flatbed, refer to “Chapter 5 Various Documents” in the Operator’s Guide. The following describes how to test-scan a document: Turn on the scanner.
  • Page 23 Model TWAIN FUJITSU TWAIN32 fi-6670 FUJITSU fi-6670dj fi-6670A fi-6770 FUJITSU fi-6770dj fi-6770A fi-6750S FUJITSU fi-6750Sj [Fujitsu ScandAll PRO] [Select Scanner]. ISIS/VRS FUJITSU ISIS Kofax VRS Fujitsu fi-6670 Kofax VRS Scanner Fujitsu fi-6770 Fujitsu fi-6750S 5 Test-Scanning Documents [Fujitsu ScandAll PRO].
  • Page 24 The scanner driver’s setting dialog box appears. Configure scanner settings such as the resolution and paper size. ■ FUJITSU TWAIN 32 scanner driver Configure scan settings, and then click the [OK] button. The setting dialog box of the scanner driver may be displayed again after the [OK] button is clicked.
  • Page 25 ■ Kofax VRS Configure scan settings, and then click the [OK] button. In the [Scan Settings] dialog box, click the [Scan] button. The scanned document images are displayed in the ScandAll PRO window. Refer to “Chapter 8 Troubleshooting” in the Operator’s Guide, in case you see a number and an alphabet displayed on the Function Number Display.
  • Page 26 Image Scanner Getting Started P3PC-2242-01EN Issue Date: May 2008 Issued by: PFU LIMITED • Copying of the contents of this manual in whole or in part and copying of the scanner application is prohibited under the copyright • The contents of this manual are subject to change without notice.
