fi-6670/fi-6770/fi-6750S
Thank you for purchasing a fi-6670 / fi-6770 / fi-6750S Color Scanner series.
This Getting Started is the startup guide that summarizes the preparatory
actions needed before use. Be sure to thoroughly read this manual before you
start using the scanner.
Contents
Introduction....................................................................2
Regulatory Information .................................................3
Conventions...................................................................3
Precautions ....................................................................4
Safety Information .........................................................5
1 Preparation.....................................................................8
2 Installing the Scanner .................................................13
3 Connecting the Cables................................................15
4 Installing the Scanner Software .................................17
5 Test-Scanning Documents .........................................22
Read the Operator's Guide (PDF) included in the Setup DVD-ROM for
information about the scanner's operation procedures, daily care, consumables
replacement, and troubleshooting.
P3PC-2242-04EN
Advertisement
Table of Contents
Related Manuals for Fujitsu fi-6670
Summary of Contents for Fujitsu fi-6670
-
Page 1: Table Of Contents
P3PC-2242-04EN fi-6670/fi-6770/fi-6750S Thank you for purchasing a fi-6670 / fi-6770 / fi-6750S Color Scanner series. This Getting Started is the startup guide that summarizes the preparatory actions needed before use. Be sure to thoroughly read this manual before you start using the scanner. -
Page 2: Introduction
Description Kofax VRS Instal- Explains about the precautions for lation Guide (PDF) installing Kofax VRS and other features Thank you for purchasing our fi-6670/fi-6770/fi-6750S series (*1) such as the VRS Professional features. Color Image Scanner. Included in the Setup DVD-ROM. -
Page 3: Regulatory Information
Regulatory Information ® ENERGY STAR PFU LIMITED, a Fujitsu company, has deter- FCC Declaration mined that this product meets the ENERGY ® STAR guidelines for energy efficiency. This equipment has been tested and found to comply with the ® ENERGY STAR... -
Page 4: Precautions
Example: Select [Tool] [Scan Setting]. Maintenance The user must not perform repairs on this scanner. Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to make repairs to this product. -
Page 5: Safety Information
It may also include the drawing that ing or scratches, contact the store where you shows the specific instruction. purchased the scanner or an authorized FUJITSU scanner service provider. ARNI N G The following are important warnings described in this manual. - Page 6 Do not connect to outlet. Then, contact the store where you multiple-power strips. bought the scanner or an authorized FUJITSU Use the scanner only at the indicated power scanner service provider. Pay particular atten- voltage and current. Improper power voltage or tion to this warning in households where there current might cause fire or electric shock.
- Page 7 AUTION Avoid any contact when scanner is in use. Avoid getting a sleeve, necktie, or hair caught The following are important cautions described in this manual up in any scanner mechanism during scanning since this may cause injuries. Do not install the scanner on an Disconnect the power plug from the unstable work table.
-
Page 8: Preparation
Make sure the scanner package contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider. -
Page 9: Part Names And Functions

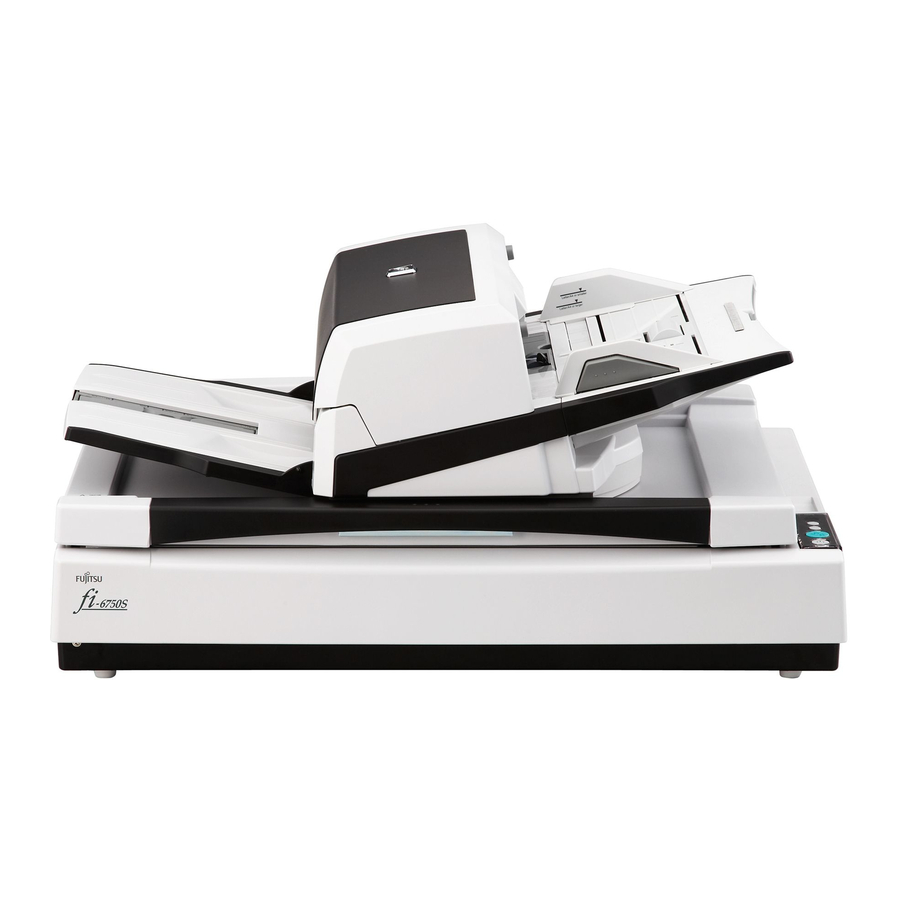

This section describes the scanner parts and their functions. For information on the function of each part, refer to “Section 1.2 Scanner Parts and Their Functions” in the Operator’s Guide. ■ fi-6670 (ADF type) Chute Roller Cover ADF (automatic document feeder) - Page 10 ■ fi-6770/fi-6750S (Flatbed type) Chute Roller Cover ADF (automatic document feeder) ADF Paper Chute Stacker Paper Chute Extension Stacker Extension Side Guide Stopper Side Guide Button Operator Panel Flatbed Transport Lock Document Cover ADF Lock Screw Handle Document Holding Lock Screw Storage Hole Document Bed ADF Open Button fi-6770...
-
Page 11: Functions Of The Operator Panel
■ Model-Common Parts Brake Roller (x1) (consumable) Pick Arm (x1) Brake Roller Holder (x1) Ultrasonic Sensor (x2) Feed Roller (x4) (for multifile detection) Plastic Roller (x4) Chute Roller (x1) (Usually covered with a hood) Glass (x2) Pick Roller Cover (x1) Sheet Guide (x2) Pick Roller (1 x 2 types) (consumable) Functions of the Operator Panel... -
Page 12: Flatbed Type
“E”, “F”, “C”, “H”, “A”, or “L” and an “error number” are displayed alternately. When the error number is displayed, turn the Main Power Switch OFF and then ON again. If the error persists after this, contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider. -
Page 13: Installing The Scanner
Installing the Scanner The following describes how to install the scanner. Place the scanner at its installation site. The outer dimensions and the spaces required for installing the respective scanner types are as follows: (Unit: mm/inches) ADF type Flatbed type 640 (25.1) 390 (15.3) 300 (11.8) - Page 14 3) Gently close the Document Cover. 4) Change the position of the ADF. • Be careful not to pinch your fingers when moving the ADF. AUTION • Never rotate the ADF by more than 180 degree. Doing so may damage the ADF. The ADF can be set to any of the following three positions: After repositioning the ADF, be sure that the ADF is firmly locked to the new position.
-
Page 15: Connecting The Cables
The following describes how to connect the cables between the scanner and your computer. The type of the connector for the cable depends on the scanner model you use. Confirm the scanner model and use the correct cable. ADF type fi-6670 USB or SCSI connection SCSI ID SCSI cable... -
Page 16: Power Outlet
On the scanner side, use a 50-pin high-density type SCSI cable. • SCSI card: Find the recommended SCSI card information on the Fujitsu website (FAQ): http://www.fujitsu.com/global/support/computing/peripheral/scanners/scsi/ • In a SCSI daisy chain formation, connect the scanner so that it is the terminated device. -
Page 17: Installing The Scanner Software
Installing the Scanner Software Brief Information on the Bundled Software To scan documents with this scanner, you must install a scanner driver for operating the scanner as well as scanning software (hereinafter called the "application") for launching the driver and performing a scan. - Page 18 ■QuickScan Pro (trial) [QuickScan Pro (Trial)] (*1) Conforms to the ISIS standard. By using the ISIS scanner driver together with QuickScan Pro you can read scanned documents and create their images. This bundled QuickScan Pro is a trial version, and can be executed 30 times before it is disabled. You will need to purchase the full product version if you wish to continue using it.
-
Page 19: Installing The Bundled Software
Select your scanner model, and then install the required software. INSTALL (Recommended) The software programs to be installed differ depending on the scanner model to use. The scanner models and their installable software programs are as follows: fi-6670/fi-6770 fi-6750S TWAIN ISIS... - Page 20 Be sure to log on as a user with "Administrator" privileges. Insert the Setup DVD-ROM into your disk drive. The [FUJITSU Image Scanner Setup] screen appears. If this screen does not appear, find "AutoPlayer.exe" in the Setup DVD-ROM using "Windows Explorer"...
- Page 21 Be sure to log on as a user with "Administrator" privileges. Insert the Setup DVD-ROM into your disk drive. The [FUJITSU Image Scanner Setup] screen appears. If this screen does not appear, find "AutoPlayer.exe" in the Setup DVD-ROM using "Windows Explorer"...
-
Page 22: Test-Scanning Documents
Test-Scanning Documents Using ScandAll PRO, you can test-scan documents to check if they are scanned with the ADF correctly. For how to scan documents with the flatbed, refer to “Chapter 4 Various Documents” in the Operator’s Guide. The following describes how to test-scan a document: Turn on the scanner. - Page 23 3) Pull out the Stacker to the length of the document, and then raise the Stopper. Launch ScandAll PRO. Select the [start] menu [All Programs] [Fujitsu ScandAll PRO] [ScandAll PRO]. Select the [Tool] menu [Preferences]. The [Setup] dialog box appears.
- Page 24 When using Kofax VRS for the first time, the [Register Kofax VRS] screen appears. User regis- tration is required to obtain support information from Kofax as well as to upgrade the software, though Kofax VRS can still be used without user registration. To register later, select [Start] menu - [All Programs] - [Kofax VRS] - [Kofax VRS Administration Console], and follow the on-screen instructions.
- Page 25 ■ ISIS scanner driver Configure scan settings, and then click the [OK] button. ■ Kofax VRS Configure scan settings, and then click the [OK] button. In the [Scan Settings] dialog box, click the [Scan] button. The scanned document images are displayed in the ScandAll PRO window. Refer to “Chapter 7 Troubleshooting”...
- Page 26 Image Scanner Getting Started P3PC-2242-04EN Issue Date: August 2012 Issued by: PFU LIMITED • Copying of the contents of this manual in whole or in part and copying of the scanner application is prohibited under the copyright • The contents of this manual are subject to change without notice.
