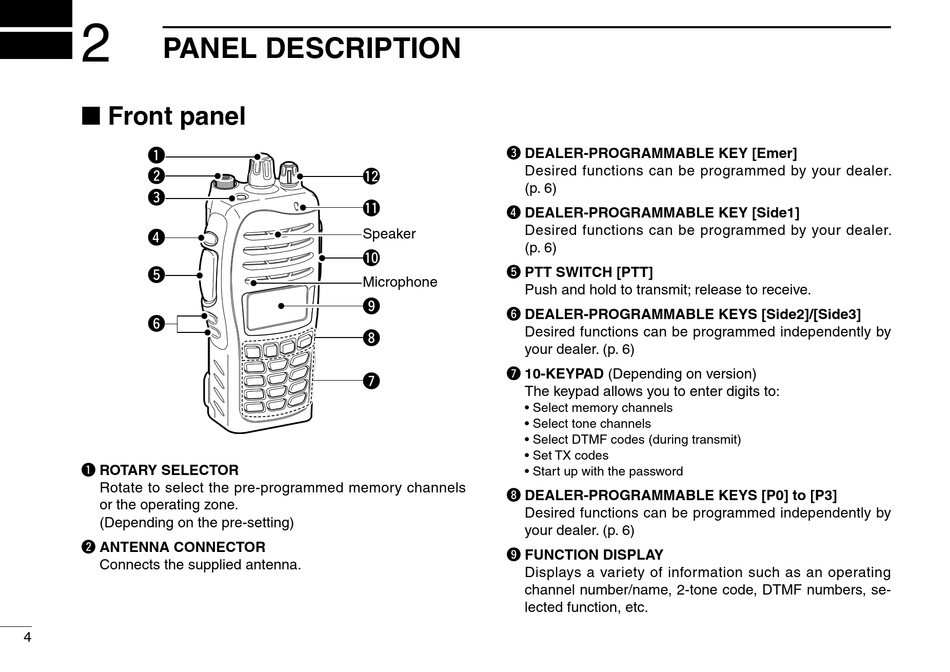

PANEL DESCRIPTION

■ Front panel

q
w
e
r
t
y
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels
or the operating zone.
(Depending on the pre-setting)
w ANTENNA CONNECTOR
Connects the supplied antenna.
4
e DEALER-PROGRAMMABLE KEY [Emer]
Desired functions can be programmed by your dealer.
!2
(p. 6)
!1
r DEALER-PROGRAMMABLE KEY [Side1]
Desired functions can be programmed by your dealer.
Speaker
(p. 6)
!0
t PTT SWITCH [PTT]
Microphone
Push and hold to transmit; release to receive.
o
y DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
i
your dealer. (p. 6)
u 10-KEYPAD (Depending on version)
u
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. (p. 6)
o FUNCTION DISPLAY
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers, se-
lected function, etc.
