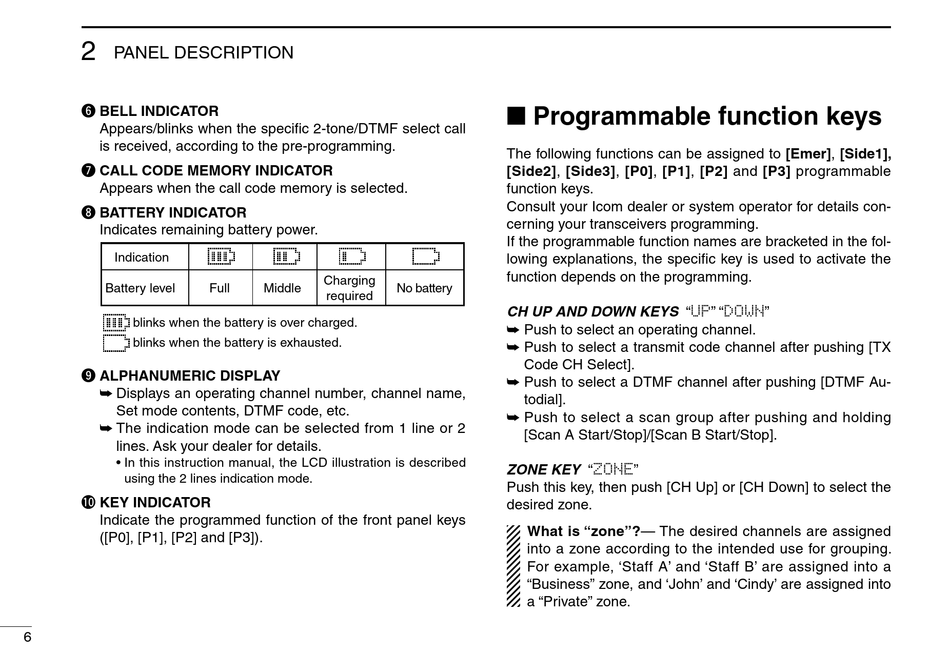

2
PANEL DESCRIPTION
y BELL INDICATOR
Appears/blinks when the specific 2-tone/DTMF select call
is received, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
i BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level
blinks when the battery is over charged.
blinks when the battery is exhausted.
o ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!0 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P0], [P1], [P2] and [P3]).
6
Charging
Full Middle
required
■ Programmable function keys
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function depends on the programming.
No battery
CH UP AND DOWN KEYS "UP" "DOWN"
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop].
ZONE KEY "ZONE"
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is "zone"?— The desired channels are assigned
into a zone according to the intended use for grouping.
For example, 'Staff A' and 'Staff B' are assigned into a
"Business" zone, and 'John' and 'Cindy' are assigned into
a "Private" zone.
