DESCRIPTION
The C2N-IO is a very compact device that adds control ports to any Crestron
3-Series™ control system. It connects via the Cresnet ® control network and provides one
RS-232, one IR and two relay control ports. It can be mounted to any flat surface using two
screws or adhesive reclosable fastener (3M ® Dual Lock ® included).
The C2N-IO is ideally designed for use with a Crestron TPCS-4SM or TPCS-4SMD touch
screen control system, providing an advanced wall mount control package that fits in a 2-gang
US or UK electrical box. The C2N-IO can be mounted inside the electrical box, behind the
touch screen or it can be installed remotely, requiring just one Cresnet control cable for power
and communications.
Specifications
Specifications for the C2N-IO are listed in the following table.
C2N-IO Specifications
SPECIFICATION DETAILS
Communications
Cresnet Cresnet slave device, 2-Series and 3-Series compatible
RS-232 Supports 2-way device control and monitoring up to
115.2k baud with software handshaking
IR/Serial Suports 1-way device control via infrared up to 1.2 MHz
or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
Power
Cresnet Power Usage 1 Watt (42 mA @ 24 Volts DC)
Default NET ID A5*
Version 37.05.001 or later
Device Database
Crestron Database Version 28.05.001 or later
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 0% to 90% RH (non-condensing)
Heat Dissipation 3.5 BTU/Hr
Enclosure Metal, freestanding or surface mount;
Fits inside 2-gang electrical box, 1.38 in (35 mm)
minimum internal box depth required for C2N-IO and
TPCS-4SM(D) combined
Dimensions
Height 2.25 in (58 mm)
Width 3.50 in (89 mm), 4.38 in (112 mm) with bracket
Depth 0.83 in (21 mm)
Weight 3 oz. (75 g)
Included Accessories Mounting bracket, Dual Lock fastener
* Refer to "Identity Code" in the last column on this page for details.
Physical Description
This section provides information on the connections, controls and indicators available on
your C2N-IO.

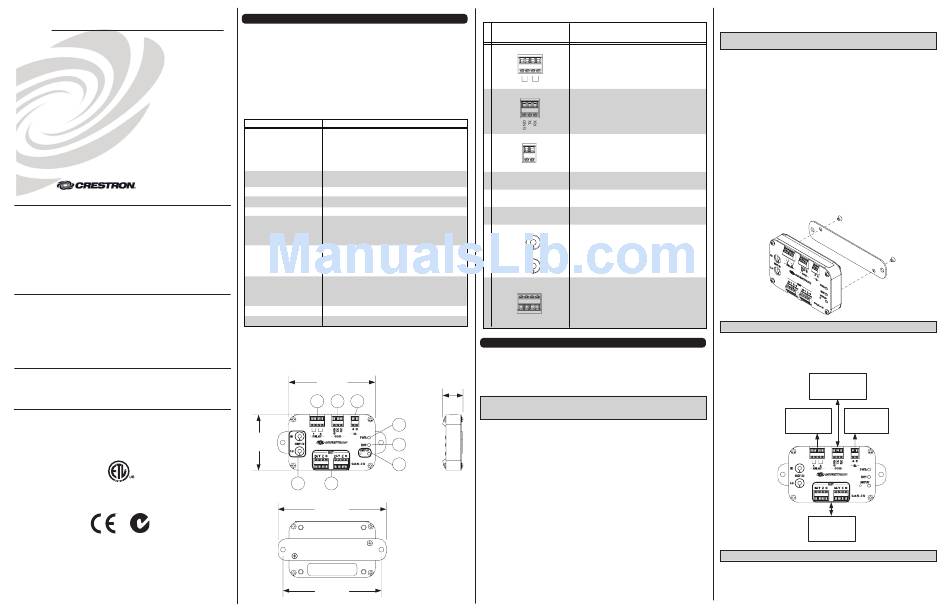

C2N-IO Overall Dimensions
3.50 in
(2031434)
(89 mm)
11.11
1 2 3
2.25 in
(58 mm)
7 8
C2N-IO Overall Dimensions (with Mounting Bracket)
4.38 in
(112 mm)
3.98 in
(101 mm)

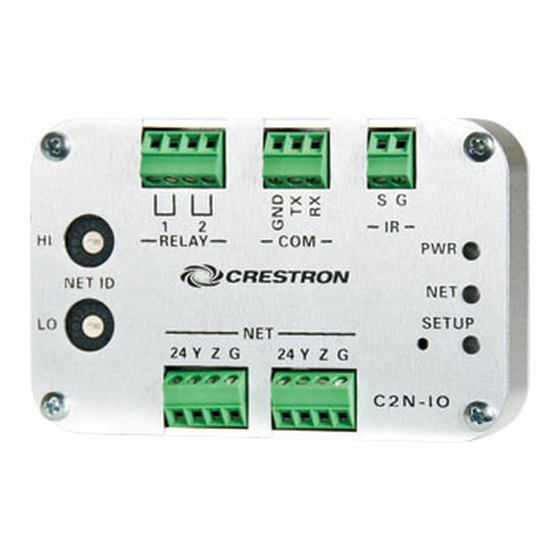

Connectors, Controls & Indicators
CONNECTORS 1 ,
® 2-Series or
CONTROLS &
#
INDICATORS
1 RELAY
(1) 4-pin captive screw terminal block comprising (2)
normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC,
Solid state arc suppression across contacts
1 2
2 COM
(1) 3-pin captive screw terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, software handshaking support
3 IR
(1) 2-pin captive screw terminal block,
IR/Serial output port;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0 - 5 Volts) up to 115.2 k
baud
S G
4 PWR LED
(1) Green LED, indicates operating power supplied
via Cresnet control network
5 NET LED
(1) Amber LED, indicates communication with
Cresnet system
6
SETUP (1) Red LED and (1) recessed miniature push button
(LED and Button) for touch-settable ID (TSID)
7 NET ID
(2) Rotary switches for manually setting Cresnet ID;
'00' setting enables TSID
HI
LO
8 NET (2) 4-pin captive screw terminal blocks;
Cresnet slave ports, paralleled
24 Y Z G
SETUP
Network Wiring
When wiring the Cresnet network, consider the following:
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
0.83 in
(21 mm)
CAUTION: Insufficient power can lead to unpredictable results or damage to the
equipment. Please use the Crestron Power Calculator to help calculate how much power is
needed for the system (www.crestron.com/calculators).
4
For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to maintain
signal quality.
5
For more details, refer to "Check Network Wiring" on the next page.
6
Identity Code
The Net ID of the C2N-IO has been factory set to A5 (with a mechanical setting of 00).
DESCRIPTION
NOTE: The NET ID controls on the C2N-IO are factory set to 00. This allows changing
the Net ID with Crestron Toolbox™ (optional).
The Net ID of the C2N-IO can be set using one of two methods:
• Manual setting: Set the two NET ID controls (from 03 to FE) to match the
Net ID
in the SIMPL Windows program.
• Touch-settable ID: Set the two NET ID controls to 00 and set the Net ID using
Crestron Toolbox. This is the factory setting. For more details, refer to the
Crestron Toolbox help file.
When setting the Net ID, consider the following:
• The Net ID of each unit must match an ID code specified in the control system
program.
• Each network device must have a unique Net ID.
Installation
The C2N-IO can be installed inside a standard 2-gang US or UK electrical box using the
included Dual Lock fastener or mounted to another other suitable location using the
included mounting bracket.
To use the included mounting bracket, use the included screws to attach the mounting
bracket as shown in the following illustration. The only tool required is a #1 Phillips
screwdriver.
Attach Mounting Bracket to C2N-IO (Optional)
24 Power (24 Volts DC)
Y Data
Z Data
G Ground
NOTE: Screws to secure the C2N-IO to a surface are not included.
Hardware Hookup
Make the necessary connections as shown in the illustration that follows this paragraph.
Refer also to "Check Network Wiring" on the next page, before attaching the 4-position
NET connector. Apply power after all connections have been made.
CAUTION: Incorrect wiring may damage the C2N-IO.
COM:
To Any RS-232,
-422 or -485 Device
RELAY: IR:
To Controllable To IRP2 or
Serial Devices
Devices
NET:
To Any Cresnet
Network Device
