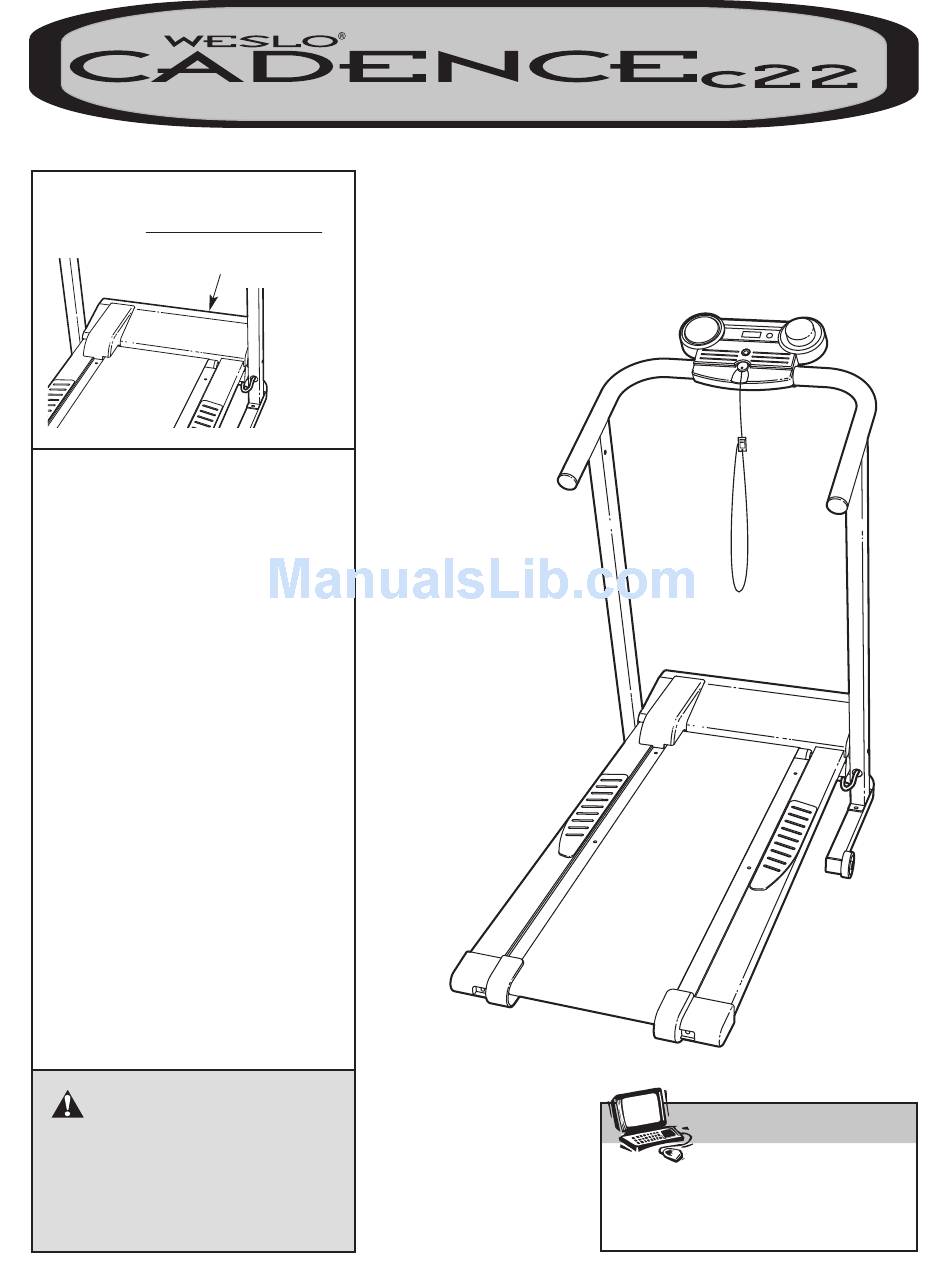

Model No. WLTL1932.4
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER SER-
VICE DEPARTMENT DIRECTLY.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo Cadence C22 Treadmill
Summary of Contents for Weslo Cadence C22 Treadmill
- Page 1 Mon.–Fri., 6 a.m.–6 p.m. MST ON THE WEB: www.wesloservice.com CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
To page 8. To purchase a surge suppressor, see protect the floor or carpet from damage, place your local WESLO dealer or call the toll-free a mat under the treadmill. telephone number on the front cover of this manual and order part number 146148, or see 4. - Page 3 16. The treadmill is capable of high speeds. 21. Inspect and tighten all parts of the treadmill Adjust the speed in small increments to avoid regularly. sudden jumps in speed. 22. Never drop or insert any object into any opening. 17.
-
Page 4: Before You Begin
® CADENCE C22 manual. To help us assist you, note the product model treadmill. The CADENCE C22 treadmill combines number and serial number before calling. The model advanced technology with innovative design to let you number of the treadmill is WLTL1932.4. The serial... -
Page 5: Assembly
ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 6 3. Hold the Handrail (16) near the Right Upright (6) and the Left Upright (17) as shown. If there are plastic ties in the three holes in the Handrail indicated by the short arrows, remove the plastic ties. Next, Insert the Wire Harness Bracket (22) into the indicated bracket on the Handrail and out of the round hole in the center of the Handrail;...
- Page 7 6. Hold the Console (1) near the Console Plate (4). Touch the Handrail (16) to discharge any static. Locate the two wires in the Wire Harness (22) that have L-shaped connectors on the ends. Press the connectors onto the two tabs on the switch shown in inset drawing 6a.
-
Page 8: Operation And Adjustment
Adapter ing 1 at the right). To purchase a surge suppres- Surge Suppressor sor, see your local WESLO dealer or call 1-866-699- 3756 and order part number 146148, or see your local electronics store. Use only a single-outlet surge suppressor that is... - Page 9 DIAGRAM OF THE CONSOLE Monitor Display Water Bottle Speed Control Holder (Bottle is not included) Clip the clip onto the waistband of your clothes. Next, insert CAUTION: the key into the console. Test the clip by carefully Before operating the taking a few steps backward until the key is pulled console, read the following precautions.
- Page 10 Reset the console and start the walking belt. When you are finished exercising, stop the walking belt and remove the key. Turn the speed control to the reset Step onto the grip tape, stop the walking belt, and position. Note: Each remove the key from the console.
-
Page 11: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right. -
Page 12: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call the toll-free telephone number on the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- 2”–3”...
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES Aerobic Exercise WARNING: Before beginning If your goal is to strengthen your cardiovascular sys- this or any exercise program, consult your tem, your exercise must be “aerobic.” Aerobic exercise physician. This is especially important for in- is activity that requires large amounts of oxygen for dividuals over the age of 35 or individuals prolonged periods of time. - Page 15 EXERCISE FREQUENCY tween workouts. After a few months, you may com- plete up to five workouts each week if desired. The key To maintain or improve your condition, complete three to success is to make exercise a regular and enjoyable workouts each week, with at least one day of rest be- part of your everyday life.
- Page 16 PART LIST—Model No. WLTL1932.4 R0705A Key No. Qty. Description Key No. Qty. Description Console Motor Speed Control Reed Switch Key/Clip Motor Tension Nut Console Plate Reed Switch Clip Screw Magnet Right Upright Motor Belt Handrail Cage Nut Roller Adj. Bolt Battery Cover Platform Screw Motor Tension Bolt...
- Page 17 PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. 3/4” Screw (65)–8 3/4” Tek Screw (24)–4 Handrail Bolt (12)–2 Console Bolt (79)–2 Star Washer (69)–2 Washer (11)–10 Upright Bolt (30)–4 Wheel Bolt (14)–2...
-
Page 19: Ordering Replacement Parts
• the MODEL NUMBER of the product (WLTL1932.4) • the NAME of the product (WESLO CADENCE C22 treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW- ING in the center of this manual) WESLO is a registered trademark of ICON IP, Inc.
