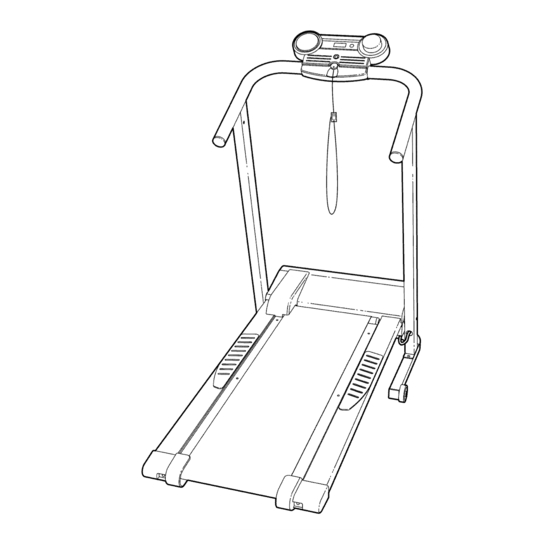

Model No. WLTL19321
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE. The
trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo Cadence C22
Summary of Contents for Weslo Cadence C22
- Page 1 CUSTOMER HOT LINE: 1-800-999-3756 Mon.–Fri., 6 a.m.–6 p.m. MST CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
8. To purchase a surge suppressor, see 4. Keep the treadmill indoors, away from mois- your local WESLO dealer or call 1-800-806- ture and dust. Do not put the treadmill in a 3651 and order part number 146148. - Page 3 16. The treadmill is capable of high speeds. 21. Inspect and tighten all parts of the treadmill Adjust the speed in small increments to avoid regularly. sudden jumps in speed. 22. Never drop or insert any object into any opening. 17.
-
Page 4: Before You Begin
And when serial number before calling. The model number of the you’re not exercising, the unique CADENCE C22 tread- treadmill is WLTL19321. The serial number can be mill can be folded up, requiring less than half the floor found on a decal attached to the treadmill (see the space of other treadmills. -
Page 5: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 6 3. Make sure that the treadmill is on its left side. Bracket If there are plastic ties in the three holes indicated by the arrows, remove them. Hold the Handrail (16) near the Right Upright (6) as shown. Insert the Wire Harness (22) up through the bracket on the Handrail and out of the round hole in the center of the Handrail.
- Page 7 6. Hold the Console (1) near the Console Plate (4). Touch the Handrail (16) to discharge any static. Locate the two wires in the Wire Harness (22) that have L-shaped connectors on the ends. Press the connectors onto the two tabs on the switch shown in inset drawing 6a.
-
Page 8: Operation And Adjustment
Adapter drawing 1 at the right). To purchase a surge sup- Surge Suppressor pressor, see your local WESLO dealer or call 1-800- 806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). - Page 9 DIAGRAM OF THE CONSOLE Monitor Display Water Bottle Speed Control Holder (Bottle is not included) Clip CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turn- ing on the power. • Always wear the clip (see the drawing above) Batteries while operating the treadmill.
-
Page 10: To Change Incline Of Treadmill
approximate number of fat calories you have Insert the key fully into the console. burned. (See BURNING FAT on page 14.) Inserting the key will • Calories (CALS)—This mode shows the approxi- not turn on the dis- mate number of calories you have burned. play. -
Page 11: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right. -
Page 12: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- 2”–3”...
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES Burning Fat WARNING: Before beginning To burn fat, you must exercise at a low intensity level this or any exercise program, consult your for a sustained period of time. During the first few physician. This is especially important for in- minutes of exercise, your body uses easily accessible dividuals over the age of 35 or individuals carbohydrate calories for energy. - Page 15 Training Zone Exercise to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems. After warming up, increase the intensity of your exer- cise until your pulse is in your training zone for 20 to EXERCISE FREQUENCY 60 minutes.
- Page 16 PART LIST—Model No. WLTL19321 R1202A Key No. Qty. Description Key No. Qty. Description Console Pulley/Flywheel Speed Control Motor Key/Clip Reed Switch Console Plate Motor Tension Nut Screw Reed Switch Clip Right Upright Magnet Handrail Cage Nut Belt Battery Cover Roller Adj. Bolt Motor Tension Bolt Platform Screw Frame Bolt...
- Page 17 PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. 3/4” Screw (65)–8 3/4” Tek Screw (24)–4 Handrail Bolt (12)–2 Console Bolt (79)–2 Star Washer (69)–2 Washer (11)–10 Upright Bolt (30)–4 Wheel Bolt (14)–2...
- Page 18 EXPLODED DRAWING—Model No. WLTL19321 R1202A...
-
Page 19: Ordering Replacement Parts
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW- ING in the center of this manual) WESLO is a registered trademark of ICON Health & Fitness, Inc. LIMITED WARRANTY ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
