Model No. WLTL493040
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this man-
ual for future reference.

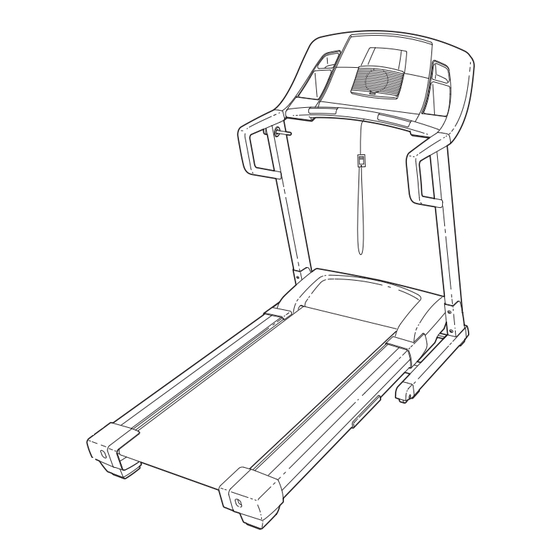

USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo Cadence C78 Treadmill
Summary of Contents for Weslo Cadence C78 Treadmill
- Page 1 1-866-699-3756 Mon.–Fri., 6 a.m.–6 p.m. MST CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this man- new products, prizes, ual for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
LIMITED WARRANTY ............. . .Back Cover Note: An EXPLODED DRAWING is attached in the center of this manual. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
10. To purchase a surge suppressor, see your local WESLO dealer or call 1-866-699- 19. When folding or moving the treadmill, make 3756 and order part number 146148. - Page 4 20. When using iFIT.com CDs and videos, an 23. Inspect and properly tighten all parts of the electronic “chirping” sound will alert you treadmill every three months. when the speed of the treadmill is about to 24. Never drop or insert any object into any open- change.
-
Page 5: Before You Begin
From the advanced console to the cushioned To help us assist you, please note the product model walking platform, the CADENCE C78 treadmill is de- number and serial number before calling. The model signed to make each workout more effective and en- number is WLTL493040. -
Page 6: Assembly And Part Identification Chart
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 7 2. Open part bag C. See drawing 2a. Locate the Wheel Housings (106). Attach a Wheel (108) to each Wheel Housing with a Wheel Bolt (107) and a Wheel Nut (21) as shown. Do not overtighten the Wheel Bolts. See drawing 2b. Insert a Wheel Housing (106) into the Base (109).
- Page 8 5. Hold the Pulse Bar (125) near the Console Base (85). Connect the Pulse Wire (124) on the Pulse Bar to the in- dicated wire on the Console Base. The connectors should slide together easily and snap into place. If the connectors do not slide together easily and snap into place, turn one connector and try to connect them again.
- Page 9 If you purchase the optional chest pulse sensor (see page 20), follow the steps below to install the re- ceiver and the short jumper wire included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated 3/4”...
-
Page 10: Treadmill Operation
Adapter the right). To purchase a surge suppressor, see Surge Suppressor your local WESLO dealer or call toll-free 1-866-699- 3756 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). - Page 11 CONSOLE DIAGRAM Fan Button Note: If there is a thin sheet of Clip plastic on the console, remove it. Five Quick-Fit speed programs are also offered. Each CAUTION: program automatically controls the speed of the tread- Before operating the mill as it guides you through an effective workout. console, read the following precautions.
- Page 12 HOW TO TURN ON THE POWER Speed buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in in- Plug in the power cord (see page 10). crements of 0.5 mph.
- Page 13 Note: When the Km/H in- will be shown. For the most accurate heart rate dicator below the Speed reading, continue to hold the contacts for about 15 seconds. display is lit, the console will display speed and distance in kilometers; Turn on the fan if desired.
- Page 14 When a program is se- Current Period column are not lit after the speed lected, the Speed dis- settings have moved to the left again, the speed play will flash the maxi- settings will move back up. mum speed setting of the program for a few To change the incline of the treadmill during the seconds, the Time/...
- Page 15 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5mm LINE OUT jack, see instruction B. If your To use iFIT.com CDs, the treadmill must be connected stereo has only a PHONES jack, see instruction C.
- Page 16 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5mm LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
- Page 17 HOW TO CONNECT YOUR VCR B. Plug one end of the audio cable into the jack be- neath the console. Plug the other end of the cable Note: If your VCR has an unused AUDIO OUT jack, into the included adapter. Plug the adapter into an see instruction A below.
- Page 18 for speed changes. In some instances, the HOW TO USE IFIT.COM CD AND VIDEO speed may change before the personal trainer PROGRAMS describes the change. If the speed setting is too high or too low, you can To use iFIT.com CDs or videocassettes, the treadmill manually override the setting by pressing the must be connected to your portable CD player, portable Speed buttons on the console.
- Page 19 Return to the treadmill and stand on the foot HOW TO USE PROGRAMS DIRECTLY FROM rails. Find the clip attached to the key and slide OUR WEB SITE the clip onto the waistband of your clothes. When the on-screen countdown ends, the program Our Web site at www.iFIT.com allows you to access will start and the walking belt will begin to move.
- Page 20 THE INFORMATION MODE THE OPTIONAL CHEST PULSE SENSOR The console features an information mode that keeps An optional chest pulse sensor provides hands-free op- track of the total number of hours that the treadmill has eration and continuously monitors your heart rate while been used and the total number of miles that the walk- you exercise on the treadmill.
-
Page 21: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. -
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the instructions below. If further assistance is needed, please call our Customer Service Department toll-free at 1-866-699-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 23 Locate the Reed Switch (24) and the Magnet (18) on the left side of the Pulley (120). Turn the Pulley until 1/8” the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8”.
-
Page 24: Exercise Guidelines
EXERCISE GUIDELINES uses easily accessible carbohydrate calories for en- WARNING: ergy. Only after the first few minutes does your body Before beginning this begin to use stored fat calories for energy. If your goal or any exercise program, consult your physi- is to burn fat, adjust the speed or incline of the tread- cian. - Page 25 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down to- ward your toes as far as possible.
-
Page 26: Part List
PART LIST—Model No. WLTL493040 R0904A To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Key No. Qty. Description Foot Rail Cover Right Foot Rail Left Foot Rail Rear Roller Left Front Endcap Right Rear Foot Belt Guide... - Page 27 Key No. Qty. Description Key No. Qty. Description Incline Motor Bolt Pulse Bar Incline Motor Caution Decal Right Handrail Bracket 5/16” Star Washer Right Decal Holder 10” Blue Wire, 2 F 5/16” Allen Wrench 4” Blue Wire, 2 F iFIT.com Cable 4”...
- Page 28 EXPLODED DRAWING—Model No. WLTL493040 R0904A...
- Page 29 EXPLODED DRAWING—Model No. WLTL493040 R0904A...
-
Page 30: Limited Warranty
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER of the product (WLTL493040) • The NAME of the product (WESLO ® CADENCE C78 treadmill) •...
