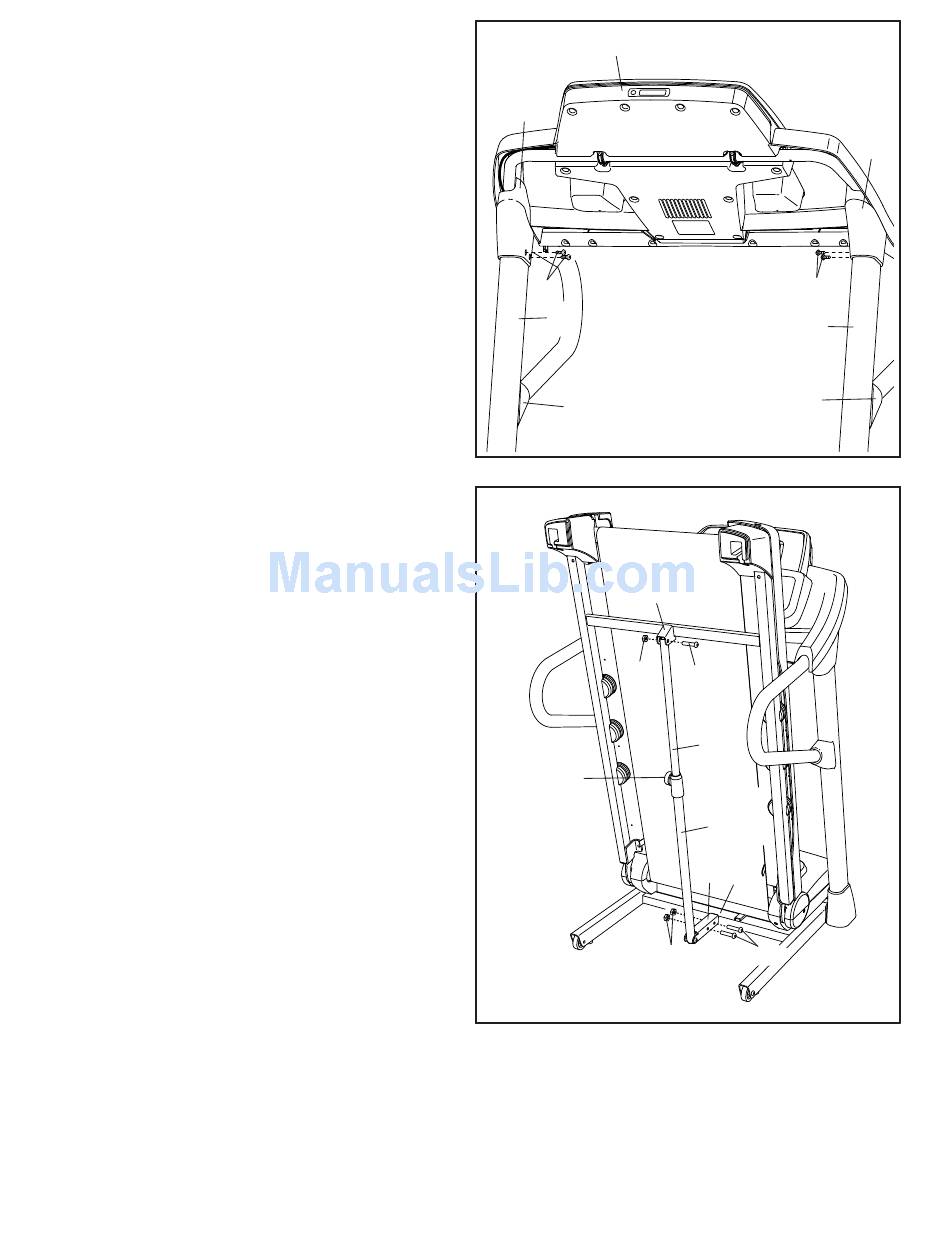

14. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x 3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
Slide the Handrail Caps (81) down against the
Uprights (84, 85)
See steps 5 and 7. Tighten the four 3/8" x 4"
Screws (7) and the two 3/8" x 1 1/2" Screws (14).
15. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are in the positions
shown.
Attach the Latch Bracket (6) and the Storage
Latch (51) to the Base (95) with two 3/8" x 2"
Bolts (8) and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (51)
to the Frame (55) with a 3/8" x 2" Bolt (8) and a
3/8" Nut (10).
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 27 and 28).
14
Console Assembly
86
1
85
81
15
55
10
Latch
Knob
14
1
84
81
8
51
Large
Barrel
6
95
8
10
80
