Example wired Ethernet network

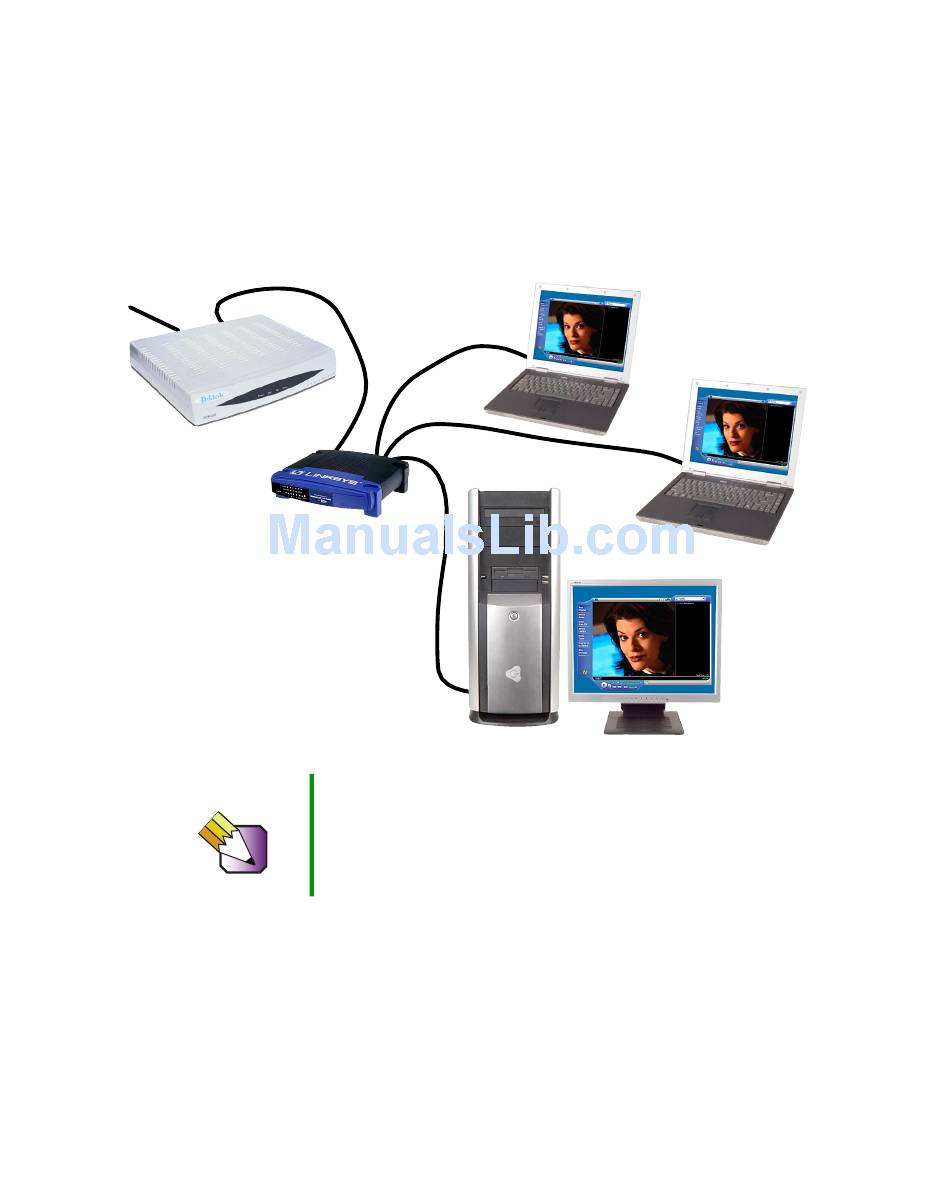

The following is an example of a wired Ethernet network. The network is made
up of a router, a cable or DSL modem, your computers, and cables connecting
each of these components. The router is the central control point for the
network. Attached to the router are all of your computers or Ethernet-ready
devices. Also connected to the router is a cable or DSL modem that provides
access to the Internet.
Cable/DSL modem
Tips & Tricks
154
Router,
switch,
or hub
To add the ability to access a wireless Ethernet network
to your wired Ethernet network, connect an access point
to the router, switch, or hub. For more information about
accessing a wireless Ethernet, see "Using a wireless
Ethernet network" on page 156.
