Disassembly Procedures
!

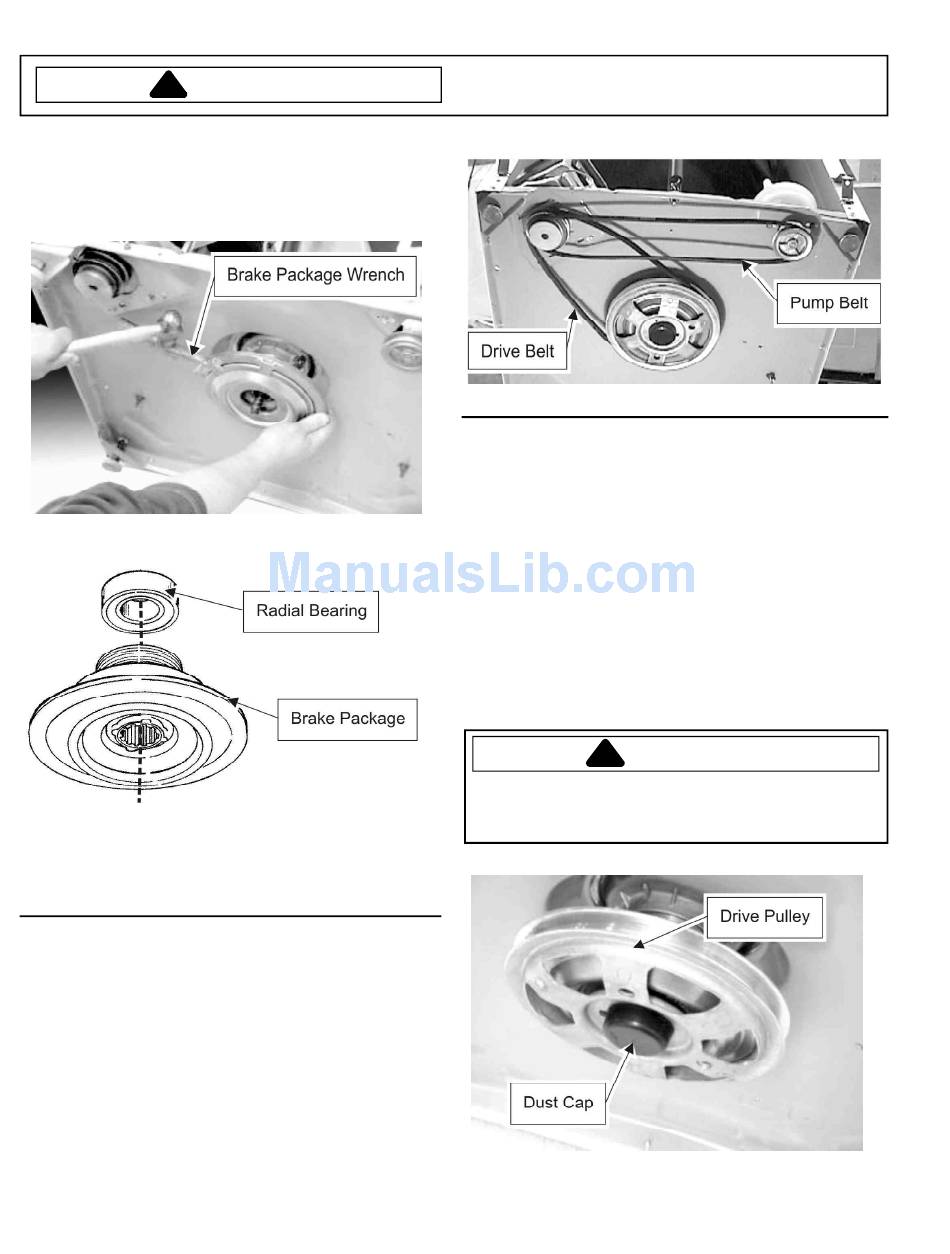

4. Use the Brake Tool to unscrew the Brake Package
assembly from the Damper. When the Brake
Package is free, pull out to disengage it from the
spline surface of the drive tube.
5. Use a hammer to remove the Brake Package.
6. After Brake Package has been removed, the Radial
Bearing may be removed from top of Brake package.

Belts

1. Disconnect power supply to unit.
2. Remove front Panel.
3. Tilt machine backwards.
4. Roll Pump Belt than Drive Belt off pulleys.
28
WARNING
16022842 Rev. 0
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

Drive Pulley and Rotor Bearing

1. Disconnect power supply to unit.
2. Remove Drive and Pump Belts and Dust Cap covering
hub of Pulley.
3. Remove screw and washer from bottom of Drive Shaft.
4. Remove the splined Drive Lug from the Drive shaft.
5. Turn pulley counterclockwise to remove it from the
Helical Shaft. The Rotor Bearing is located above the
drive pulley.
Note: There is a top and bottom to the rotor bearing.
When it is positioned correctly, the top of the
Bearing and the Pulley hub will be about even
(the concave side against Pulley hub).
!
WARNING
To reduce the risk of serious injury or death to persons
when using your washer, make sure the Rotor Bearing
is not put on upside down. You will have no Brake.
Note: When the drive Pulley is replaced, the Drive Lug
must be properly positioned.
