Disassembly Procedures
!

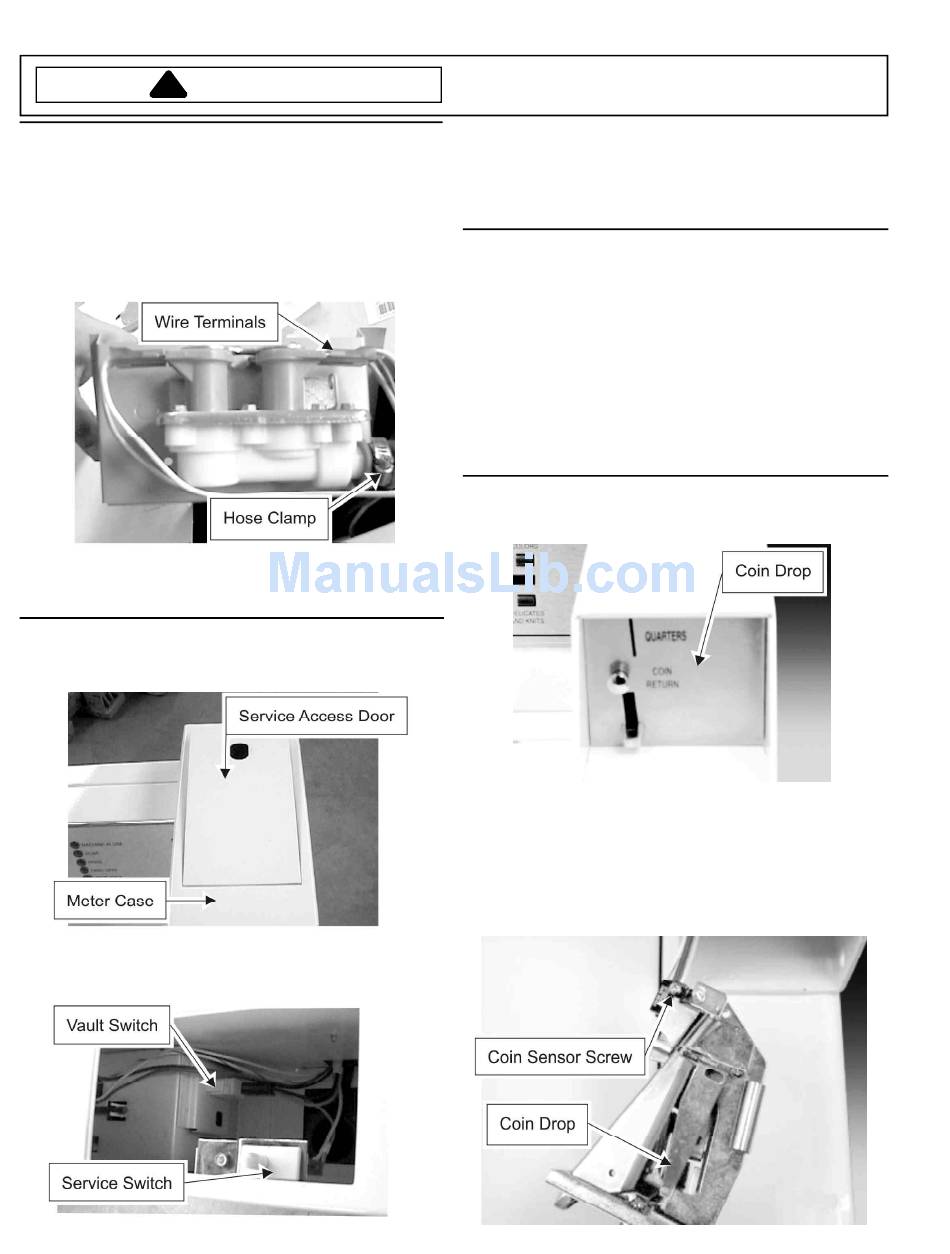

Water Valve

1. Disconnect power supply to unit.
2. Remove screw holding Valve Bracket to back panel.
3. Pivot out until flange clears back and lift up to
disengage the bracket from the slot on the back
panel.
4. Remove two screws holding Water Valve to mounting
bracket.
5. Disconnect wires from terminals.
6. Remove injector hose.

Meter Case

1. Disconnect power supply to unit.
2. Remove Service Access Door.
3. Remove coin box.
4. Remove timer or disconnect wires to Service and Vault
Switches.
20
WARNING
16022842 Rev. 0
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.
5. Remove Control Panel.
6. Remove screws securing console to meter case.
7. Remove two nuts (one inside coin box area and inside
service access door compartment.).

Coin Slide

1. Disconnect power supply to unit.
2. Unlock and remove service access door.
3. Loosen the locking bolt from inside the meter case.
4. Pull the coin slide out of the Meter Case.
Note: The timer Actuator can be adjusted once the
Coin slide is removed. The holes on the actuator
are slotted to allow proper length adjustments
(the actuator must be adjusted for the particular
coin slide to advance the timer into the cycle).

Coin Drop Acceptor

1. Disconnect power supply to unit.
2. Unlock service access door.
3. Loose the two locking bolts from inside the meter
case.
4. Remove Coin Drop Acceptor.
5. Remove screw securing Coin Sensor to the rear of the
Coin Drop Acceptor.
