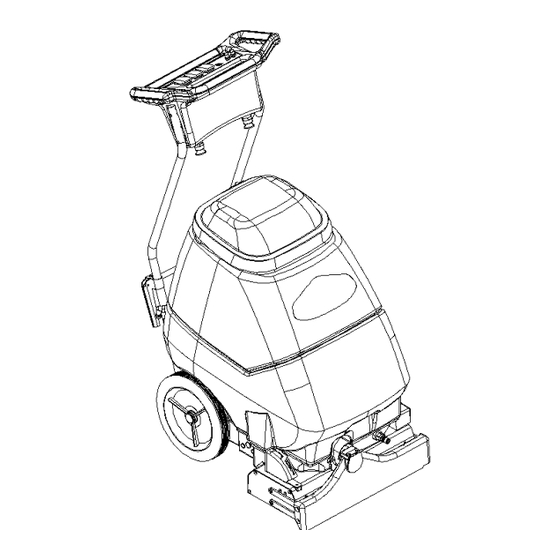

CARPET EXTRACTOR
MODEL:
ADM8IA - 10080010
ADM8IB - 10080020
ADM8IE - 10080030
ADM8IS - 10080040
Bitte lesen Sie diese Anleitungen, bevor Sie die Maschine in Gebrauch nehmen
AL
86038270 04/26/11
PRV NO. 98655
COUNTRY
AUSTRALIA
BRITIAN
EUROPE
SWITZERLAND
Read these instructions before operating the machine
Operating Instructions (GB/USA)
Lire ce manuel avant d'utiliser la machine
Manuel d'utilisation (FRE)
Bedienungsanleitung (GER)
IPX4

Advertisement

Table of Contents
loading

Summary of Contents for Windsor Admiral ADM8IA

  • Page 1 CARPET EXTRACTOR Operating Instructions (GB/USA) Manuel d’utilisation (FRE) Bedienungsanleitung (GER) MODEL: COUNTRY ADM8IA - 10080010 AUSTRALIA ADM8IB - 10080020 BRITIAN ADM8IE - 10080030 EUROPE ADM8IS - 10080040 SWITZERLAND IPX4 Read these instructions before operating the machine Lire ce manuel avant d’utiliser la machine...
  • Page 2: Table Of Contents

    Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING: To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet.
  • Page 4: Controls

    CONTROLS/COMPONENT LOCATIONS Main Handle. Used to pull and maneuver machine. Handle Adjustment. Used to adjust height of handle. Electrical Cord. Solution Switch. Turns on pump. Continuous position (bottom) activates electro-valve to dispense solution to floor through jets. Intermittent position (up) requires operator to depress 1 of 3 trigger switches to dispense solution.
  • Page 5 CONTROLS/COMPONENT LOCATIONS Solution Accessory Tool Hookup. Used for various auxiliary cleaning tools. Vacuum Hose Door. Used to connect various auxiliary 1 ½ inch cleaning tool vacuum hoses. Brush Height Adjustment. Used to regulate brush height from storage position to various carpet heights. Recovery Tank.
  • Page 6: Controls

    CONTROLS/COMPONENT LOCATIONS Solution Intake Cover. Vacuum Intake Cover. Float Shut-Off. Clean-Out Opening. Pour Spout. Lift Handle. ADMIRAL 86038270 05/22/07...
  • Page 7: Filling Operations

    FILLING OPERATIONS STEP RECOVERY TANK Remove recovery tank SOLUTION TANK STEP Add water 8 gal. (30.3 ltr.) 140°F (60°C) FILL LINE STEP 8 – 16oz. (237ml – 473ml) FILLING THE ADMIRAL NOTE: Use clean bucket of water to fill solution tank Add cleaning Do not put defoamer, solvents, spotter or chemical...
  • Page 8: Operations

    OPERATIONS STEP Remove electrical cord and literature from recovery tank. Fill solution tank (see filling instructions page 6). STEP Plug cord into grounded outlet. Note: Be sure dome is seated on recovery tank, and float shut-off is installed correctly. STEP Adjust brush to proper setting.
  • Page 9 OPERATIONS STEP Adjust handle to comfortable operating position. Tip machine back by main handle to move to starting point. STEP Lower machine to floor. STEP Select continuous setting to start solution spray or select intermittent setting to enable use of trigger switches to start solution spray.
  • Page 10: Cleaning Procedure

    CLEANING PROCEDURE STEP Start at wall closest to power outlet. Pull straight back without pushing down on handle. STEP Release intermittent trigger switches or turn off continuous setting on solution switch approximately 1 foot before ending 1ft. cleaning pass. (30cm) STEP Push down on handle to raise 1in.
  • Page 11 CLEANING PROCEDURE STEP Use right side of machine for cleaning against walls. STEP After cleaning, turn off all controls, return brush to storage position and carefully unplug machine. STEP To speed drying, use a Windblower™ fan. STEP Empty recovery tank by releasing dump hose.
  • Page 12 ACCESSORY TOOL USAGE STEP Use only one of the following acceptable accessory tools. 86000020 – PRV NO. HT 86000000 – PRV NO. DDH 86041150 – PRV NO. DH 86031540 – PRV NO. 39504 86000610 – PRV NO. 89227 86000600 – PRV NO. 89226 Pull back collar and insert over machine mounted fitting, then release collar to lock into place.
  • Page 13: Troubleshooting

    TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION 1. Is the cord plugged in. 1. Plug in cord. No Power, Nothing Runs 2. Circuit breaker tripped in building. 2. Reset breaker 3. Faulty switch. 3. Call for service. 4. Faulty power cord or pigtail. 4.
  • Page 14: Blank

    THIS PAGE LEFT INTENTIONALLY BLANK ADMIRAL 86038270 05/22/07...
  • Page 15: Wiring Diagram

    WIRING DIAGRAM 86268290 PRV NO. 88229 86268460 86268430 PRV NO. 88333 PRV NO. 88323 FILTER 86268370 86003650 PRV NO. 88276 PRV NO. 34362 86268430 PRV NO. 88323 86268430 - PRV NO. 88323 86238830 86238840 PRV NO. 41355 PRV NO. 41356 86268420 PRV NO.
  • Page 16: Maintenance

    MAINTENANCE PERIODIC MAINTENANCE NOTE: Always store machine with brush in “Store” position. Twice a month, flush a white vinegar solution (One quart vinegar to two gallons of water) or anti-browning solution (mixed as directed) through the extractor. This will prevent build-up of alkaline residue in the system. If spray jets become clogged, remove the spray tips, wash them thoroughly, and blow-dry.
  • Page 17: Vacuum Motor Replacement

    7. Reverse process to install vacuum motor. performance. Wire Terminal Wire Vacuum Motor Carbon Brushes Replacement (Windsor) Terminal End Cap WARNING: The green Carbon Important:...
  • Page 18 MAINTENANCE SOLUTION PUMP REPLACEMENT 1. Turn off all switches and unplug the machine. 2. Remove recovery tank. 3. Remove the (2) screws that fasten the solution tank to the frame, and tilt tank back to expose the inside of the frame.
  • Page 19: Technical Specifications

    TECHNICAL SPECIFICATIONS POWER TYPE GENERAL DIMENSIONS/WEIGHT ELECTRICAL: 230-240 V, 7 A, 50 HZ Vacuum shoe: 17” (43.18 cm) cast aluminum with spring loaded down pressure ELECTRIC VACUUM MOTOR: (1) –3 stage, 1 hp, 99 cfm (2.80 cubic meters/min.) Waterlift – WHEELS: (2) 10”...
  • Page 20 FRAME ASSEMBLY (SEE PG. 29) (SEE PG. 27) ADMIRAL 86038270 05/22/07...
  • Page 21: Frame Assembly

    FRAME ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM OPEN 86003620 34341 FRAME, CLP FAMILY 86004340 39528 HOSE ASM, 1.5 BLK VAC X 15.5 86001660 41236 HUBCAP, 5/8" SHAFT 86238820 41351 HARNESS, MAIN, CLP/ADM 86239610 41354 HINGE, TANK TO FRAME 86005370 53641 MOTOR ASM, BRUSH 230V...
  • Page 22: Brush Assembly

    BRUSH ASSEMBLY ADMIRAL 86038270 05/22/07...
  • Page 23: Brush Assembly

    BRUSH ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86000730 03110 AXLE, ROLLER 86227100 04084 ADAPTER, BRUSH BRG. 86000900 09019 BEARING, 1.125ODX.500IDX.375 86001100 11045 BELT, 180J6 MICRO-V 86001140 12514 BRUSH, 15L X 3.38OD 86001300 140343 BRKT, BRUSH PULLEY 86001310 140351 BRKT, BRUSH HEIGHT...
  • Page 24 PUMP ASSEMBLY 18 1 (SEE SOLUTION TANK) ADMIRAL 86038270 05/22/07...
  • Page 25 PUMP ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86002470 22072 COUPLING, 1/4 ANCHOR W/1" HEX 86002480 22090 CONNECTOR, 1/8FPT X 1/4 TUBE QC 86003470 31072 ELBOW, SWIVEL, 1/4MPTX1/4TUBE 86003490 31074 ELBOW, SWIVEL,3/8MPTX3/8TUBE QC 86004570 44067 JET BODY, MINI PROMAX BODY 86241680 44073 JET, MINI PROMAX 9503...
  • Page 26 PUMP ASSEMBLY PRIOR TO S/N 1000153482 18 1 (SEE SOLUTION (SEE PG. 29) TANK) ADMIRAL 86038270 05/22/07...
  • Page 27 PUMP ASSEMBLY PRIOR TO S/N 10000153482 SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86002470 22072 COUPLING, 1/4 ANCHOR W/1" HEX 86002480 22090 CONNECTOR, 1/8FPT X 1/4 TUBEQC 86003470 31072 ELBOW, SWIVEL, 1/4MPTX1/4TUBE 86003490 31074 ELBOW, SWIVEL,3/8MPTX3/8TUBEQC 86004570 44067 JET BODY, MINI PROMAX BODY 86241680 44073...
  • Page 28 VACUUM SHOE ASSEMBLY ADMIRAL 86038270 05/22/07...
  • Page 29 VACUUM SHOE ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86227350 05016 ARM, VAC SHOE PARALLEL 86234760 27674 COVER, ACCESSORY PORT 86005810 57245 NUT, 1/4-20 HEX NYLOCK SS 86006790 70351 SCR, 10-32 X 3/8 HHTR W/STAR 86275120 70360 SCR, 1/4-20 X.75 PPHMS PHIL 86006840 70390...
  • Page 30 CONTROL PANEL ASSEMBLY 36A, 36B 36C, 36D SEE FRAME ADMIRAL 86038270 05/22/07...
  • Page 31 CONTROL PANEL ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86001240 14020 TERMINAL BLOCK, 115V (3-4-3) 86230110 14312 BREAKER, 7A 250VAC 50VDC 86002020 14949 BREAKER, 4A CIRCUIT 86002010 14942 BOOT, 3/8 CIRCUIT BREAKER 86233240 20084 CLAMP, HANDLE LOCK 86261000 23671 CORD ASM...
  • Page 32 SOLUTION TANK ASSEMBLY (SEE FRAME) (SEE PUMP) (SEE FRAME) ADMIRAL 86038270 05/22/07...
  • Page 33 SOLUTION TANK ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86233140 20041 CLAMP, 2.0" WORM GEAR 86233150 20042 CLAMP, 3/8 HOSE (D-SLOT) 86003080 27809 COVER, VAC MOTOR 86003090 27810 COVER, BELT 86235500 31081 ELBOW, 3/8 MPT X 3/8 TUBE, PLASTIC 86003790 35175 GASKET, TANK TO VAC COVER...
  • Page 34 RECOVERY TANK ASSEMBLY ADMIRAL 86038270 05/22/07...
  • Page 35 RECOVERY TANK ASSEMBLY SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86002400 20064 CLAMP, 2.0" WORM GEAR X .312 1000084015 86002350 20002 CLAMP, 2.0” NYLON RATCHET 86233140 20041 CLAMP, 2.0" WORM GEAR 86008400 78499 TETHER, DRAIN PLUG 86003110 27816 COVER, REC.
  • Page 36 VAC MOTOR ASM, 230V 86007970 73864 STRAINER, 3/8 IN. NPT 60 MESH 86230760 140216 BRUSH SET, 230V VAC AMETEK 86135330 140688 BRUSH SET, 230V VAC MTR WINDSOR 86003330 28061 DOME ASM, CLP FAMILY 86003630 34351 FLOAT SHUT-OFF 86006240 66227 PLUG, DRAIN HOSE...
  • Page 37 ADMIRAL 86038270 05/22/07...
