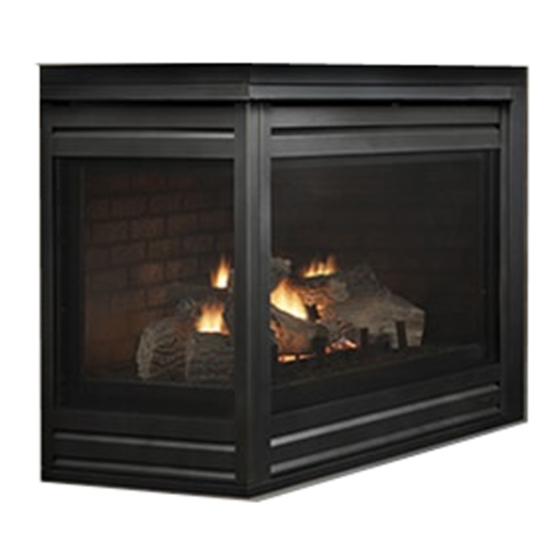

Heat & Glo LCOR-HVB-IPI Owner's Manual
Hide thumbs Also See for LCOR-HVB-IPI:

Advertisement

Models:
Pier-HVB-IPI
ST-HVB-IPI
LCOR-HVB-IPI
RCOR-HVB-IPI
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-
What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Printed in U.S.A. Copyright 2005
Heat & Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Owner's Manual
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed
plumber or gas fitter;
• a CO detector shall be installed in the room
where the appliance is installed.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
1
Installation and Operation
Underwriters
Laboratories Listed
2006-900 J 5/05

Advertisement

Table of Contents
loading

Summary of Contents for Heat & Glo LCOR-HVB-IPI

  • Page 1 Owner’s Manual Installation and Operation Models: Pier-HVB-IPI ST-HVB-IPI LCOR-HVB-IPI RCOR-HVB-IPI Underwriters Laboratories Listed READ THIS MANUAL BEFORE INSTALLING OR OPERATING THIS APPLIANCE. THIS INSTALLERS WARNING: IMPROPER INSTALLA- GUIDE MUST BE LEFT WITH APPLIANCE FOR TION, ADJUSTMENT, ALTERATION, FUTURE REFERENCE. SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAM- AGE.
  • Page 2: Safety And Warning Information

    Safety and Warning Information These units MUST use one of the vent systems READ and UNDERSTAND all instructions carefully described in the Installing the Fireplace section of before starting the installation. FAILURE TO the Installers Guide. NO OTHER vent systems or FOLLOW these installation instructions may result components MAY BE USED.
  • Page 3: Table Of Contents

    Table of Contents Safety and Warning Information ..........2 Service Parts List ................. 4 Approvals and Codes ..............13 Appliance Certification ................. 13 Installation Codes ..................13 High Altitude Installations ................13 Getting Started ................14 Introducing the Heat & Glo Gas Fireplaces ..........14 Pre-install Preparation .................
  • Page 4: Service Parts List

    Pier-HVB-IPI Service Parts List Beginning Manufacturing Date: 6-03 (NG, LP) Exploded Parts Diagram Ending Manufacturing Date: ______ (GN, PL) Vue éclatée des pièces Log Assembly * Part number list on following page. * La liste des numéros de pièce se trouve à la page suivante.
  • Page 5 PIER-HVB-IPI (NG, LP) Exploded Parts Diagram / Vue éclatée des pièces IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering, supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure n'est valide que pendant une courte période.
  • Page 6: Service Parts

    ST-HVB-IPI Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 6-03 (GN, PL) Vue éclatée des pièces Ending Manufacturing Date: ______ Log Assembly * Part number list on following page. * La liste des numéros de pièce se trouve à...
  • Page 7 (NG, LP) Exploded Parts Diagram / Vue éclatée des pièces ST-HVB-IPI IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering, supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure n'est valide que pendant une courte période.
  • Page 8 LCOR-HVB-IPI Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 6-03 (GN, PL) Vue éclatée des pièces Ending Manufacturing Date: ______ Log Assembly * Part number list on following page. * La liste des numéros de pièce se trouve...
  • Page 9 (NG, LP) Exploded Parts Diagram / Vue éclatée des pièces LCOR-HVB-IPI IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering, supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure n'est valide que pendant une courte période.
  • Page 10 RCOR-HVB-IPI Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 6-03 (GN, PL) Vue éclatée des pièces Ending Manufacturing Date: ______ Log Assembly * Part number list on following page. * La liste des numéros de pièce se trouve à...
  • Page 11 (NG, LP) Exploded Parts Diagram / Vue éclatée des pièces RCOR-HVB-IPI IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering, supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure n'est valide que pendant une courte période.
  • Page 12 PIER-HVB-IPI, ST-HVB-IPI Service Parts L&RCOR-HVB-IPI Beginning Manufacturing Date: 6-03 (NG, LP) Exploded Parts Diagram Ending Manufacturing Date: ______ (GN, PL) Vue éclatée des pièces ITEM DESCRIPTION SERIAL # PART NUMBER Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A ON/OFF Wire Assembly / Assemblée "MARCHE/ARRÊ...
  • Page 13: Approvals And Codes

    4% for each 1000 feet above a MODELS: PIER-HVB-IPI, ST-HVB-IPI, 2000 foot elevation in the U.S.A. or 10% for elevations LCOR-HVB-IPI, RCOR-HVB-IPI between 2000 and 4500 feet in Canada. If the heating value LABORATORY: Underwriters Laboratories of the gas has been reduced, these rules do not apply.
  • Page 14: Getting Started

    Getting Started Introducing the Heat & Glo Gas Fireplaces The Heat & Glo Warranty will be voided by, and Heat & Glo disclaims any responsibility for, the following actions: Heat & Glo direct vent gas fireplaces are designed to oper- •...
  • Page 15 5-1/4 (133mm) (13mm) (306mm) Ø8 (204mm) 42-5/8 Ø8 (305mm) (1082mm) (204mm) ELECTRICAL ACCESS 32-5/16 (820mm) (1067mm) (533mm) GAS LINE (533mm) 34-3/4 ACCESS (882mm) 8-1/2 (216mm) 17-15/16 4-1/16 2-5/16 (455mm) (102mm) (58mm) 37-7/16 (950mm) 4-3/4 4-1/2 (610mm) (121mm) (114mm) TOP VENT COLLARS TOP STANDOFFS REAR VENT...
  • Page 16 5-14 (133mm) (13mm) (306mm) Ø8 (204mm) Ø8 46-5/8 (204mm) (305mm) (1183mm) (1067mm) 32-5/16 (820mm) ELECTRICAL 4-1/2 34-3/4 ACCESS (882mm) (114mm) (533mm) GAS LINE ACCESS 8-1/2 (216mm) 2-5/16 4-1/16 (58mm) 36-3/16 (102mm) (919mm) 2-9/16 (610mm) 4-1/2 4-3/4 (64mm) (114mm) (121mm) TOP VENT COLLARS TOP STANDOFFS REAR VENT...
  • Page 17 8-1/2 37-7/16 7-1/4 (743mm) (950mm) (216mm) 4-3/4 (184mm) (121mm) TOP STANDOFFS TOP VENT COLLARS REAR VENT COLLARS SIDE GLASS DOOR END GLASS GAS LINE DOOR ACCESS GAS CONTROLS & LABELS ELECTRICAL ACCESS Figure 3. Diagram of the LCOR-HVB-IPI and RCOR-HVB-IPI...
  • Page 18: Installing The Fireplace

    ST-HVB-IPI Top ........3 ....75 TOP VIEW Bottom ....... 1 ....25 Sides ......... 1 ....25 At Wall Firestops 36" LCOR-HVB-IPI GLASS TOP VIEW Top ........2 1/2 .... 63.7 36" Bottom ......1/2 ....13 GLASS Sides ......... 1 ....25 Figure 4.
  • Page 19 Shows center of 10” x 12” vent framing holes for top and rear venting. The center of the hole is one inch (25.4mm) above the center of the horizontal vent pipe. Framing should be constructed of 2 X 4 lumber or heavier. PIER-HV-IPI ST-HV-IPI L &...
  • Page 20 DVP4 DVP6 DVP12 14-1/4 12-3/16 MAX. MIN. DVP12A 9-7/8 DVP24 45.0 10-1/4 DVP45 DVP36 11-1/4 7-1/4 1-1/4 TYP DVP48 1/2 TYP 8-9/16 12-9/16 NOTE: PIPES OVERLAP 1-1/4 INCHES AT EACH JOINT. Figure 6. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
  • Page 21: Step 3. Installing The Vent System

    Step 3. Installing the Vent System Identifying Vent Components The vent systems installed on this gas fireplace may in- A. Vent System Approvals clude one, two, or three 90° elbow assemblies. The rela- These models are approved to use DVP series direct vent tionships of vertical rise to horizontal run in vent configura- pipe components and terminations (see Figures 6 and 7).
  • Page 22 STRAIGHT UP VERTICAL VENTING V (FT.) BREAK 50' MAX. (15.2 M) HERE NOTE: On vertical venting Figure 10. Flue Restrictor configurations you may want to install the flue re- strictor (385-128). See flue 3. Match the amount of - CHART - restrictor installation in- Vertical Settings...
  • Page 23 NATURAL GAS - VENTING WITH ONE 90° ELBOW V (FT.) H (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’...
  • Page 24 NATURAL GAS VENTING WITH TWO 90° ELBOWS V (FT.) H + H (FT.) Elbow on top 2.5’ MAX. (64mm) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX.
  • Page 25 NATURAL GAS PROPANE VENTING WITH TWO 90° ELBOWS VENTING WITH TWO 90° ELBOWS V (FT.) H + H (FT.) V (FT.) H + H (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 6' MAX.
  • Page 26 NATURAL GAS PROPANE VENTING WITH THREE 90° ELBOWS VENTING WITH THREE 90° ELBOWS V + V (FT.) H + H (FT.) V + V (FT.) H + H (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN.
  • Page 27 NATURAL GAS VENTING WITH THREE 90° ELBOWS V + V (FT.) H + H (FT.) Elbow on top 2.5’ MAX. (64mm) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX.
  • Page 28: Installing Vent Components

    Venting Out Vertically B. Installing Vent Components After determining which direction the 45 elbow will be used If the vertical vent component is over 4 feet, you may want follow venting instructions accordingly. to install the flue restrictor (located in the bag containing •...
  • Page 29 2. Continue Adding Vent Components HEAT SHIELD Refer to Cinch Pipe and Termination Cap installation in- TRIM HEAT SHIELD IF TOO structions. LONG, ADD TO SHIELD IF TOO • Continue adding vent components, locking each succeed- SHORT ing component into place. •...
  • Page 30: Vent Termination

    If the area above the ceiling is NOT an attic, position and C. Vent Termination secure the ceiling firestop on the ceiling side of the previously For Horizontal Terminations - To attach and secure the cut and framed hole. termination to the last section of horizontal vent refer to the Cinch Pipe and Termination Cap installation instructions.
  • Page 31 (See Note 2) U.S. (3 FT) Electrical Service J or K = VENT TERMINAL = AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED = 12" ....... clearances above grade, veran- = 3 ft. (U.S.A.) (See Note 1) da, porch, deck or balcony 6 ft.
  • Page 32 For Vertical Terminations - To locate the vent and install To seal the roof hole, and to divert rain and snow from the vent system: the vent sections: • Locate and mark the vent centerpoint on the underside • Attach a flashing to the roof using nails, and use a non- of the roof, and drive a nail through the centerpoint.
  • Page 33: Step 4. Positioning, Leveling, And Securing The Fireplace

    Step 4. Positioning, Leveling, and Securing Step 5. The Gas Control System the Fireplace WARNING: THIS UNIT IS NOT FOR USE WITH The diagram below shows how to properly position, level, SOLID FUEL. and secure the fireplace. IPI PILOT FLAME SENSOR NAILING TABS...
  • Page 34: Step 6. The Gas Supply Line

    Step 6. The Gas Supply Line NOTE: Have the gas supply line installed in accordance with local building codes by a qualified installer approved and/or licensed as required by the locality. (In the Commonwealth of Massachusetts installation USE A WRENCH ON must be performed by a licensed plumber or gas SHUT-OFF VALVE WHEN TIGHTENING...
  • Page 35: Step 8. Wiring The Fireplace

    BULB SOCKET IGNITION MODULE 3 VAC INTERMITTENT ASSEMBLY (3) PILOT IGNITOR PLUG-IN 3V TRANSFORMER ON/OFF WALL SWITCH FLAME SPARKER/ SENSOR IGNITION MODULE (3V) GROUND TO FIREPLACE CHASSIS LOW VOLTAGE VALVE SEE NOTE 1 GROUND REMOTE NEUTRAL CONTROL SCALE 1/1 TERMINAL BLOCK ELECTRONIC EMBERS FLAME ON/OFF Note: An alternate electronic ember...
  • Page 36 NOTE: If any of the original wire as supplied with the appliance must be replaced, it must be replaced with the type 105 C rated wire. TEMPERATURE SENSOR SWITCH JUNCTION SPEED CONTROL (RHEOSTAT) DETAIL A SCALE 1/1 SEE DETAIL A Figure 35.
  • Page 37: Step 9. Finishing

    CAUTION: IF JOINTS BETWEEN THE FIN- Step 9. Finishing ISHED WALLS AND THE FIREPLACE SUR- Figures 38 and 39 show the minimum vertical and corresponding ROUND (TOP AND SIDES) ARE SEALED, A maximum horizontal dimensions of fireplace mantels or other 300°...
  • Page 38: Step 10. Installing Trim, Logs & Ember Material

    Attachment of Lower Louver Assembly Step 10. Installing Trim, Logs & Ember Material This unit is shipped with the lower louver assembly attached Installing the Trim midway up the glass frame to assist in the set-up of the Combustible materials may be brought up to the specified unit.
  • Page 39: Placing The Ember Material

    Placing the Ember Material Optional Ember Light Kit (Emberkit-MS) Ember material is shipped with this gas fireplace. The bag Ember Light Bulb Replacement labeled Glowing Ember (050-721) is standard glowing em- In the lower gas valve compartment you will find three ac- ber material.
  • Page 40: Step 11. Before Lighting The Fireplace

    A small amount of air will be in the gas supply lines. When Step 11. Before Lighting the Fireplace first lighting the fireplace, it will take a few minutes for the Before lighting the fireplace, be sure to do the following: lines to purge themselves of this air.
  • Page 41: Maintaining And Servicing Your Fireplace

    Maintaining and Servicing Your Fireplace Fireplace Maintenance Although the frequency of your fireplace servicing and main- tenance will depend on use and the type of installation, you should have a qualified service technician perform an appli- ance check-up at the beginning of each heating season. See the table below for specific guidelines regarding each fireplace maintenance task.
