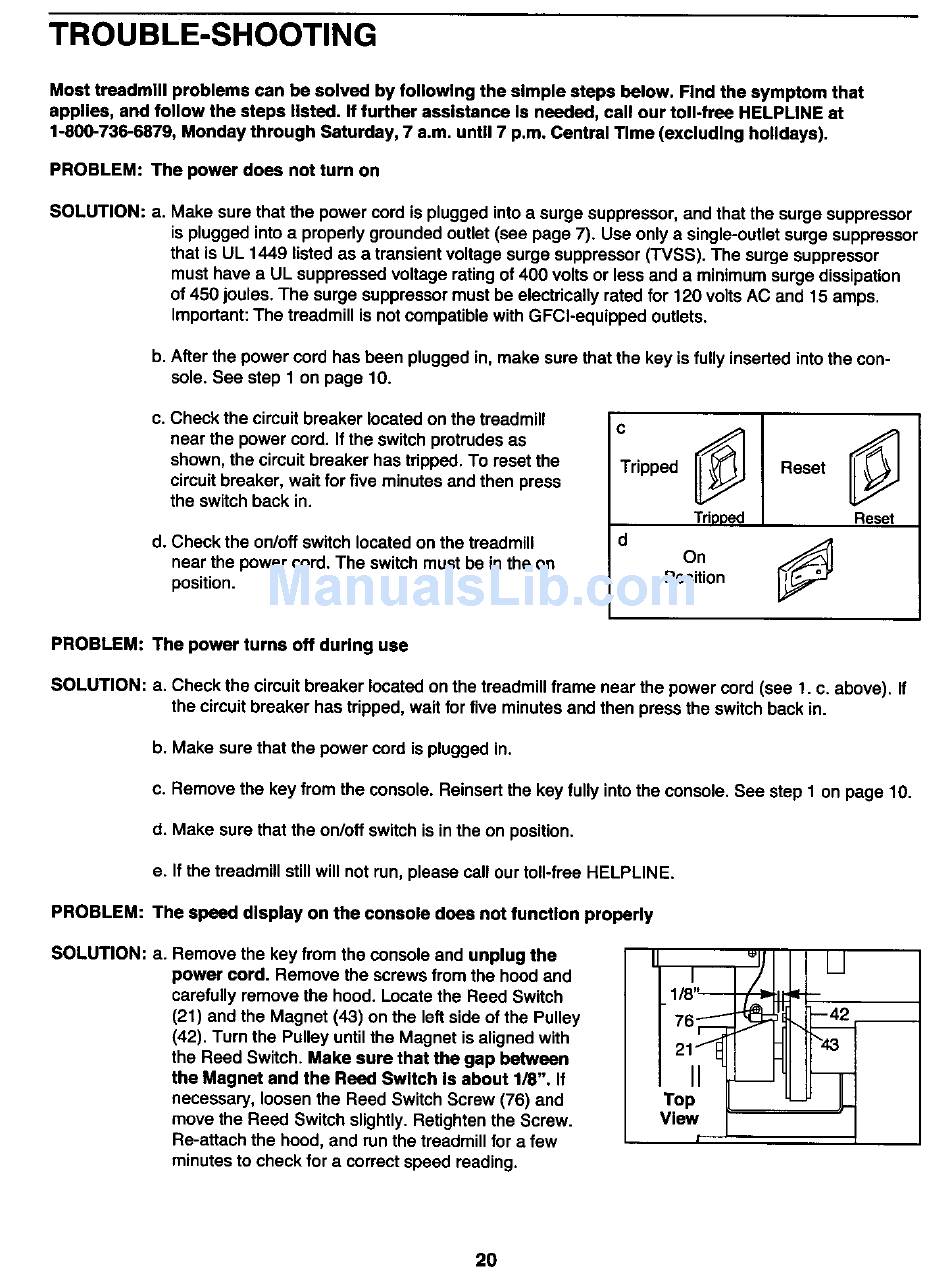

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance Is needed, call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor,and that the surge suppressor
is plugged intoa properlygrounded outlet (see page 7). Use only a single-outletsurge suppressor
that is UL 1449 listed as a transientvoltage surge suppressor (TVSS). The surge suppressor
must have a UL suppressedvoltage rating of 400 volts or less and a minimumsurge dissipation
of 450 joules. The surge suppressor must be electricallyrated for 120 volts AC and 15 amps.
Important:The treadmill is not compatiblewith GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted intothe con-
sole. See step 1 on page 10.
c. Check the circuitbreaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
cimuitbreaker, wait for five minutes and then press
the switch back in.
d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on
position.
C
Tripped ,,_ Reset
Tripped Reset
On
Position
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmillframe near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutesand then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully intothe console. See step I on page 10.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill stillwill not run, please call our toll-free HELPLINE.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord. Remove the screws from the hood and
carefully remove the hood. Locate the Reed Switch
(21) and the Magnet (43) on the left side of the Pulley
(42). Turn the Pulley until the Magnet is aligned with
the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8". If
necessary, loosen the Reed Switch Screw (76) and
move the Reed Switch slightly.Retighten the Screw.
Re-attach the hood, and run the treadmill for a few
minutes to check for a correctspeed reading.
/ 76 "-'_"
Vle l
20
